Description

Brief Product Description

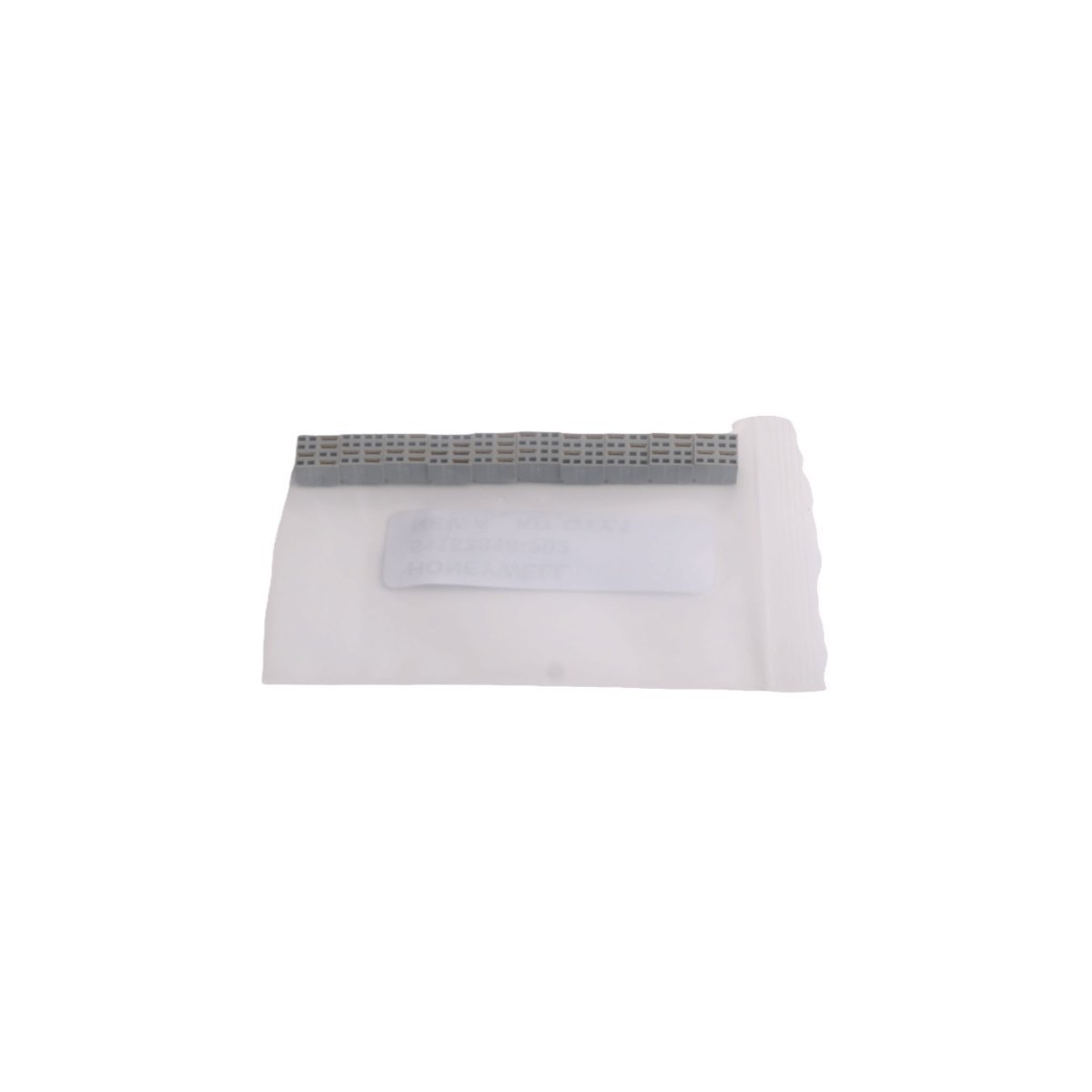

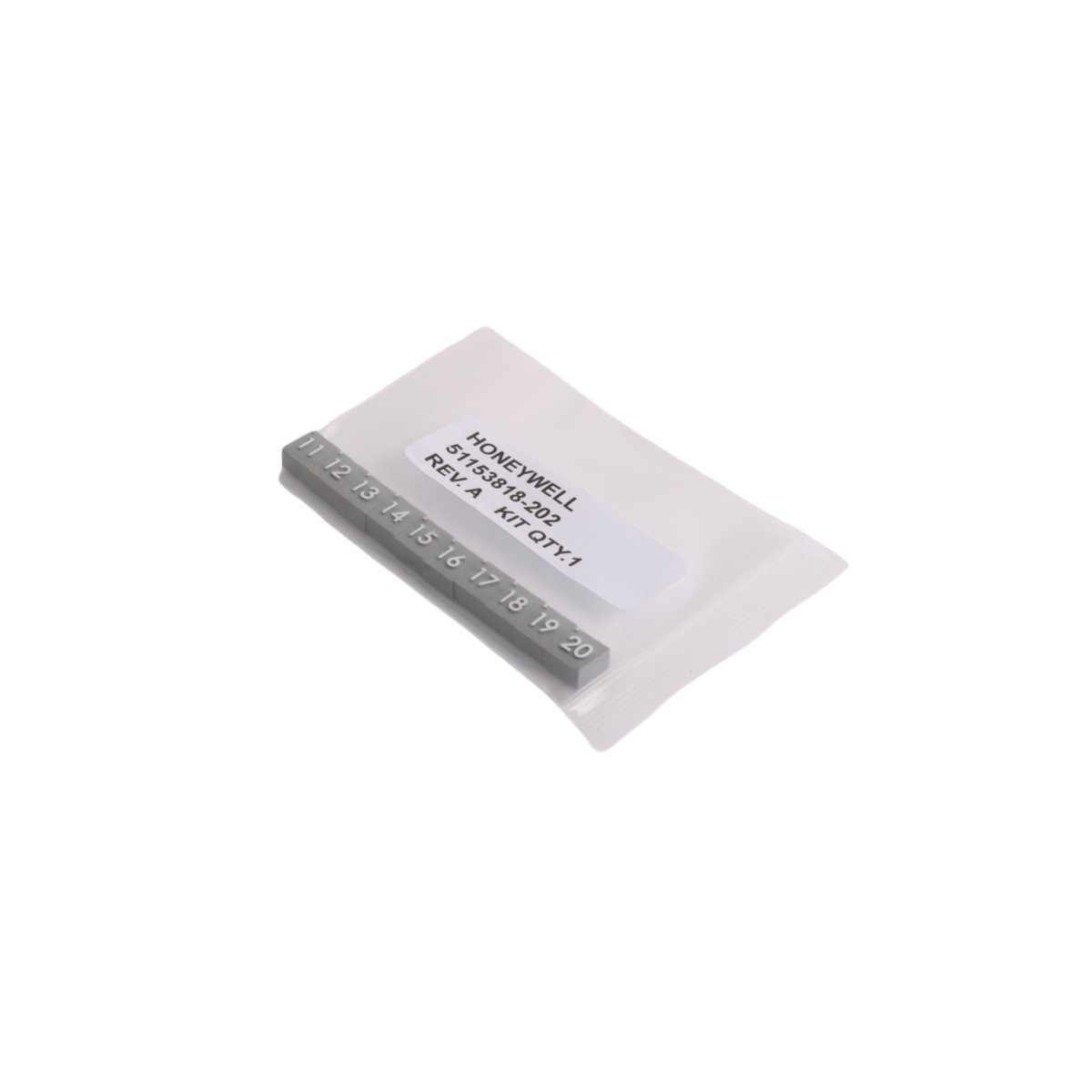

The Honeywell 51153818-202 is a high-precision node address jumper kit designed for the Experion PKS C300 controller platform. It functions as a critical 16-channel digital input interface, providing hardware-level address configuration and optically isolated signal monitoring for industrial DCS networks.

​Product Description

Hardware-Level Node Configuration and Addressing

The Honeywell 51153818-202 provides the foundational hardware addressing required for Experion PKS C300 controller environments. By utilizing this jumper kit, system engineers can definitively set node identities within a Distributed Control System (DCS) rack. This manual hardware configuration ensures that the controller platform identifies and communicates with specific I/O segments without the risks associated with software-only addressing. The module integrates seamlessly into the backplane architecture, facilitating a stable and permanent address reference that remains consistent even after system reboots or power cycles.

High-Density Digital Input and Isolation

Beyond its primary addressing function, the 51153818-202 operates as a sophisticated 16-channel digital input module. To protect the central processing unit from field-side electrical surges, Honeywell incorporates independent optical isolation for every channel. This architectural choice effectively eliminates cross-talk and common-mode noise, which are frequent issues in high-voltage industrial settings. Consequently, the module can simultaneously monitor discrete signals from diverse sources—such as limit switches, pressure sensors, and emergency stops—while maintaining absolute signal purity and accuracy.

Real-Time Performance for Safety-Critical Systems

The Honeywell 51153818-202 excels in time-sensitive applications, boasting a rapid response time of less than 1ms per channel. This low-latency performance allows the DCS to execute safety interlocks and process shutdowns with millisecond precision. Furthermore, the module supports hot-swapping capabilities, which means technicians can replace or service the unit without de-energizing the entire controller rack. By allowing for continuous operation during maintenance, this jumper kit helps facilities avoid the massive costs associated with unplanned production downtime in 24/7 industrial processes.

Technical Specifications Table
