Description

Brief Product Description

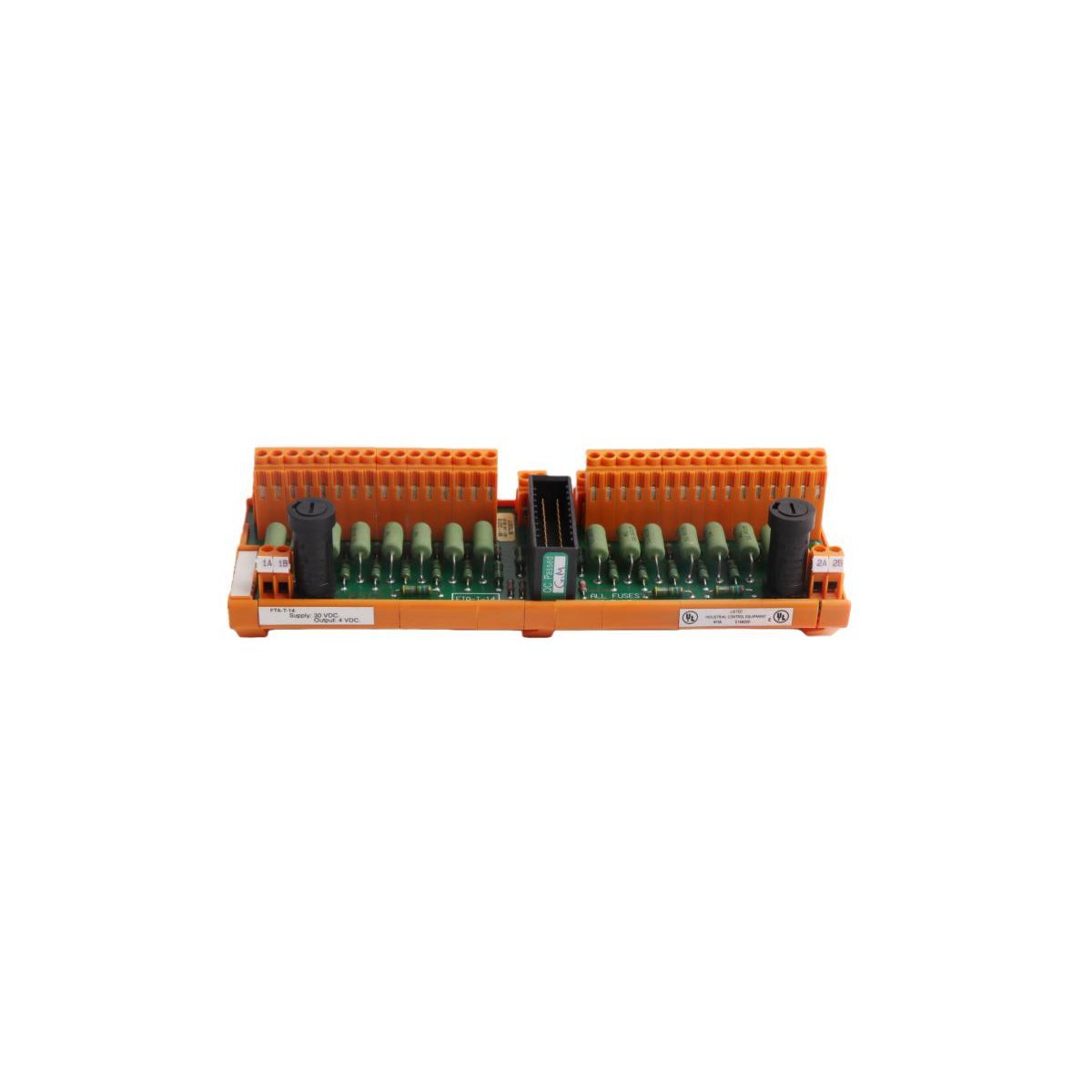

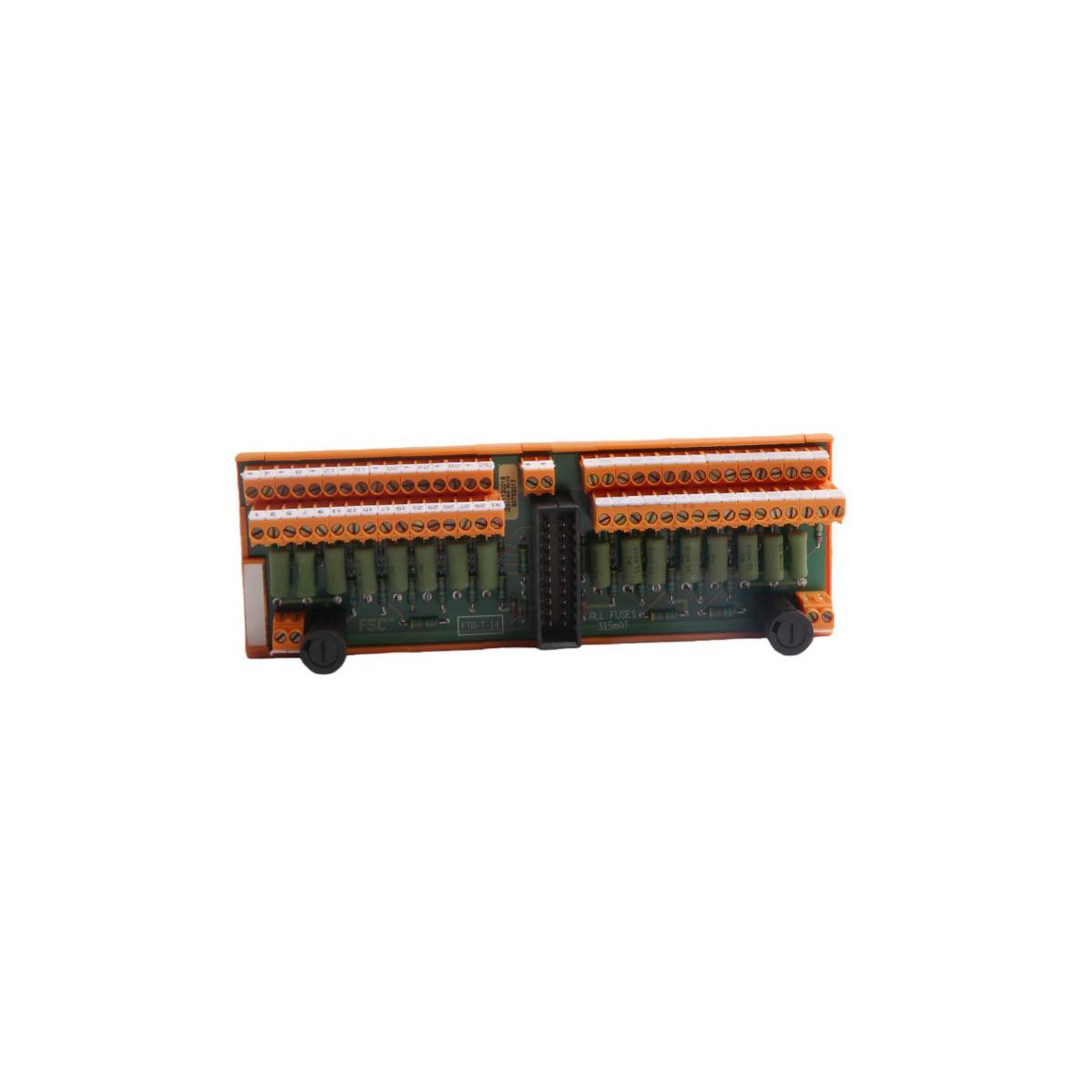

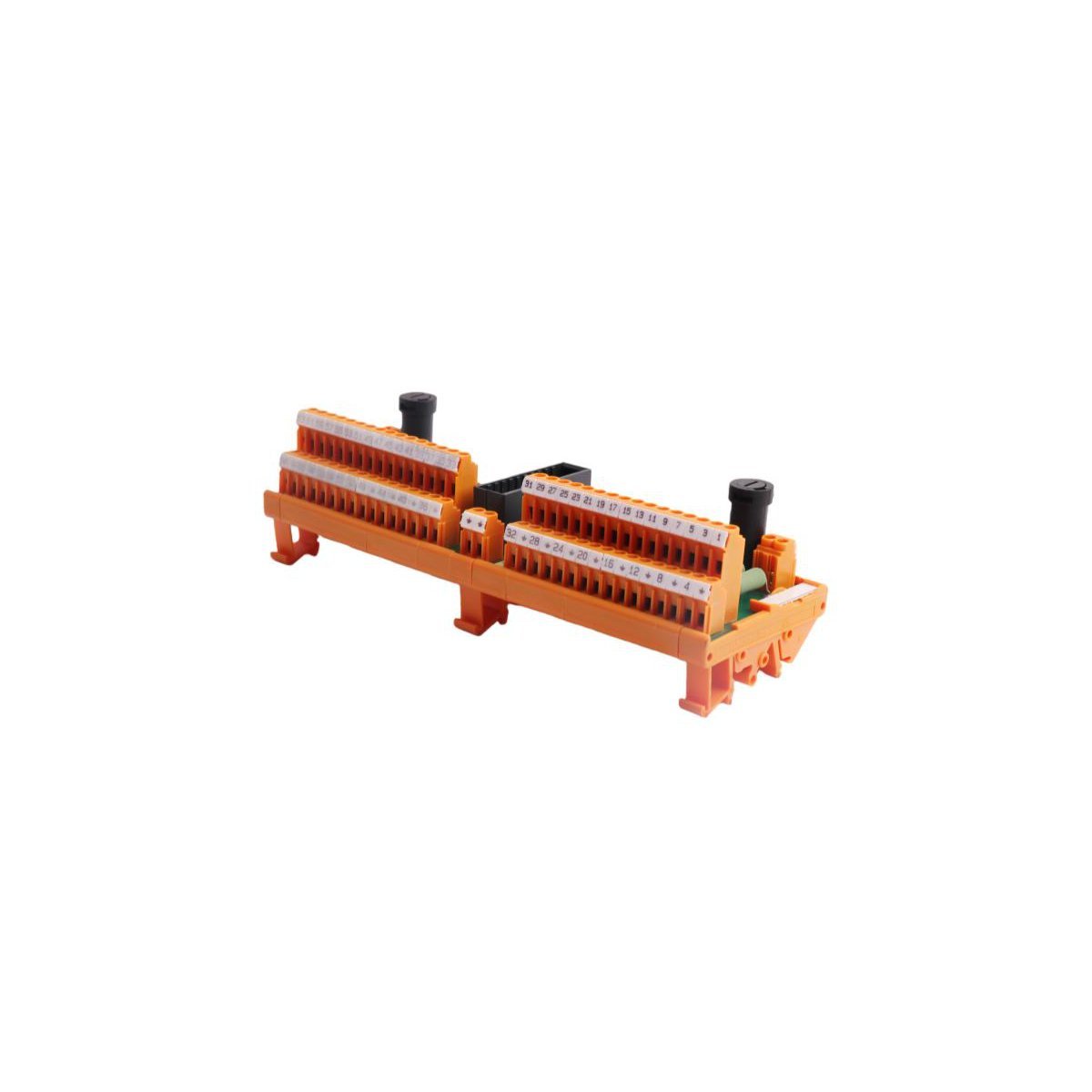

The Honeywell FTA-T-14 is a high-performance digital input module engineered for the Fail Safe Control (FSC) system, providing four discrete channels for reliable signal acquisition. It supports multi-voltage operations including 24 VDC and 120 VAC, making it an essential interface for safety-critical industrial automation.

​Product Description

High-Speed Signal Acquisition and Processing

The Honeywell FTA-T-14 functions as a high-speed gateway for discrete data within the Honeywell Fail Safe Control (FSC) architecture. By supporting an output frequency of up to 30kHz, this module ensures that the control system captures rapid state changes with extreme precision. This capability is vital for high-speed data acquisition and real-time process monitoring where even millisecond delays can impact operational safety. The module processes incoming signals from field devices and translates them into actionable logic for the DCS, facilitating seamless machine automation and building management.

Multi-Voltage Flexibility and Universal Integration

Engineered for versatility, the FTA-T-14 accommodates diverse industrial power environments by supporting both 24 VDC and 120 VAC input standards. This flexibility allows engineers to standardize on a single module type across various sections of a plant, regardless of local field voltage requirements. Furthermore, the unit is rated for operating voltages up to 220V, providing a wide safety margin for voltage fluctuations. Its compatibility with the broader FTA-T series ensures that users can scale their I/O subsystems easily while maintaining a consistent hardware footprint within the control cabinet.

Rugged Design and Field Reliability

Honeywell constructed the FTA-T-14 to withstand the thermal and electrical stresses typical of heavy industrial processing. The module utilizes secure screw terminal connections to prevent signal loss caused by vibration or mechanical shock. For immediate onsite diagnostics, integrated LED indicators provide real-time visual feedback on the status of each of the four discrete channels. This user-friendly design significantly simplifies troubleshooting and routine maintenance. Because the module requires no specialized periodic calibration, it offers a low total cost of ownership for long-term safety-instrumented system applications.

Technical Specification Overview
