Description

Brief Product Description

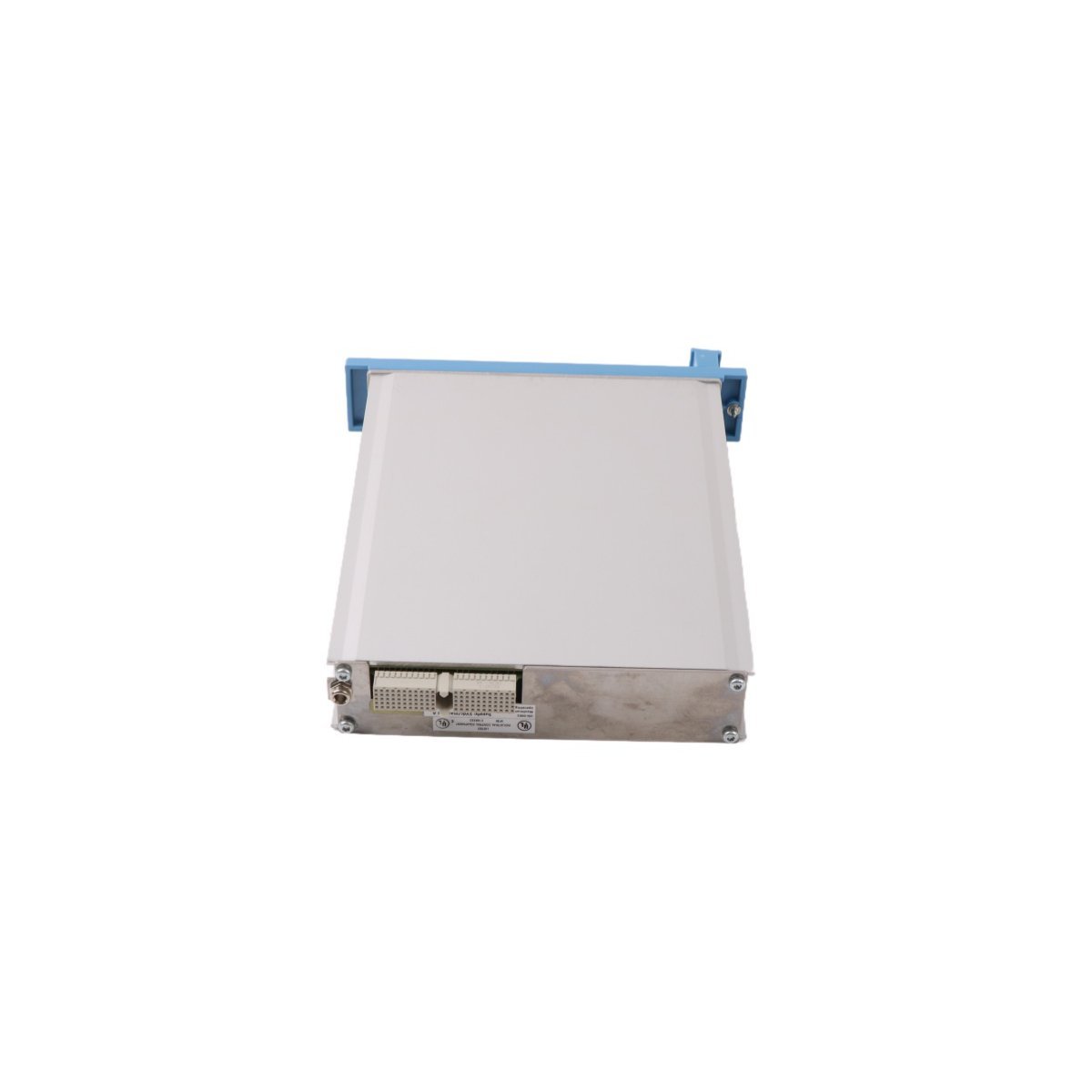

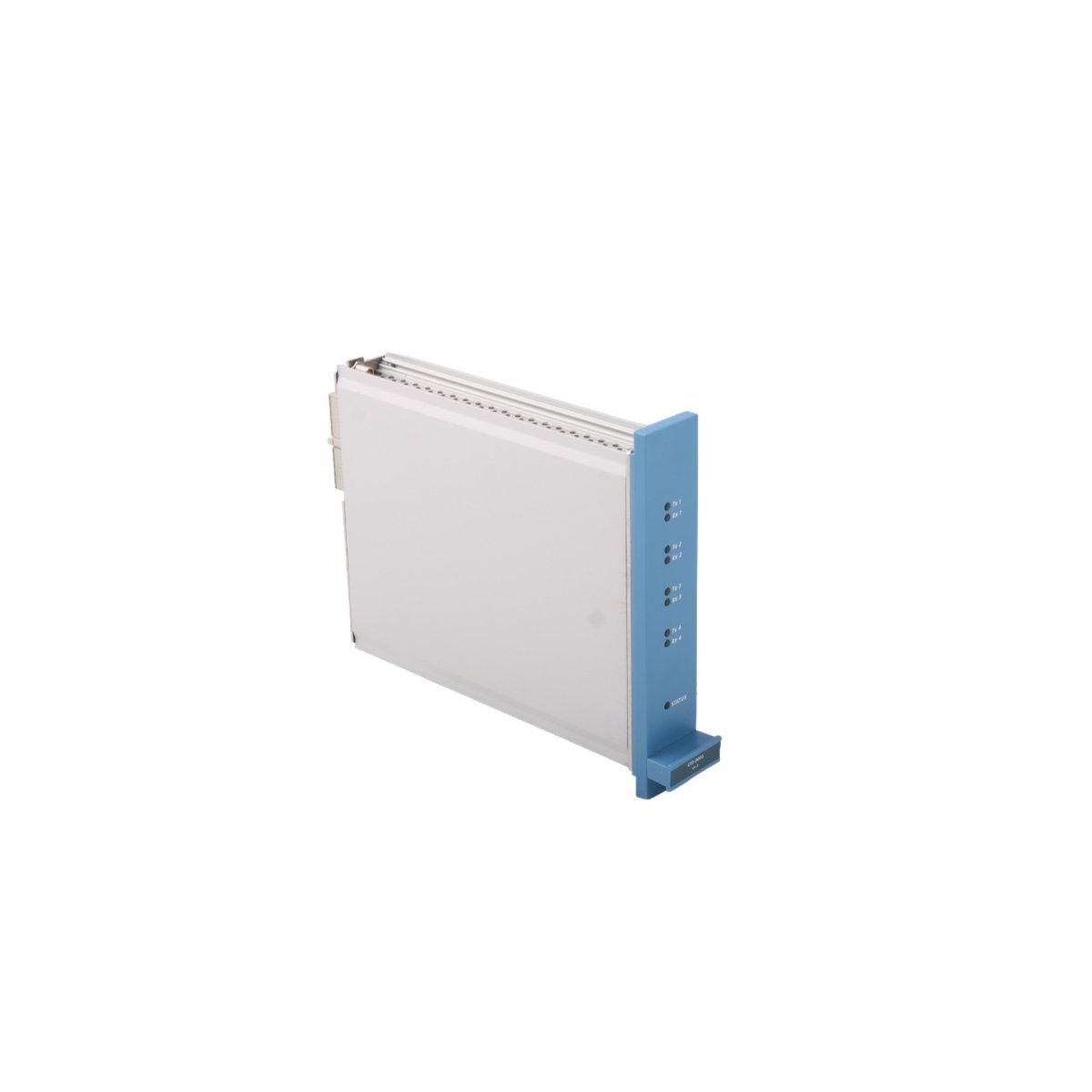

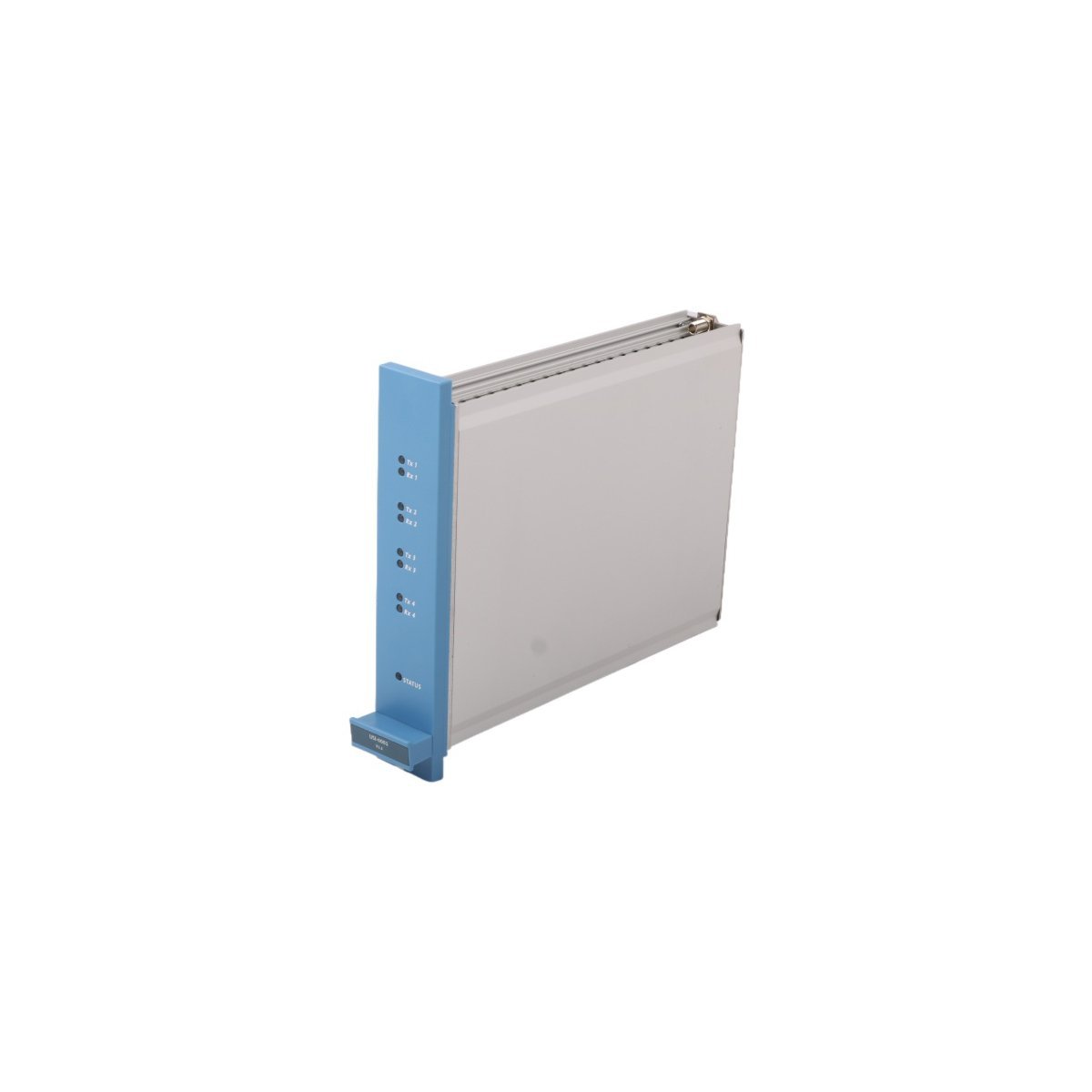

The Honeywell CV-SVPWFB is an advanced logic execution module for the PlantCruise automation platform, providing a library of configurable function blocks for complex process control. It enables precise, high-speed processing of analog and digital signals, serving as a critical scheduler for sophisticated automation strategies.

​Product Description

High-Speed Logic Processing and Execution

The Honeywell CV-SVPWFB functions as a primary logic engine within the PlantCruise DCS environment, specifically engineered to manage complex control algorithms with extreme precision. This module operates with a rapid 100ms configurable execution cycle, ensuring that process variables are addressed in real-time. By utilizing 32-bit floating-point arithmetic, the CV-SVPWFB performs highly accurate mathematical calculations, which is essential for maintaining stability in sensitive industrial loops. This high-performance scheduler allows engineers to deploy sophisticated control strategies that require rapid response times and complex data manipulation.

Scalable I/O Management and Monitoring

System integrators utilize the CV-SVPWFB to oversee substantial I/O densities while maintaining streamlined cabinet architecture. This module supports an extensive capacity of 64 analog inputs and 128 digital inputs, alongside 32 analog and 64 digital outputs. Beyond simple signal routing, the module features comprehensive diagnostic capabilities, including 256 independent configurable alarms. These alarms provide immediate notification of process deviations, while eight integrated trend buffers—each capable of holding 1,000 data samples—ensure that historical performance data is captured for auditing and optimization purposes.

Integrated System Compatibility

Designed for seamless integration, the Honeywell CV-SVPWFB requires the CV-DBASE1 base system to achieve full functionality. Its compact design, weighing only 0.3 kg, allows for high-density mounting within control enclosures without excessive heat buildup. The module significantly simplifies the development phase of automation projects by offering ready-to-use function blocks that reduce custom coding requirements. Furthermore, its adherence to international safety and quality standards ensures that it provides a robust, long-term solution for process control, safety monitoring, and distributed networking applications.

Technical Specifications Table
