Description

Brief Product Description

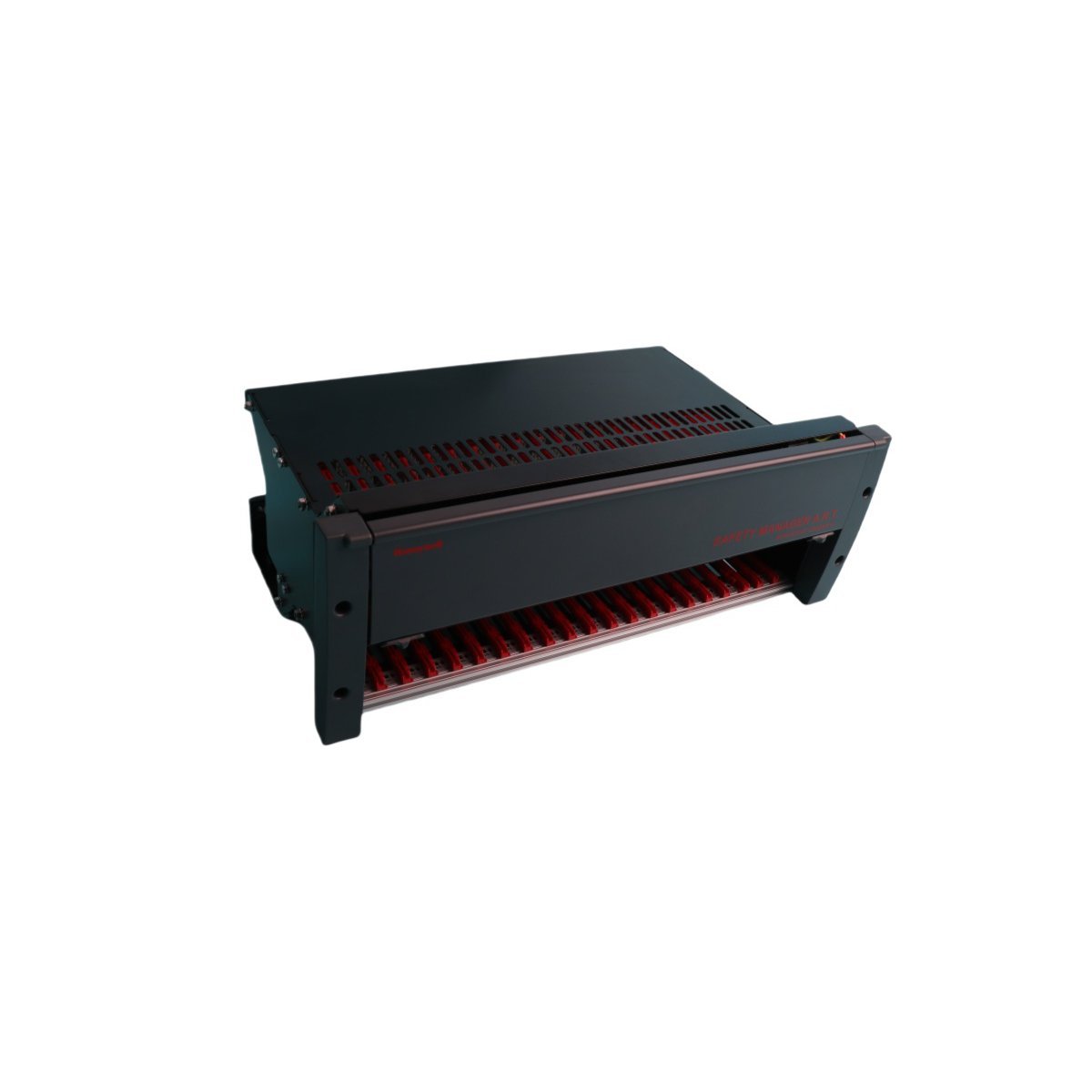

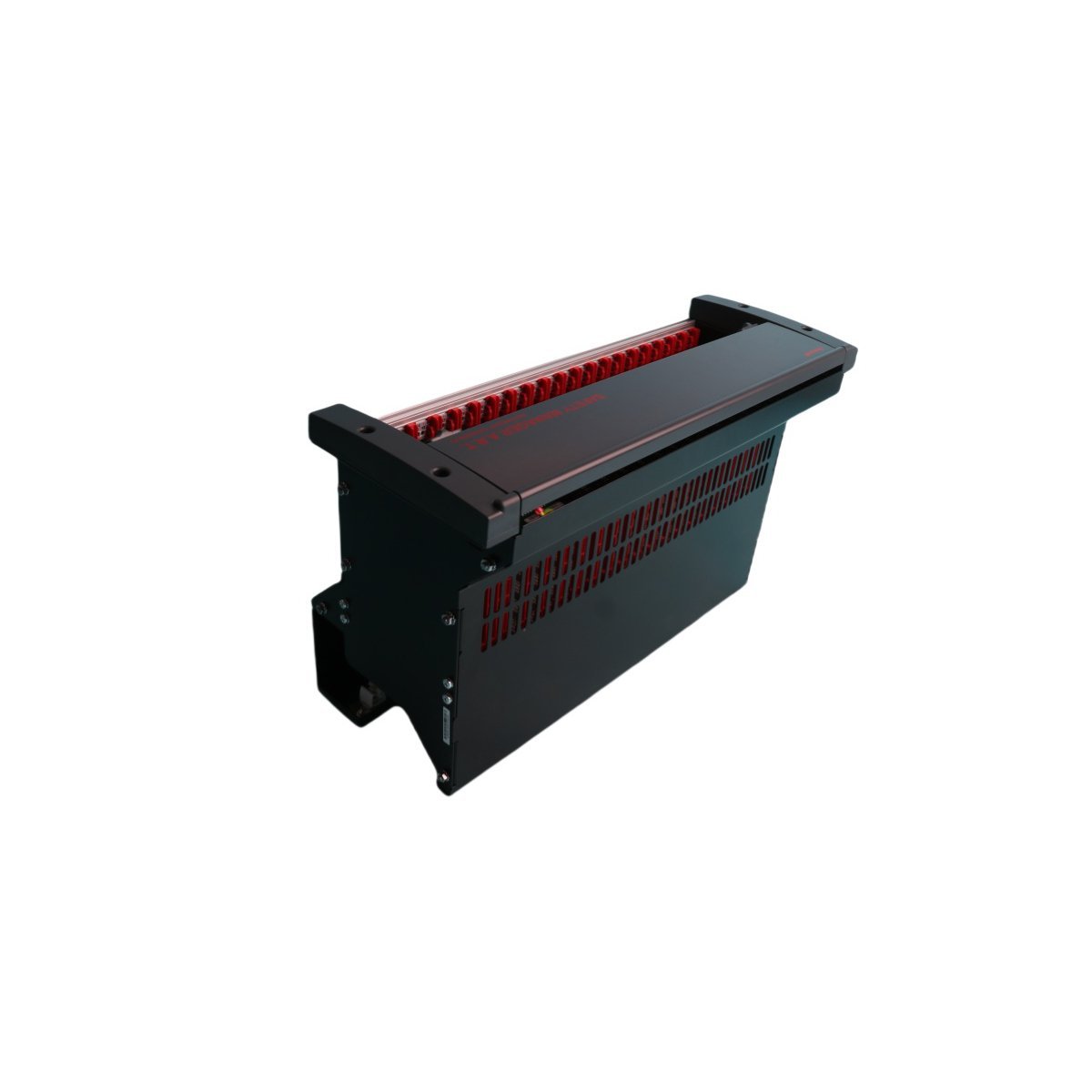

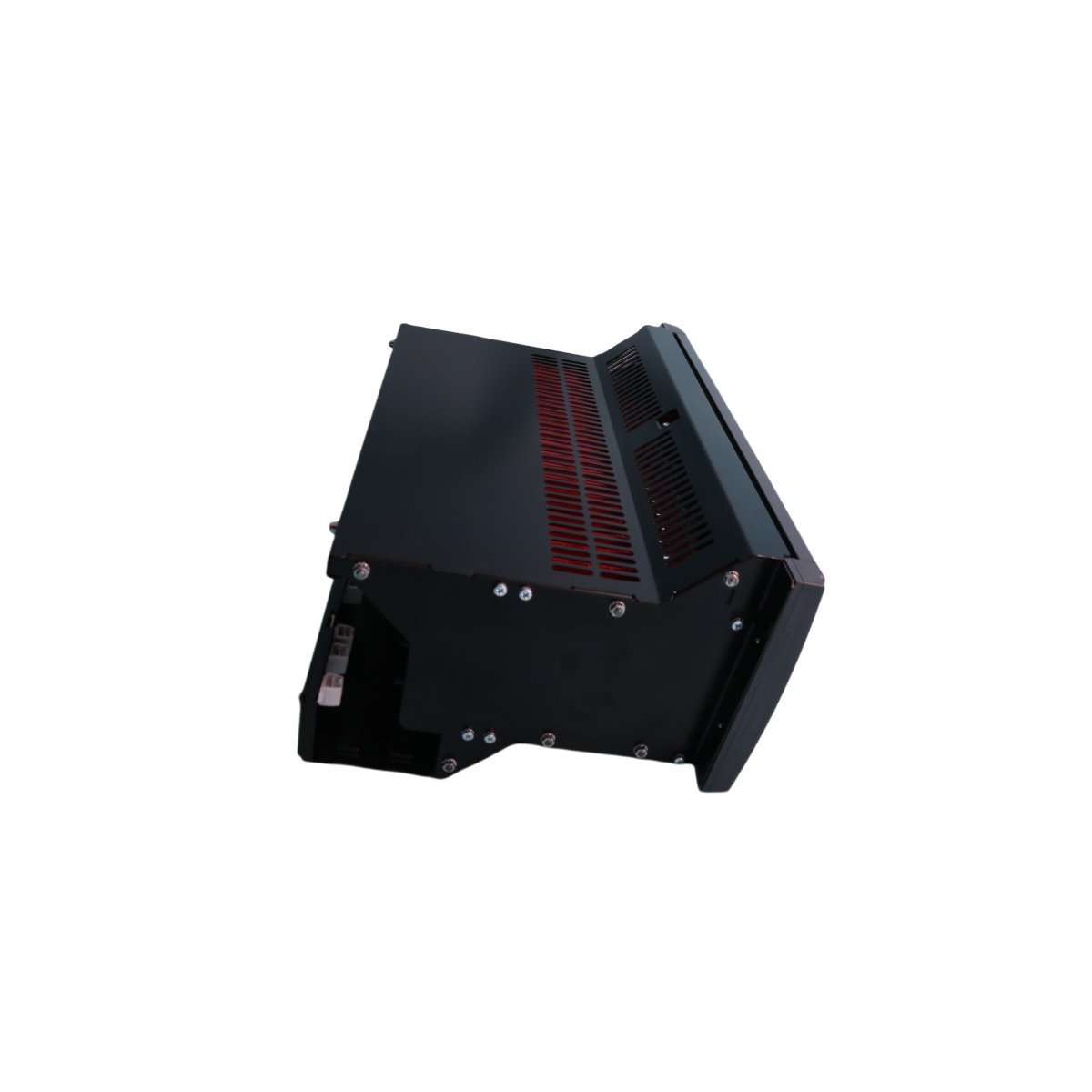

The Honeywell FC-IOCHAS-0003R is a specialized, high-availability chassis designed to house and support redundant I/O modules within the Honeywell Safety Manager system. It provides the essential physical and electrical infrastructure to ensure continuous operation of critical safety-instrumented functions in industrial environments.

​Product Description

Mission-Critical Redundancy Infrastructure

The Honeywell FC-IOCHAS-0003R serves as the structural and electronic backbone for redundant I/O configurations in the Honeywell Safety Manager platform. This chassis facilitates the high-availability requirements of modern safety-instrumented systems (SIS) by providing a secure interface for both analog and digital modules. Because safety systems cannot afford single points of failure, this unit ensures that redundant module pairs maintain constant communication and synchronized power distribution. The design prioritizes signal integrity and mechanical stability, which allows for seamless failover transitions during maintenance or module faults.

Versatile Power Management and Distribution

Engineered to accommodate a broad spectrum of industrial power standards, the FC-IOCHAS-0003R manages multiple DC voltage inputs with precision. It supports internal power rails including 5 VDC for logic circuits and 24 VDC, 48 VDC, or 110 VDC for field-side device loops.¹ This flexibility allows engineers to integrate the chassis into various existing plant power architectures. The unit distributes power efficiently across the backplane, supporting high-current demands while maintaining thermal equilibrium. By managing power centrally, the chassis reduces wiring complexity and enhances the overall reliability of the I/O subsystem.

Industrial Resilience and Safety Compliance

The Honeywell FC-IOCHAS-0003R thrives in demanding process environments where high temperatures and electromagnetic noise are common.² It operates reliably in ambient temperatures up to 70°C, ensuring that safety logic remains functional even in hot equipment rooms. Its heavy-duty construction protects sensitive internal bus connections from vibration and physical stress. Furthermore, the module adheres to international safety standards, making it a trusted component for emergency shutdown (ESD) systems, fire and gas (F&G) monitoring, and critical process control in the oil, gas, and petrochemical sectors.

Technical Specification Overview
