Product Overview

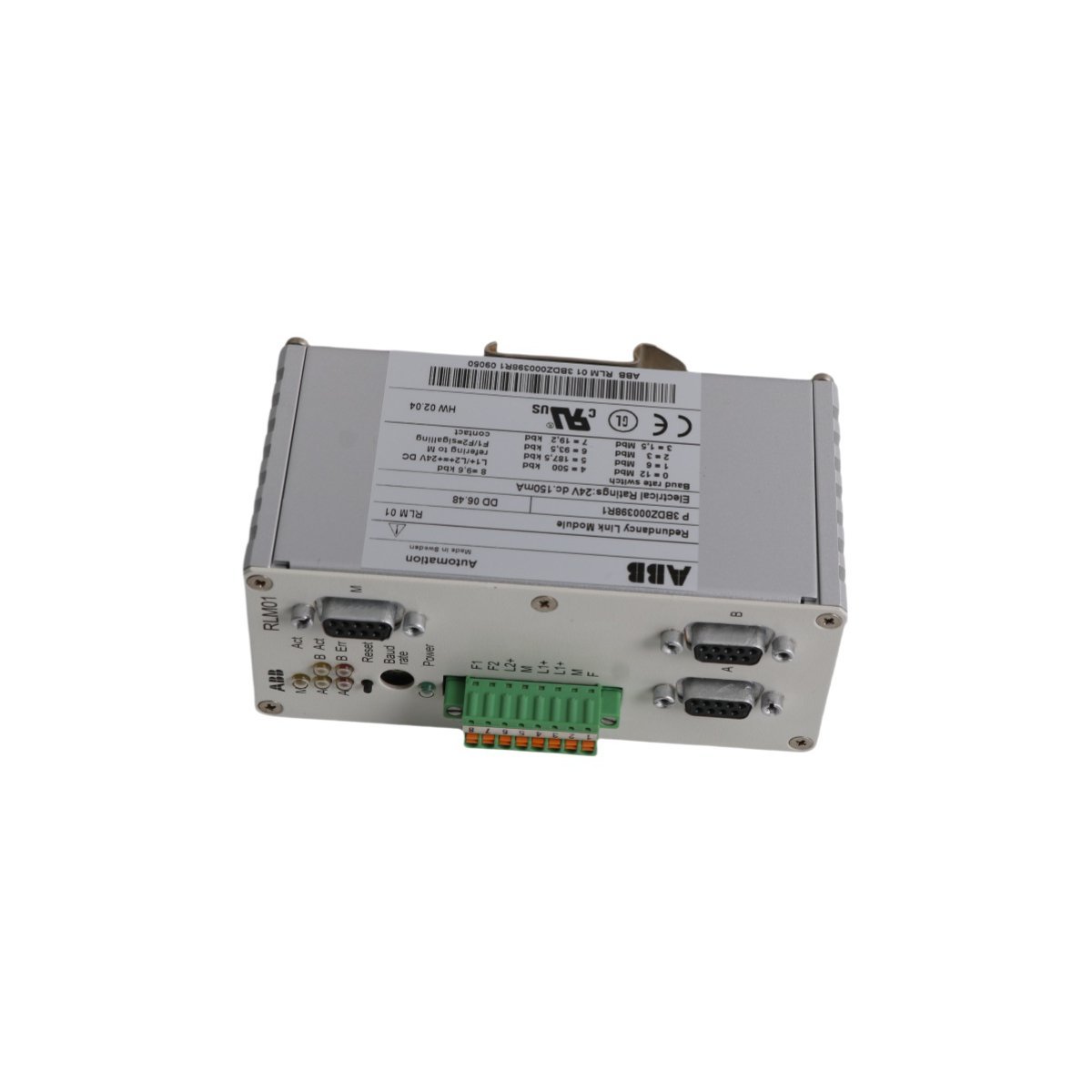

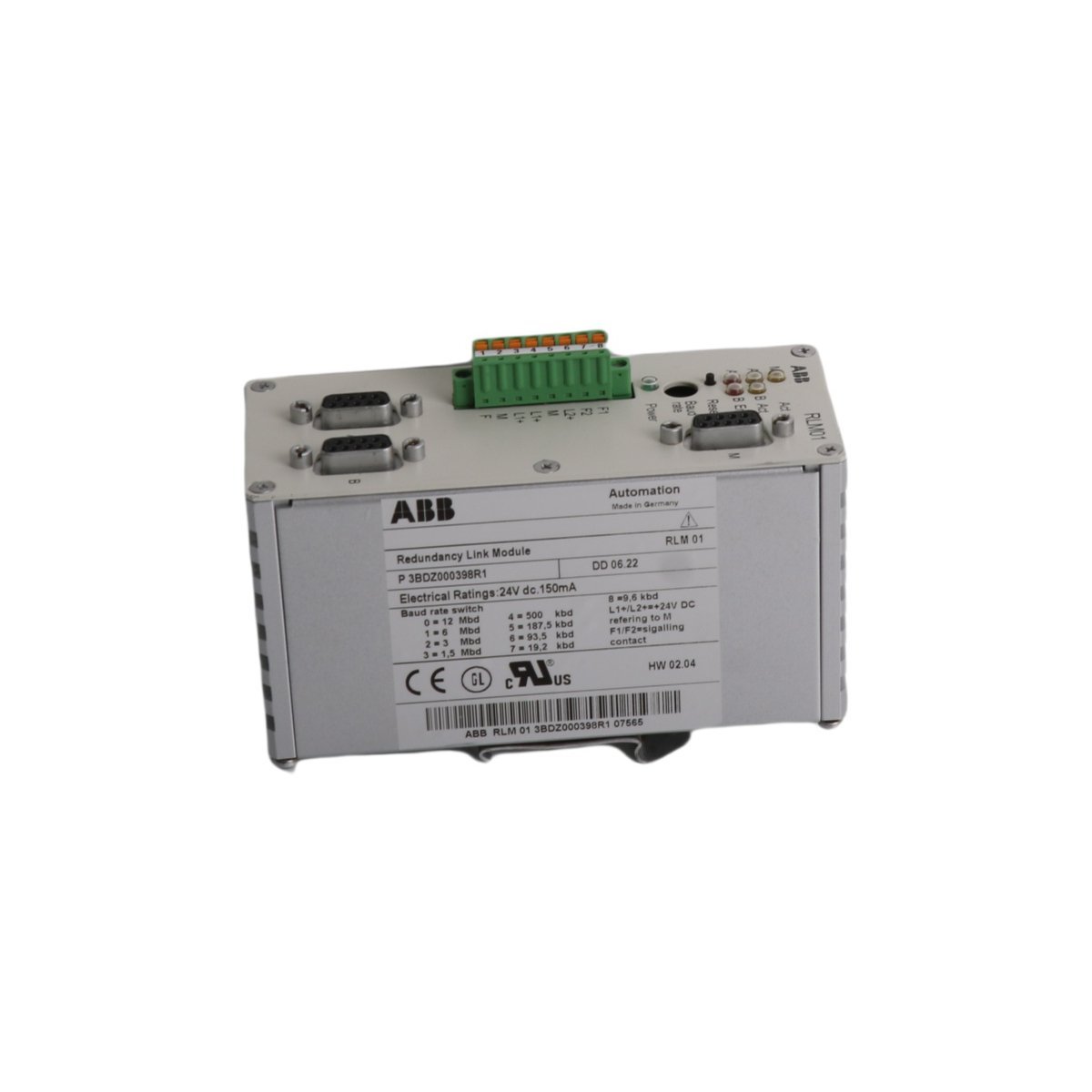

The ABB RLM01 3BDZ000398R1 is a high-performance redundancy link module designed to establish fail-safe PROFIBUS DP networks by managing multiple RS485 communication paths. It functions as an intelligent repeater that automatically switches between redundant bus lines to ensure continuous data flow in mission-critical automation environments.

Advanced Network Redundancy Management

The RLM01 3BDZ000398R1 significantly enhances the availability of PROFIBUS networks by providing a bridge between non-redundant and redundant bus segments. Featuring three independent RS485 interfaces, the module facilitates the connection of a single PROFIBUS line (Terminal M) to two redundant lines (Terminals A and B). The device operates by monitoring the first character of every telegram; consequently, it automatically routes data from the highest quality path to the target terminal. If the primary line experiences signal degradation or interruption, the module transitions to the healthy redundant path in real-time, effectively preventing system-wide communication failures.

Signal Regeneration and Diagnostics

Beyond its routing capabilities, the ABB RLM01 acts as a sophisticated signal repeater. It actively regenerates both the amplitude and the shape of incoming data telegrams, which allows for extended network distances and improved noise immunity. The module supports a full range of transmission speeds from 9.6 kBit/s up to 12 MBit/s, strictly adhering to DIN 19245 standards. To assist maintenance teams, the front panel features intuitive LED indicators that display the status of each line. Furthermore, a potential-free alarm contact enables the integration of hardware alerts into the central DCS, ensuring that operators can respond to line faults before they escalate into process shutdowns.

Ruggedized Construction for Industrial Use

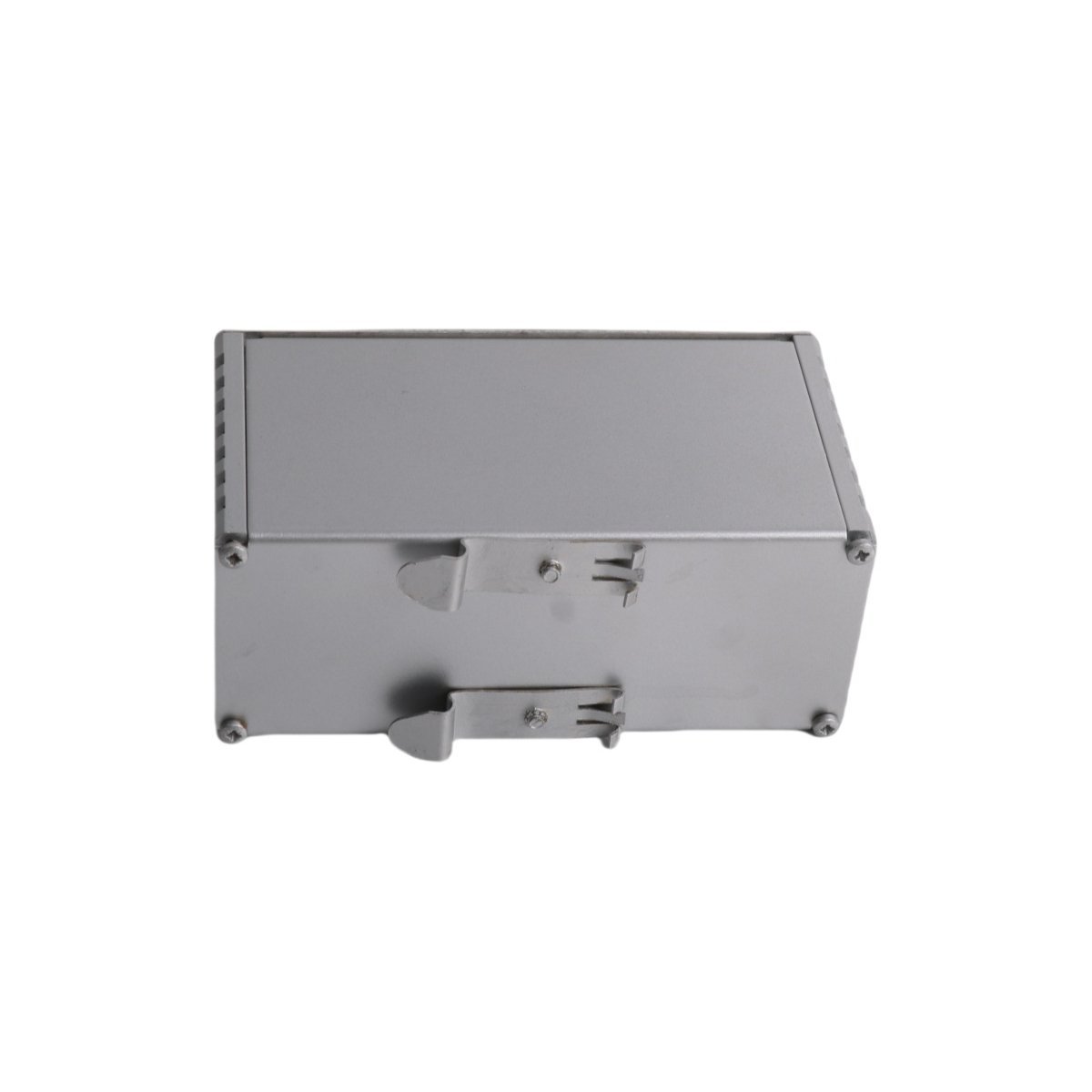

ABB engineered the 3BDZ000398R1 for high-reliability applications, including marine and offshore environments where it holds Germanic Lloyd (GL) certification. The module supports dual 24VDC power inputs, which allows for redundant power sourcing with automatic load balancing. This design ensures that the communication link remains active even if one power supply fails. While the module is built for durability, users should implement external surge protection filters in environments with high electromagnetic interference to maintain peak EMC performance. Its compact form factor and DIN-rail mounting capability make it an ideal fit for modern, high-density control cabinets.
