Product Overview

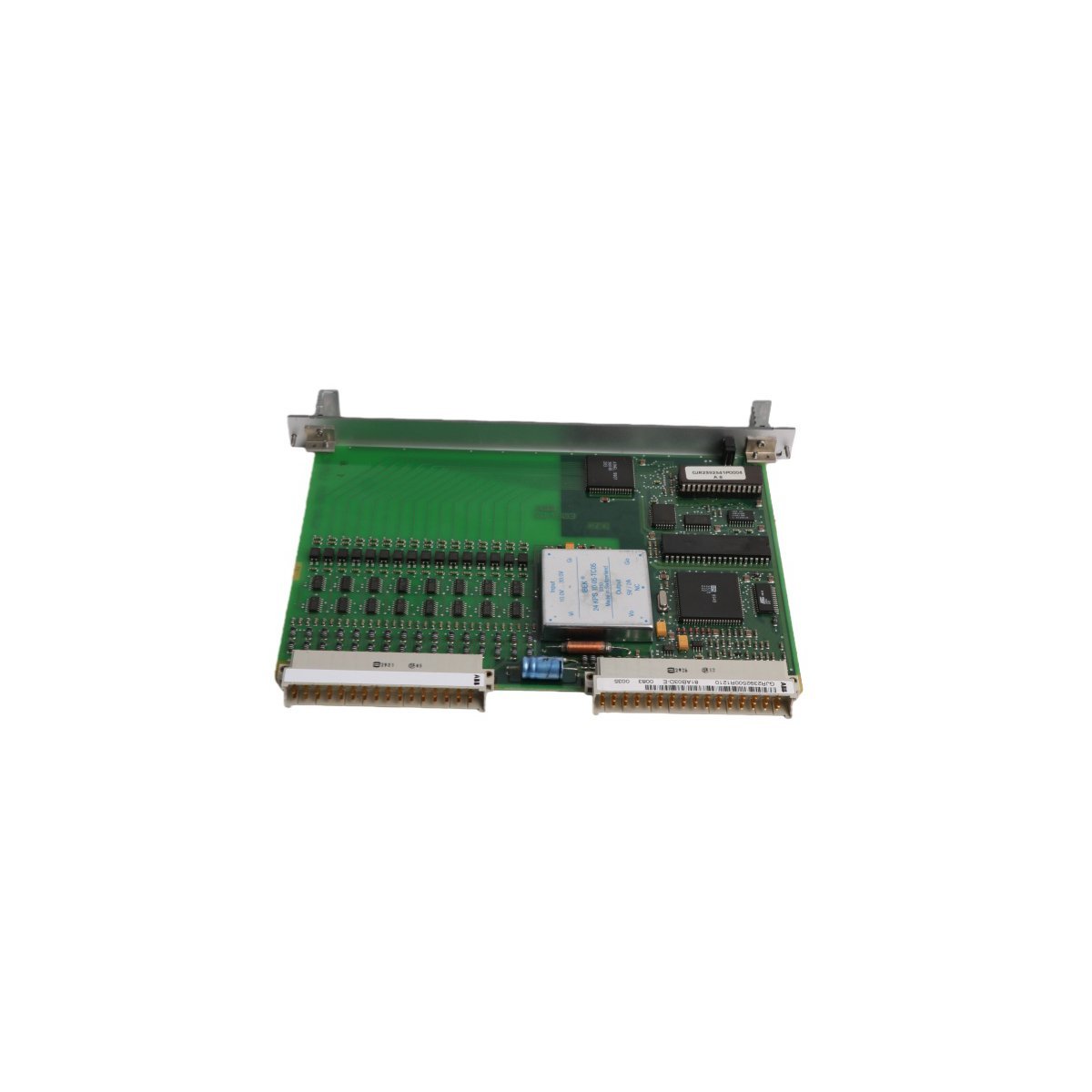

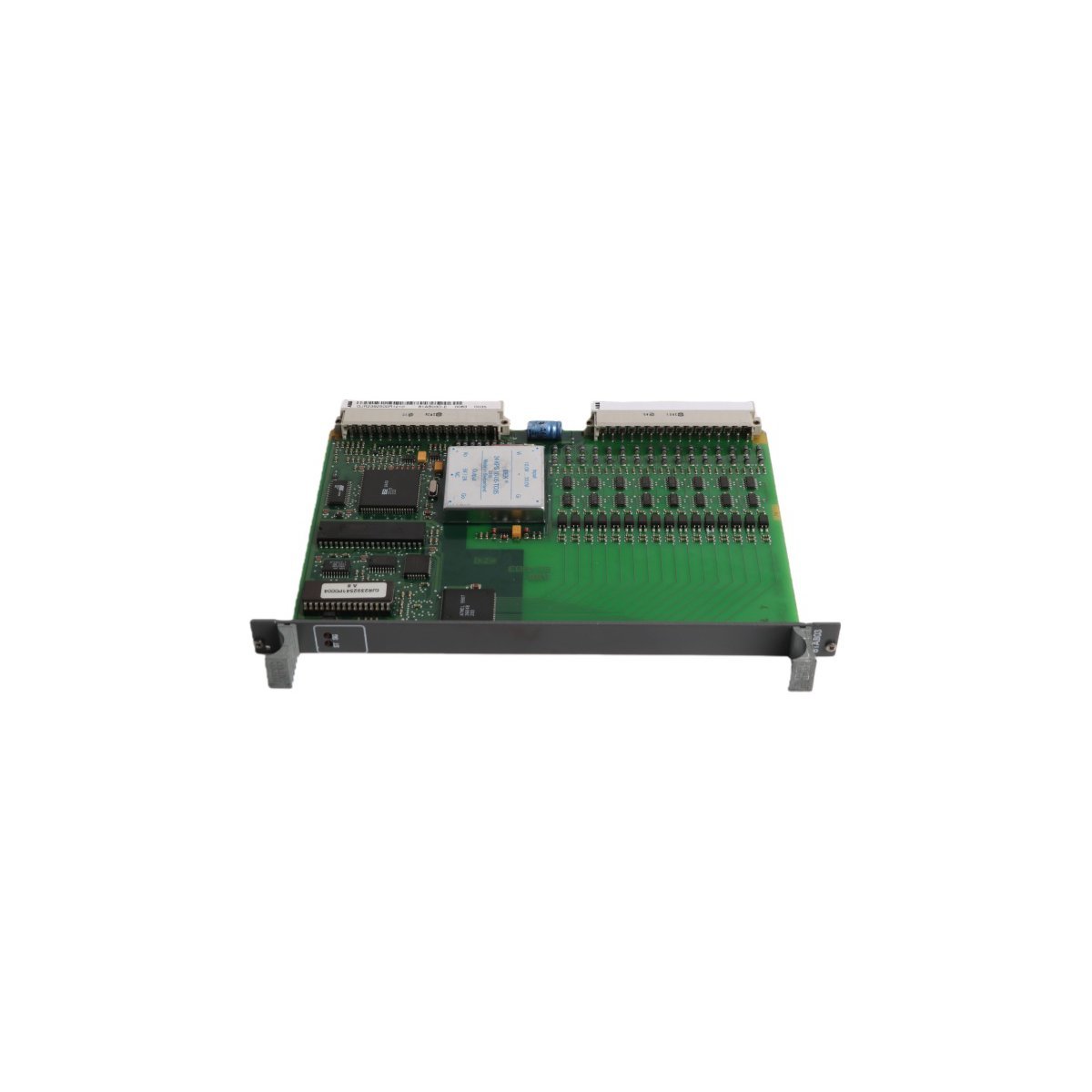

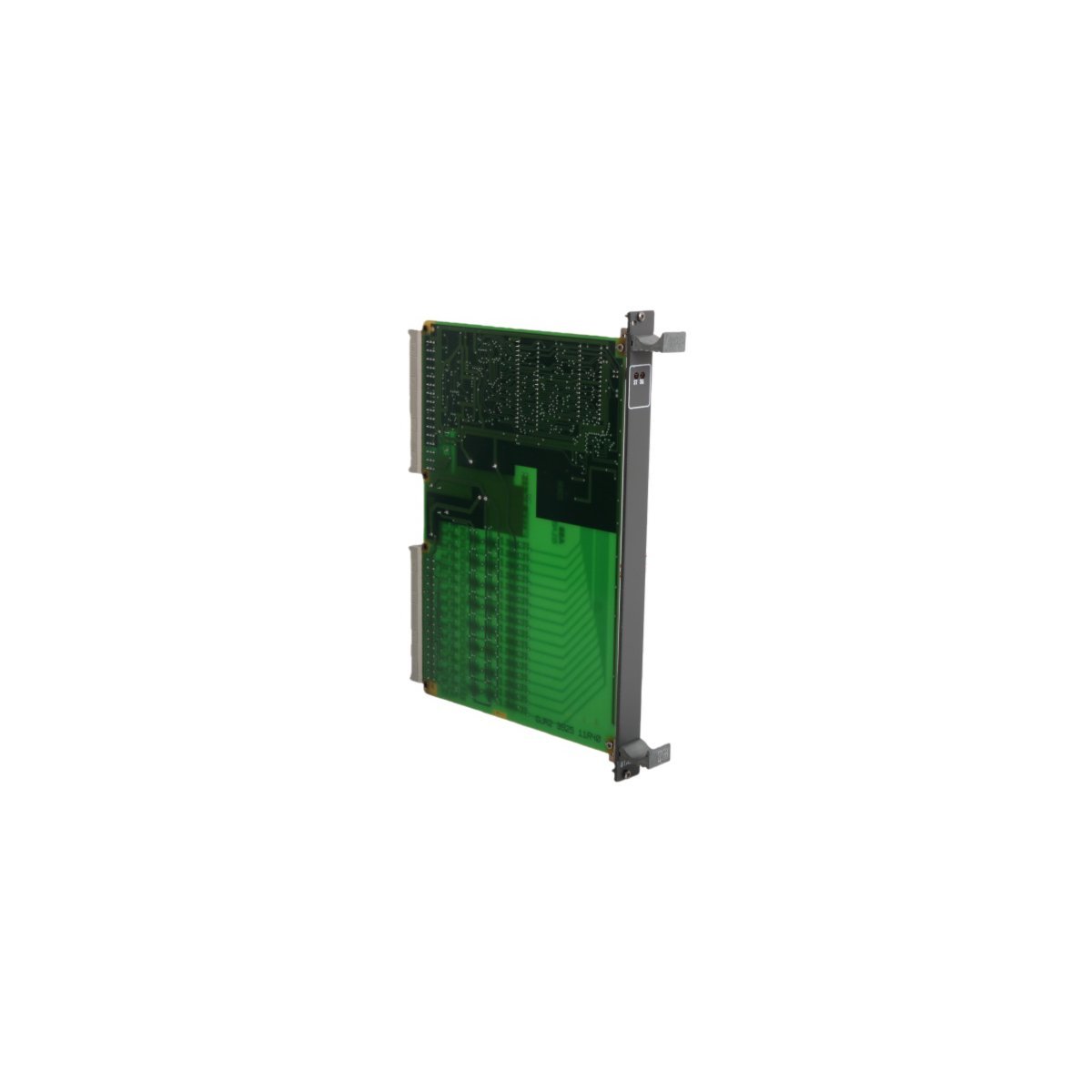

The ABB GJR2329800R0100 88UM01A is a high-integrity security key board engineered for the Procontrol P14 system to manage critical signal transfers in turbine protection and monitoring stations. This module facilitates the secure, parallel exchange of data between master stations and control room interfaces, ensuring uninterrupted system oversight.

Redundant Signal Processing and Protection

The 88UM01A module functions as a specialized communication bridge within the Procontrol P14 architecture, specifically designed for high-stakes power generation environments. It employs a dual-circuit design featuring two identical, galvanically isolated input stages. These stages simultaneously process data from both Master Station A and Master Station B, a redundancy that effectively eliminates single points of failure. By utilizing two-pole parallel signal transfer, the board maintains data fidelity even during significant electrical transients. This architecture makes the module an essential safety component for both industrial-scale turbines and large utility re-heater units where downtime is not an option.

Comprehensive System Connectivity

This monitoring station board provides four distinct communication interfaces to streamline system-wide integration. Two of these ports manage direct signal synchronization with the dual master station coupling modules, while the remaining ports facilitate vital links to the control room displays and the overarching process control network. This multi-path connectivity ensures that real-time process variables are always accessible to plant operators. Furthermore, the 88UM01A optimizes the hierarchical distribution of control commands, allowing the Procontrol P14 system to maintain autonomous operation while providing centralized visibility.

Advanced Diagnostics and Visual Feedback

To simplify maintenance and troubleshooting, the front panel of the GJR2329800R0100 features seven high-visibility LEDs. These indicators provide immediate status updates regarding the health of the partial systems and signal paths. If the module detects a disturbance in the parallel bus or a communication fault, the diagnostic LEDs guide technicians to the specific area of concern. This transparent diagnostic approach, combined with the module’s robust mechanical construction, ensures high operational availability and simplifies the commissioning of complex turbine control sequences.
