Description

Product Overview

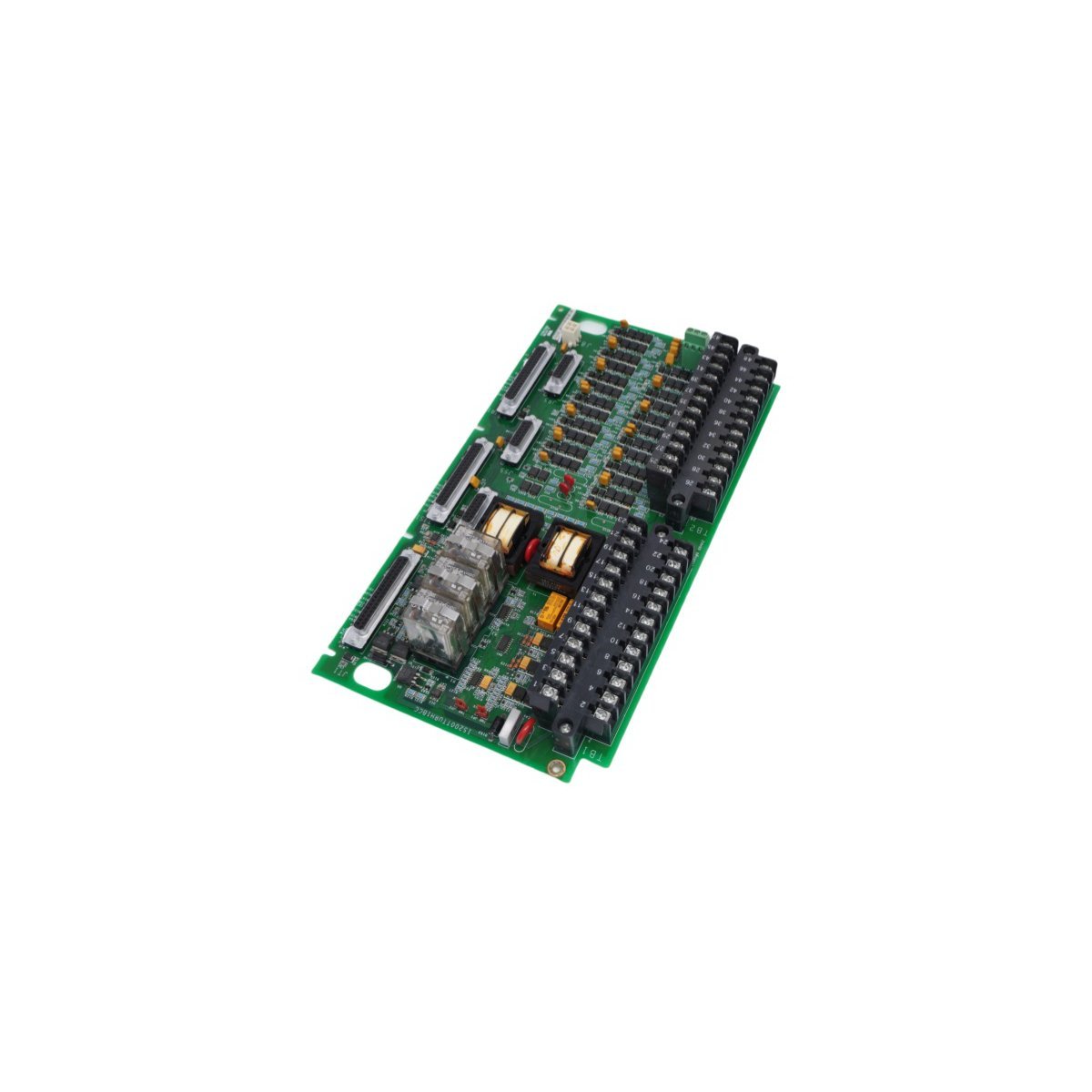

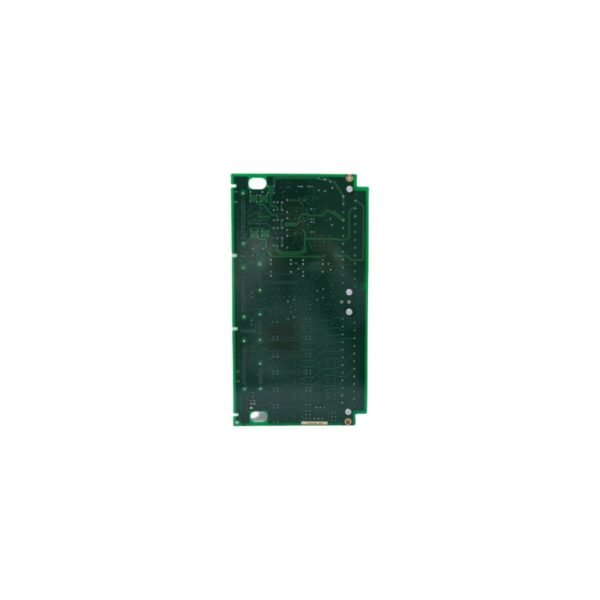

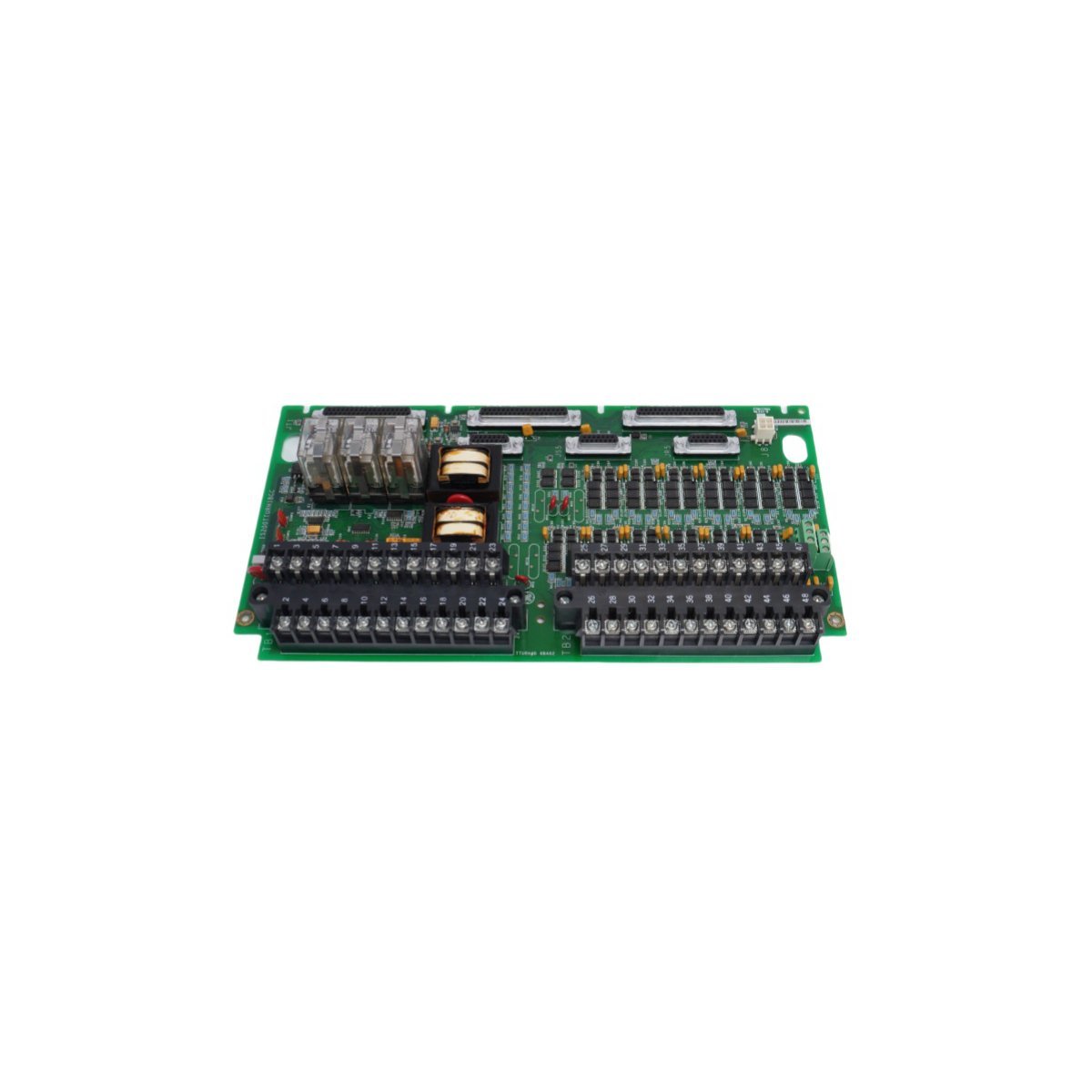

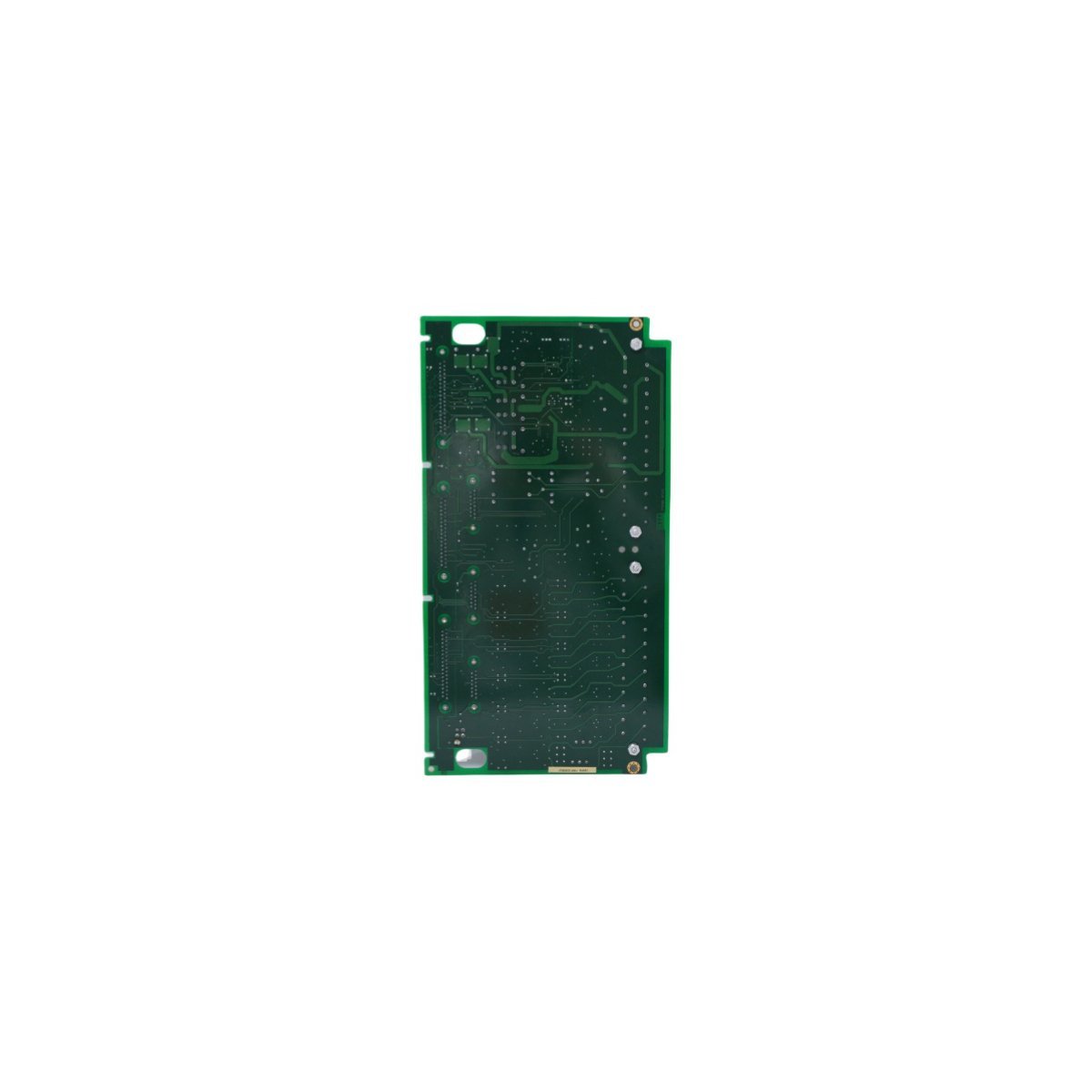

The General Electric IS200TTSAG1A is a high-integrity Turbine Emergency Trip (TTSA) terminal board designed for the Mark VIe control platform. It serves as a specialized signal conditioner and interface, managing critical temperature inputs and trip solenoid logic to ensure the safe operation of gas and steam turbines.

High-Precision Thermal Monitoring

The IS200TTSAG1A module functions as a primary interface for thermal data acquisition within the Mark VIe architecture. It features eight analog input channels that accommodate a variety of sensing technologies, including 3-wire RTDs and multiple thermocouple types such as J, K, T, and E. Because the board employs advanced lead resistance compensation and automatic cold junction compensation, it maintains a high degree of measurement accuracy even in fluctuating ambient conditions. This precision allows the turbine control system to monitor exhaust gases, bearing temperatures, and lubrication systems with laboratory-grade reliability, which is essential for preventing thermal stress and mechanical failure.

TMR Architecture and Safety Integration

General Electric engineered the IS200TTSAG1A to support Triple Modular Redundant (TMR) configurations, providing the highest level of fault tolerance for emergency shutdown sequences. The board acts as a terminal interface that distributes signals to the R, S, and T control processors simultaneously. Consequently, the system can perform “two-out-of-three” voting on critical trip parameters, ensuring that a single sensor or module failure does not cause a nuisance trip or, more importantly, a failure to trip during a genuine emergency. Furthermore, the board includes dedicated hardware paths for trip solenoid interfaces, allowing it to execute rapid turbine shutdowns when safety limits are exceeded.

Industrial Durability and Diagnostics

Safety and uptime depend on hardware resilience, and the IS200TTSAG1A utilizes a conformal-coated PCB to resist moisture and chemical contaminants. The module operates effectively in extreme environments ranging from -40°C to +70°C, making it suitable for mounting near the turbine skid. To streamline maintenance, the board incorporates individual LED indicators for each channel, enabling technicians to identify open circuits or sensor faults at a glance. Additionally, the EMI-hardened design ensures that high-voltage machinery interference does not compromise the integrity of the sensitive low-voltage analog signals processed by the board.

Technical Characteristics
