Description

Product Overview

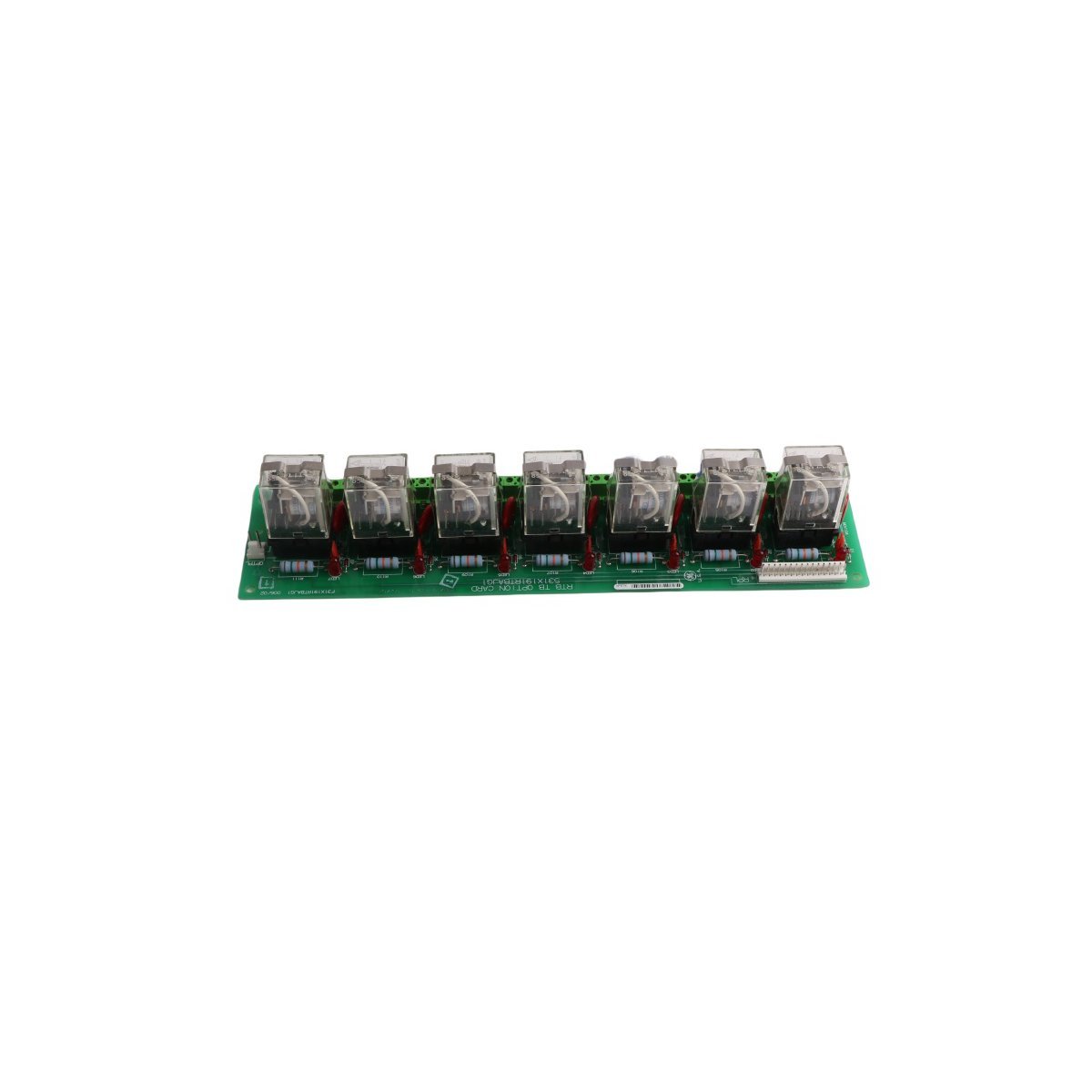

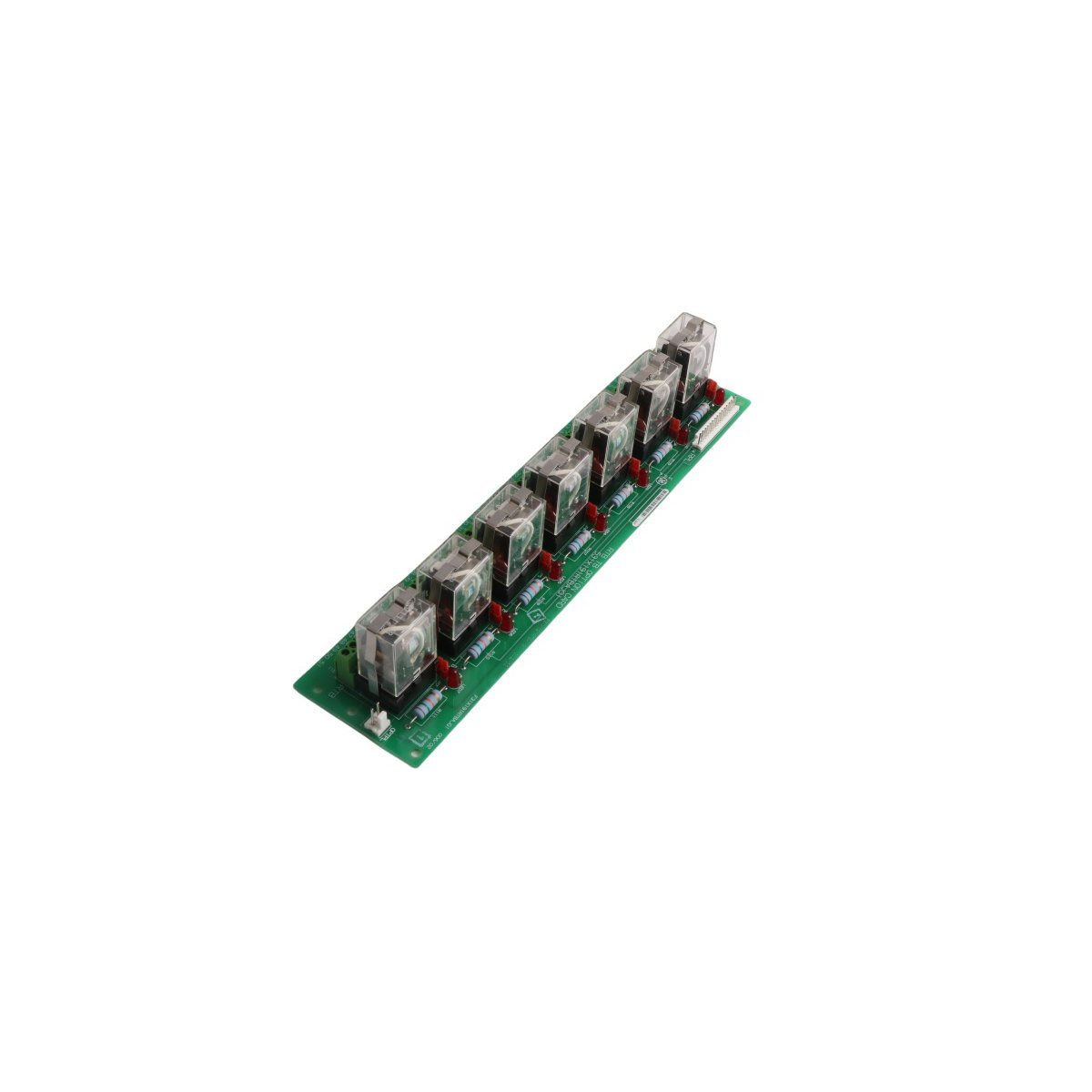

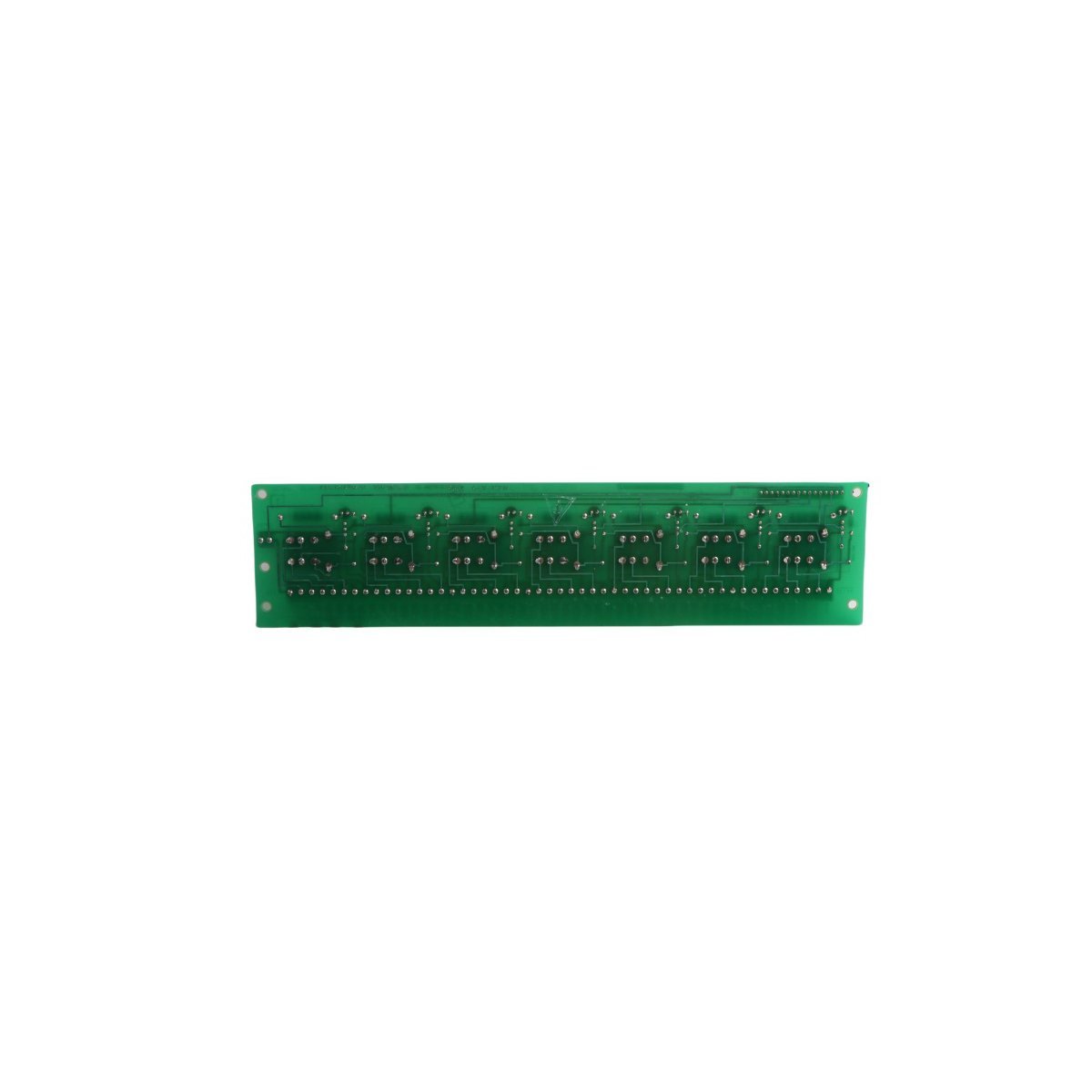

The General Electric 531X191RTBAJG1 is a specialized relay terminal board designed for the 531X series of drive and exciter control systems. This module provides a high-reliability interface for managing external circuits and accessing relay coils via a centralized terminal block architecture.

Enhanced Relay Logic and Circuit Control

The 531X191RTBAJG1 operates as a critical bridge between low-level control signals and external high-voltage equipment. Featuring seven independent onboard relays, this card manages the switching of auxiliary devices and protection circuits within the broader drive system. Each relay utilizes a 115 VAC coil compatible with both 50 Hz and 60 Hz power frequencies. Furthermore, the board allows technicians to direct-wire into the relay contacts through the integrated terminal board (RTB) points. This configuration streamlines the integration of external trip strings, alarms, or status feedback loops into the GE industrial control environment.

Operational Diagnostics and Load Capacity

To facilitate rapid troubleshooting and status verification, the 531X191RTBAJG1 incorporates dedicated visual indicators for every switching channel. An integrated LED light illuminates whenever a specific relay is energized, providing maintenance teams with an instant confirmation of logic execution. Regarding electrical performance, the board’s contacts reliably handle DC loads up to 0.7 A at 105 VDC. Because the relays maintain low hold currents of approximately 9 mA, the card reduces the thermal load on the internal power supply, thereby extending the operational lifespan of the control assembly.

Safe Installation and System Maintenance

As a core component of the GE Speedtronic and industrial drive legacy, the 531X191RTBAJG1 follows strict industrial design standards. Proper deployment requires adhering to the specific wiring diagrams provided in the 531X technical series manual to prevent electrical damage. Transitioning to this board during a system upgrade or repair ensures continued compatibility with legacy exciter hardware. Moreover, the board’s narrow, elongated form factor allows for efficient vertical mounting within standard control cabinets, optimizing space while ensuring easy access for field wiring adjustments.

Technical Characteristics
