Description

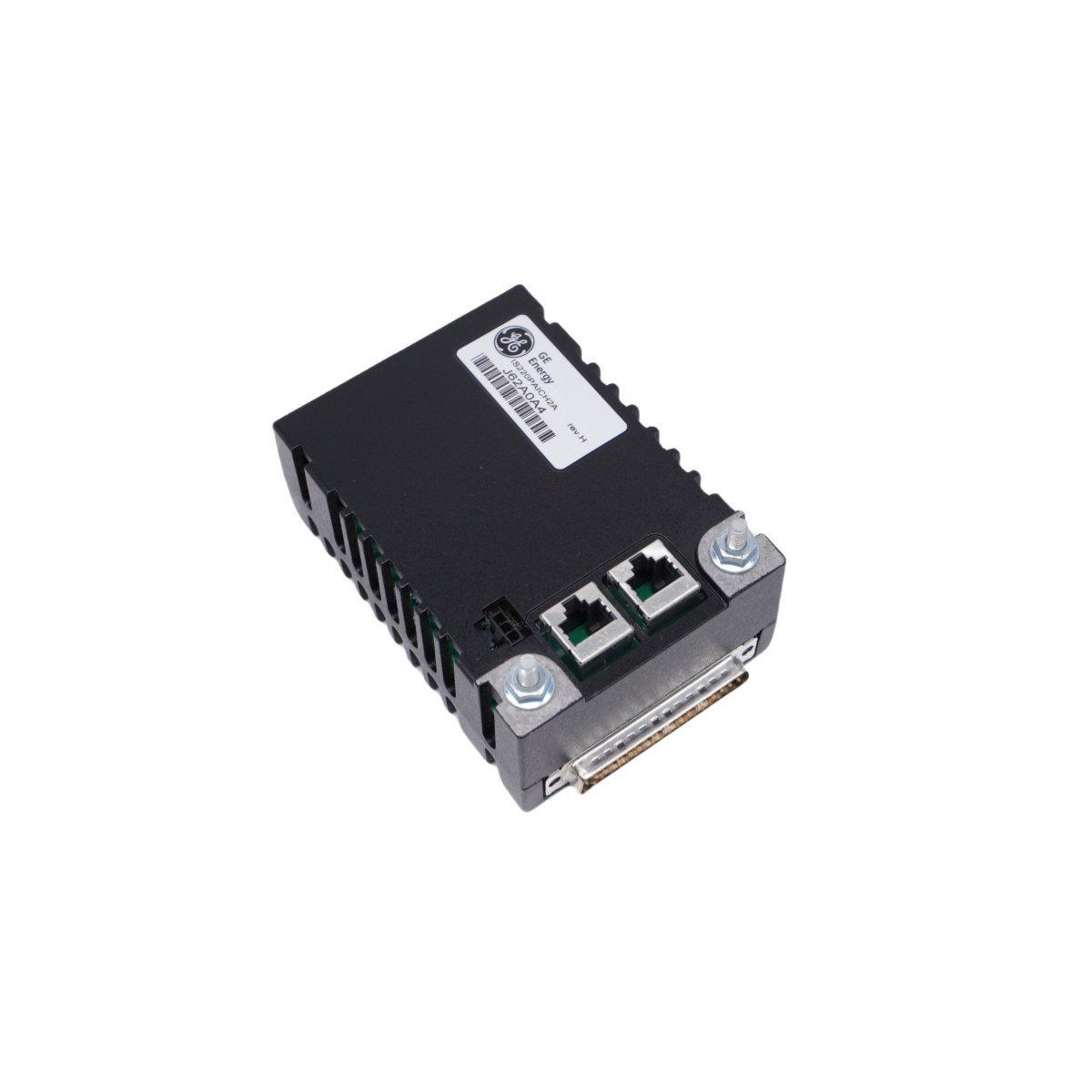

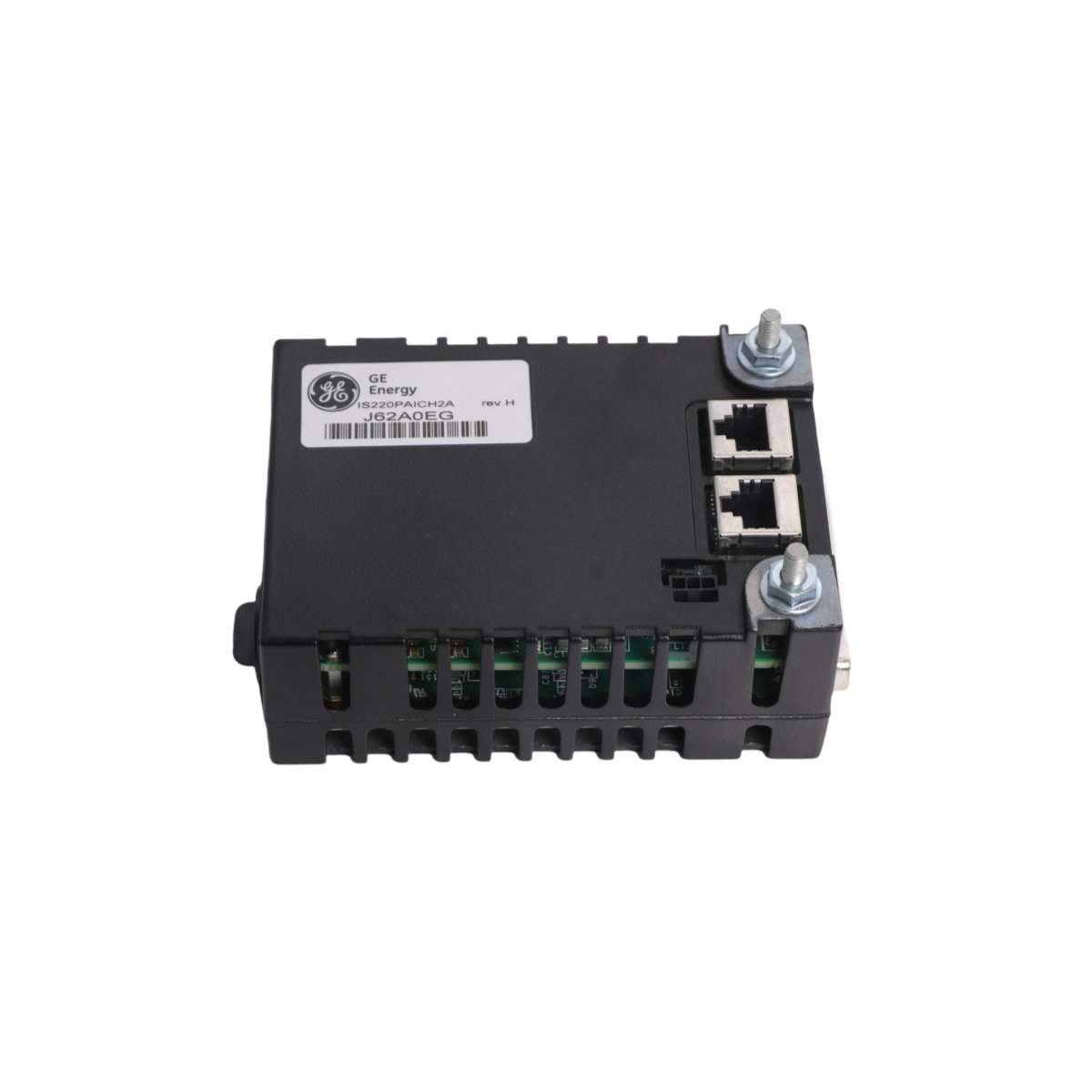

The GE IS220PAICH2A functions as a specialized analog interface for Mark VIe and Mark VIeS control systems. This I/O pack bridges the gap between the controller Ethernet network and analog terminal boards. It supports both simplex and Triple Modular Redundant (TMR) architectures to meet various safety requirements. Dual RJ-45 Ethernet ports provide high-speed communication with the system controllers. Consequently, the module ensures low-latency data exchange for critical turbine control loops.

Signal Acquisition and Output Capabilities

This module features ten analog input channels and two current loop outputs for versatile field device integration. Eight inputs accept flexible configurations for voltage or current signals, including 4–20 mA. Additionally, two dedicated inputs handle 1 mA or 4–20 mA ranges. The two output channels provide standard 0–20 mA current loops. Notably, the first output channel supports a high-capacity drive of up to 200 mA. This flexibility allows the IS220PAICH2A to manage diverse sensors and actuators simultaneously.

Hardware Architecture and Power Management

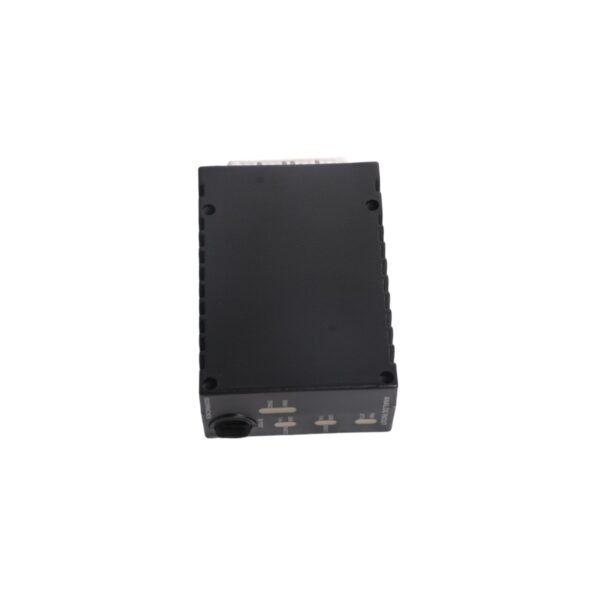

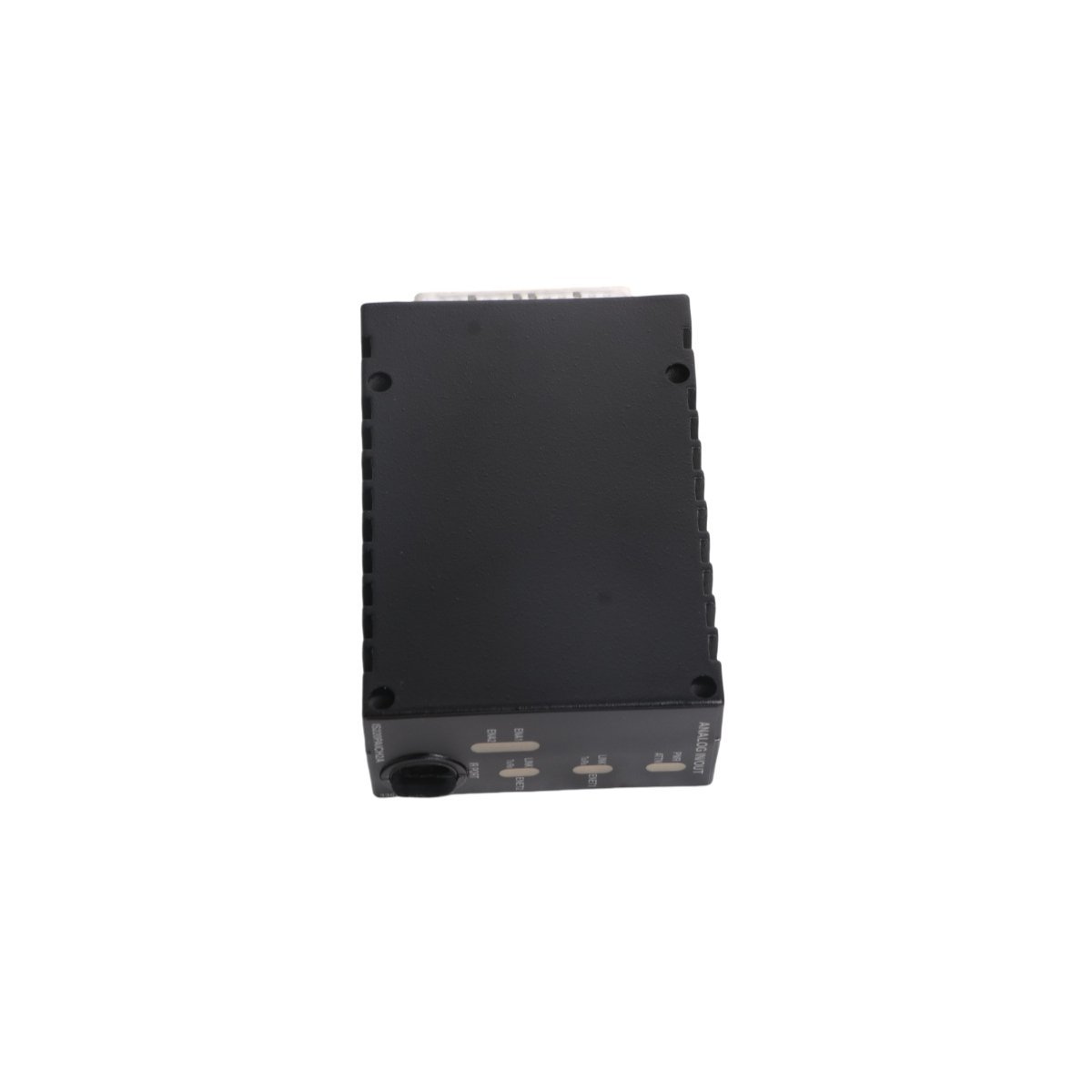

Internal components include a high-speed BPPx processor board and a dedicated signal acquisition board. The unit mounts directly to the terminal board via a sturdy DC-37 pin connector. Furthermore, a separate three-pin connector supplies the necessary input power. An integrated soft-start circuit manages electrical loads by reducing inrush current during the power-up sequence. Diagnostic LEDs on the front panel offer immediate status updates for troubleshooting. These features ensure the module operates reliably within demanding industrial environments.

Installation and Configuration Standards

Proper mechanical installation requires securing the module with mounting studs to prevent connector stress. This technique ensures stable electrical contact between the I/O pack and the terminal board. Once the hardware is in place, technicians use the GE ToolboxST application for software configuration. This tool allows for precise adjustment of signal ranges and diagnostic limits. Therefore, the IS220PAICH2A serves as a durable and easily maintained solution for modern process control applications.
