Description

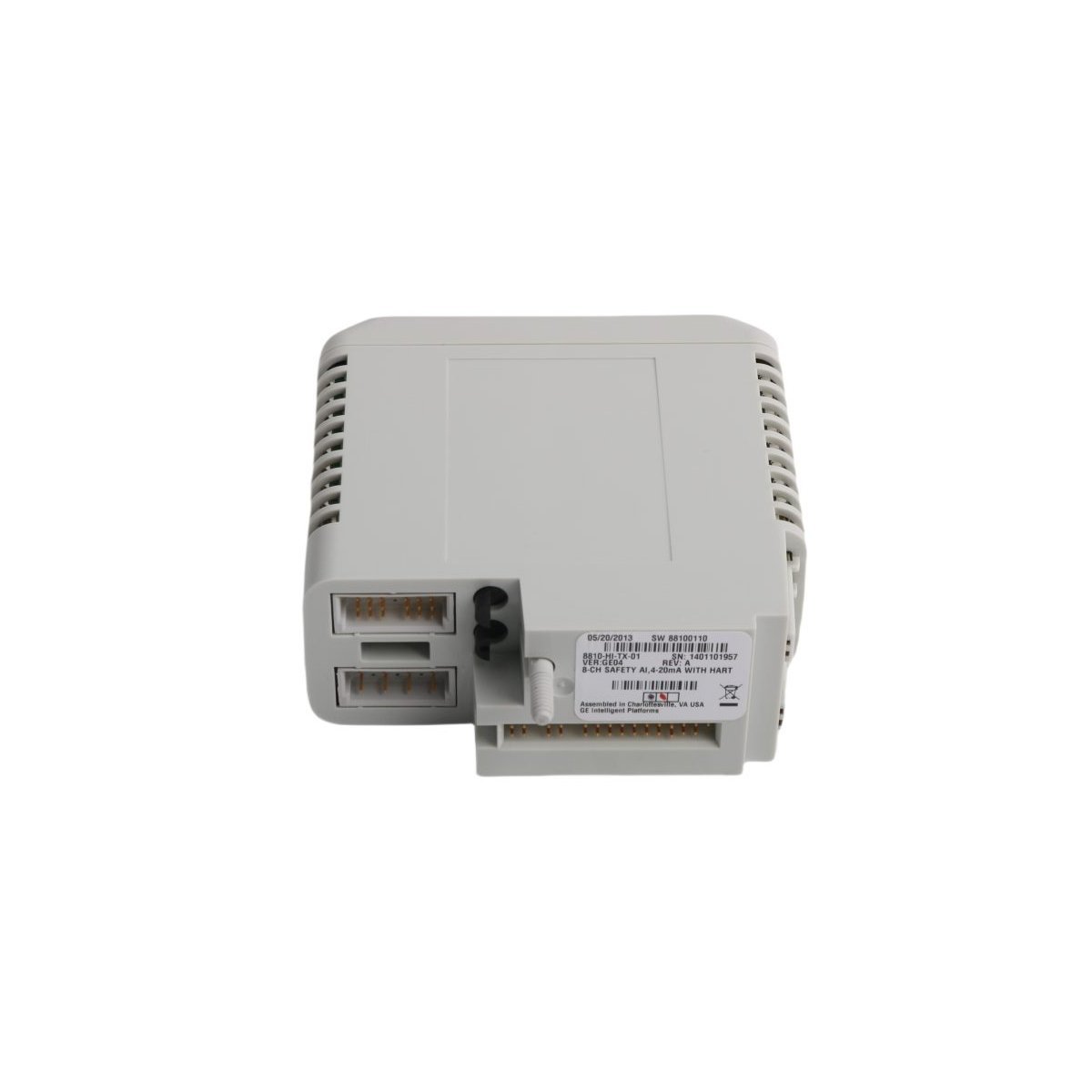

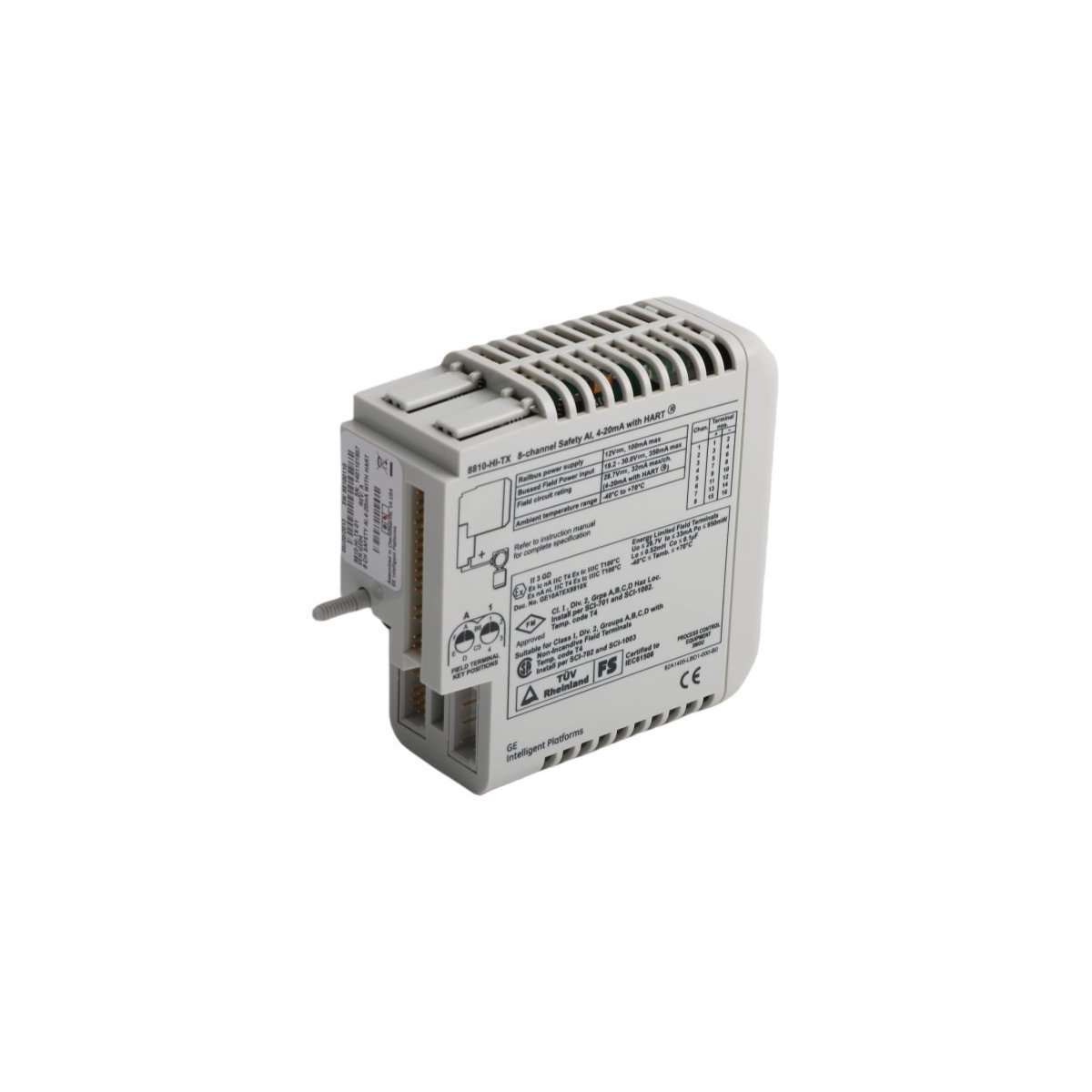

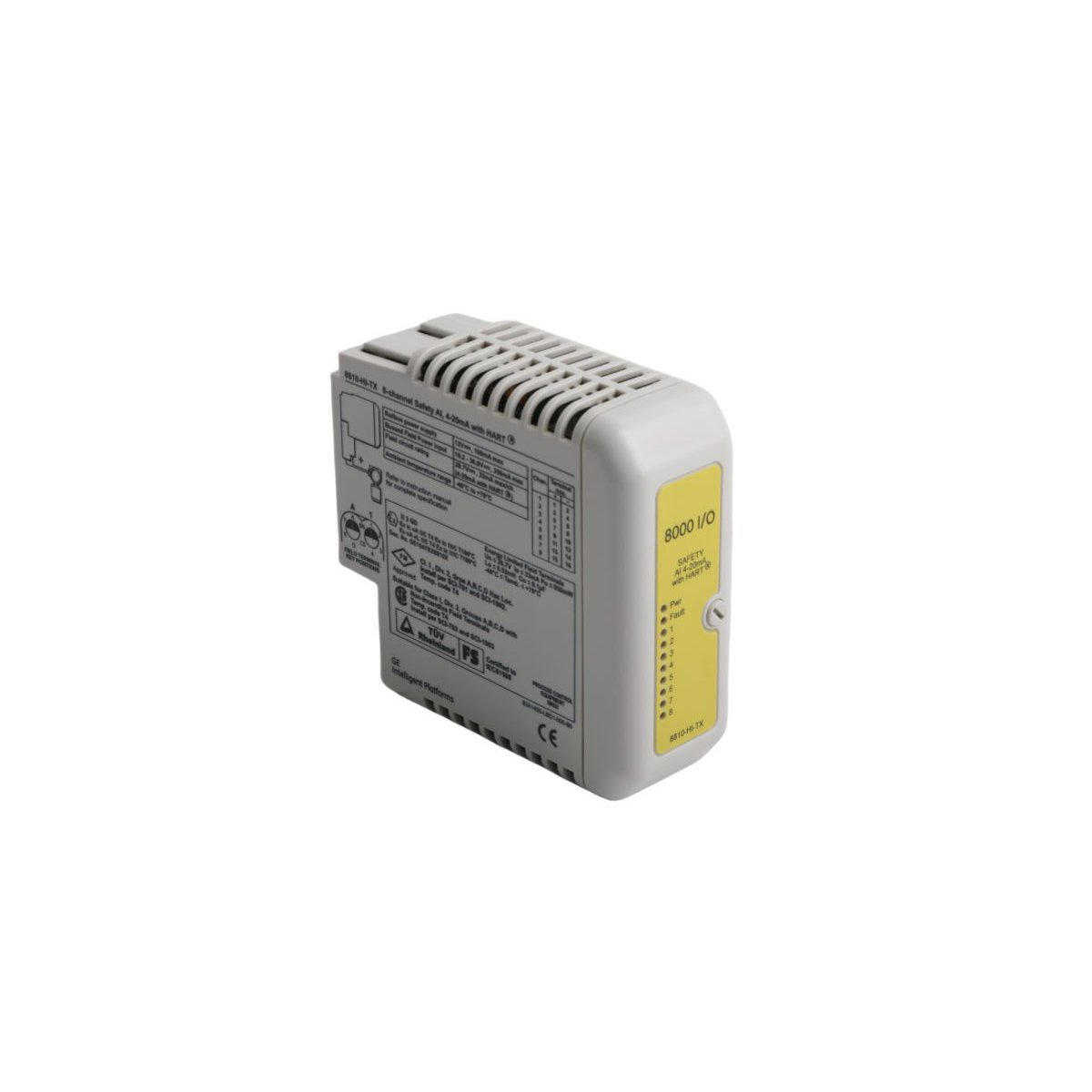

The GE 8810-HI-TX operates as a high-integrity analog interface for SafetyNet industrial systems. This module meets strict SIL 2 compliance standards for hazardous environments. It utilizes a 1oo1D architecture to ensure reliable performance. Unlike older hardware, this design provides safety assurance through robust engineering rather than statistical history. Consequently, the unit delivers consistent protection for critical process loops.

Intelligent Diagnostics and Failsafe Logic

Comprehensive internal diagnostics constantly monitor the health of the 8810-HI-TX. The module identifies potential internal failures that might compromise safety. If it detects a critical error, the device initiates a controlled shutdown. This process halts all input scanning to prevent incorrect data processing. Simultaneously, the module records the diagnostic data to aid in rapid fault identification. This failsafe mechanism ensures the system remains in a known secure state.

Power and Maintenance Features

The module relies on Bussed Field Power (BFP) delivered through backplane connectors. This 24 VDC supply typically comes from MTL 8914-PS-AC power units. Furthermore, the 8810-HI-TX supports live maintenance even in hazardous zone classifications. Maintenance teams can replace the module without disrupting the rest of the control network. Integrated line fault monitoring also provides continuous surveillance of field wiring integrity.

Application and Installation

Mount the 8810-HI-TX onto dedicated SafetyNet carriers for mechanical and communication support. This module excels in oil and gas, chemical processing, and power generation sectors. It manages analog sensors that require high availability and certified functional safety. Proper installation involves verifying the 24VDC BFP source before seating the module. The slim profile allows for high-density safety I/O configurations in standard cabinets.

Technical Specifications
