Description

Brief Product Description

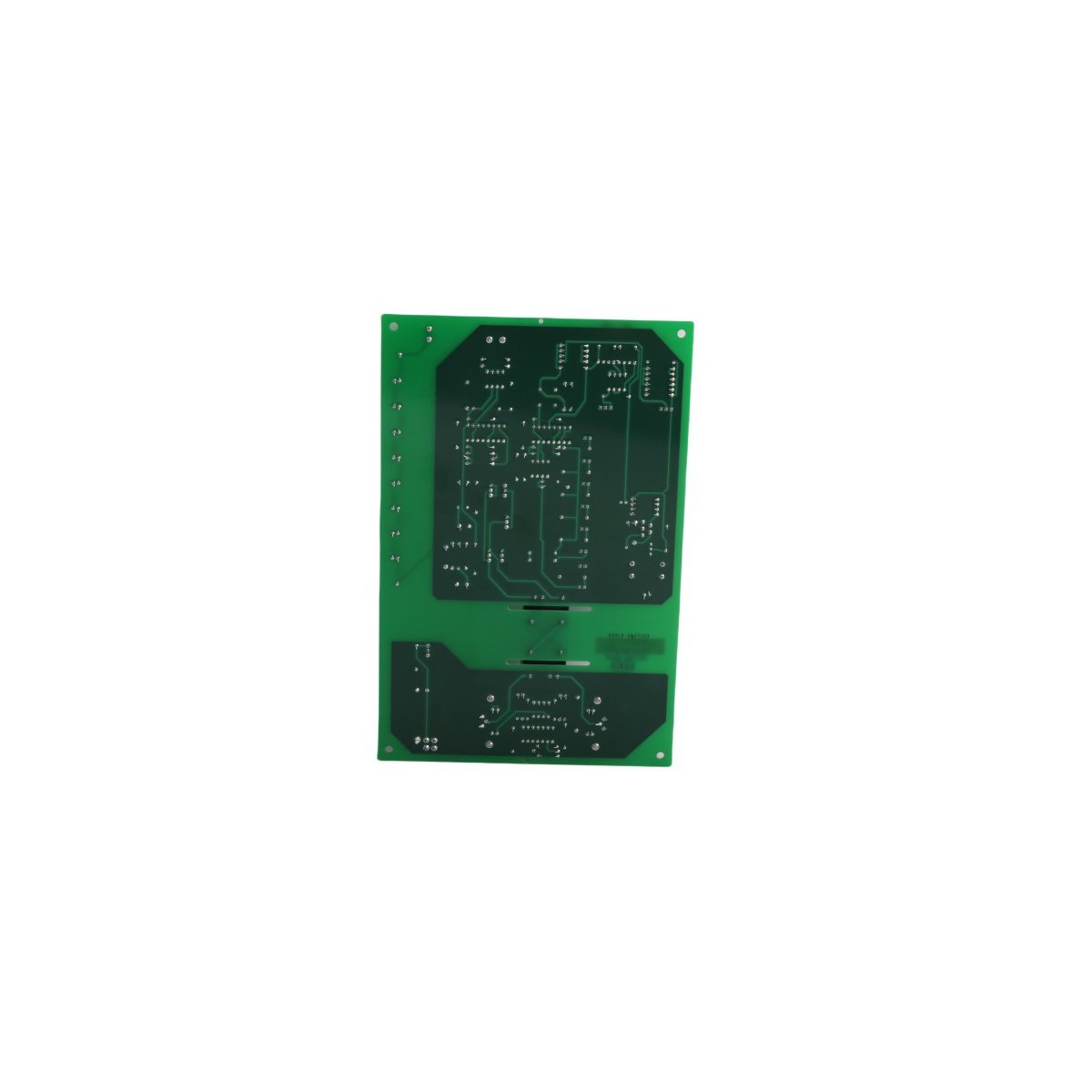

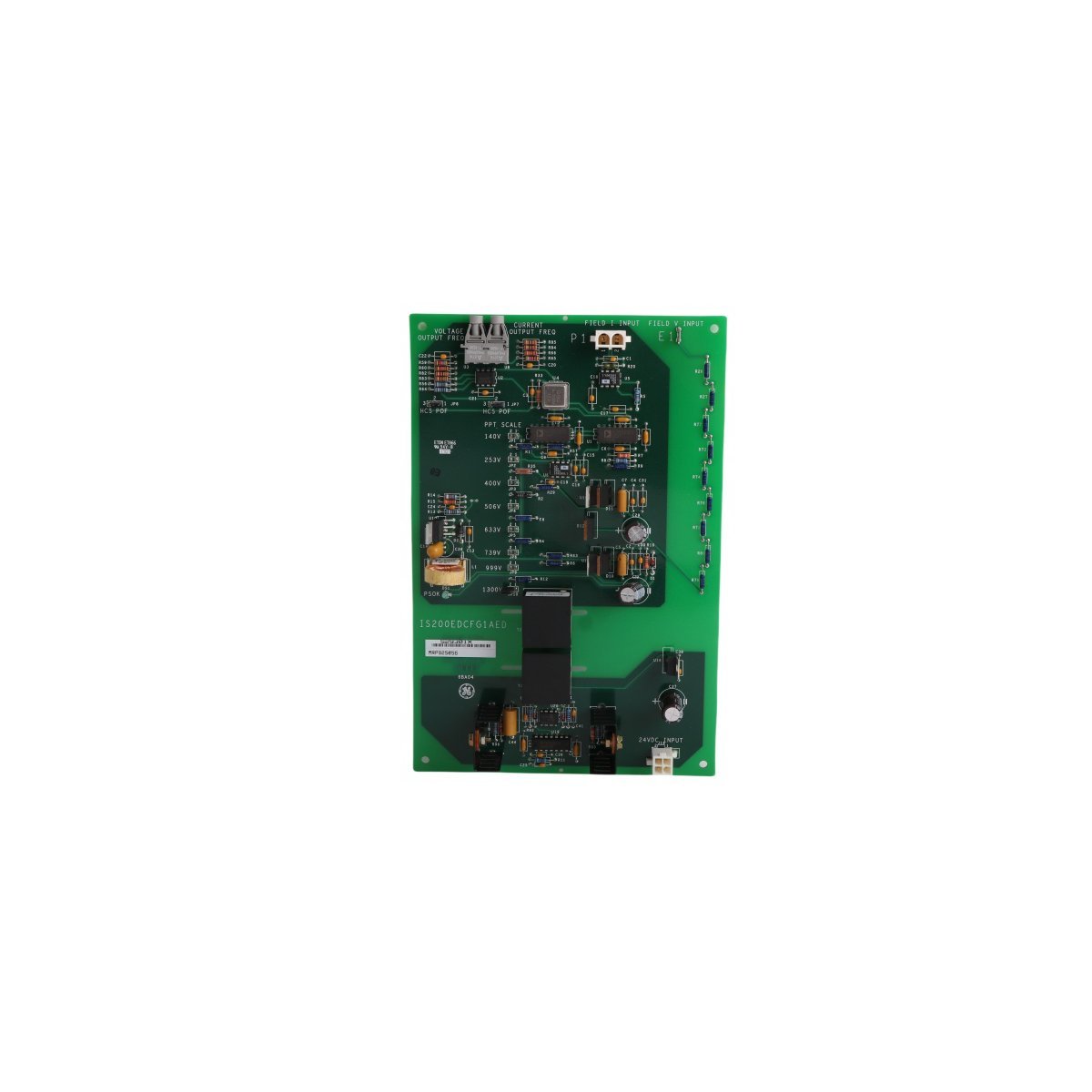

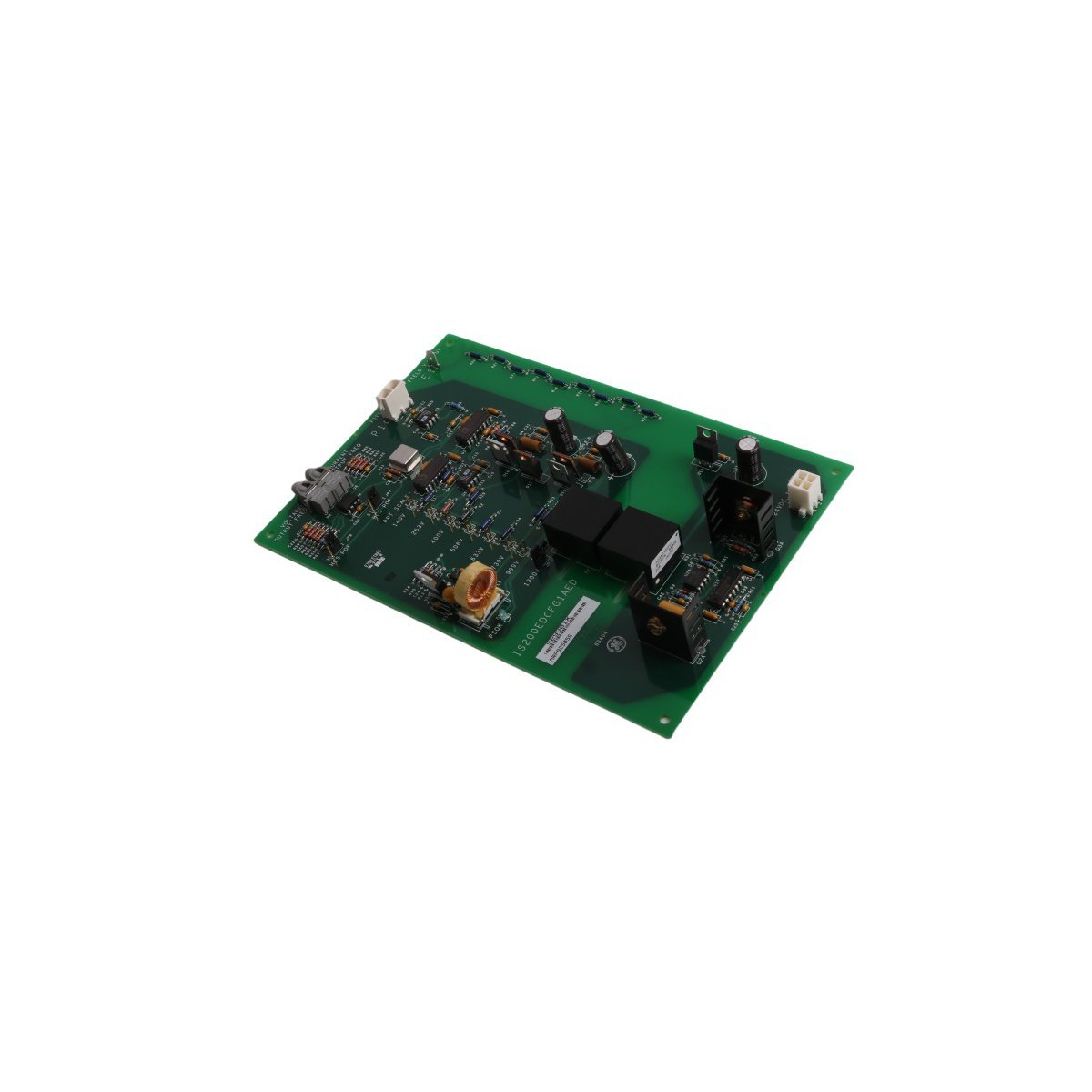

The GE IS200EDCFG1AED is a high-precision feedback board designed for the EX2100 excitation system to monitor bridge field current and voltage. It utilizes fiber-optic technology to provide superior signal isolation and noise immunity in demanding industrial environments.

Product Description

Precision Excitation Feedback and Control

The General Electric IS200EDCFG1AED functions as a critical sensing interface within the EX2100 Excitation Control System. This Exciter Direct Current Feedback Board accurately captures field voltage and current data directly at the SCR (Silicon Controlled Rectifier) bridge. By providing these real-time measurements, the module allows the control system to maintain stable generator excitation, which is fundamental for grid synchronization and voltage regulation. The board converts analog bridge signals into digital data, ensuring the control loop receives high-fidelity information for precise adjustment of the field strength.

High-Speed Fiber Optic Data Transmission

To maintain signal integrity over distance, the IS200EDCFG1AED utilizes dedicated fiber-optic links to communicate with the EISB (Exciter Interface Board) located in the main control cabinet. This optical architecture provides absolute galvanic isolation between the high-voltage power bridge and the low-voltage control electronics. Furthermore, separate fiber channels handle field current and field voltage independently. This separation prevents cross-channel interference and guarantees that critical safety data remains uncorrupted during high-speed transients.

Enhanced Noise Immunity and Installation Flexibility

Industrial environments often generate significant electromagnetic interference (EMI); however, the fiber-optic nature of the GE IS200EDCFG1AED makes it inherently immune to such noise. This immunity ensures reliable data transmission where traditional copper wiring might fail. The board supports versatile cabling options to suit different facility layouts:

• Plastic Optical Fiber: Optimized for cost-effective, short-range installations up to 10 meters.
• Hard-Clad Silica (HCS) Fiber: Designed for extended reach, supporting robust connectivity up to 90 meters.

  These options allow technical teams to adapt the excitation system to various physical footprints while maintaining the highest levels of system safety and performance.
