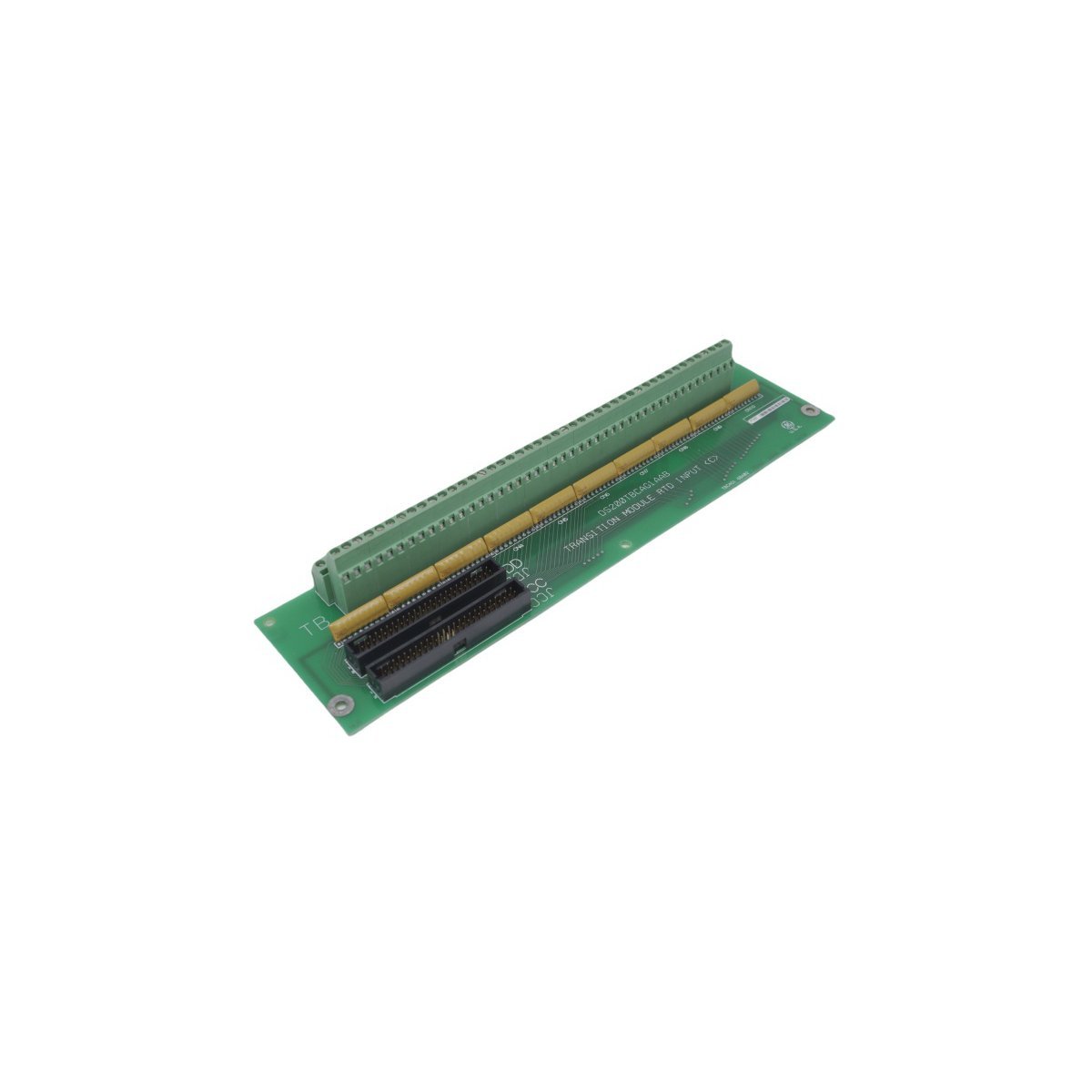

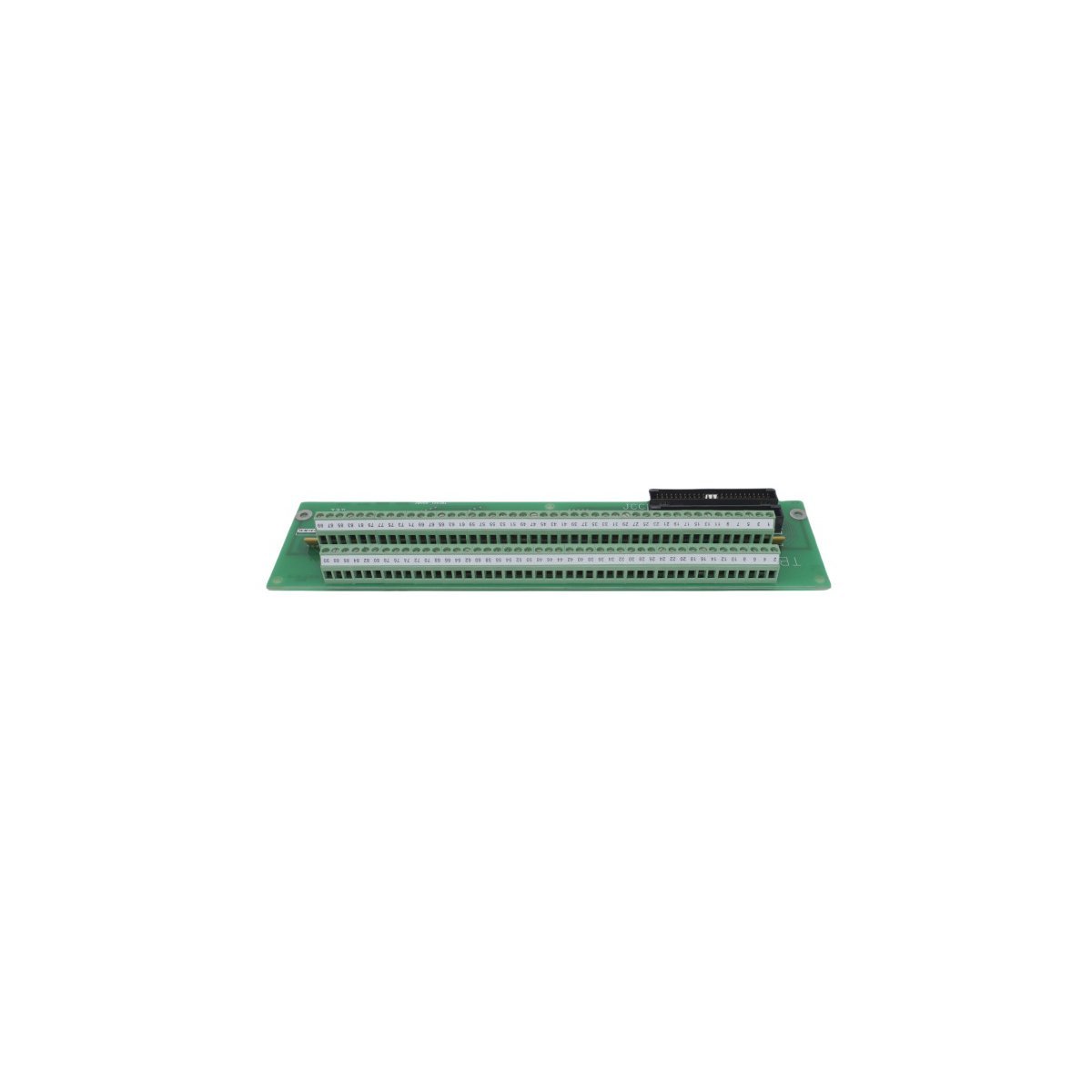

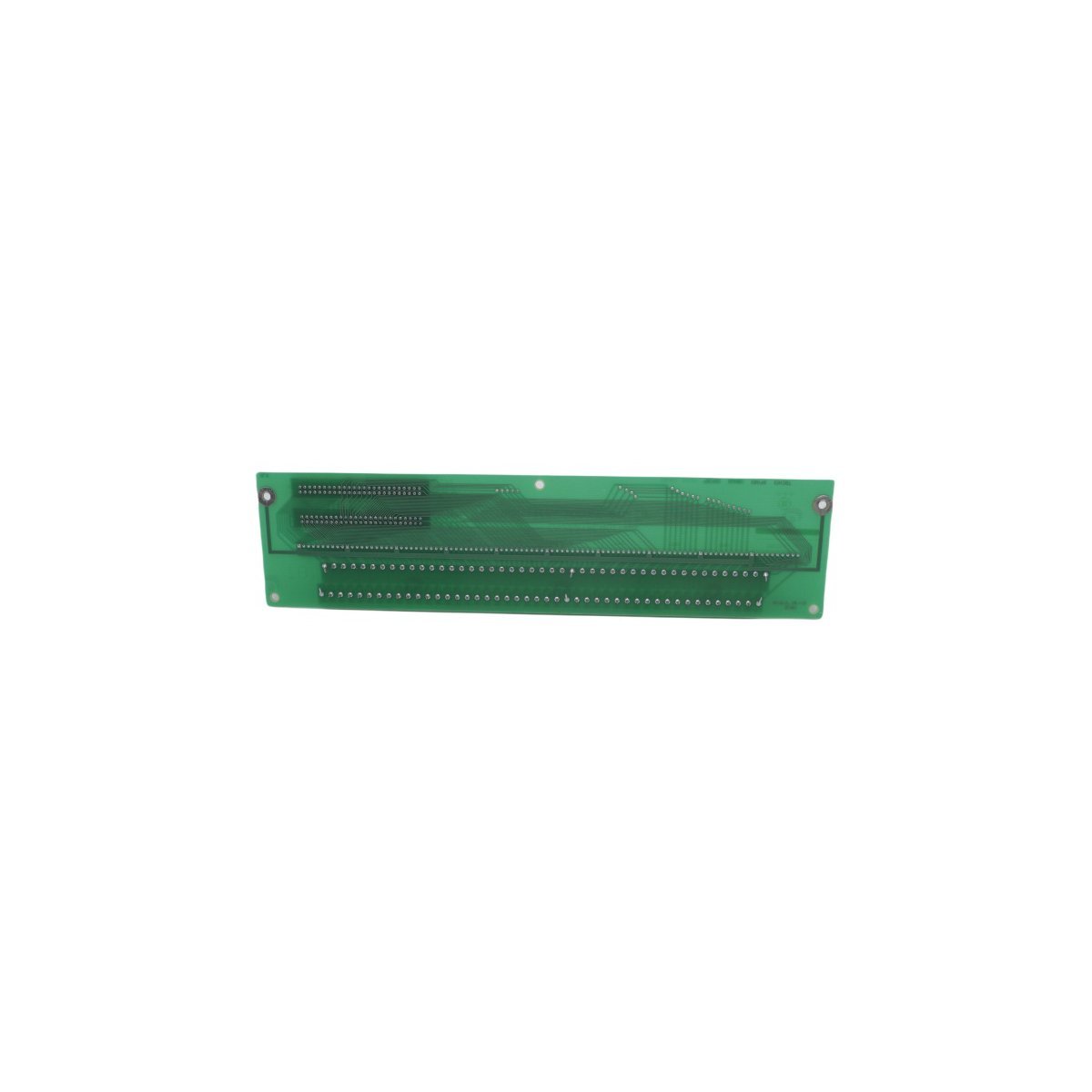

DS200TBCAG1AAB GE | Speedtronic Mark VI Termination Board 90-Terminal
The GE DS200TBCAG1AAB is an RTD Termination Board for Mark VI/VIE systems. It features 90 signal terminals and dual 50-pin ribbon connectors, providing a coated, high-density interface for critical turbine temperature monitoring.
Description
Brief Product Description
The GE DS200TBCAG1AAB is a high-density RTD termination module engineered for the Speedtronic Mark VI and Mark VIE control systems. It facilitates the secure connection of up to 90 signal wires, providing a robust interface for temperature sensing and analog input processing.
Product Description
High-Density Signal Interfacing
The General Electric DS200TBCAG1AAB functions as a primary interface for Resistance Temperature Detector (RTD) signals within the Speedtronic Mark VI/VIE control ecosystem. This board features two high-capacity terminal blocks that support a combined total of 90 signal wire connections. To streamline integration with the main control rack, the module utilizes two specialized 50-pin connectors designated as JCC and JDD. These connectors link the field wiring to the processor via ribbon cables, ensuring high-fidelity data transmission for critical turbine temperature monitoring.
Protective Design and Maintenance Protocols
Durability remains a core feature of the DS200TBCAG1AAB module, as the printed circuit board (PCB) features a high-grade protective coating. This barrier defends sensitive surface-mount components against dust and moisture, which are common in industrial turbine environments. Maintenance personnel should exercise caution when handling the ribbon-style cables associated with the 50-pin connectors. By gripping only the connector housings rather than the delicate ribbon material, technicians prevent internal wire fractures. Furthermore, given that the module can accommodate up to 180 individual wires across its blocks, proactive wire labeling is essential to prevent cross-connection errors during system upgrades or repairs.
Secure Mounting and System Stability
Stability is paramount for the GE DS200TBCAG1AAB due to the cumulative weight of attached field wiring and heavy-duty cabling. The board secures to the drive rack using a four-screw mounting pattern, which eliminates vibration-induced fatigue on the terminal connections. Proper torque application during installation ensures the board remains stationary, preventing mechanical stress on the PCB. By maintaining rigid physical support and clean signal termination, this board plays a vital role in the overall reliability and operational safety of the DCS architecture.
Technical Specifications
| Feature | Specification Details |
| Manufacturer | General Electric (GE) |
| Model Number | DS200TBCAG1AAB |
| Series | Speedtronic Mark VI / Mark VIE |
| Module Type | RTD / Analog Input Termination |
| Terminal Points | 90 Signal Terminals |
| Connectivity | Dual 50-pin Connectors (JCC, JDD) |
| PCB Coating | Conformal Coated for Environmental Protection |
| Mounting Type | 4-Screw Stand-off Rack Mount |
| Weight | 0.3 kg |
| Dimensions | 28.6 x 7.0 x 3.5 cm |
Additional information
| Weight | 0.3 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 28.6 x 7 x 3.5 cm |
