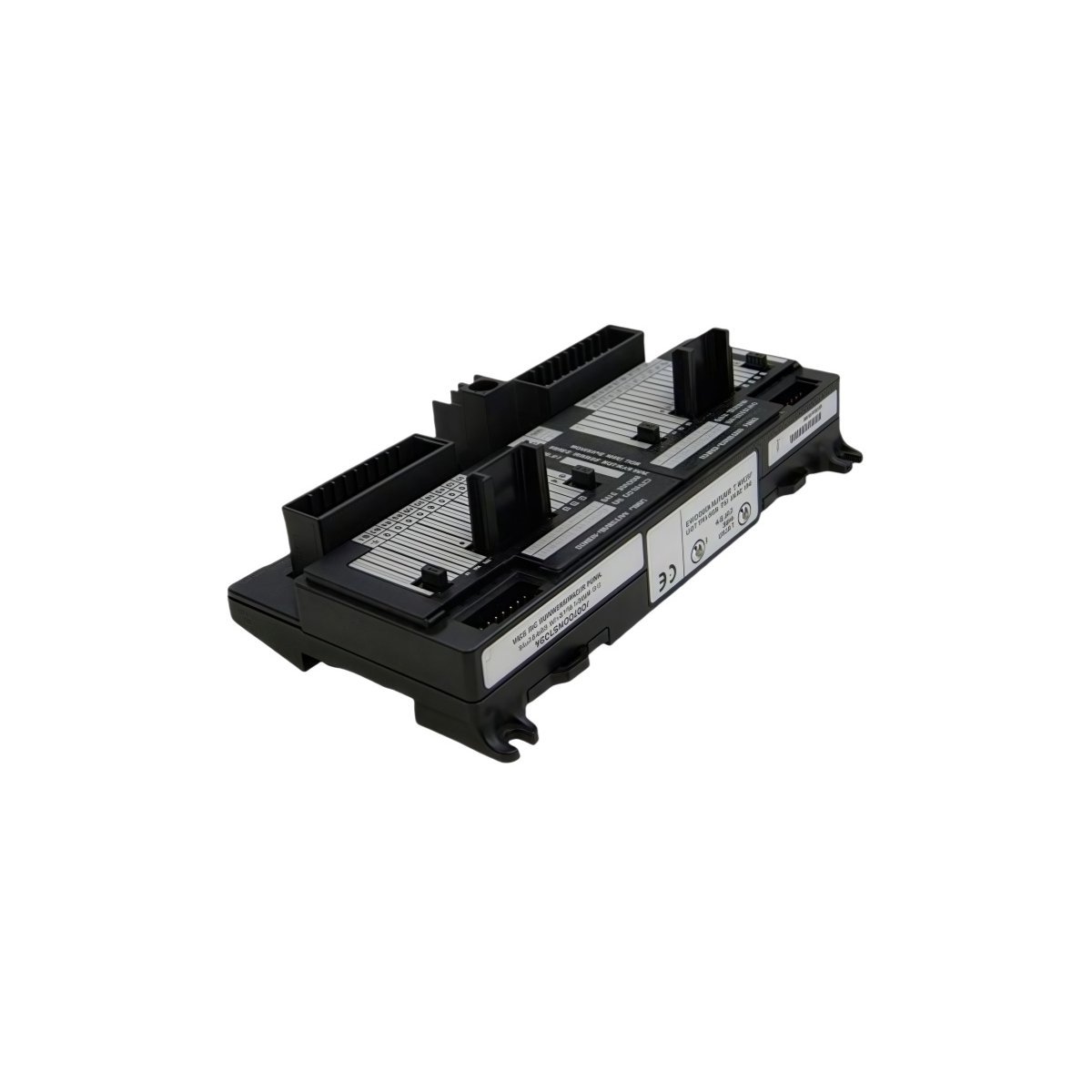

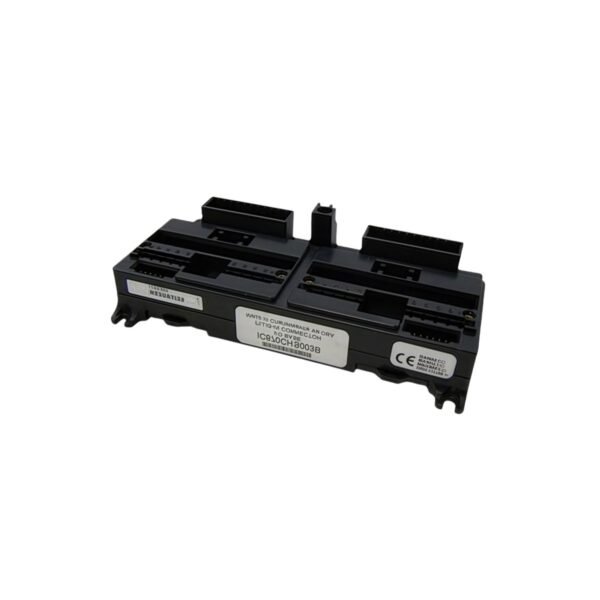

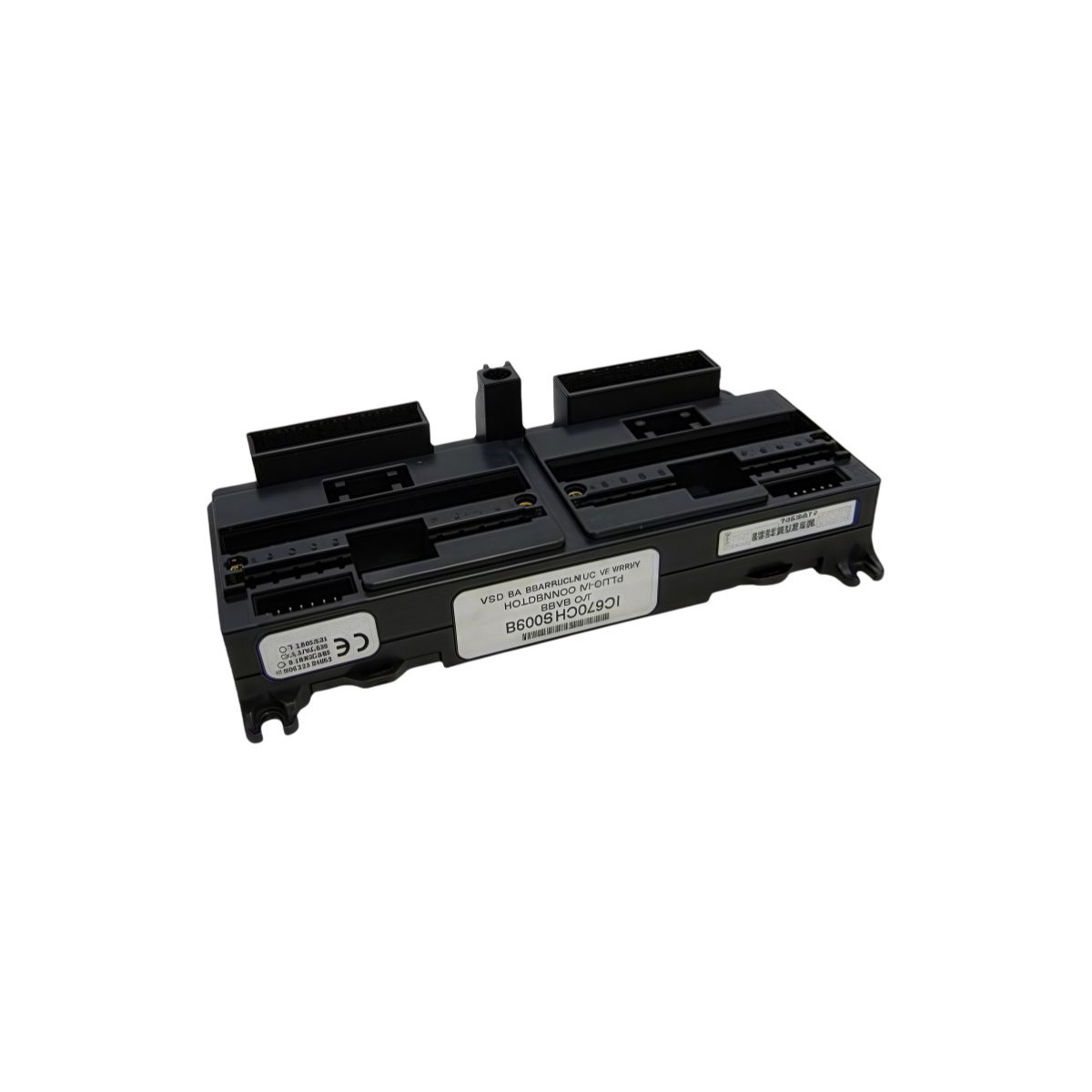

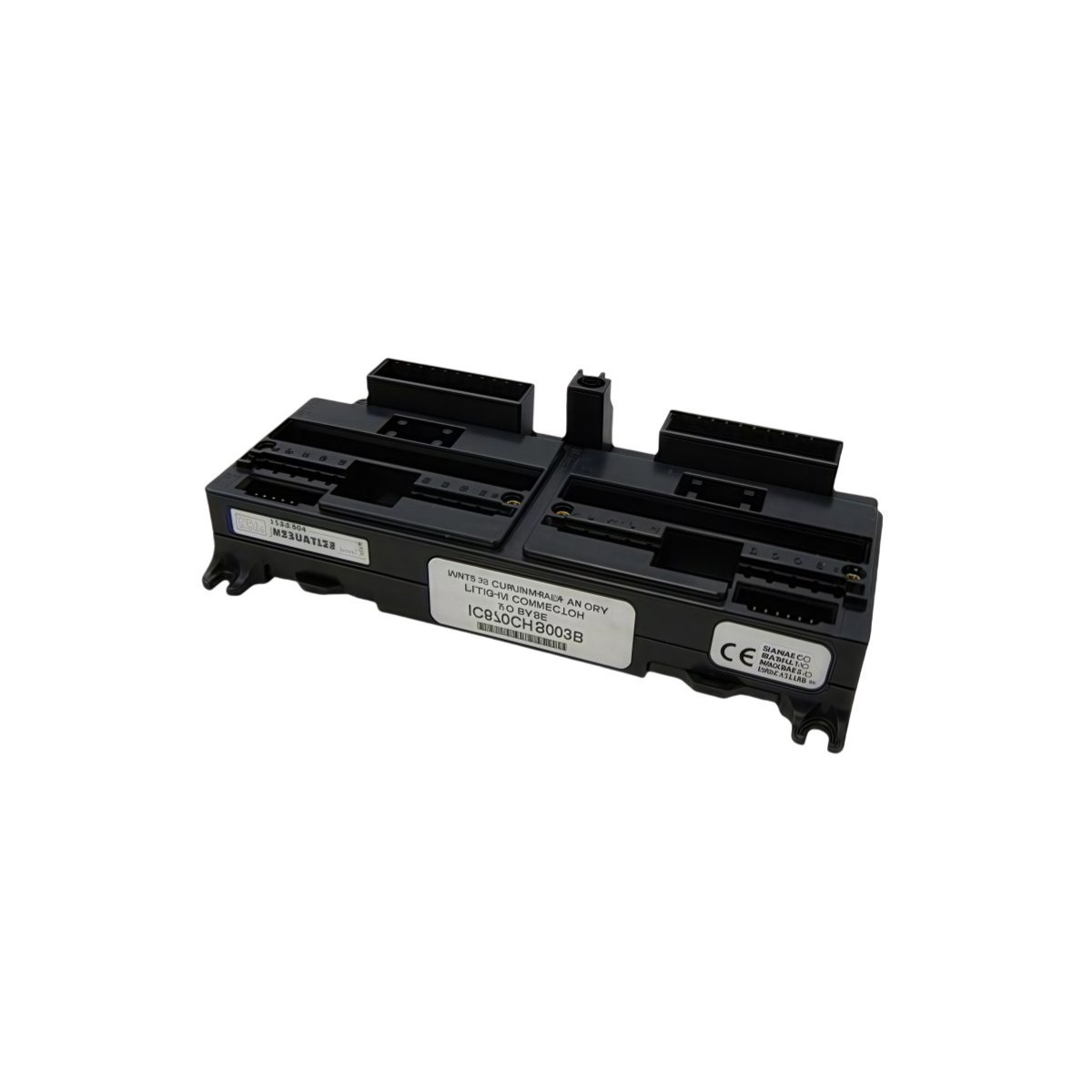

The GE IC670CHS003 is a specialized Field Control I/O terminal block featuring dual 20-pin connectors for high-density, vibration-resistant wiring. It allows for rapid module replacement without disturbing field wiring, ensuring maximum uptime in industrial control environments.

Product Description

High-Density Connectivity for Field Control

The General Electric IC670CHS003 serves as a robust wiring interface for GE’s Field Control I/O architecture. Unlike standard screw-terminal bases, this module employs a connector-based design that facilitates faster installation and more secure signal routing. The unit incorporates two keyed 20-pin male connectors (AMP 178289-8), which effectively eliminate the risk of incorrect module insertion. This configuration supports high-density wiring environments where space and organization are paramount, providing a clean and maintainable connection point for complex automation arrays.

Reliable Signal Integrity and Maintenance

Maintenance teams benefit significantly from the IC670CHS003 terminal block during hardware upgrades or module repairs. Because the field wiring attaches directly to the connectors on the base, operators can swap I/O modules without disconnecting individual wires. This design preserves the integrity of the field loop and prevents wiring errors during reinstallation. To ensure electrical stability, the unit utilizes AMP D-3000 series contacts. These components provide a gas-tight, vibration-resistant connection that excels in demanding industrial settings where mechanical stress might compromise traditional screw terminals.

Industrial-Grade Construction

Engineered for longevity, the GE Fanuc IC670CHS003 supports a wide range of wire gauges, specifically from 16 to 24 AWG ($0.20–1.42 \text{ mm}^2$). This flexibility allows it to integrate seamlessly into diverse electrical systems. Furthermore, the block maintains the essential backplane communication bus, ensuring that signal transmission between the I/O module and the network interface remains uninterrupted. The compact form factor and screw-mount capability provide a stable foundation for dual-module setups, making it a versatile choice for distributed control systems (DCS) and PLC applications.
