Description

Brief Product Description

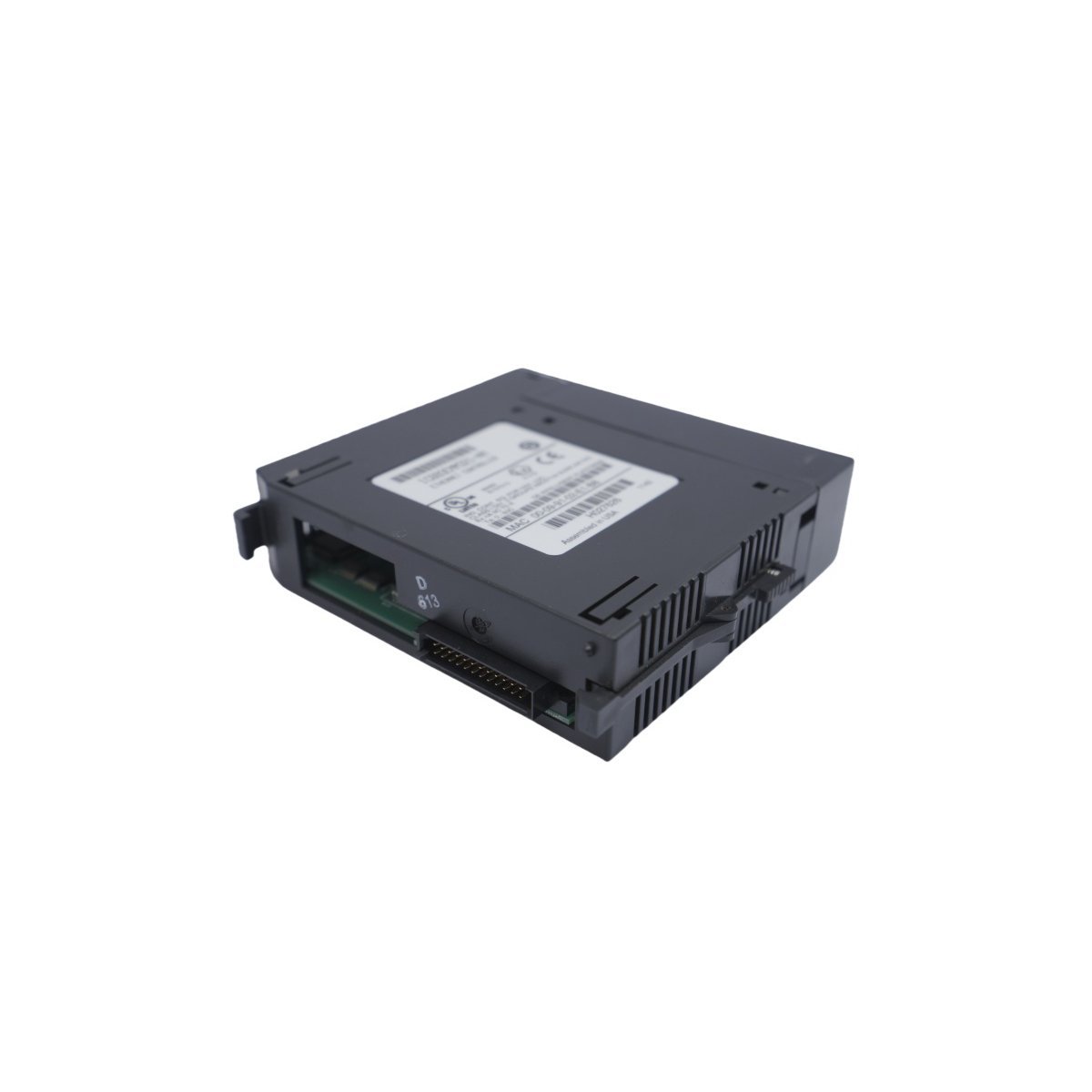

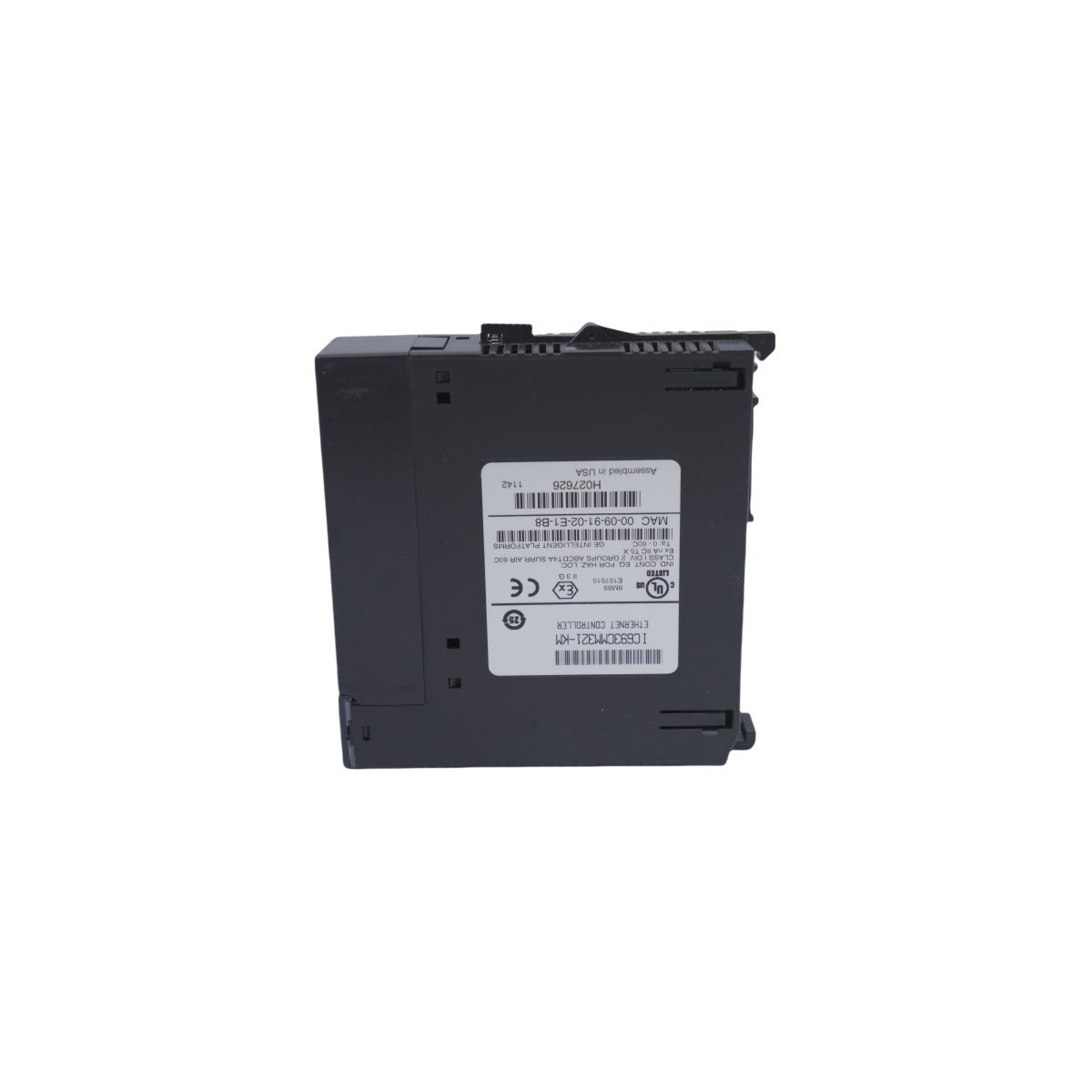

The GE Fanuc IC693CMM321 is a dedicated Ethernet communications interface designed to integrate Series 90-30 PLC systems into high-speed TCP/IP networks. It facilitates seamless data exchange between the controller and remote devices like SCADA systems, HMI panels, and other networked PLCs.

​Product Description

Network Integration and Connectivity

The IC693CMM321 provides a robust gateway for the GE Fanuc Series 90-30 PLC to operate within modern Ethernet environments. This module enables the baseplate to communicate directly with higher-level supervisory systems, including SCADA and DCS, while supporting distributed I/O configurations. By implementing this interface, users can execute remote programming, monitor system variables in real-time, and synchronize data across multiple automation platforms. The module effectively bridges the gap between factory-floor logic and enterprise-level data management.

Advanced Communication Interfaces

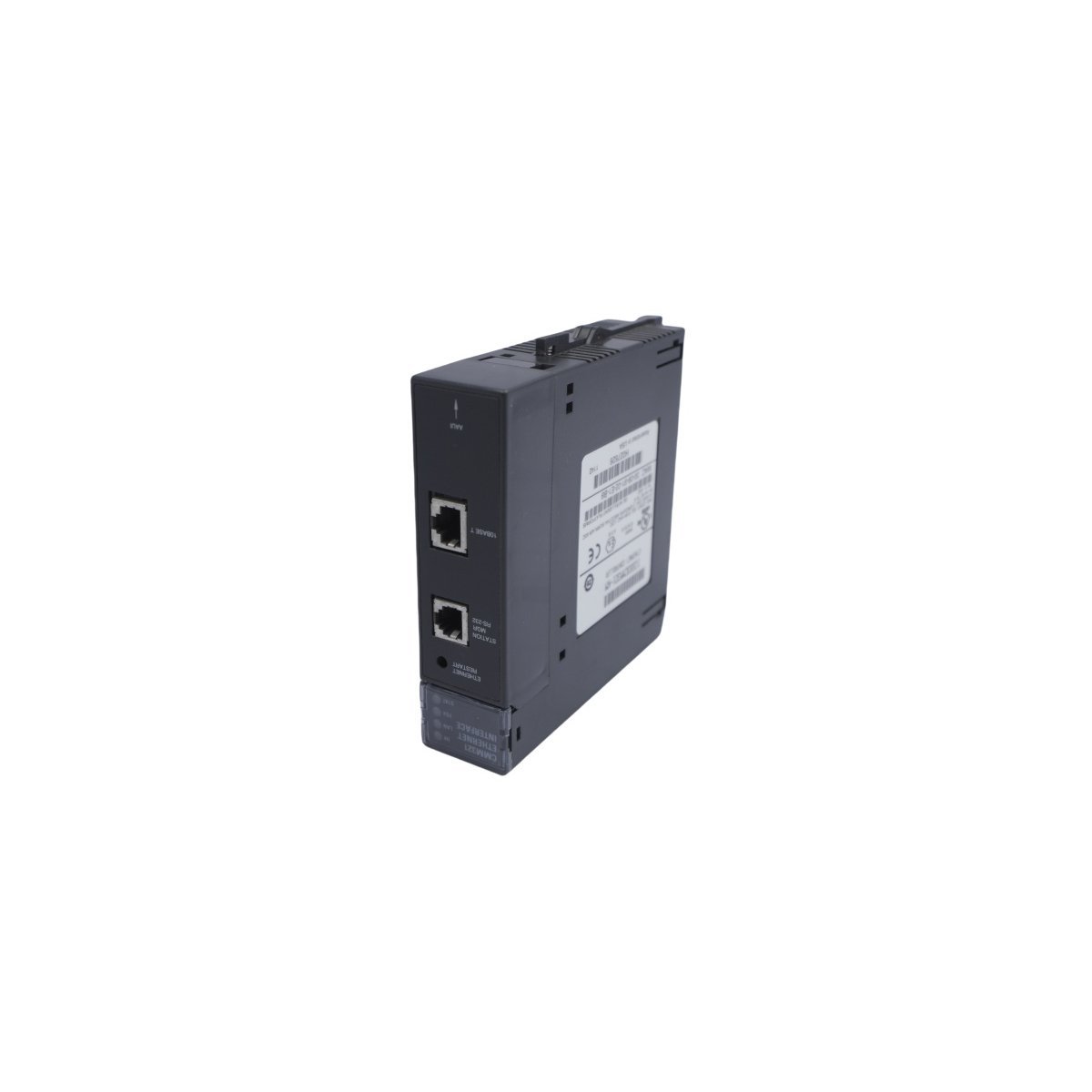

Engineered for versatility, the IC693CMM321 features three distinct physical ports to handle various maintenance and networking tasks. An AAUI port serves as the primary Ethernet connection, typically requiring an external transceiver for 10Base-T or Fiber Optic media. Additionally, the module includes an RS-232 Station Manager port via an RJ-11 connector for diagnostic configuration and an RS-485 15-pin D-sub port specifically for firmware management. Four status LEDs (OK, LAN, SER, and STAT) provide immediate visual feedback regarding hardware health and network traffic activity.

Software Compatibility and Performance

To unlock the full potential of the IC693CMM321, the system should utilize a Series 90-30 CPU with firmware version 6.50 or higher. This combination allows the module to support up to 16 simultaneous SRTP server connections and high-speed data transfer. While the hardware remains compatible with older CPU versions (starting from 5.03), those configurations are limited to a single server connection. Furthermore, engineers can easily configure the network parameters through industry-standard software tools such as VersaPro, Proficy Machine Edition, or Logicmaster 90-30.
