Description

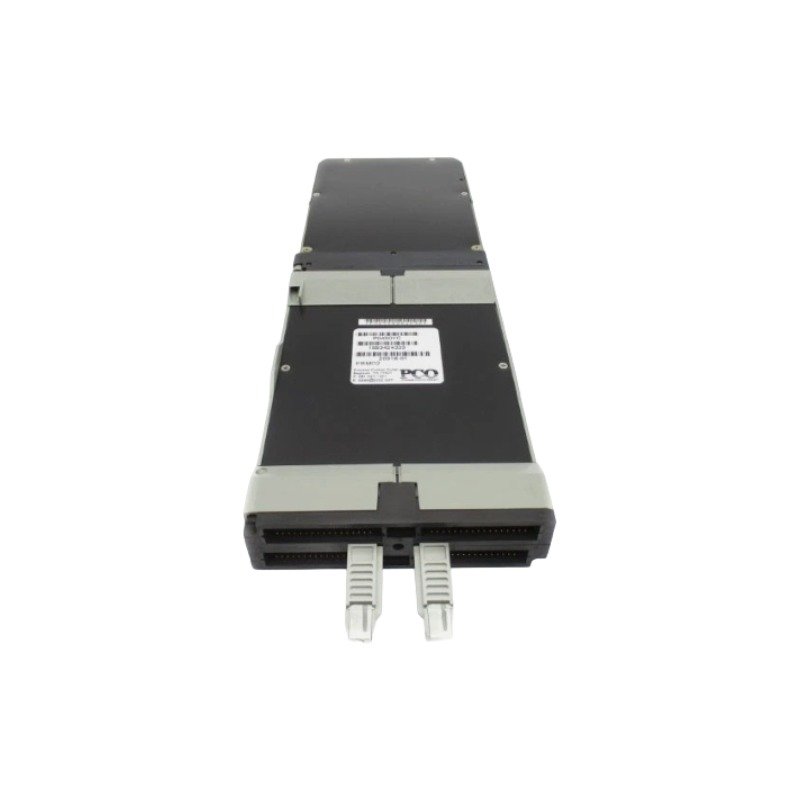

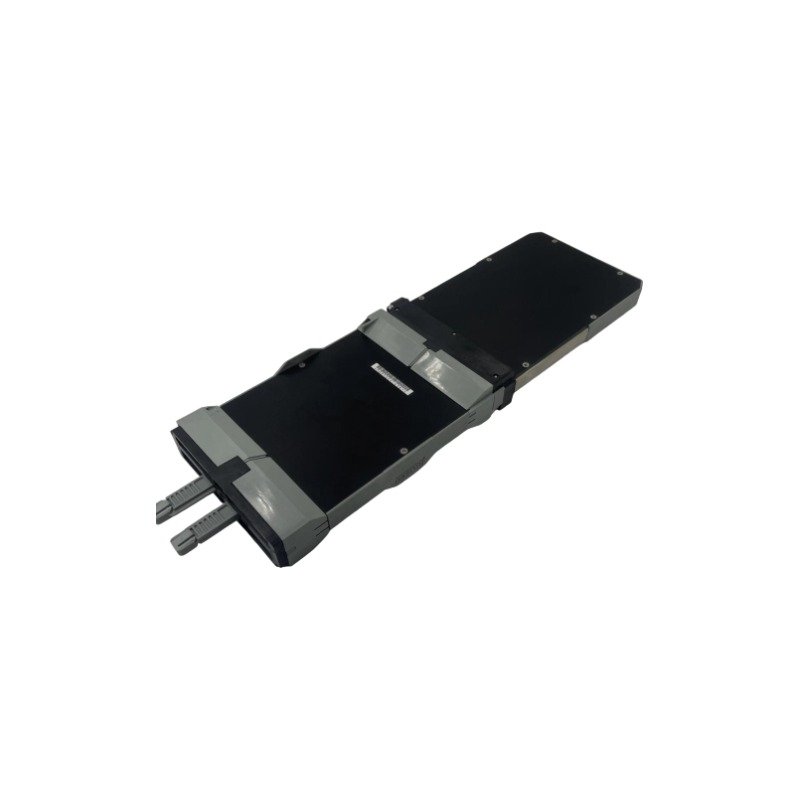

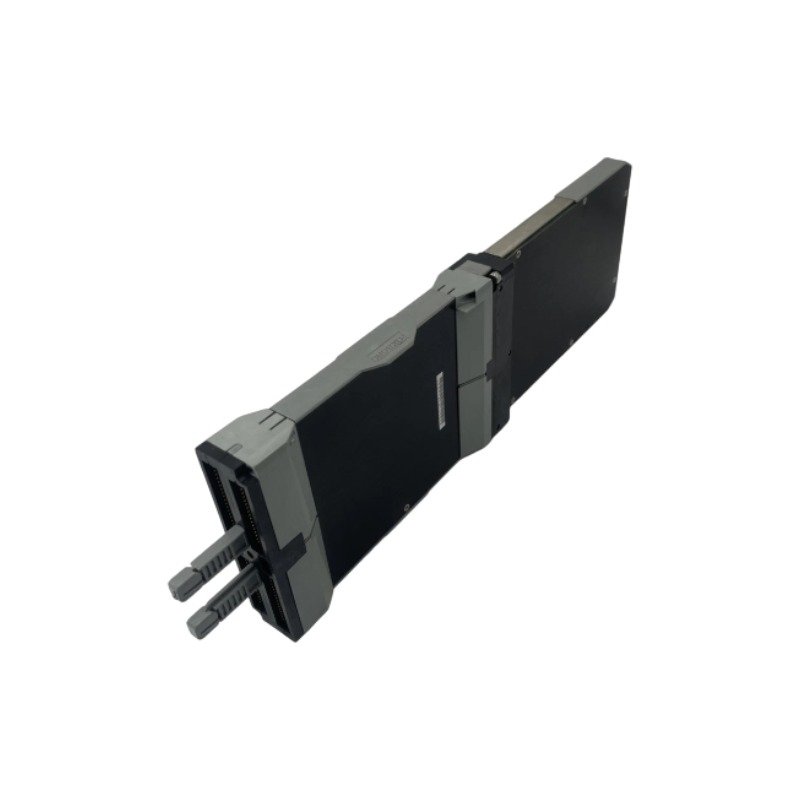

The Foxboro P0400YC, also cataloged as the FBM02 Thermocouple/mV Input Interface Module, operates as a dedicated hardware component for converting microvolt temperature and millivolt signals across redundant fieldbus networks within Foxboro I/A Series DCS platforms.

Hardware Specifications

Cold Junction Compensation and Galvanic Isolation

To prevent ground loop currents in noisy industrial environments, the FBM02 module enforces dynamic channel-to-channel galvanic isolation. Furthermore, the system processes Cold Junction Compensation (CJC) through two distinct terminal topologies. When field engineers deploy detached or direct terminals, the hardware routes signals through an internal 100 ohm Platinum RTD built directly into the termination cable assembly. Alternatively, when using plug-in terminals, the module accepts user-supplied 2-wire, 3-wire, or 4-wire 100 ohm Platinum RTDs complying with DIN 43760 Class B standards. As a result, this dedicated reference channel continuously corrects thermocouple non-linearity and temperature drift without relying on external transmitter electronics.

Frequently Asked Questions

Q: How does the module manage open circuit faults on millivolt channels?

A: The module applies an open-circuit detection voltage of 0.25 V DC across the mV channels. Consequently, upon detecting a broken wire or missing sensor, the unit immediately forces the software process variable into a defined failure state.

Q: Which RTD wiring methods does the hardware support for cold junction compensation?

A: The FBM02 directly processes external 2-wire, 3-wire, and 4-wire 100 ohm Platinum RTDs (DIN 43760 Class B) via plug-in terminals to calculate precise cold junction values.

Field Installation Guidelines

• Verify that technicians power down the baseplate fieldbus architecture or establish redundant hot-swap mode before inserting the module into its designated slot.
• Route thermocouple extension cables through dedicated conduits to isolate low-level signals from high-voltage AC lines and variable frequency drives.
• Secure shield continuity by landing the signal drain wire at a single grounding point, ideally at the main enclosure grounding busbar, to eliminate ground loops.
• Double-check terminal block polarity for 2-wire, 3-wire, and 4-wire RTD sensors to ensure accurate temperature compensation across the redundant fieldbus.
