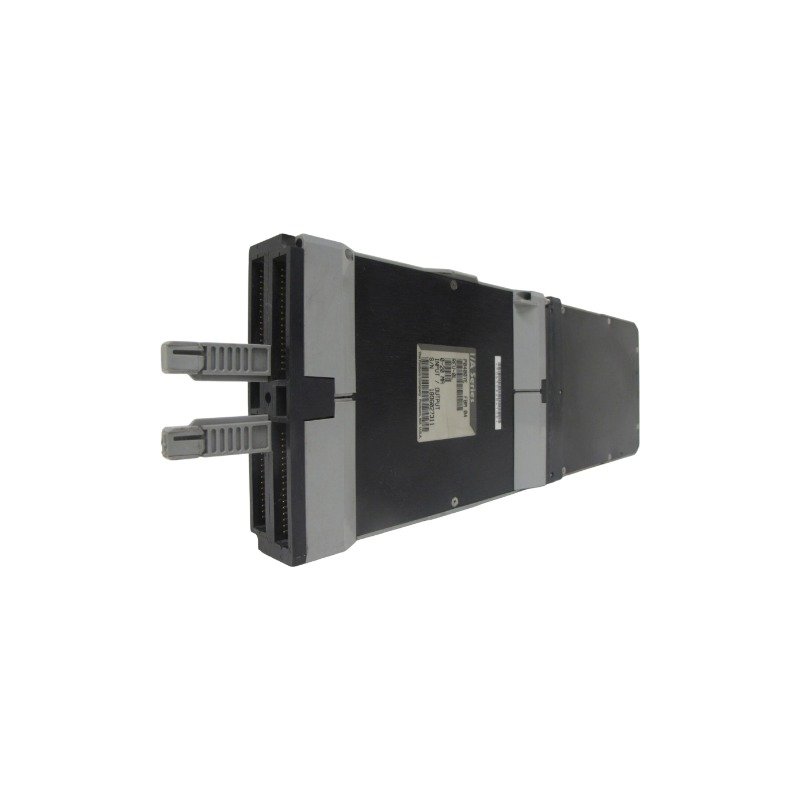

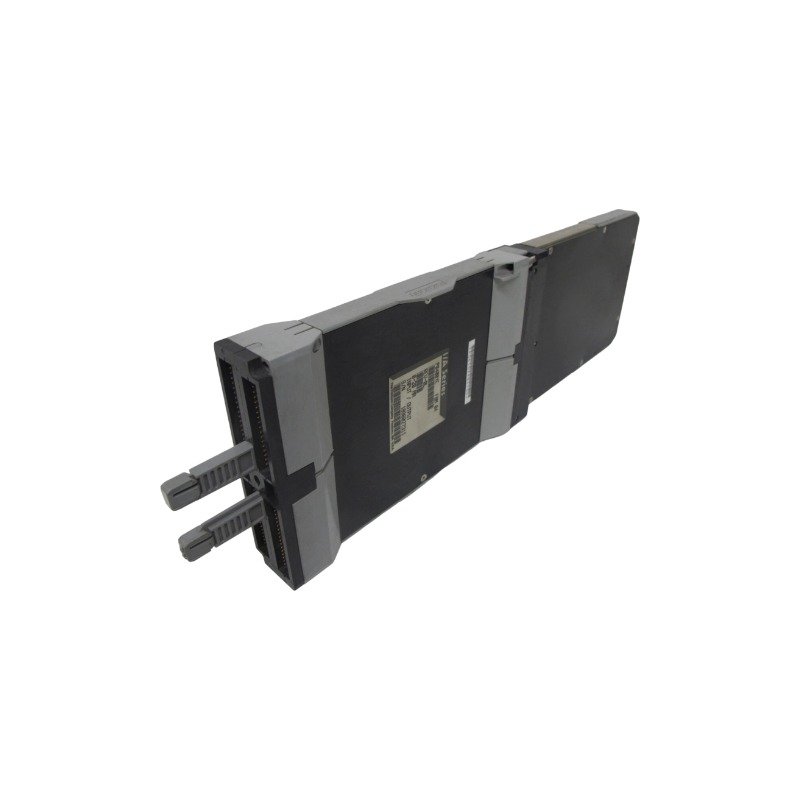

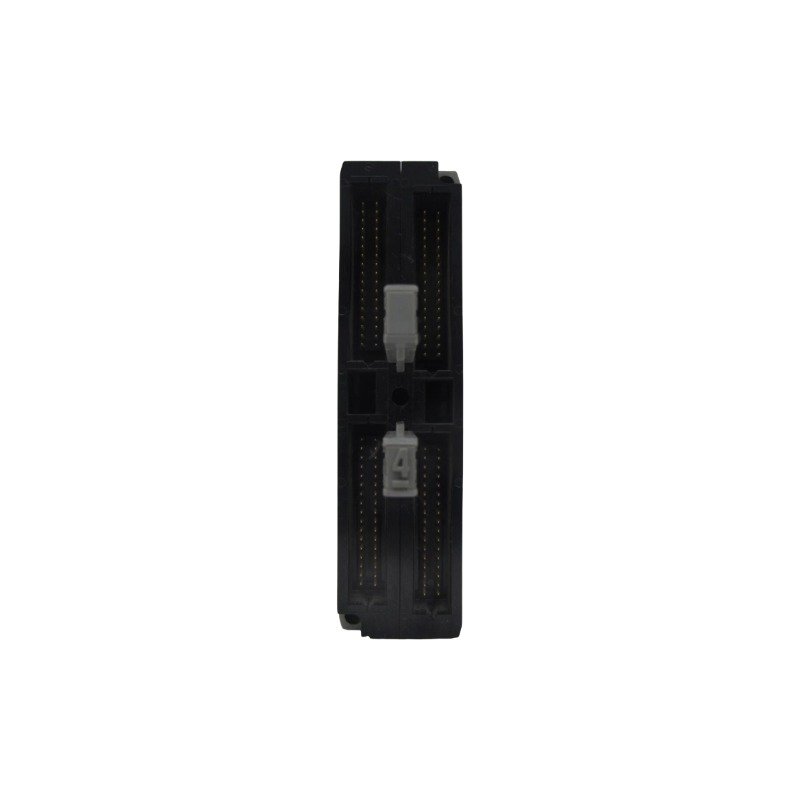

Foxboro FBM04 P0400YE I/O Interface Module
Foxboro FBM04 P0400YE I/O Interface Module. Brand New hardware with Original Stock and Global Shipping available.
Description
The Foxboro FBM04 P0400YE, also cataloged as the FBM04 I/O Interface Module, operates as a dedicated hardware component for isolated analog input and output signal conversion within Foxboro I/A Series platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM04 P0400YE |
| Brand | Foxboro |
| Origin | USA |
| Weight | Standard Module Weight |
| Dimensions | Standard Baseplate Slot Mount |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | Max 14 W (Power Input); Max 12 W (Heat Dissipation) |
| Input Voltage Range | 26 to 42 VDC (Redundant Input) |
| Isolation Rating | 600 VAC for 1 min (Channel-to-Earth or Channel-to-Channel) |
| Input Channels | 4 independent and isolated channels |
| Input Range | 0 to 20.4 mA DC per channel |
| Input Accuracy | +/-0.05% of span |
| Output Channels | 4 independent and isolated channels |
| Output Range | 0 to 20.4 mA DC per channel |
| Output Load Limit | Max 735 ohm |
| Compliance Voltage | 18.6 VDC nominal at 20 mA at I/O terminals |
| Output Accuracy | +/-0.05% of span at 25 deg C |
| Output Temp Coefficient | 100 ppm/deg C |
| Resolution | 12 bit |
| Settling Time | 100 ms for a 10% to 90% step change |
| Linearity Error | +/-0.025% of span (monotonic) |
| Communication Method | Redundant fieldbus network |
Process Signal Integration and Channel-to-Channel Isolation
The FBM04 P0400YE processes high-density analog signals by providing four isolated input channels and four isolated output channels operating in the 0 to 20.4 mA DC range. Galvanic isolation barriers withstand up to 600 VAC for one minute across independent channels and to earth ground, eliminating differential ground loop noise in control enclosures. When interfacing with smart field instruments utilizing 4-20 mA HART loop protocol architectures over redundant fieldbus lines, internal 12-bit digital conversion ensures tight signal accuracy. Integrated cold junction compensation (CJC) algorithms maintain precise measurement baselines during ambient enclosure thermal shifts.
Frequently Asked Questions
Q: How does the FBM04 P0400YE maintain analog signal processing stability under varying loop resistance loads?
A: The output driver circuits deliver a nominal 18.6 VDC compliance voltage at 20 mA, sustaining driving power across field loop loads reaching up to 735 ohm without degrading the 12-bit output resolution.
Q: What power bus configuration does the FBM04 P0400YE require for continuous redundant operation?
A: The module accepts a redundant dual input power rail ranging from 26 to 42 VDC, consuming a maximum of 14 W under full I/O load configurations.
Field Installation Guidelines
- Insert the FBM04 P0400YE module firmly into the designated slot on the Foxboro I/A Series baseplate until top and bottom securing latches fully lock.
- Connect field wiring for the 4 input and 4 output channels using shielded twisted-pair cables, keeping low-voltage analog lines separated from AC power cables by at least 200 mm.
- Verify that all field cable shield drain wires connect to a single functional instrument earth ground point inside the control cabinet.
- Ensure enclosure cabinet ventilation maintains operational temperatures within specified bounds to dissipate up to 12 W of internal module heat load.
Additional information
| Weight | 0.95 kg |
|---|---|
| Dimensions | 67 × 45 × 73 mm |
