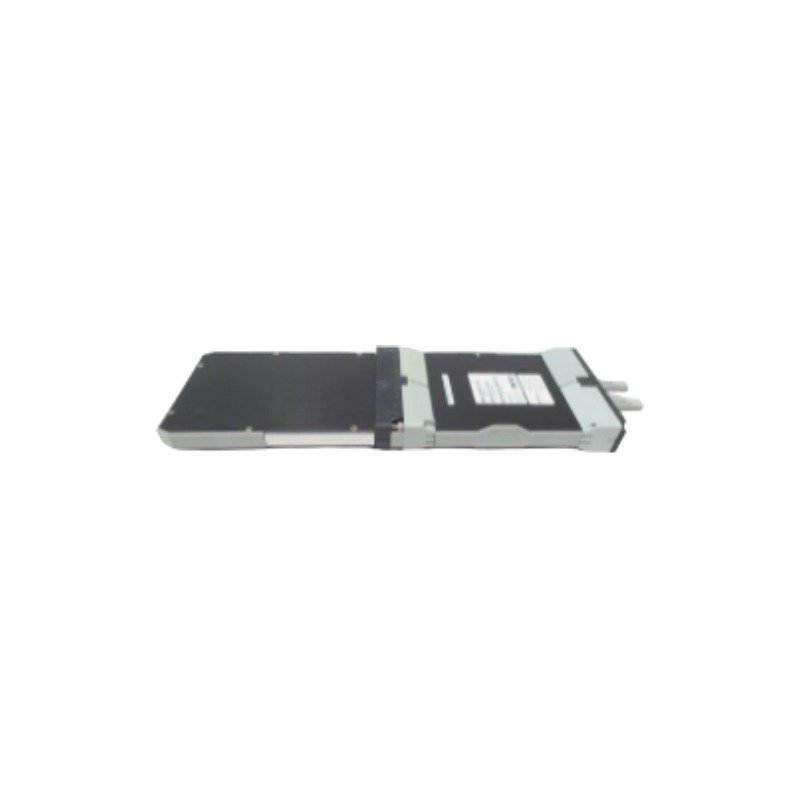

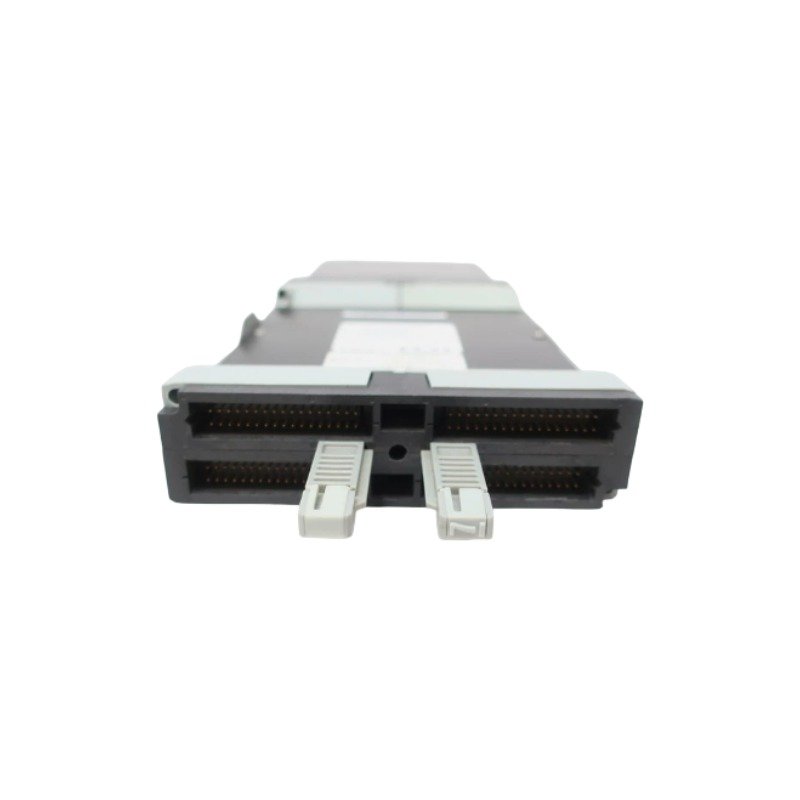

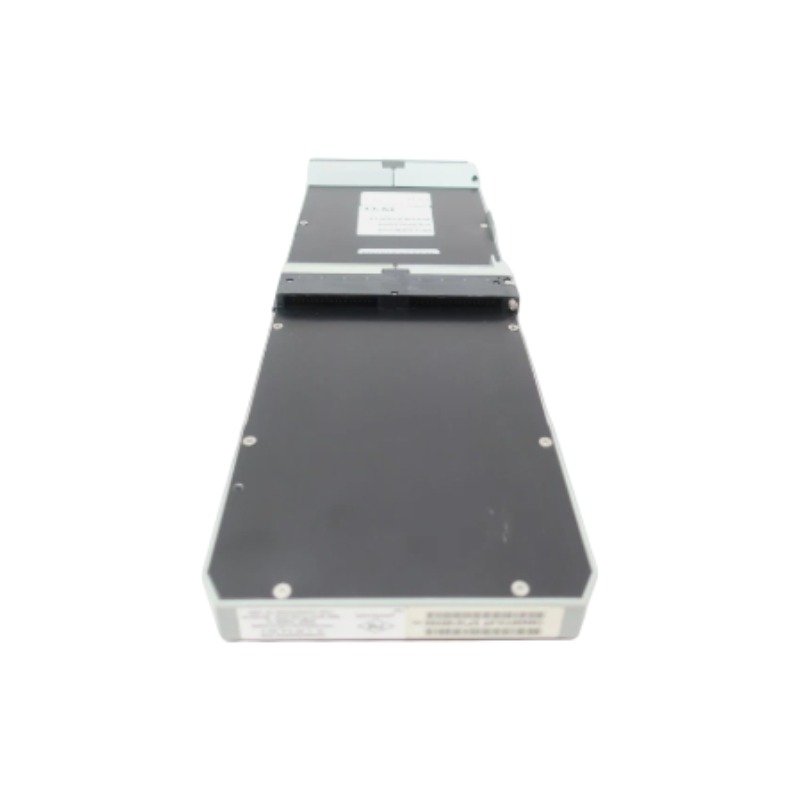

Foxboro P0400YD FBM03 RTD Input Interface Module
Foxboro P0400YD FBM03 RTD Input Interface Module is Brand New, offered from Original Stock with Global Shipping.
Description
The Foxboro P0400YD FBM03, also cataloged as the FBM03 RTD Input Interface Module, operates as a dedicated hardware component for temperature acquisition within Foxboro Distributed Control System (DCS) platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P0400YD FBM03 |
| Brand | Foxboro |
| Origin | USA |
| Weight | Standard Module Weight |
| Dimensions | Standard FBM Module Size |
| Operating Temp | 0 to +60 deg C |
| Power Consumption | Backplane Powered |
| Product Type | RTD Input Interface Module |
| Input Channels | 8 Resistance Temperature Detector (RTD) channels |
| Resistance Range | 0 to 320 ohms |
| Supported Wire Types | 2-wire, 3-wire, and 4-wire RTD sensors |
| Wiring Restrictions | 3-wire RTDs cannot be mixed with 2-wire or 4-wire RTDs on the same module |
Channel-to-Channel Isolation and Loop Performance
The Foxboro P0400YD FBM03 module actively processes high-density field inputs for demanding process control environments. Furthermore, robust channel-to-channel isolation prevents ground loop noise from propagating across adjacent temperature points. In addition, integrated signal compensation accurate converts analog inputs across the 0 to 320 ohms resistance span, which effectively eliminates line resistance errors on multi-wire sensor runs.
Frequently Asked Questions
Q: Can engineers mix 3-wire RTD sensors on the same Foxboro P0400YD FBM03 module alongside 2-wire or 4-wire sensors?
A: No, hardware limitations strictly prevent mixing 3-wire RTD configurations with 2-wire or 4-wire RTD sensors on the same P0400YD FBM03 module.
Q: What resistance measurement range does the Foxboro P0400YD FBM03 support?
A: Each individual input channel directly measures signals within a resistance range of 0 to 320 ohms.
Field Installation Guidelines
- First, insert the module securely into the designated Foxboro baseplate slot while following standard DIN-rail mounting procedures.
- Next, ground all field wiring shields at a single dedicated termination point to eliminate signal noise interference.
- Additionally, verify sensor wire configurations (2-wire, 3-wire, or 4-wire) prior to system energization to prevent improper mixing on the module block.
- Consequently, separate signal wiring from high-voltage power cables to protect low-resistance RTD signals from electromagnetic interference.
Additional information
| Weight | 0.60 kg |
|---|---|
| Dimensions | 67 × 42 × 85 mm |
