Description

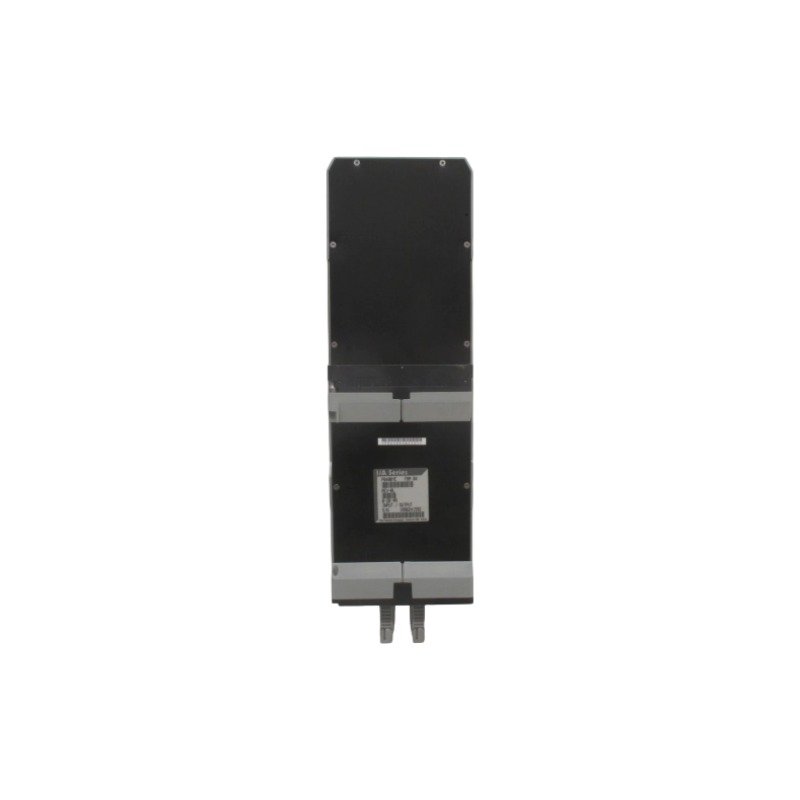

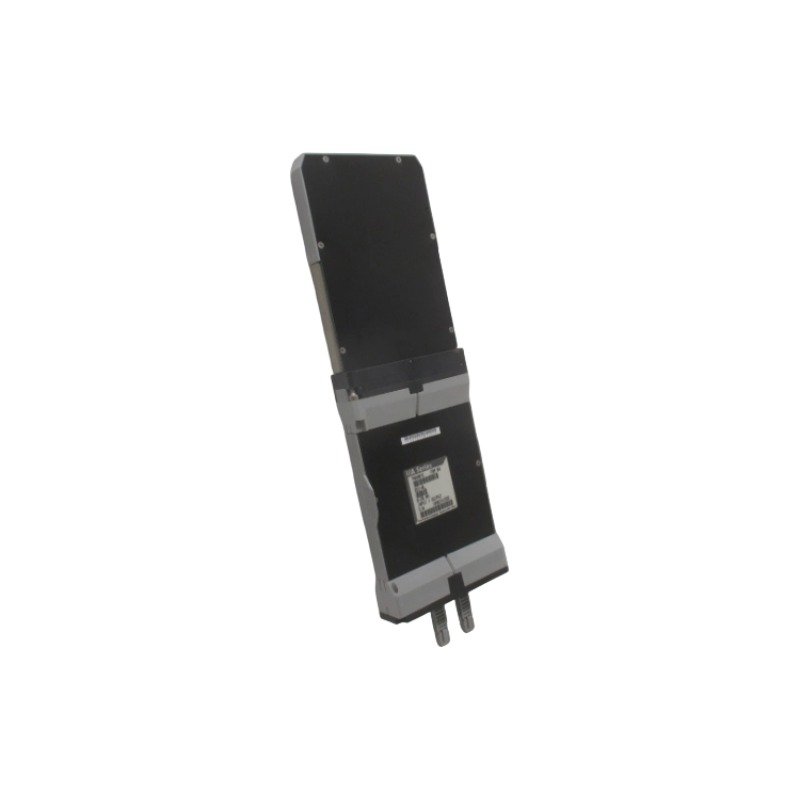

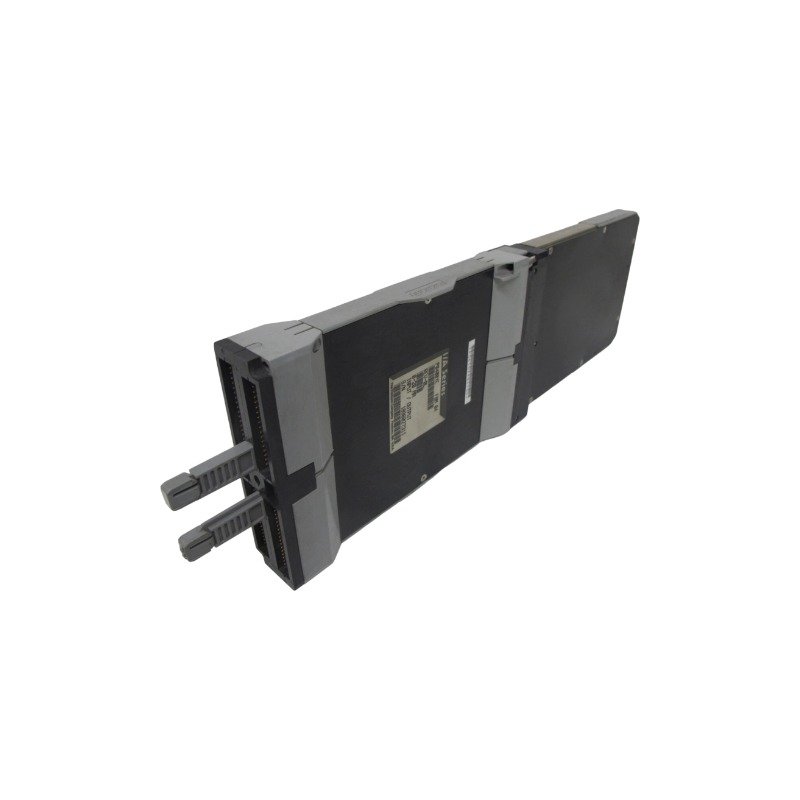

The Foxboro P0400YE FBM04 serves as the primary FBM04 I/O Interface Module utilized to execute analog signal conversion across Foxboro I/A Series DCS platforms. Specifically, this hardware actively processes bidirectional current loop signals and directly dictates physical electrical routing for distributed field devices with a response time of less than 100 ms.

Hardware Specifications

Galvanic Isolation and Loop Architecture

The module integrates 1500 V galvanic isolation strictly between the field I/O channels and the main system backplane. Furthermore, this architectural isolation actively prevents multiple segment failures typically triggered by ground faults on individual process loops. Consequently, automation engineers can deploy the I/O interface in high-density process environments while completely eliminating signal cross-talk and ground loop propagation across adjacent terminal blocks.

Frequently Asked Questions

Q: Can technicians remove the Foxboro P0400YE FBM04 module under live power conditions?

A: Yes, the hardware architecture fully supports hot-swapping. Therefore, technicians can extract or replace the module directly without disconnecting field device terminations, backplane power, or primary communication cabling.

Q: What are the absolute storage limitations for this module when kept offline?

A: When powered down, the module requires a storage environment strictly maintained between -20 deg C and +85 deg C, with ambient humidity kept between 5% and 95% (non-condensing).

Field Installation Guidelines

• First, verify the physical dimensions (4.0 x 8.0 x 6.0 inches) align correctly with the targeted Foxboro I/A Series baseplate slot prior to applying mechanical insertion force.
• Next, monitor the front-panel LEDs immediately after power-up to visually confirm hardware initialization and communication bus synchronization.
• Additionally, route the 0-20 mA field cabling away from heavy AC load lines to prevent inductive noise from degrading the 16-bit analog signal resolution.
• Finally, ensure all field shield drains terminate to the designated grounding rail rather than the module itself, maintaining the integrity of the 1500 V galvanic isolation barrier.
