Description

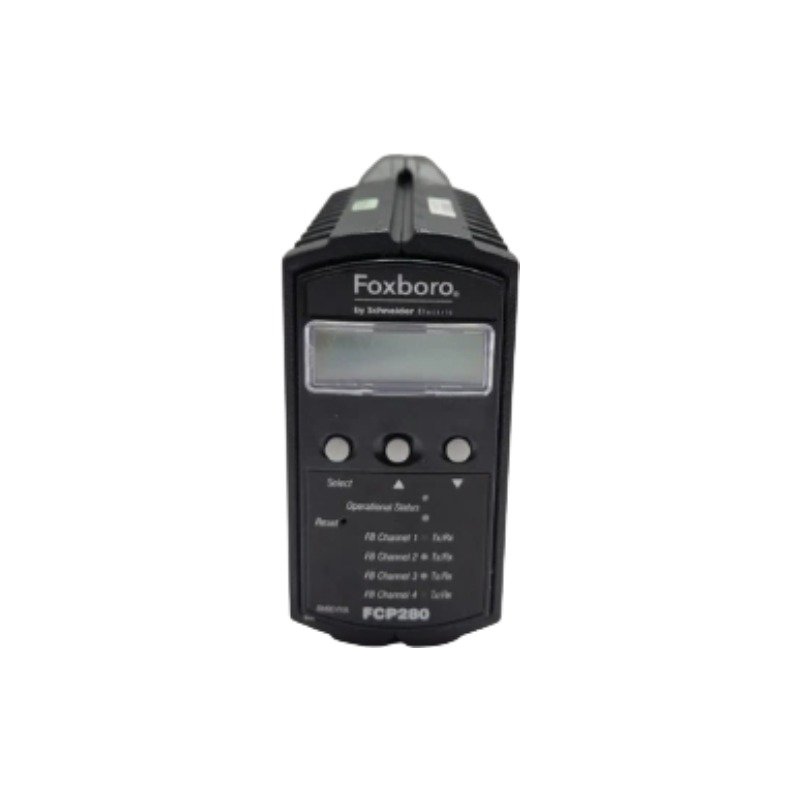

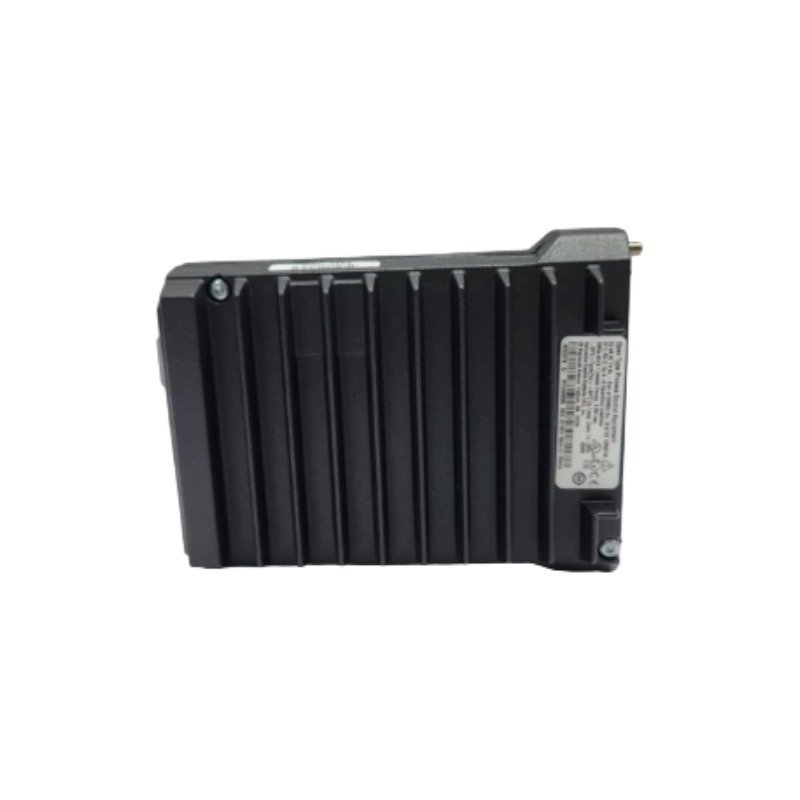

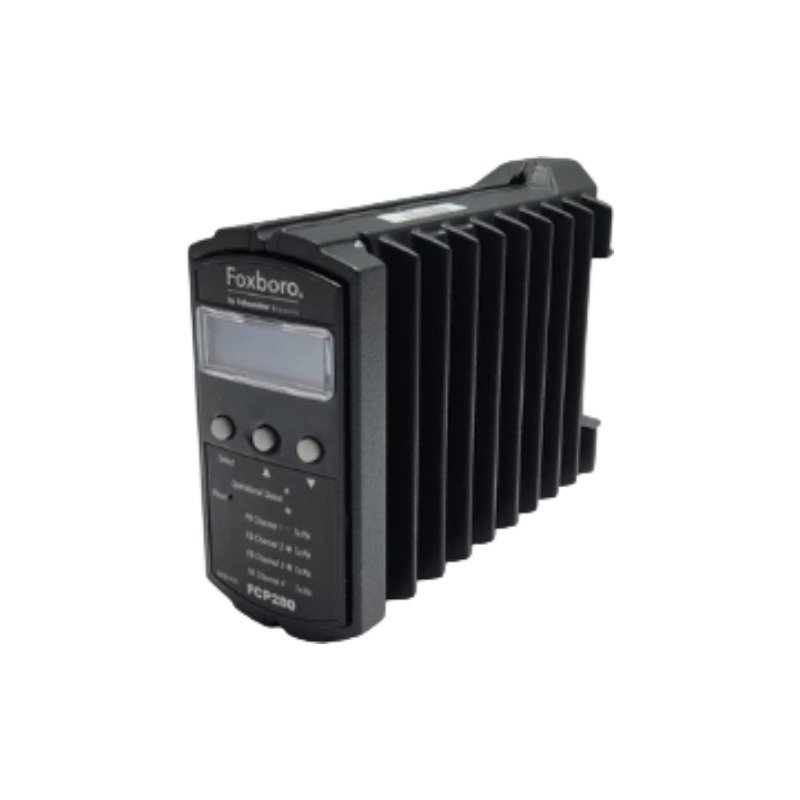

The Foxboro FCP280, also cataloged as the FCP280 Field Control Processor, operates as a dedicated hardware component for deterministic regulatory and sequential execution within Foxboro Distributed Control System (DCS) networks.

Hardware Specifications

Fieldbus Communications and Signal Isolation

The FCP280 manages continuous analog and digital signals through connected 100 Series and 200 Series Fieldbus Modules (FBMs). Furthermore, the processor routes field data across a 2 Mbps HDLC Fieldbus link, isolating individual transmission channels to maintain signal integrity. Analog input loops, including 4-20 mA HART loop protocol devices, pass through channel-to-channel isolation barriers within the connected FBMs. Consequently, this configuration suppresses common-mode noise and prevents ground potential differentials. For temperature monitoring points, cold junction compensation (CJC) circuits at the termination assemblies preserve thermal sensing accuracy across varying ambient conditions.

Frequently Asked Questions

Q: How does the FCP280 execute runtime software updates without interrupting live plant operations?

A: Personnel perform updates using On-Line Upgrade (OLUG) or Enhanced OLUG protocols. During an update on a fault-tolerant pair, the secondary module receives the new firmware image, synchronizes data, and assumes active control before the technician updates the primary unit.

Q: What mechanisms prevent performance degradation during high process load spikes?

A: Integrated processor load monitoring routines track system resource usage continuously. As a result, the hardware generates diagnostic alarms when processor load thresholds are exceeded, protecting core execution tasks against software starvation.

Field Installation Guidelines

1. Mount the FCP280 module firmly onto a compatible 2-position or 4-position vertical baseplate until the module locks securely.
2. Wire dual 24 VDC power lines into the baseplate terminals to establish redundant power distribution across the backplane.
3. Connect dual 100 Mbps Ethernet cables (copper or fiber transceivers) into the primary and secondary network interfaces for redundant control bus communication.
4. Route field wiring and network cables in separate wire ducts, maintaining at least 200 mm clearance from high-voltage AC conductors to prevent electromagnetic interference.
