Description

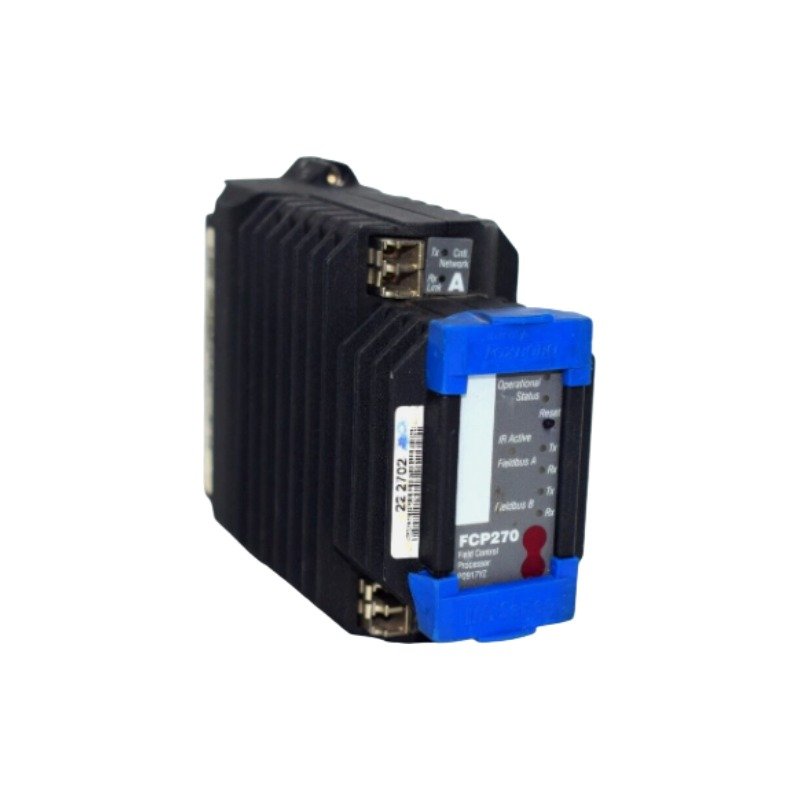

The Foxboro FCP270 P0926MX serves as the primary FCP270 Field Control Processor utilized to execute deterministic process control algorithms and HDLC fieldbus communication across Foxboro I/A Series platforms.

Hardware Specifications

Fieldbus Communication and Protocol Routing

The FCP270 P0926MX processes direct digital and analog field feedback over a 2 Mbps HDLC communication trunk. Consequently, the processor maintains deterministic execution loops for downstream devices. When handling field I/O signals that require the 4-20 mA HART loop protocol, the system decodes data via dedicated Fieldbus Modules (FBMs) connected through the local baseplate interface or expanded using the FEM100 module. Furthermore, channel-to-channel isolation barriers actively prevent differential ground loops. Meanwhile, high-density analog temperature loops rely on cold junction compensation (CJC) circuits at the termination assemblies to preserve measurement accuracy.

Frequently Asked Questions

Q: What live insertion (hot-swap) constraints apply to the FCP270 P0926MX module during system operation?

A: Technicians can hot-swap the module directly into an active baseplate slot. In a fault-tolerant redundant configuration, swapping a module does not interrupt active control execution or fieldbus communication, provided that personnel observe standard electrostatic discharge (ESD) handling protocols during removal and insertion.

Q: How does the FCP270 P0926MX manage power supply fault tolerance?

A: The module accepts dual 24 VDC inputs through the baseplate power distribution bus. Internal diode-ORing logic continuously monitors voltage thresholds; as a result, the hardware executes a seamless failover to the secondary supply line without triggering system resets or logic disruption.

Field Installation Guidelines

1. First, insert the FCP270 P0926MX module into the dedicated baseplate slot and press firmly until the locking mechanism fully latches into place.
2. Next, wire dual 24 VDC power feeds directly into the baseplate terminals to establish redundant operation.
3. Connect the HDLC fieldbus cabling to the designated baseplate ports. In addition, ensure that you terminate cable shields to functional instrument ground at a single cabinet point.
4. Finally, maintain physical separation of at least 200 mm between low-voltage DC bus signal lines and high-voltage AC power wiring inside the cabinet.
