Description

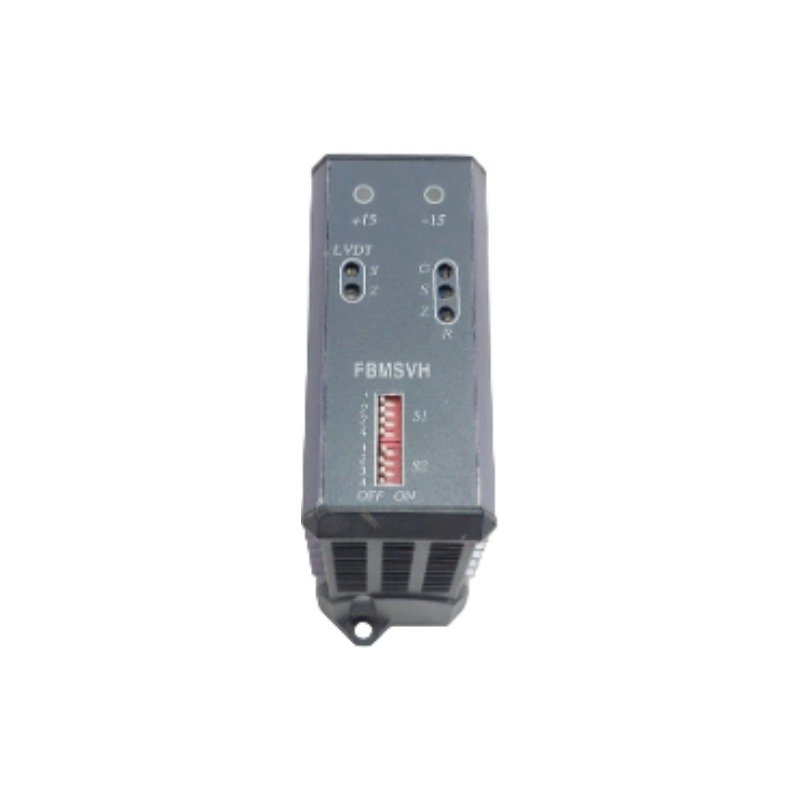

The Foxboro FBMSVH, also cataloged as the FBMSVH Controller Module, operates as a dedicated hardware component for single-channel analog signal acquisition and loop execution within Foxboro I/A Series platforms.

Hardware Specifications

Process Loop Signal Conditioning and Channel Isolation

The FBMSVH conditions single-channel voltage and current signals spanning 0-20 mA, 0-100 mV, 0-5 V, and 0-10 V DC ranges. Built-in channel-to-channel isolation barriers eliminate common-mode ground loops between field instrument sensing points and the central DCS backplane. When interfacing with smart field transmitters configured for 4-20 mA HART loop protocol architectures, internal signal processing filters out high-frequency digital carrier noise to preserve analog signal accuracy. For temperature sensing circuits connected through external field terminal blocks, integrated cold junction compensation (CJC) algorithms maintain calibrated analog-to-digital measurement baselines under shifting ambient temperatures.

Frequently Asked Questions

Q: How does the FBMSVH select between voltage (0-100 mV, 0-5 V, 0-10 V) and current (0-20 mA) input modes?

A: Signal mode selection is established through software parameters in the Foxboro control database, which configure internal input attenuation and multiplexer paths without requiring hardware jumper changes.

Q: What mechanisms protect the FBMSVH single-channel input against external field loop overvoltage?

A: The input circuitry incorporates galvanically isolated surge suppression and voltage limiting components, protecting internal analog-to-digital converter stages from common-mode voltage spikes up to standard industrial threshold limits.

Field Installation Guidelines

1. Mount the FBMSVH module securely into its designated slot on the Foxboro I/A Series baseplate, ensuring the mounting latches lock completely into position.
2. Route signal wiring (0-20 mA, 0-100 mV, 0-5 V, or 0-10 V DC) using shielded twisted-pair cables, keeping a minimum distance of 200 mm from high-voltage AC distribution circuits.
3. Terminate cable shields to the cabinet functional instrument earth bar at a single point to prevent ground loop current formation.
4. Verify all wiring terminal connections prior to applying power to the baseplate distribution bus to prevent accidental short circuits across input terminals.
