Description

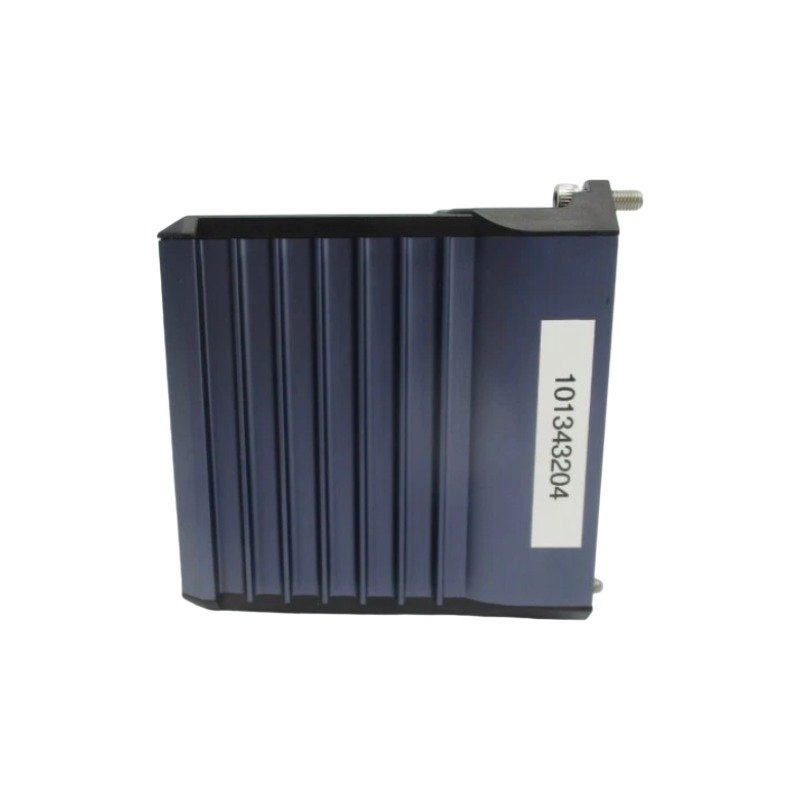

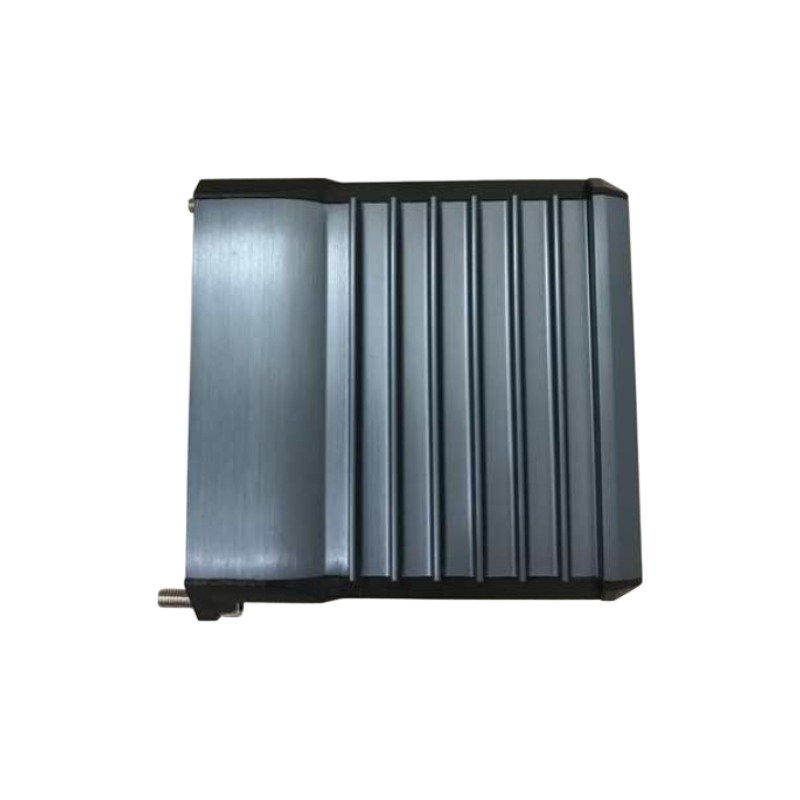

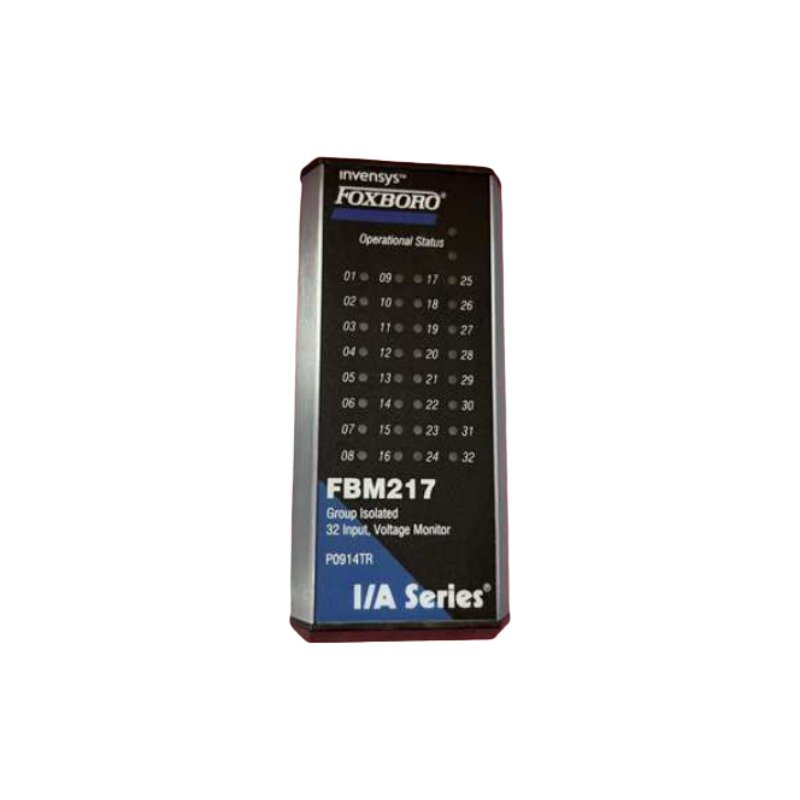

Configured for high-density discrete signal acquisition in Foxboro I/A Series DCS platforms, the Foxboro FBM217 P0916CA (FBM217 Discrete Input Interface Module) provides direct physical/electrical execution. It handles 32 group isolated input channels operating at on-state voltages of 15 to 30 VDC with configurable filter/debounce times and single or redundant module deployment modes.

Hardware Specifications

Process Control Instrumentation & Channel-to-Channel Isolation

The module processes discrete field contact transitions across 32 group isolated input channels to update system control database blocks. Integrated optical isolation and high-voltage attenuation within associated Termination Assemblies (TAs) block common-mode noise surges and voltage spikes up to 600 VAC from entering the internal backplane bus. Signal noise is suppressed using configurable digital debounce timing to eliminate false switching triggers during field relay chatter.

Frequently Asked Questions

Q: How does the software filter time parameter function to mitigate input signal contact chatter?

A: Engineers can set the input debounce filter through software configurations to No Filtering, 4 ms, 8 ms, 16 ms, or 32 ms. The module delays logic state transitions until the physical contact remains stable across the specified filter duration, filtering out mechanical bounce.

Q: What dielectric breakdown potential does the module/TA group isolation combination withstand?

A: The combination of the module and specified group-isolated Termination Assemblies (such as P0916CA, P0916CB, P0916PW, P0916PX, and P0916X) withstands a dielectric test potential of 600 VAC applied for one minute between group isolated input channels and earth ground without hardware damage.

Field Installation Guidelines

Mount the module securely into its assigned baseplate slot on the DIN-rail rack, confirming that backplane connector pins seat cleanly. Attach field wiring to the designated Termination Assembly (TA), ensuring external device excitation power supplies match the specific input voltage range requirements (15 to 60 VDC, 120 VAC/125 VDC, or 240 VAC depending on the selected TA type). Connect cable shield wires to designated ground busbars at the panel entry point to preserve Class G3 enclosure integrity and noise immunity.
