Description

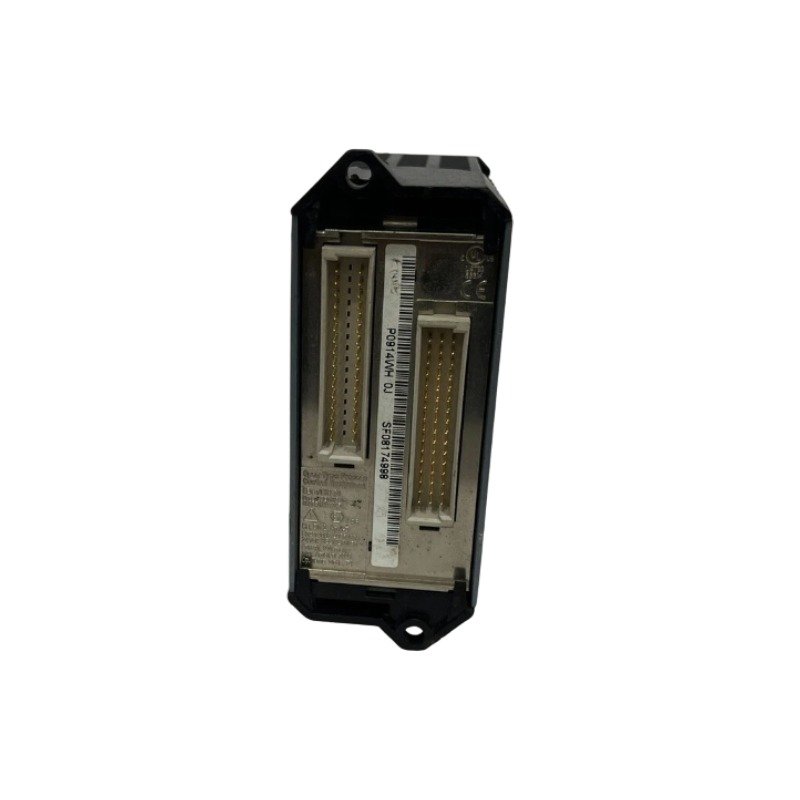

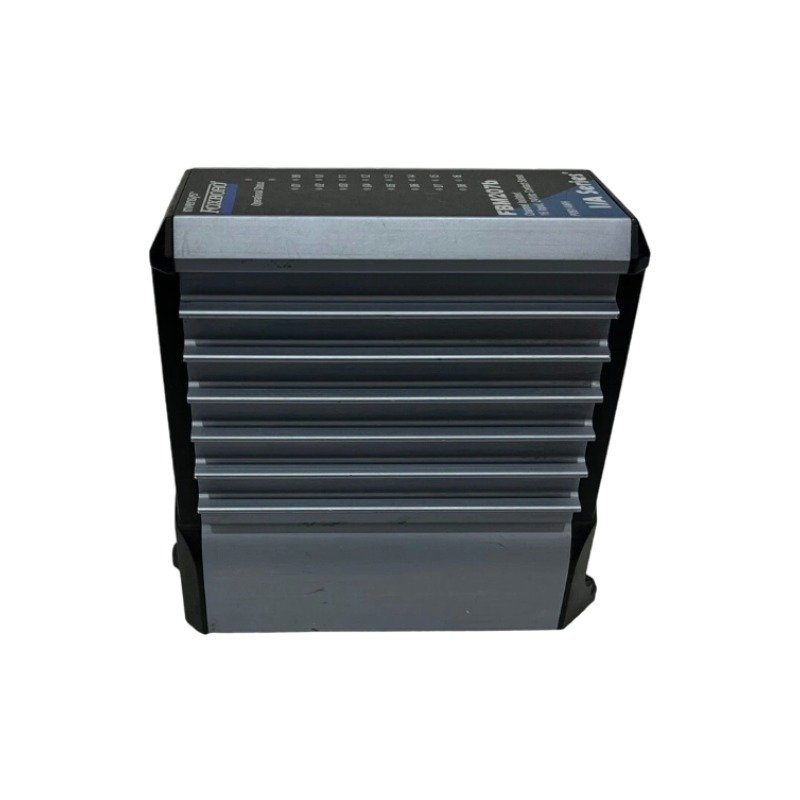

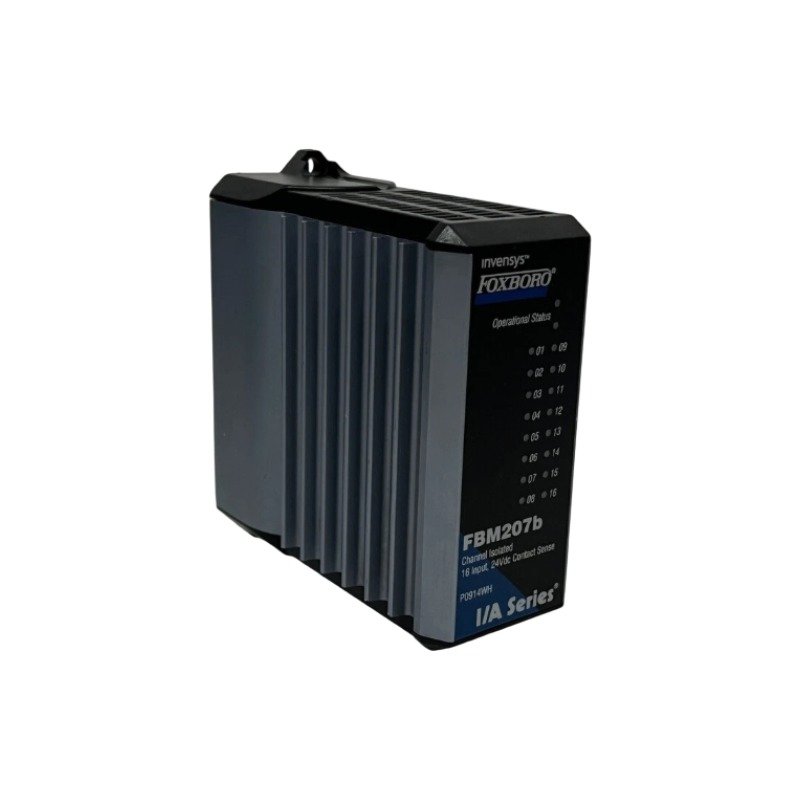

The Invensys Foxboro FBM207b P0914WH, also cataloged as the FBM207b Contact Sense Input Module, operates as a dedicated hardware component for discrete signal conditioning and monitoring within Foxboro I/A Series DCS platforms.

Hardware Specifications

Process Control Communication & Channel Isolation

The module processes field contacts by applying 24 VDC wetting voltage to evaluate logic switch states, converting field inputs for transmission across redundant 2 Mbps module fieldbus interfaces. Each channel incorporates optical galvanic isolation to decouple input ground loops and suppress transient surge propagation into the central backplane bus structure. The hardware executes discrete input processing, ladder logic, and sequence-of-events timestamping directly at the I/O layer.

Frequently Asked Questions

Q: How does the module execute switch state detection for field contacts?

A: The hardware supplies an internal 24 VDC contact wetting voltage across each isolated channel. Internal sensing logic measures circuit continuity, detecting logic one and logic zero conditions through regulated loop current limits.

Q: What fault protection is provided for channel-to-channel wiring loops?

A: Each individual channel features independent galvanic isolation to block ground differentials and line transients between field switches and system backplane electronics. Current-limiting circuit components safeguard internal power rails against accidental short-circuit conditions in the field wiring.

Field Installation Guidelines

Align the module housing with the designated slot on the DIN-rail baseplate assembly and slide into position until backplane connectors latch securely. Ensure field cable shields terminate at ground busbars located near the cabinet entry to maintain low-impedance paths for noise dissipation. Keep 24 VDC contact sense wiring isolated from AC supply cables inside routing channels. Verify system baseplate ground connections prior to energizing the 24 VDC field power supply.
