Description

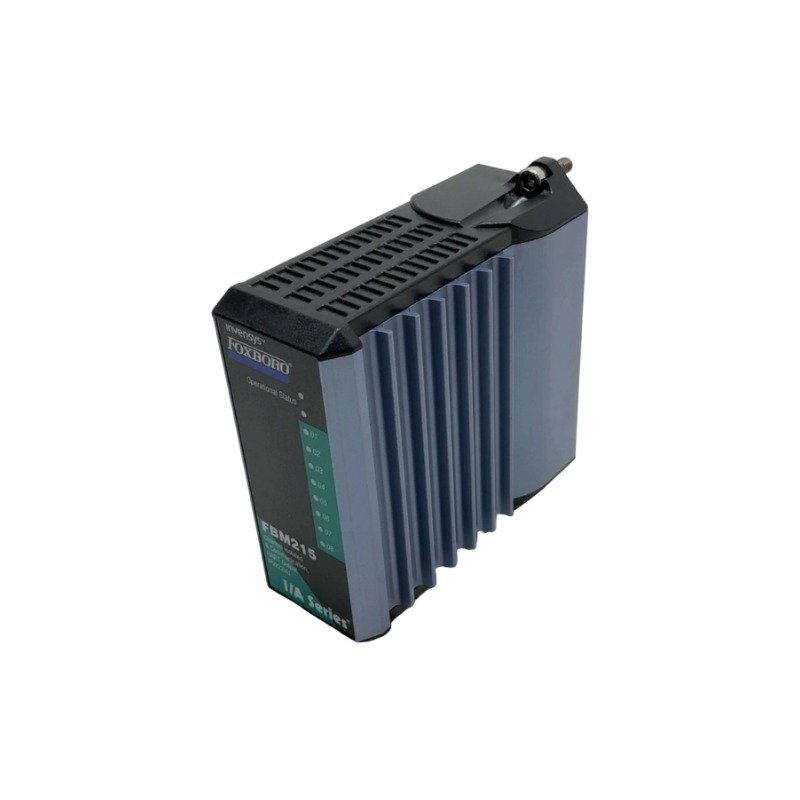

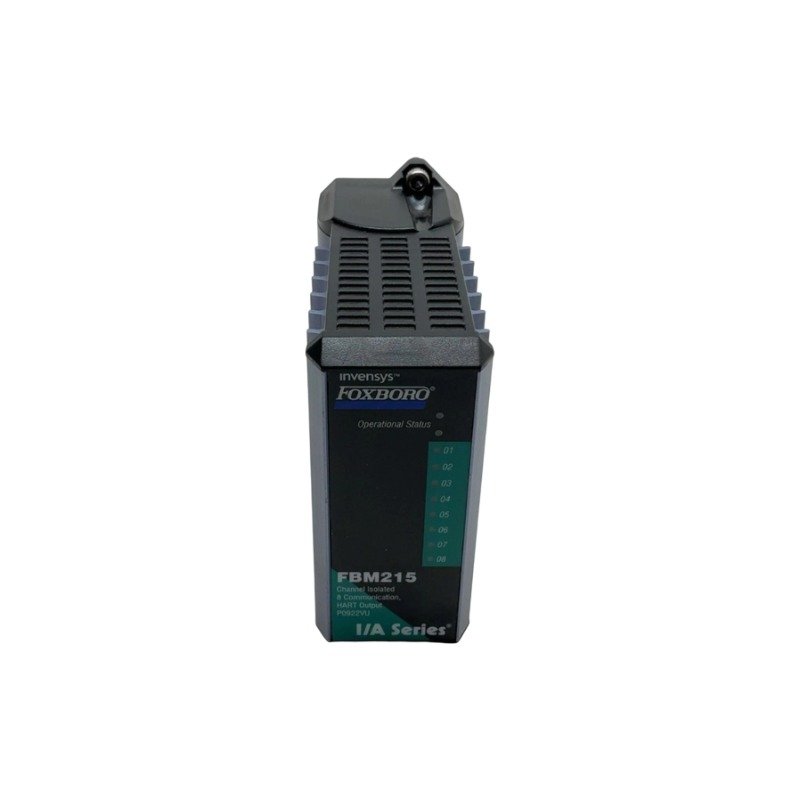

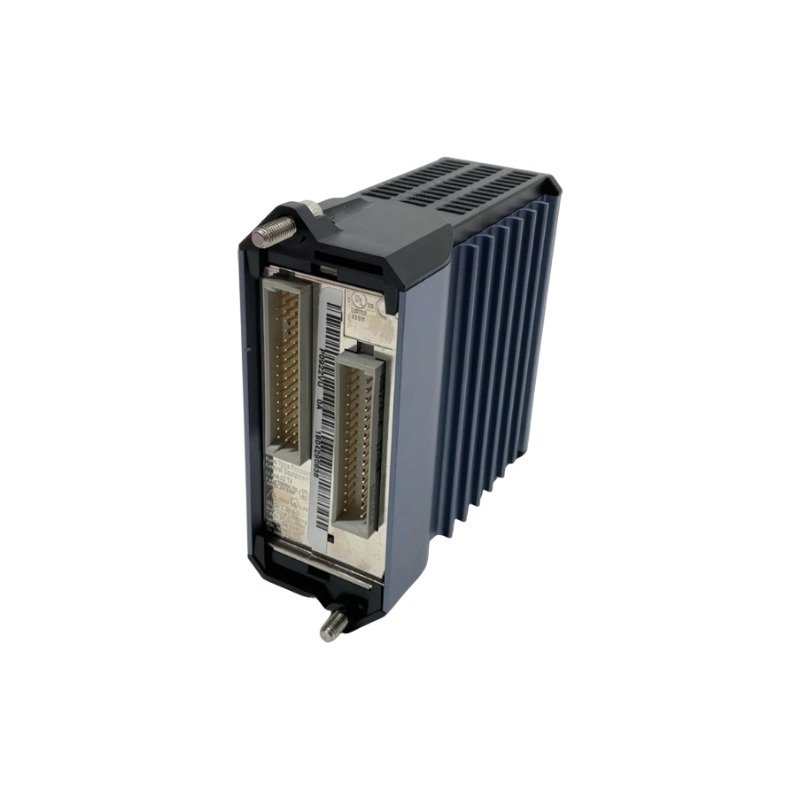

Configured for precision analog signal generation and digital field bus interface in Foxboro I/A Series DCS platforms, the Foxboro FBM215 P0922VU (FBM215 HART Communication Output Module) provides direct physical/electrical execution. It delivers eight channel-isolated output channels, each supplying a standard 4 to 20 mA analog current loop or a digital HART Frequency Shift Keying (FSK) signal superimposed on a 4 to 20 mA analog output.

Hardware Specifications

Process Control Instrumentation & Channel-to-Channel Isolation

The module integrates process control execution with field instrument diagnostics by superimposing bidirectional HART FSK communication onto each 4 to 20 mA analog output loop. Each channel features individual dedicated FSK modems along with complete galvanic isolation (combining optical and transformer barriers) to isolate channels from ground loops, backplane logic, and adjacent output channels up to 600 VAC. The module maintains analog accuracy within ±0.05% of span, enabling real-time command pass-through and device parameter verification.

Frequently Asked Questions

Q: How does the module handle combined analog loop output and digital field device configuration?

A: A dedicated FSK modem is provided for each output channel, allowing the module to continuously drive a 4 to 20 mA analog loop into maximum loads of 750 Ohms while transmitting and receiving digital HART FSK data messages at 1200 baud without disturbing the analog signal.

Q: What level of electrical isolation does the output hardware maintain across channels?

A: All eight output channels are galvanically isolated from each other, from earth ground, and from central module processing logic. The isolation circuitry withstands a potential test voltage of 600 VAC applied for one minute without hardware degradation.

Field Installation Guidelines

Mount the module vertically or horizontally onto a standard 200 Series DIN-rail baseplate assembly, ensuring the backplane pins lock firmly into position. Maintain proper grounding by connecting field cable shields to dedicated panel ground busbars to enforce noise suppression and Class G3 environmental rating standards. Route 4 to 20 mA HART field lines away from high-voltage AC cables, verifying total loop impedance does not exceed 750 Ohms before applying 24 VDC bus power to the redundant power connections.
