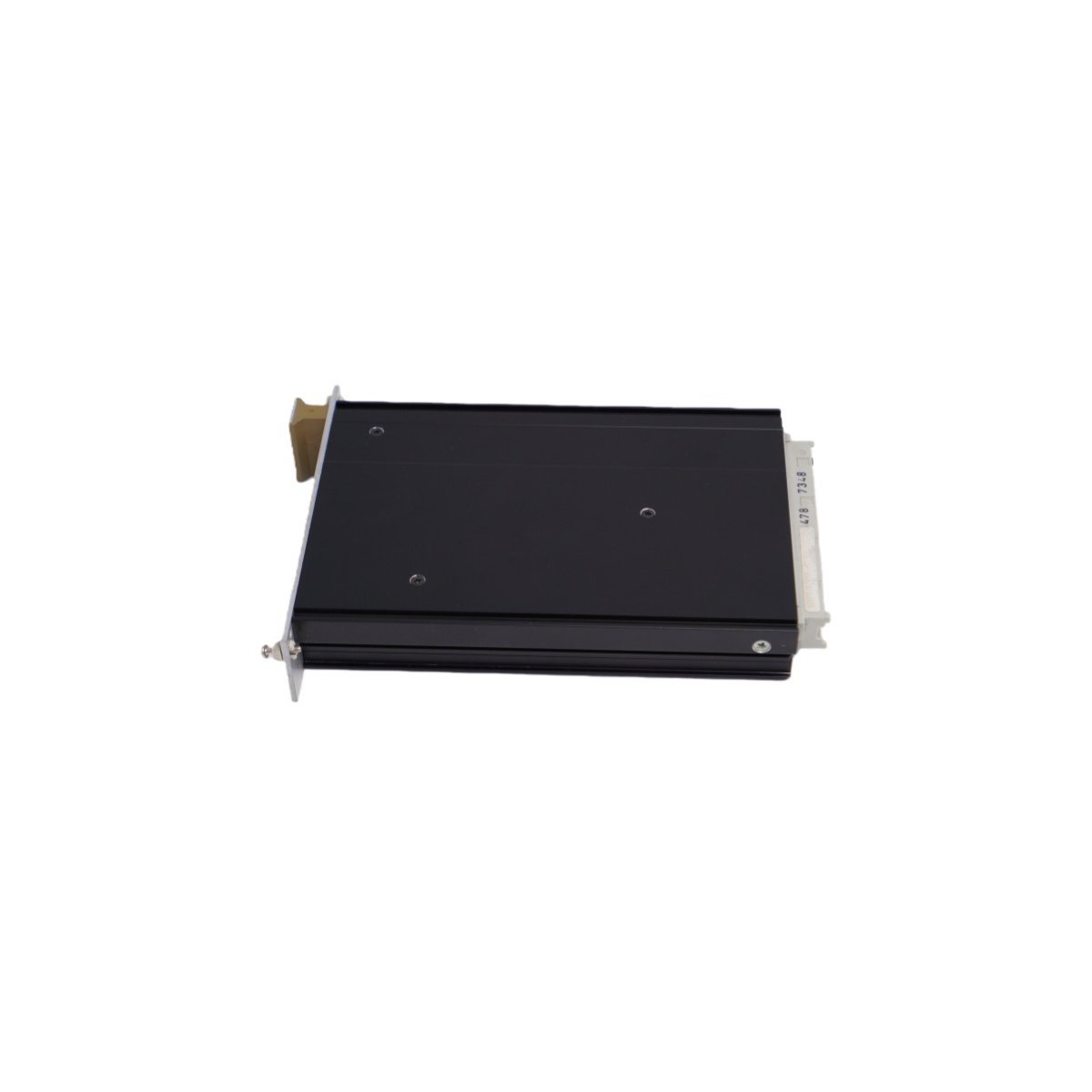

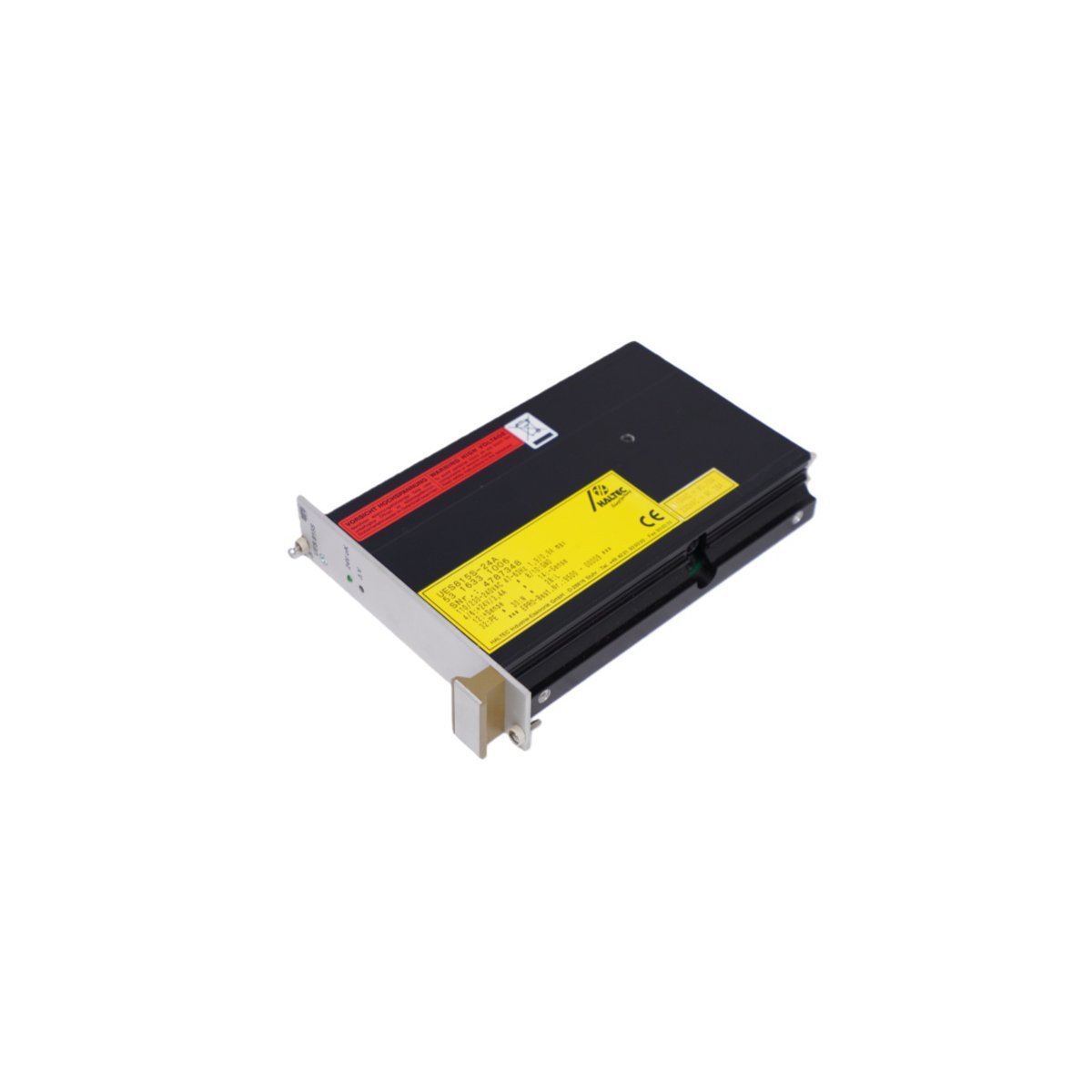

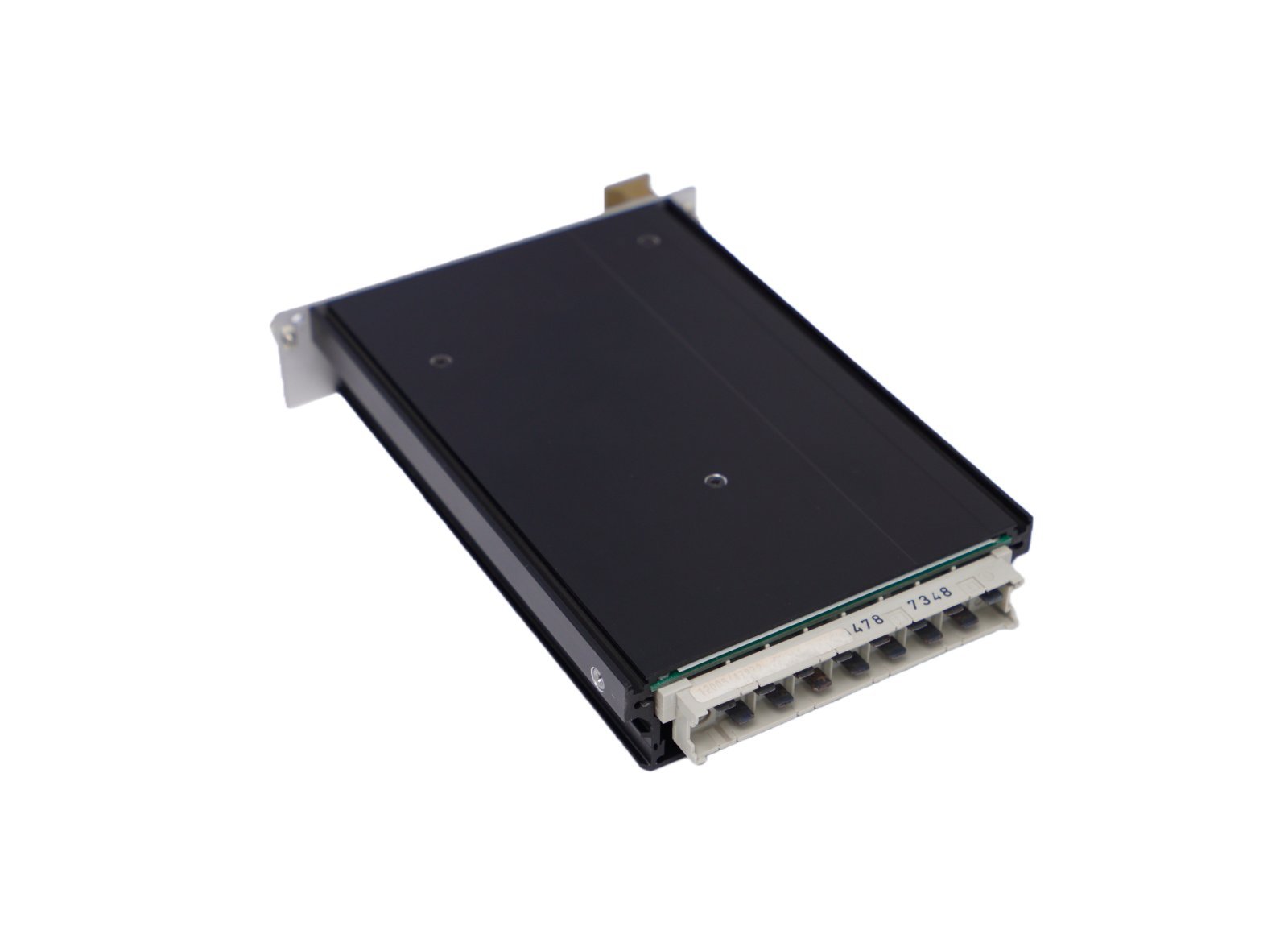

Emerson PAC8000 UES815S-24A Monitoring Module
The Emerson PAC8000 UES815S-24A is a legacy industrial Monitoring Module engineered to manage live diagnostic auditing, backplane voltage supervision, and thermal tracking within a PAC8000 DCS framework. Operating across a resilient -25°C to +70°C temperature envelope, this compact module utilizes integrated overvoltage and short-circuit protection to insulate central automation loops from downstream electrical faults. It represents a vital hot-swap spare component for control engineers maintaining continuous process uptime in power generation, oil/gas, and chemical refinery control cabinets.
Description
Product Overview
The Emerson UES815S-24A is a specialized, high-integrity Monitoring Module designed for the PAC8000 process automation and Distributed Control System (DCS) platform. Engineered to operate as a vital diagnostic and supervisory unit within critical infrastructure environments, this module continuously audits the health, electrical parameters, and communication loop integrity of local I/O nodes and power carrier planes. It ensures real-time fault detection and isolation in high-availability and continuous-process automation fields.
Advanced Capabilities and Functional Benefits
- Intelligent Telemetry Auditing: Actively monitors system voltage rails, ambient thermal thresholds, and localized current distributions to provide early failure warnings before field nodes drop offline.
- PAC8000 Ecosystem Alignment: Purpose-built for seamless, zero-configuration insertion into legacy PAC8000 carriers, supporting high-speed deterministic communications across the primary bus structure.
- Robust Circuit Protection: Integrates hardware-level overvoltage, short-circuit, and overtemperature safety shutdowns, isolating localized electrical faults to preserve whole-system backplane uptime.
- Severe Climate Hardening: Features advanced internal thermal management capable of maintaining uninterrupted operational stability across a demanding temperature envelope of -25°C to +70°C.
- Industrial Environment Resilience: Equipped with reinforced electrical isolation barriers and conformal protective coatings to defend delicate internal logic from moisture, particulate contamination, and high-humidity environments.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Manufacturer | Emerson |
| Product Subsystem | PAC8000 Process Automation System |
| Model / Part Number | UES815S-24A |
| Module Type | Diagnostic / System Monitoring Module |
| Input Baseline Support | Standardized Industrial Voltage Configurations |
| Internal Switching Frequency | 30 kHz Nominal |
| Physical Enclosure Dimensions | 12.1 cm (H) x 5.2 cm (W) x 16.6 cm (D) |
| Net Hardware Weight | 0.34 kg (approx. 340 grams) |
| Condition Classification | Brand New (Original Industrial Surplus) |
| Country of Origin | United States |
| Operational Temperature Window | -25°C to +70°C (-13°F to +158°F) |
| System Architecture Type | Enterprise DCS Network Infrastructure / Critical Safety Loop |
| Lifecycle Status | Legacy hardware platform (Discontinued by manufacturer Dec 31, 2018) |
Industrial Applications
- Critical Power Plant Diagnostics: Monitoring power bus lines and remote marshaling enclosures on steam/gas turbine control layers to guarantee zero power sags.
- Continuous Chemical Processing: Serving as an independent supervisor module on petrochemical processing lines where unplanned shutdowns compromise plant safety.
- Oil and Gas Extraction Wells: Providing distributed remote diagnostic tracking for wellhead automation nodes exposed to wild ambient outdoor temperatures.
- Water & Wastewater Control Arrays: Overseeing high-reliability pumping installations, keeping local telemetry feeds active during heavy utility line fluctuations.
Additional information
| Weight | 0.34 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 12.1 x 5.2 x 16.6 cm |
