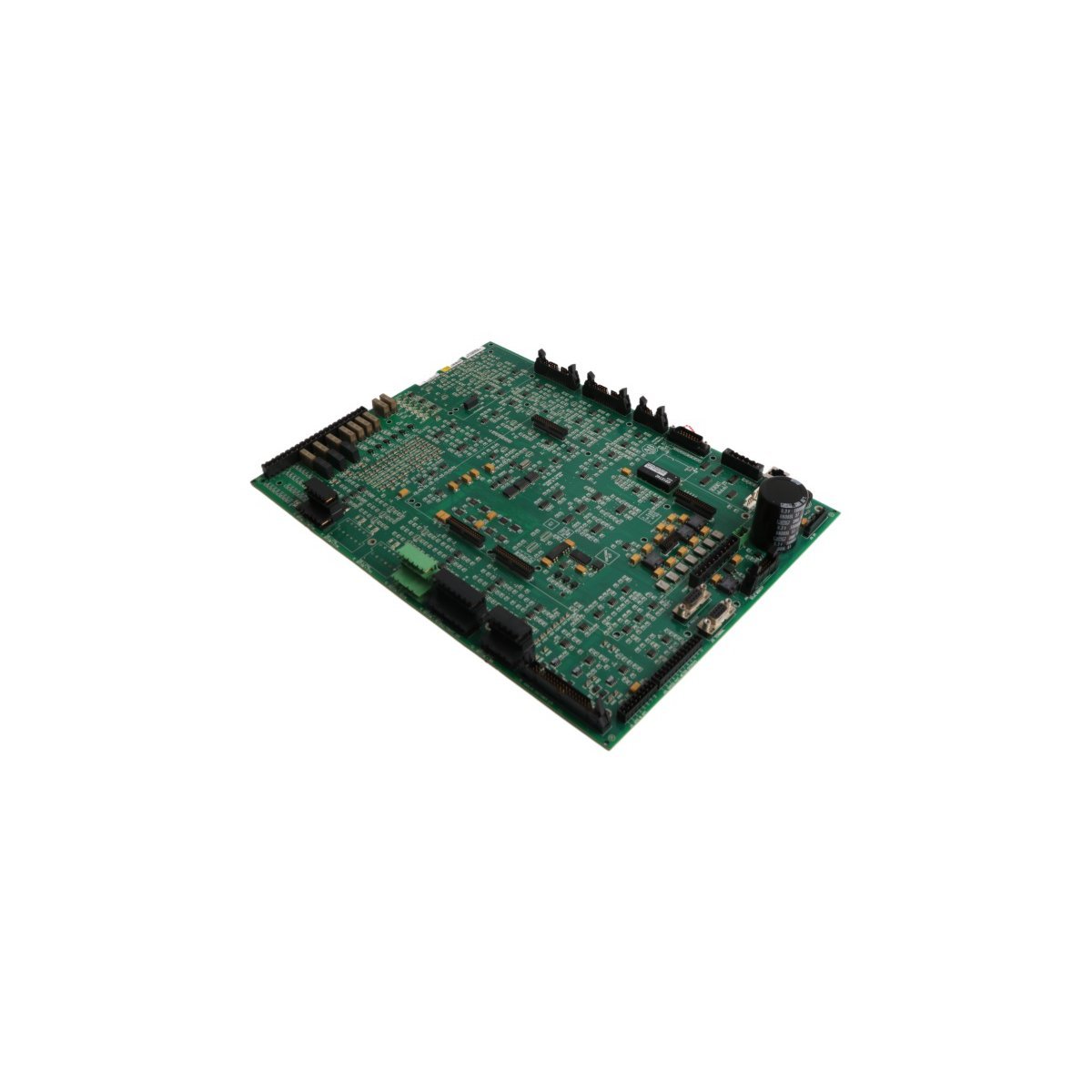

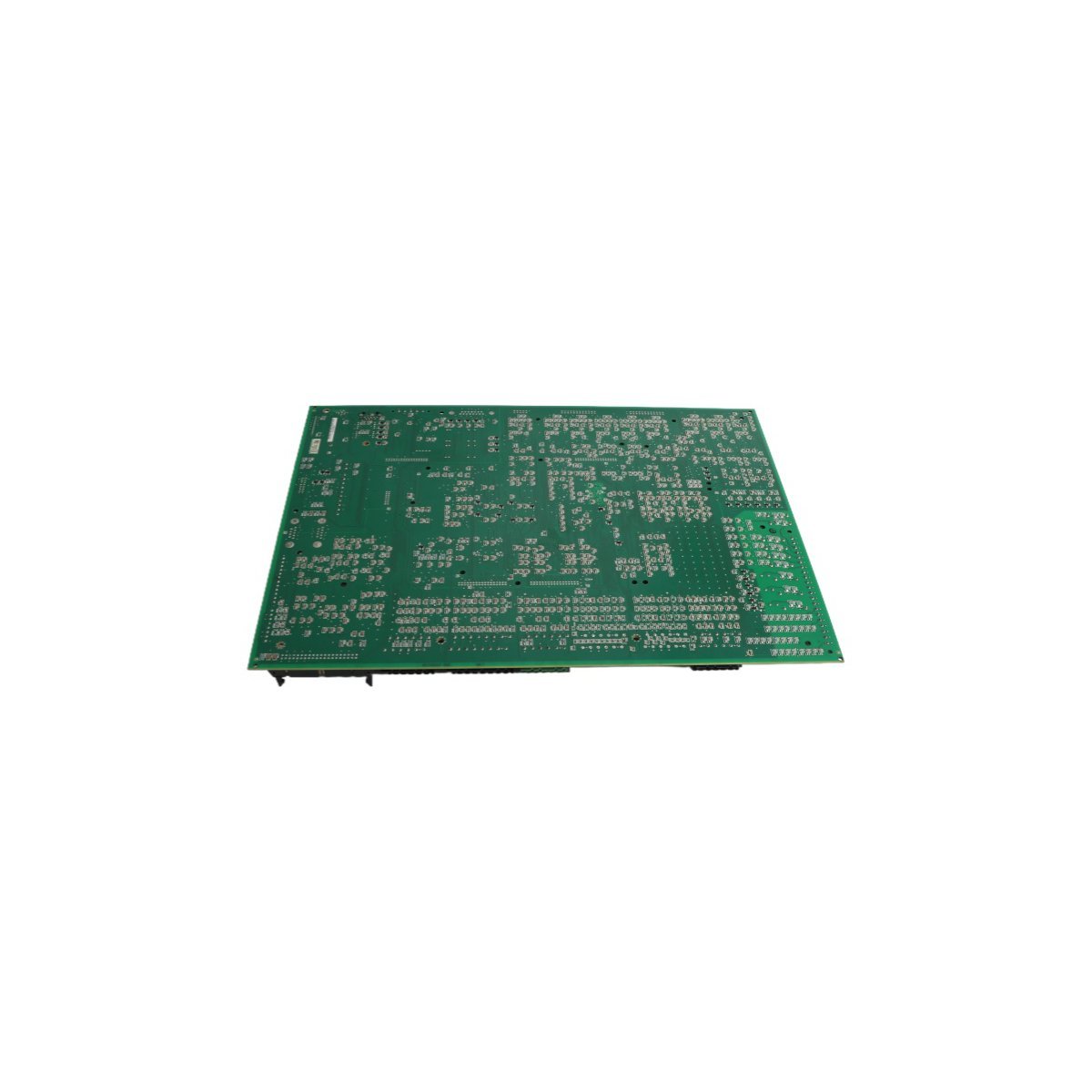

Allen-Bradley 80190-560-02-R PowerFlex 7000 Analog Control Board
The Allen-Bradley 80190-560-02-R is a legacy Analog Control Board engineered for the Rockwell PowerFlex 7000 series of medium-voltage AC drives. Built to coordinate precise analog process loops and high-speed PWM gating parameters, this surface-mount PCB ensures stable motor regulation and structural signal isolation. It is a critical component for specialized service technicians tasked with maintaining, diagnosing, and expanding the operational lifecycle of active medium-voltage factory drive systems.
Description
Product Overview
The Allen-Bradley 80190-560-02-R is a highly specialized Analog Control Board (ACB) engineered exclusively for the Rockwell Automation PowerFlex 7000 series of medium voltage AC drives. As a critical core component of the drive’s processing architecture, this printed circuit board (PCB) manages precise signal conditioning and analog control loops. It operates in tandem with Pulse Width Modulation (PWM) signal networks to orchestrate high-power motor functions, variable frequency adjustment, and precise torque regulations within heavy industrial power systems.
Advanced Capabilities and Functional Benefits
- High-Integrity Analog Processing: Purpose-built to convert and regulate fine analog speed, current, and torque reference signals, transferring them smoothly into the drive’s main digital processing core.
- PWM Multi-Tier Management: Synchronizes closely with the drive’s power semiconductor gating control loops, ensuring highly accurate Pulse Width Modulation calculations to stabilize output waveforms to critical medium-voltage motors.
- Isolated Diagnostic Architecture: Features integrated low-voltage analog tracking barriers that safeguard central processing infrastructure against medium-voltage electrical transients, feedback ripples, and ground loops.
- Aftermarket Lifecycle Sustainability: Because this hardware was moved to a discontinued lifecycle status by Rockwell Automation, it serves as a crucial engineering legacy spare. It enables processing plants to perform direct hot-swaps, extending the life of capital-intensive PowerFlex 7000 drive assets.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Subsystem | PowerFlex 7000 Medium Voltage AC Drives |
| Model / Part Number | 80190-560-02-R |
| Module Classification | Analog Control Board (ACB) |
| Signal Processing Control | PWM (Pulse Width Modulation) Core Interfacing |
| Hardware Core Matrix | Multi-Layer Surface-Mount PCB Assembly |
| Network Node Topology | Integrated PLC Analog Automation Array |
| Physical Enclosure Dimensions | 3.5 cm (H) x 13.0 cm (W) x 14.5 cm (D) |
| Net Hardware Weight | 0.90 kg (approx. 900 grams) |
| Condition Classification | Brand New (Original Industrial Surplus) |
| Country of Origin | United States |
| System Architecture | Medium Voltage VFD / Motor Control Subsystem |
| Lifecycle Status | Legacy Platform (Discontinued by manufacturer June 30, 2016) |
Industrial Applications
- Medium Voltage Variable Frequency Drives: Serving as the principal analog execution board inside PowerFlex 7000 series air-cooled or water-cooled VFDs.
- Heavy Utility Pumping Infrastructure: Regulating large-scale induction and synchronous motors running high-volume water distribution pumps or wastewater aeration systems.
- Extraction & Petrochemical Pipelines: Processing high-torque speed references for crude oil pumps, gas compressors, and heavy industrial process fans.
- Mining & Material Transport: Stabilizing high-inertia startup currents on heavy-duty extraction conveyors, rock crushers, and industrial grinding mills.
Additional information
| Weight | 0.9 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 3.5 x 13 x 14.5 cm |
