Technical Integration and Communication Gateway

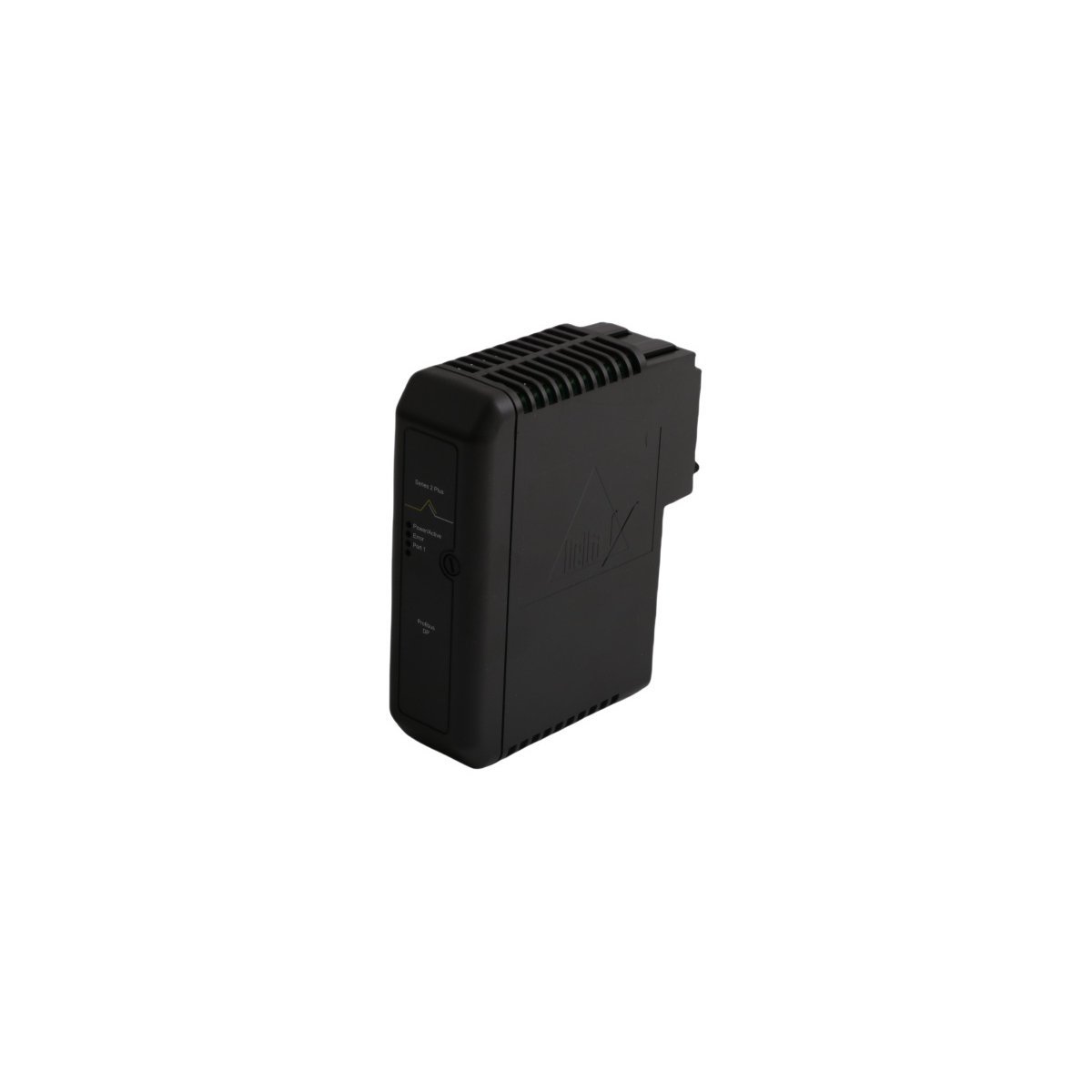

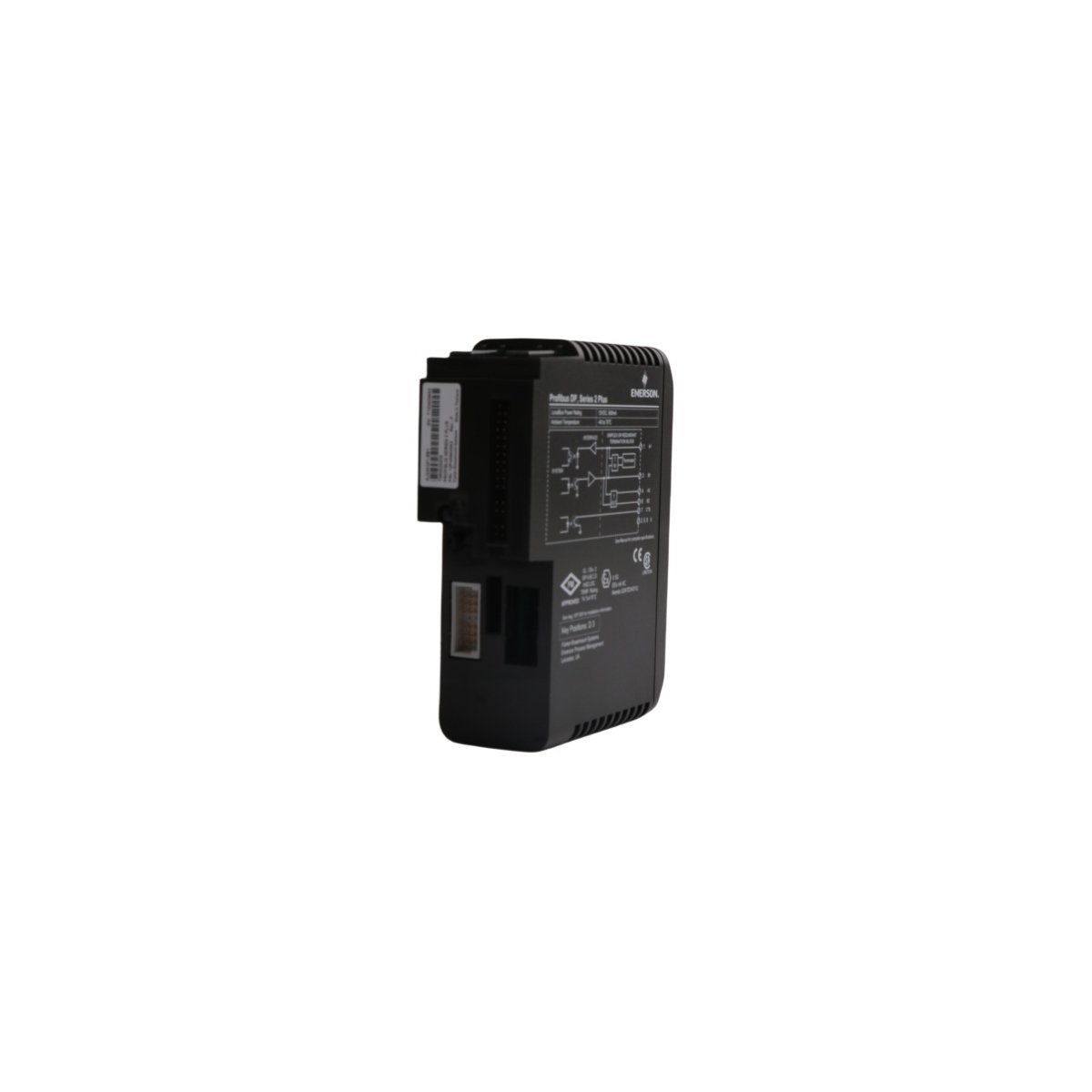

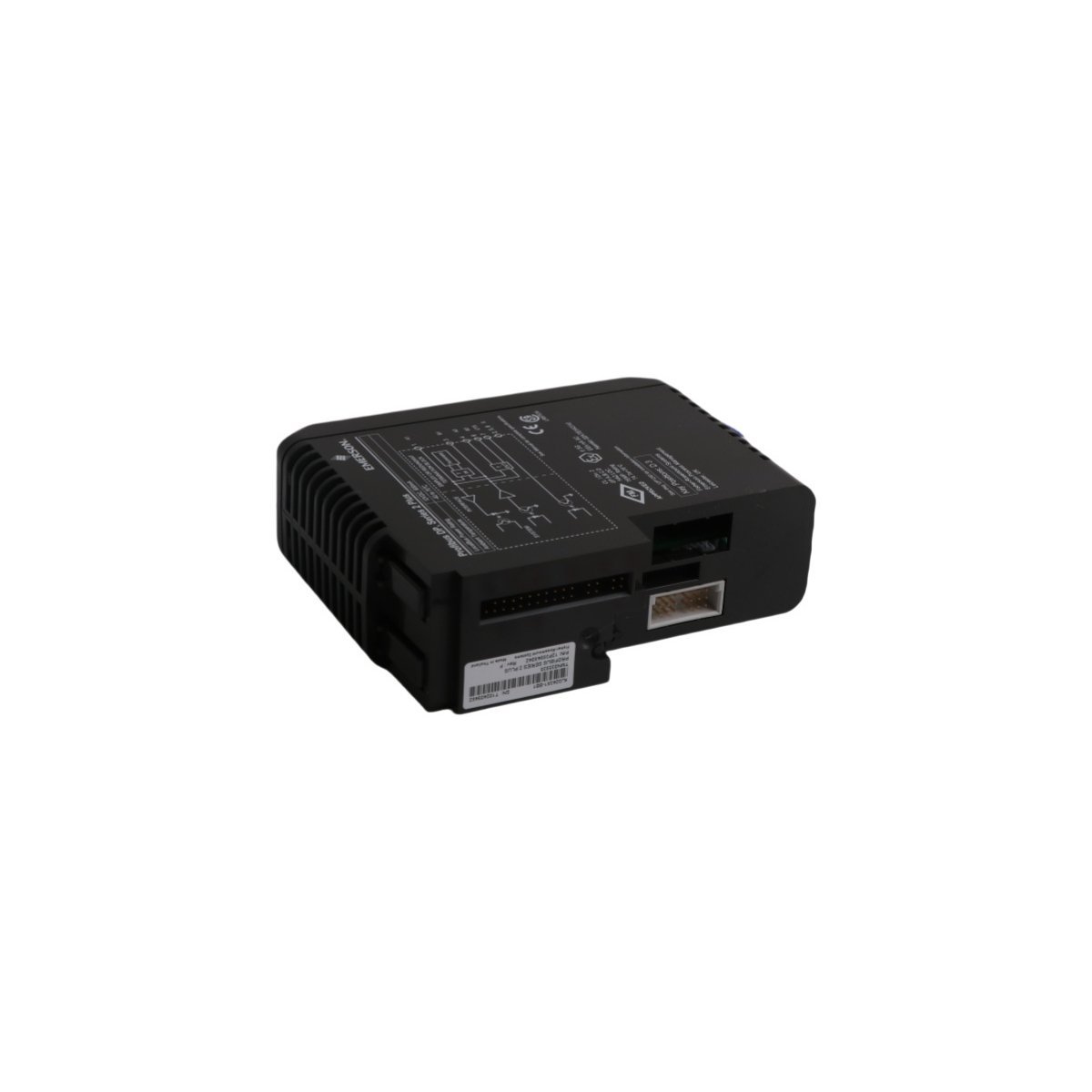

The Emerson KJ3243X1-BB1, commonly referenced by part number 12P3994X042 and model VE4022, serves as a high-performance Profibus DP (Decentralized Peripherals) interface card for the DeltaV Series 2 Plus system. This module functions as a critical bridge between the DeltaV Distributed Control System (DCS) and third-party field devices, such as motor starters, variable frequency drives (VFDs), and remote I/O blocks. By implementing this card, operators can consolidate complex peripheral data into the primary control environment, ensuring a unified view of the plant’s automation layer.

Operational Features and Industrial Utility

Engineered for the M-series I/O subsystem, this Profibus DP card supports master-class communication, allowing it to manage multiple slave devices on a single segment efficiently. Because the module utilizes the Series 2 Plus architecture, it provides enhanced processing power and faster data throughput compared to legacy versions. This capability is vital for industries that require rapid feedback loops and extensive diagnostic information from intelligent field equipment.

Primary applications include:

• Integration of smart motor control centers (MCCs)
• Real-time monitoring of high-speed variable speed drives
• Connectivity for modular factory automation components
• Unified control for specialized analytical instruments

Core Technical Specifications

• Brand: Emerson (DeltaV Series)
• Model Code: KJ3243X1-BB1
• Part Identification: 12P3994X042 / VE4022
• Module Type: Profibus DP Interface (Series 2 Plus)
• Protocol Support: Profibus DP Master
• System Architecture: DeltaV M-series I/O Subsystem
• Net Weight: 0.24 kg
• Physical Dimensions: 13.5 x 11 x 4 cm
• Manufacturing Location: USA
• Classification (HS Code): 8537101190

Design Reliability and Global Standards

Emerson designed the VE4022 module with a focus on high-availability and simplified maintenance. The card features a compact footprint that optimizes rail space within control cabinets, while its robust cooling design prevents overheating in densely packed enclosures. Furthermore, the module adheres to international safety and quality standards, including UL, CE, and CSA certifications. This global compliance ensures that the card performs reliably in diverse environmental conditions, maintaining stable communication and reducing the risk of unplanned system downtime in critical process sectors.
