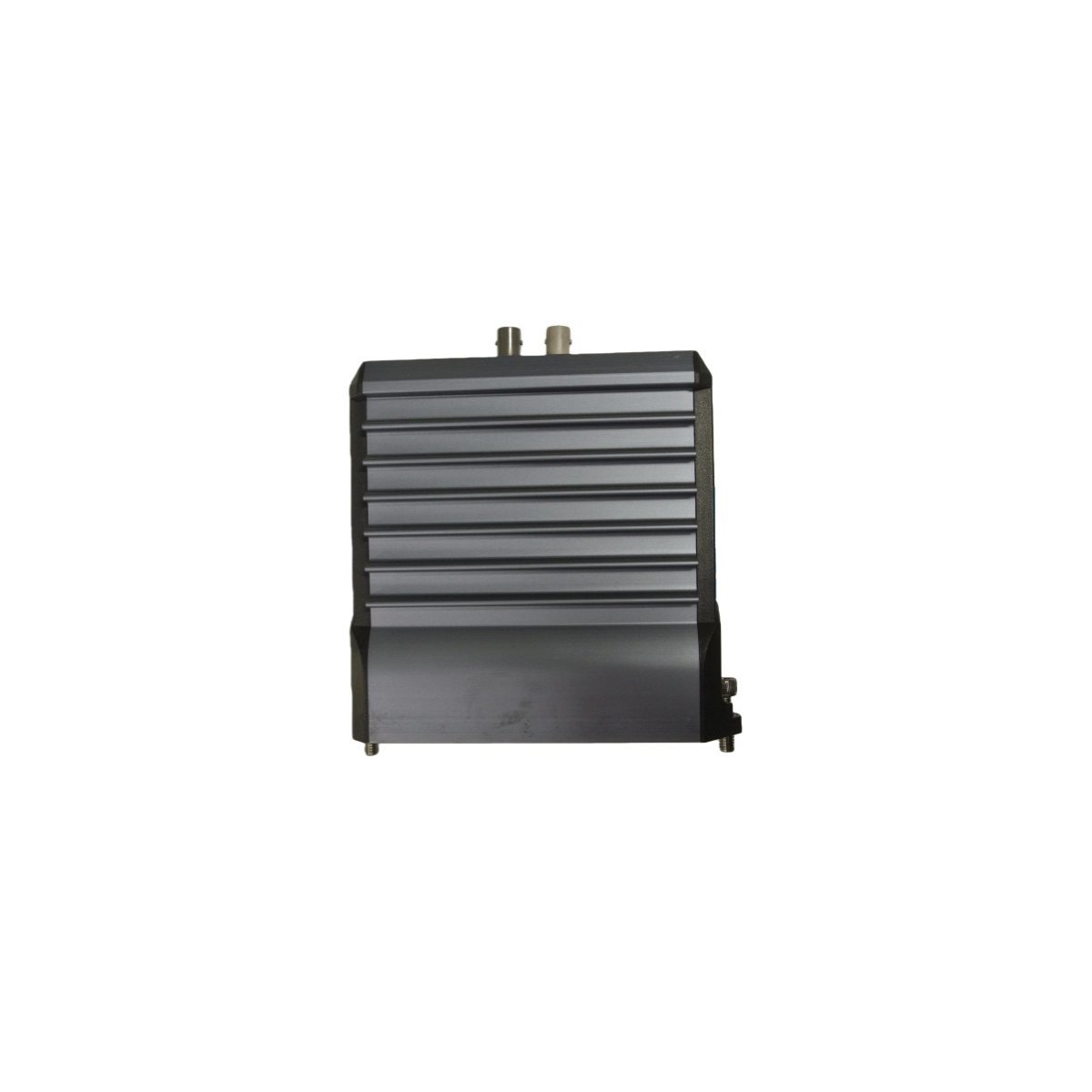

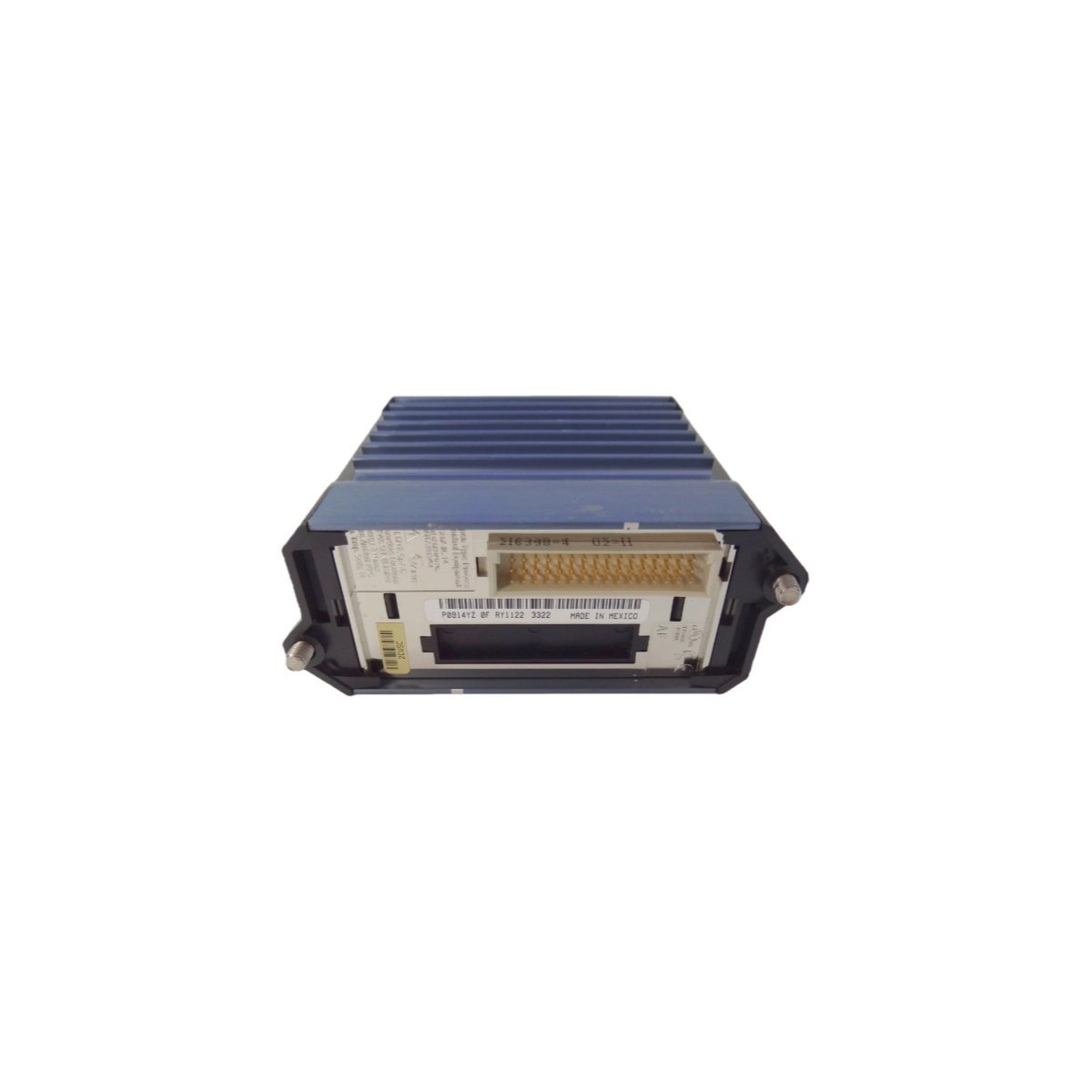

Foxboro FCM2F10 P0916TQ Long-Distance Fiber Optic Fieldbus Interface

The FCM2F10 P0916TQ is a high-performance Fieldbus Communications Module for the Foxboro I/A Series, engineered to extend baseplate connectivity over single-mode fiber optic cabling at distances up to 10 kilometers.

Technical Operational Overview

The FCM2F10 P0916TQ serves as a vital bridge in distributed control architectures, allowing the Foxboro I/A Series Fieldbus to traverse significant geographic spans.² This module converts standard electrical Fieldbus signals into fiber optic data, enabling the interconnection of DIN rail baseplates across separate enclosures or remote plant facilities. By utilizing single-mode fiber technology, this specific model achieves a transmission radius of 10 kilometers, which provides engineers with the freedom to place Fieldbus Modules (FBMs) exactly where process sensors reside, regardless of the central controller’s location.³

Reliability remains a priority in the module’s design, as it supports both simplex and redundant configurations. In high-availability environments, users deploy the FCM2F10 P0916TQ in pairs to protect the “A” and “B” Fieldbus paths against cable damage or signal loss.⁴ The unit operates on a standard 24 VDC industrial power feed and maintains a low power profile, consuming only 150 mA. Furthermore, the module’s robust hardware withstands extreme environmental conditions, operating consistently in temperatures ranging from -20°C to +60°C. This ensures that remote I/O stations remain synchronized with the primary DCS logic under harsh industrial stresses.

Key Technical Characteristics

• Extended Transmission Range: Facilitates baseplate-to-baseplate communication over single-mode fiber optic links up to 10 km.⁵
• Redundancy Ready: Supports dual-cable Fieldbus architectures to ensure uninterrupted data flow for mission-critical control loops.
• Broad Protocol Compatibility: Maintains full transparent communication with the Foxboro I/A Series protocol for both analog and digital I/O.
• Industrial Hardening: Features a wide thermal operating window and electromagnetic interference (EMI) resistance for cabinet mounting.
• Simplified Integration: Fits seamlessly into standard modular rack systems, allowing for quick installation and hot-swapping if required.
• Fiber Optic Signal Integrity: Eliminates ground loop issues and electrical noise interference common in long-distance copper wiring.⁶

Product Specifications

Industrial Applications

The FCM2F10 P0916TQ is frequently deployed in large-scale infrastructure projects, such as:

• Oil and Gas Refineries: Connecting remote tank farms and jetty loading stations to the central control room.⁷
• Water Treatment Facilities: Managing distributed pumping stations located several kilometers from the main plant.⁸
• Mining Operations: Linking various processing stages across expansive outdoor sites where copper cabling is impractical.
