Description

Brief Product Description

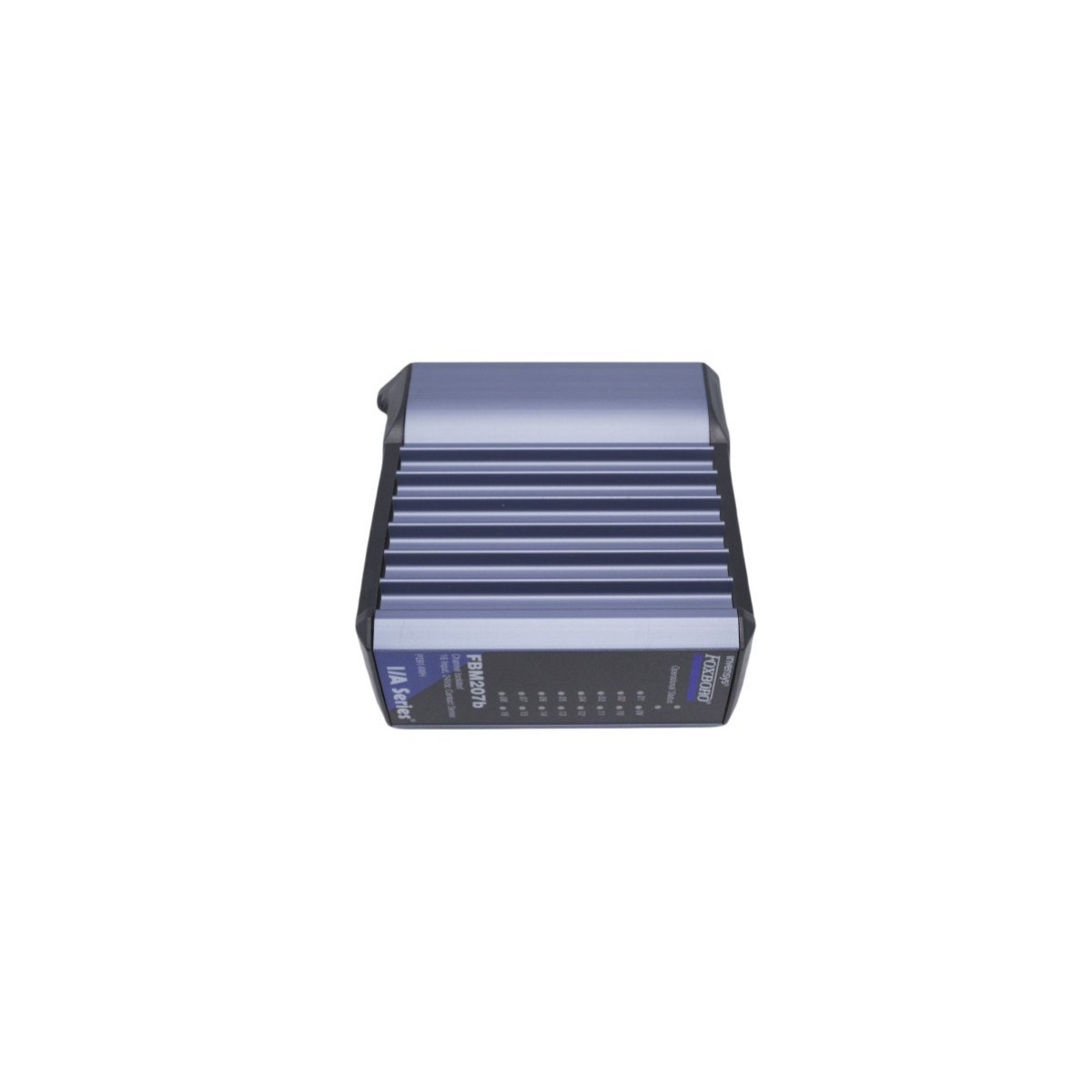

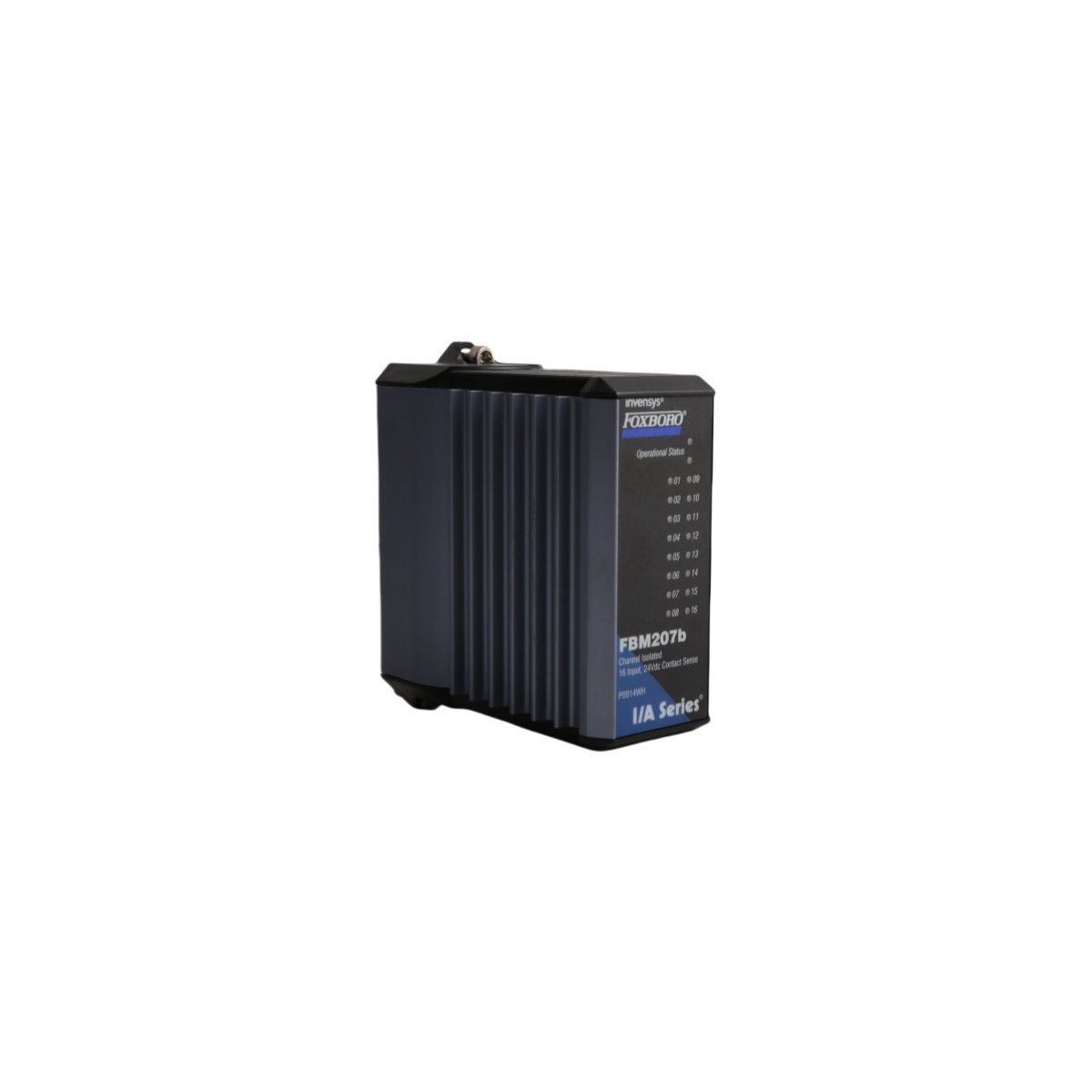

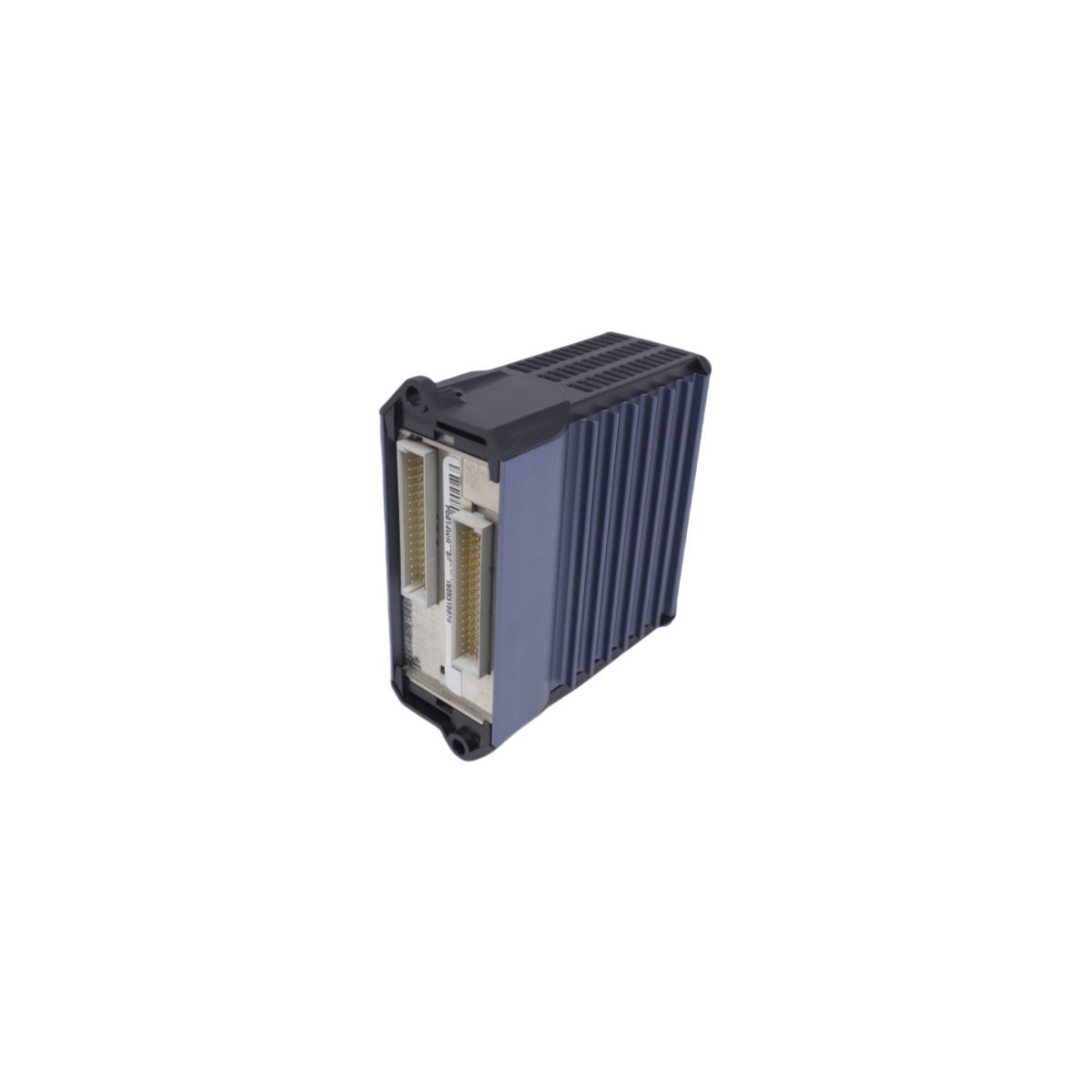

The Foxboro FBM207B is a high-performance 16-channel discrete input module engineered for precise contact sensing and voltage monitoring within the I/A Series DCS.¹ It features galvanic isolation and supports a wide range of DC and AC signal levels, ensuring reliable data acquisition in harsh industrial environments.²

High-Integrity Discrete Data Acquisition

The FBM207B module serves as a critical interface for gathering discrete status information from field-side equipment into the Foxboro I/A Series Distributed Control System. By providing 16 independent input channels, the module effectively monitors contact closures and voltage states with exceptional timing accuracy.³ Its sophisticated internal architecture supports diverse signal types, ranging from low-voltage DC contact sensing to high-voltage AC monitoring. Furthermore, the module facilitates seamless integration with existing automation infrastructure, allowing operators to scale their control strategies without compromising signal resolution or processing speed.

Robust Environmental Protection and Safety

Engineered for durability, the FBM207B features a rugged physical design that meets Class G3 harsh environment specifications.⁴ The module utilizes extensive galvanic isolation to separate field-side electrical noise from the sensitive system backplane, which significantly enhances overall system safety.⁵ This high level of isolation prevents ground loops and minimizes the risk of component damage during electrical transients. Moreover, the unit maintains stable performance across extreme temperature fluctuations, ensuring that critical monitoring remains uninterrupted in demanding locations such as control rooms or remote field enclosures.

Versatile Configuration and Advanced Logic Support

This interface module offers significant operational flexibility through its support for both standalone and redundant configurations.⁶ When system availability is paramount, the FBM207B can operate in a redundant pair to ensure bumpless failover.⁷ Additionally, the module does not merely pass signals; it actively executes complex local programs, including Ladder Logic, Sequence of Events (SOE) recording, and high-speed Pulse Counting.⁸ Transitioning between different field requirements is further simplified by a variety of Termination Assemblies (TAs) that provide specialized signal conditioning, such as voltage attenuation and optical isolation, tailored to specific loop-powered or externally-excited devices.

Key Technical Characteristics

• 16 Discrete Input Points: High-density interface for comprehensive monitoring of field switches and sensors.⁹
• Wide Voltage Compatibility: Detects signals from 15–60V DC for contact sensing and up to 240V AC for voltage monitoring.¹⁰
• Integrated Processing: Supports Sequence of Events (SOE) and Pulse Count programs with configurable input filter times.¹¹
• Enhanced Redundancy: Compatible with dual-module setups for mission-critical applications.¹²
• Galvanic Isolation: Group-isolated architecture with external excitation to protect system integrity.¹³
• Industrial Grade Construction: Rated for Class G3 environments with a compact footprint to optimize cabinet space.¹⁴
