Description

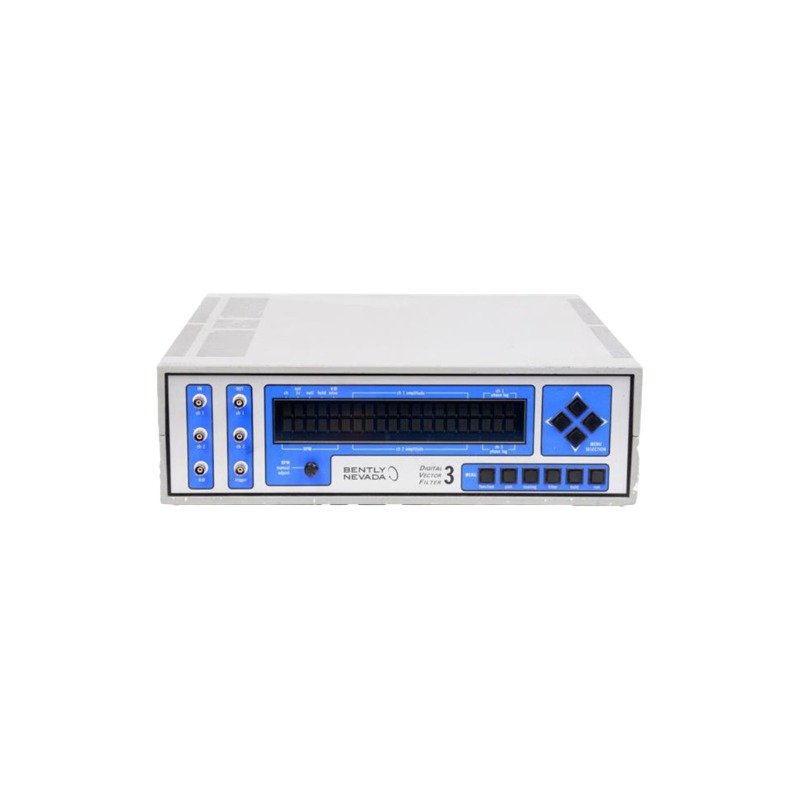

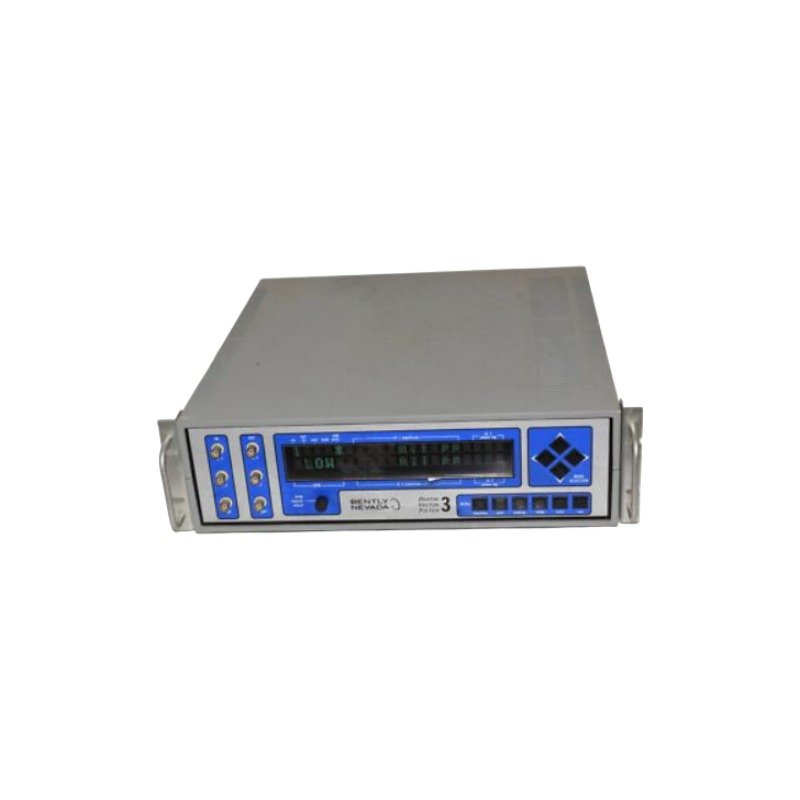

Configured for dynamic vibration signal processing in Bently Nevada monitoring platforms, the Bently Nevada 77581-02 (77581-02 Digital Vector Filter 3) provides direct physical/electrical execution.

Hardware Specifications

Transducer Signal Conditioning & Rotor Dynamics

The 77581-02 captures dynamic dynamic signals from proximity probes, velocity sensors, and accelerometers alongside Keyphasor phase inputs to generate accurate vector displays, Bodé plots, polar plots, and sweep frequency profiles. Internal signal processing maintains eddy-current probe scaling coefficients and continuously verifies gap voltage validation (-10 VDC targets) across connected measurement channels. Multi-channel filtering ensures cross-talk suppression between adjacent transducer signals, enabling precise resolution of shaft unbalance, resonance conditions, and transient rotor dynamics.

Frequently Asked Questions

Q: What primary transducer inputs connect directly to the 77581-02 DVF 3 module?

A: The hardware interfaces directly with proximity probes, velocity transducers, and accelerometers, incorporating a dedicated Keyphasor input for phase referencing.

Q: Which central diagnostic software integrates with data from the 77581-02?

A: The module integrates directly with Bently Nevada System 1 software to provide centralized monitoring, advanced plotting, and reporting.

Field Installation Guidelines

• Install the 77581-02 module securely into the designated chassis slot or panel cutout following system rack retention guidelines.
• Connect all incoming transducer signal leads using twisted, shielded pairs and terminate cable shields at a single chassis ground lug.
• Confirm that Keyphasor input trigger thresholds and probe gap voltage validation levels (-10 VDC nominal) meet target parameters prior to data collection runs.
• Route low-level transducer wiring separately from high-voltage supply lines to maintain signal purity and mitigate inductive interference.
