Description

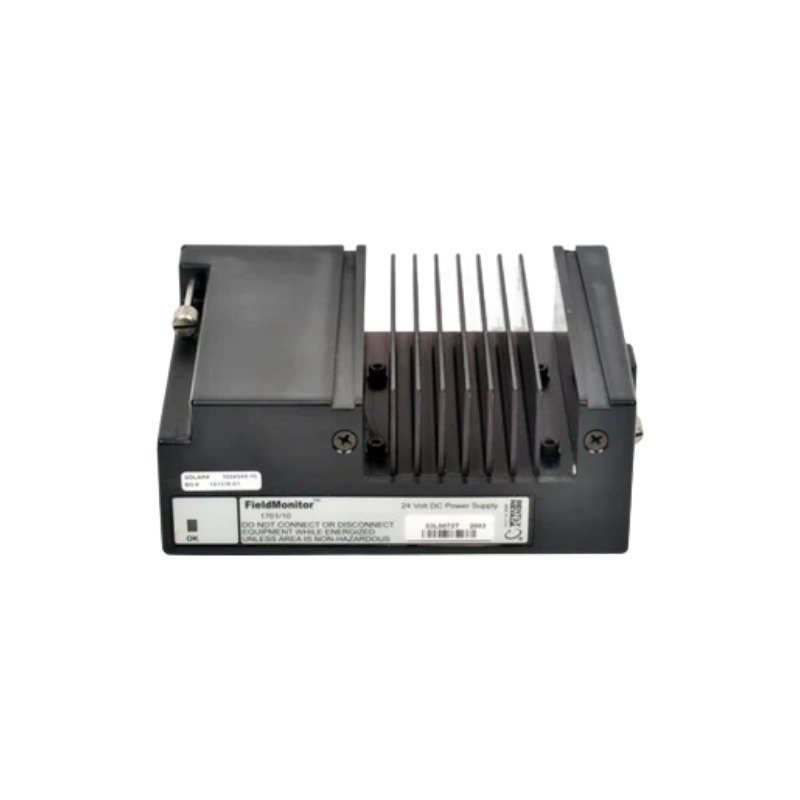

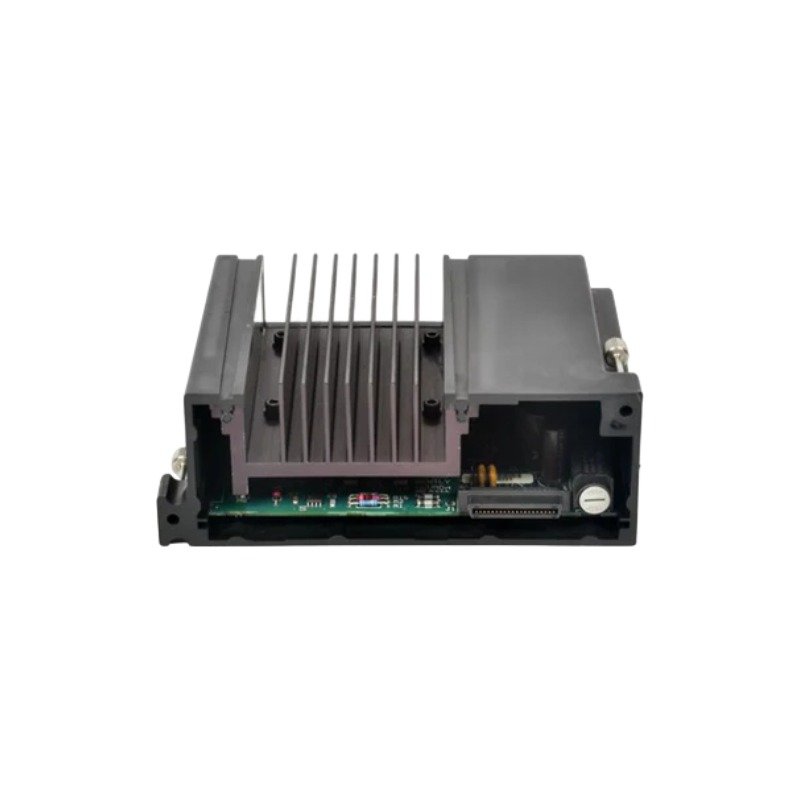

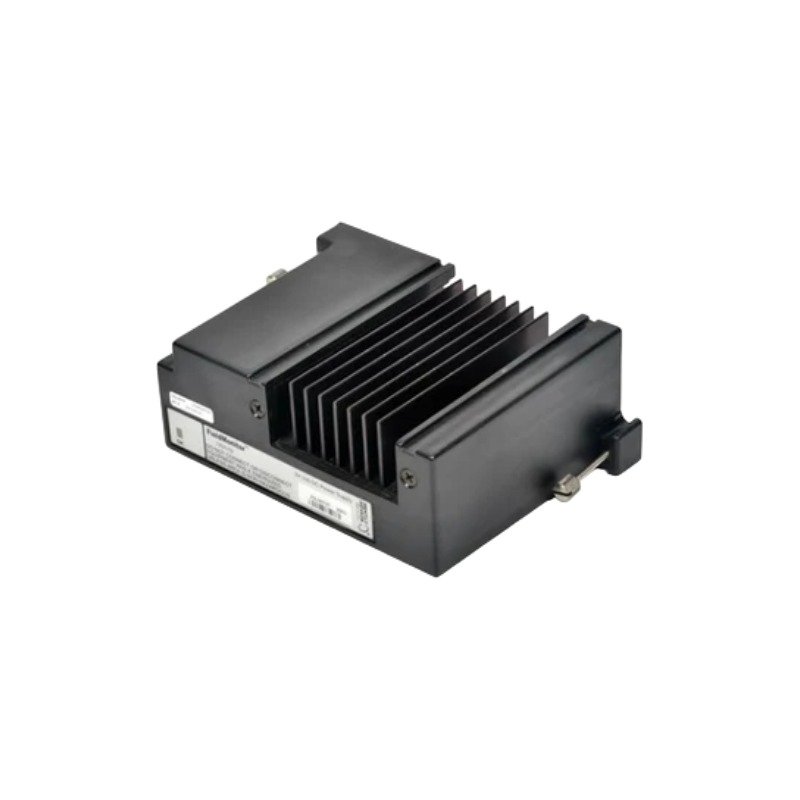

The Bently Nevada 1034549-10, also cataloged as the 1034549 Vibration Monitoring Interface Module, operates as a dedicated hardware component for transducer signal processing and machinery health parameter acquisition within Bently Nevada monitoring platforms.

Hardware Specifications

Transducer Signal Conditioning & Rotor Dynamics

The 1034549-10 conditions dynamic vibration signals from proximity transducers, processing raw voltage inputs into scaled engineering units. Internal conditioning circuits maintain precise eddy-current probe scaling integration and execute continuous gap voltage validation (-10 VDC targets) across active field sensor channels. Integrated signal path filtering isolates high-frequency mechanical noise to achieve cross-talk suppression, ensuring accurate signal tracking for rotor dynamics evaluations and machinery protection routines.

Frequently Asked Questions

Q: What key signal validation routine does the 1034549-10 execute during sensor installation?

A: The module evaluates DC bias levels against preset gap voltage validation limits (-10 VDC nominal) to confirm correct probe mounting distance before dynamic processing occurs.

Q: How does the 1034549-10 receive operating power within the monitoring chassis?

A: The module draws power directly through the system rack backplane assembly upon proper insertion into the designated chassis slot.

Field Installation Guidelines

• Insert the 1034549-10 module firmly into the designated rack slot, tightening all front panel retaining screws to establish chassis ground continuity.
• Connect incoming transducer field wiring using twisted, shielded pairs to mitigate ambient electromagnetic noise interference.
• Verify probe DC voltage at the module test points to confirm gap voltage validation targets (-10 VDC nominal) prior to system commissioning.
• Route field signal cables in separate grounded metallic conduits away from high-voltage AC electrical lines.
