Description

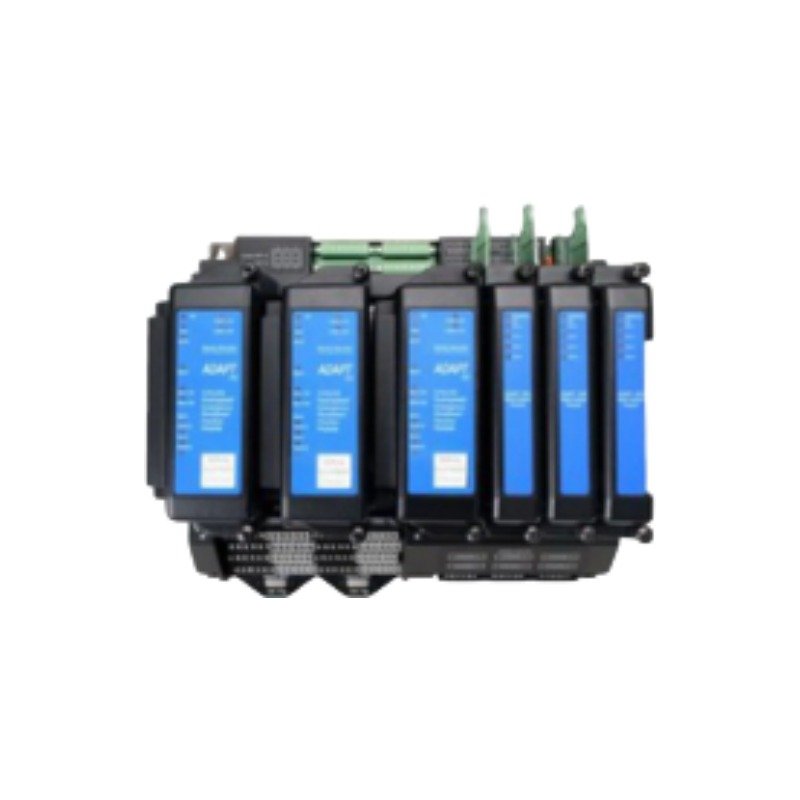

Configured for emergency shutdown execution and transient machinery protection within Bently Nevada ADAPT platforms, the Bently Nevada 3701/55 323073-01 (3701/55 ADAPT ESD Monitor) provides direct physical/electrical execution. The hardware accepts dynamic safety instrumentation inputs, and it subsequently drives direct electrical isolation commands via integrated relay output circuits.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module interprets multi-channel sensor parameters to manage complex rotor dynamics and transient mechanical anomalies. Concurrently, internal circuitry operates with automated gap voltage validation (-10 VDC targets) and structured eddy-current probe scaling configurations to ensure the precision of diagnostic logic states. Furthermore, high-speed comparator banks maintain rigorous cross-talk suppression benchmarks between adjacent sensing lanes, thereby enabling predictable protective relay actuation during emergency shutdown conditions.

Frequently Asked Questions

Q: Can the 323073-01 relay module be hot-swapped while the 323174-01 CPU Module actively executes logic?

A: No. The internal logic matrices and protection paths require technicians to completely de-energize the terminal base assembly during module replacement. Consequently, this safety measure avoids transient fault conditions or accidental emergency shutdown trip command execution.

Q: What dictates the limitation of using the 323073-02 gold-plated relay variant over the standard 323073-01?

A: The gold-plated configuration (Option B02) does not possess Class 1, Div 2 or ATEX/IECEx hazardous area certifications. Therefore, plants operating in certified industrial safety environments must utilize the standard 323073-01 assembly under Option B01 instead.

Field Installation Guidelines

• Mount the module securely onto the 289761-01 ADAPT ESD Terminal Base Assembly using the integrated alignment pins. As a result, this step prevents trace bending or mechanical stress on the backplane connectors.
• Enforce proper conduit isolation by separating the 4-channel relay output field wiring from low-voltage signal transducers. Consequently, this spatial separation optimizes cross-talk suppression metrics.
• Land all safety instrumented system wiring onto the 289036-01 spare terminal block using standard industrial torque ratings to secure mechanical contact and continuous path integrity.
