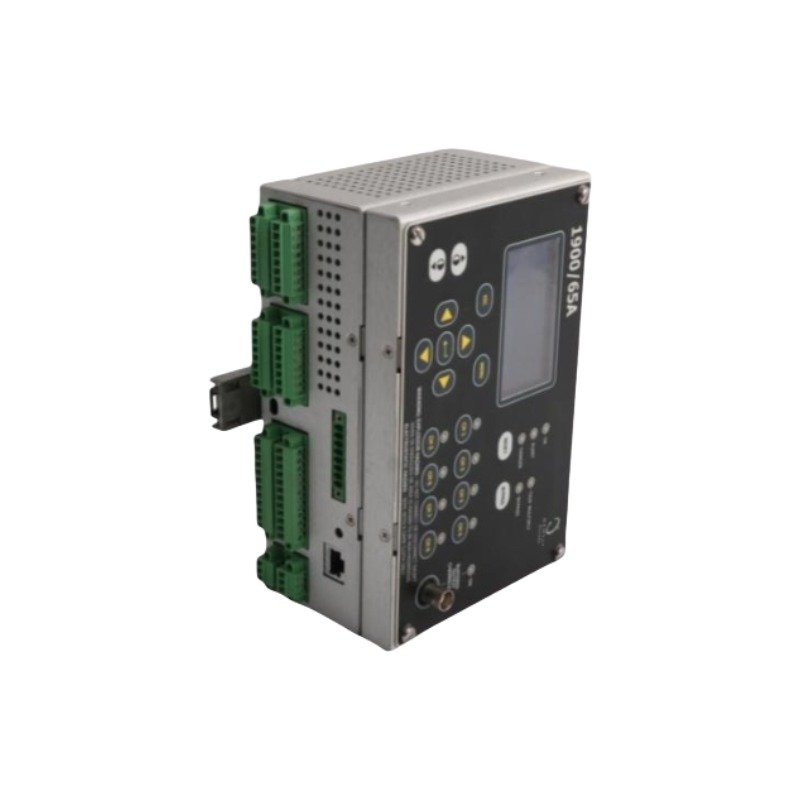

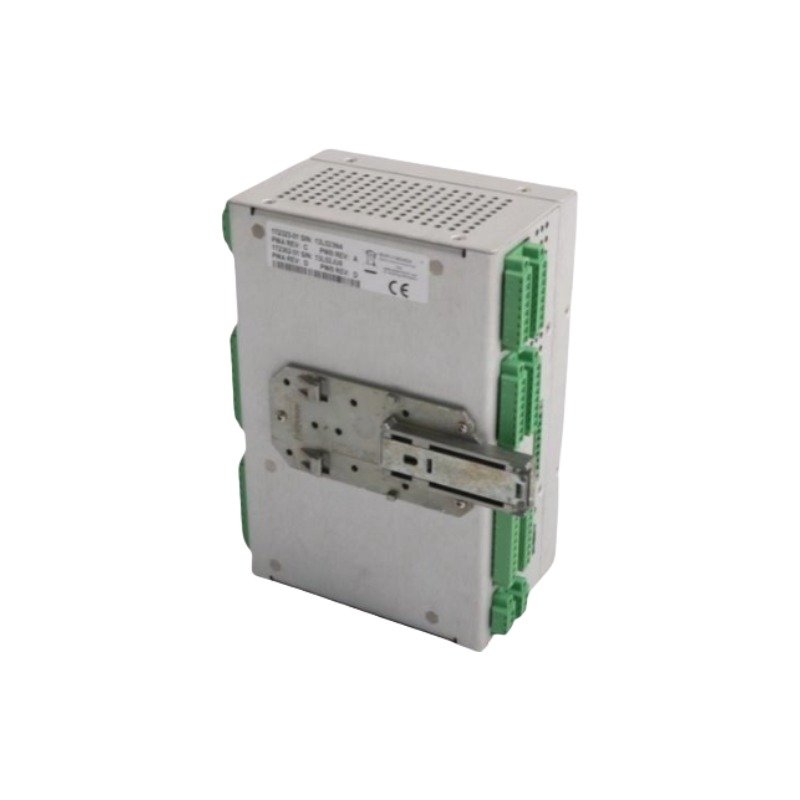

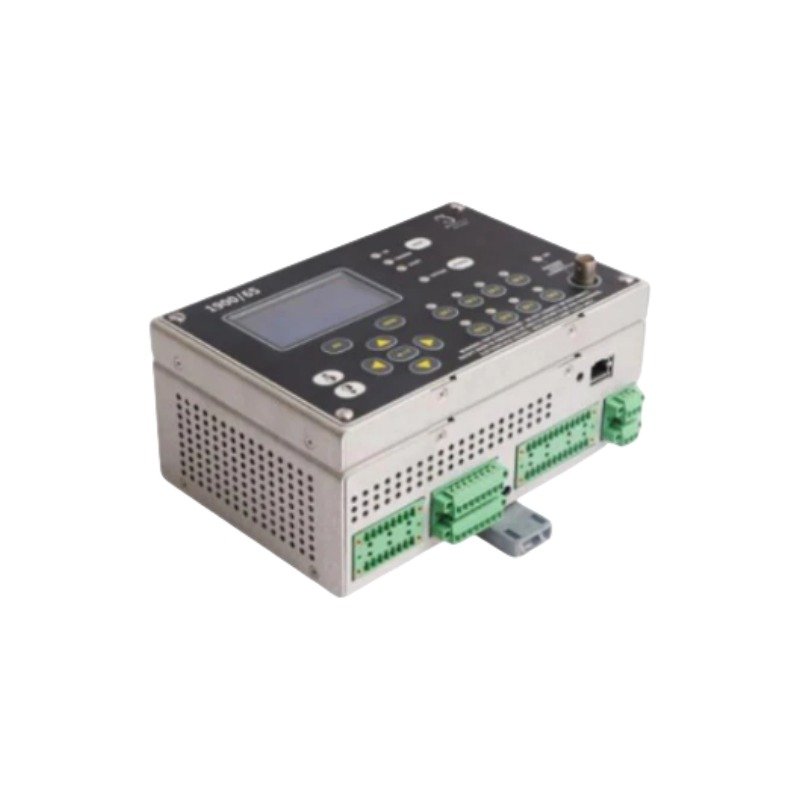

Bently Nevada 167707-01 Vibration Monitor Module
Bently Nevada 167707-01 four-channel vibration monitor module. Brand New, Original Stock, Global Shipping.
Description
The Bently Nevada 167707-01 serves as the primary 167707-01 Vibration Monitor Module utilized to execute continuous online machinery protection setups across Bently Nevada 1900 Series platforms. The hardware processes multi-channel analog signals to perform simultaneous real-time data acquisition, interfacing with the 1900/65 system to transmit structural machinery health conditions without interruption.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 167707-01 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 1200 g |
| Dimensions | 19.8 cm x 16.2 cm x 10.8 cm |
| Operating Temp | -30 to +65 deg C |
| Power Consumption | 6.5 W maximum |
| Module Type | Vibration Monitor Module |
| Input Channel Density | 4 channels monitored simultaneously |
| System Compatibility | Bently Nevada 1900/65 System |
| Fault Diagnostics Capabilities | Unbalance, misalignment, mechanical looseness, bearing wear, gear wear |
| Certification | CE |
Machinery Monitoring & TSI Characteristics
The module executes specialized algorithmic analysis to resolve rotor dynamics and diagnostic metrics from complex physical oscillations. The processing array utilizes predefined eddy-current probe scaling to translate electrical variations into exact engineering values, employing internal hardware filters to secure strict cross-talk suppression between neighboring input channels. Continuous sensor line integrity is verified through autonomous gap voltage validation (-10 VDC targets) configured within the signal conditioning block.
Frequently Asked Questions
Q: How does the 167707-01 handle parameter updates when communicating with the host 1900/65 rack assembly?
A: The monitor synchronizes configuration files via the dedicated backplane interface. Configuration changes register through non-volatile memory updates, allowing ongoing background data acquisition to continue during monitoring updates.
Q: Can the 4-channel input paths accept asymmetric sensor configurations concurrently?
A: Yes. The input architecture enables independent channel parameters, meaning that various proximity or acceleration probes can be calibrated on separate paths without causing cross-talk suppression degradation.
Field Installation Guidelines
- Mount the enclosure according to the physical scale layout, checking that the integrated structural chassis establishes solid continuity with the instrument ground node.
- Route the transducer lines through dedicated metallic conduits, keeping them separate from three-phase industrial power circuits to minimize electrical noise ingestion.
- Verify that all input terminations are stripped and landed to terminal blocks cleanly, and double-check sensor gap voltage validation parameters prior to initiating active plant commissioning.
Additional information
| Weight | 1.20 kg |
|---|---|
| Dimensions | 85 × 95 × 70 mm |
