Description

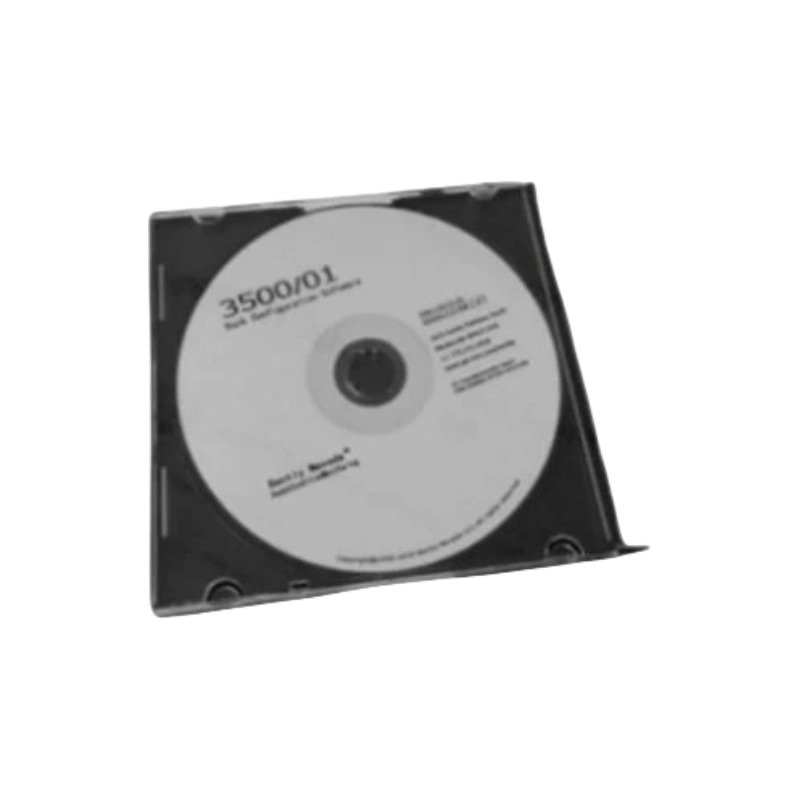

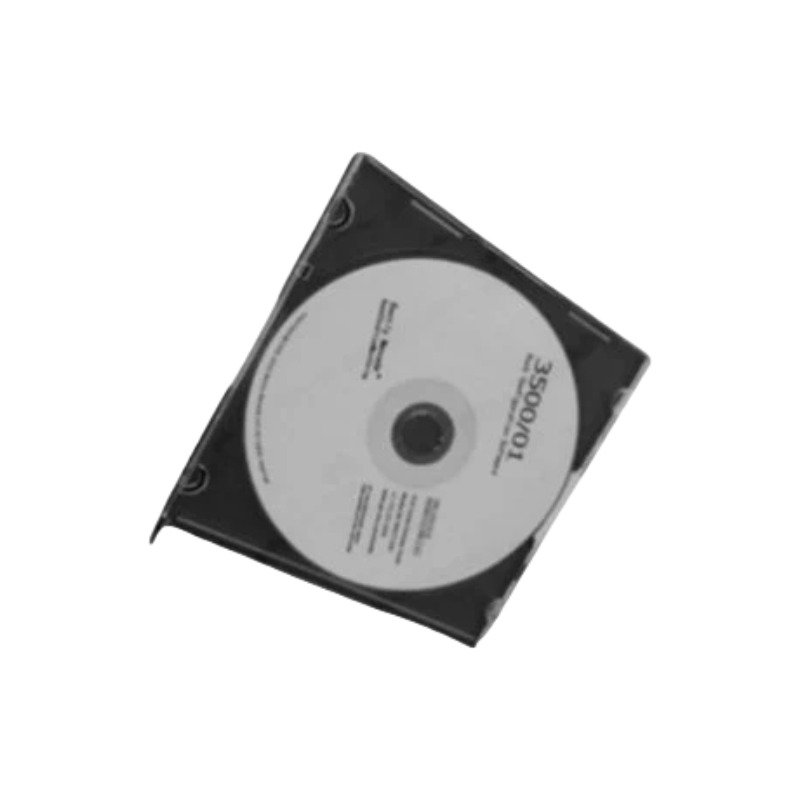

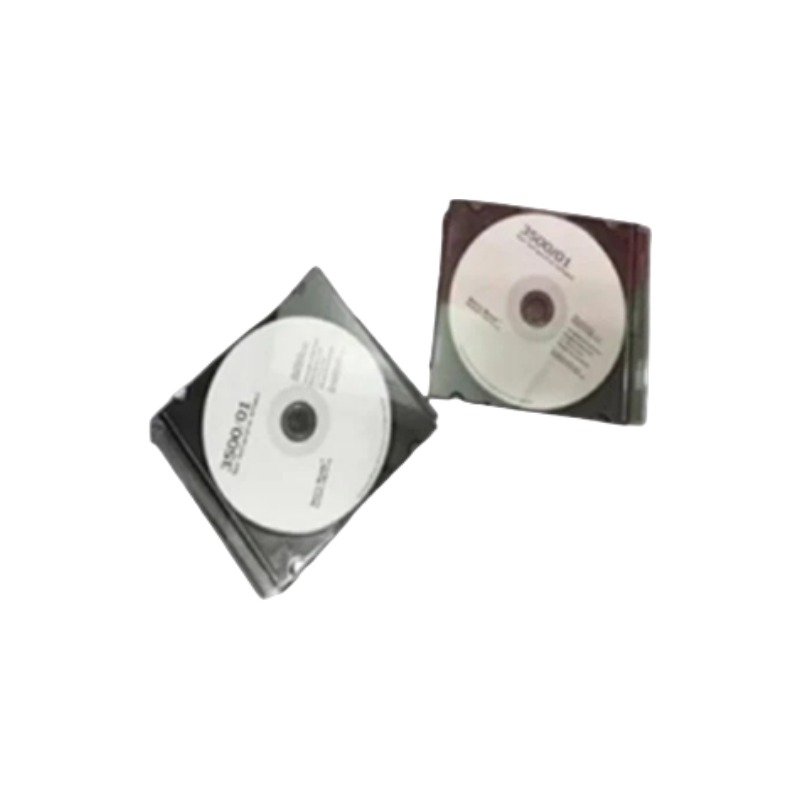

The Bently Nevada 129133-01 serves as the primary 129133-01 Rack Configuration Software utilized to execute continuous online machinery protection setups across Bently Nevada 3500 Series platforms. The software engineering framework provides direct digital execution to interface with the 3500/05 Instrument Rack, 3500/15 Power Supplies, and 3500/22M Transient Data Interface (TDI) Modules via specialized register protocols.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The software subsystem modifies configuration profiles to analyze real-time rotor dynamics and steady-state thermal behavior across complex shafts. Through direct instruction blocks transmitted over the hardware backplane, the application handles system-level calibration benchmarks including eddy-current probe scaling variables and gap voltage validation (-10 VDC targets). This software configuration interface structures input paths to secure rigid cross-talk suppression metrics inside high-density multi-channel monitor modules.

Frequently Asked Questions

Q: How does the 129133-01 software initialize configuration uploads when a 3500/22M module is hot-swapped?

A: The software interrogates the newly inserted hardware module via the backplane bus, comparing the localized EEPROM firmware version against the current configuration database to ensure parameter sync.

Q: Can this software tool adjust parameters for hazardous area modules that integrate intrinsic safety barriers?

A: Yes. The program contains exact register definition maps for internal and external galvanic isolators, letting users program threshold limits independently of physical hardware isolation boundaries.

Field Installation Guidelines

• Install the utility package on a local engineering workstation connected to the machine monitoring network through an isolated serial or Ethernet gateway link.
• Enforce absolute shielding rules on the communication wires connecting the configuration PC to the rack assembly to block electromagnetic interference from changing parameters during live transfer operations.
• Verify all software setting configurations against the plant engineering trip matrices before writing parameters permanently to the active 3500 monitor registers.
