Description

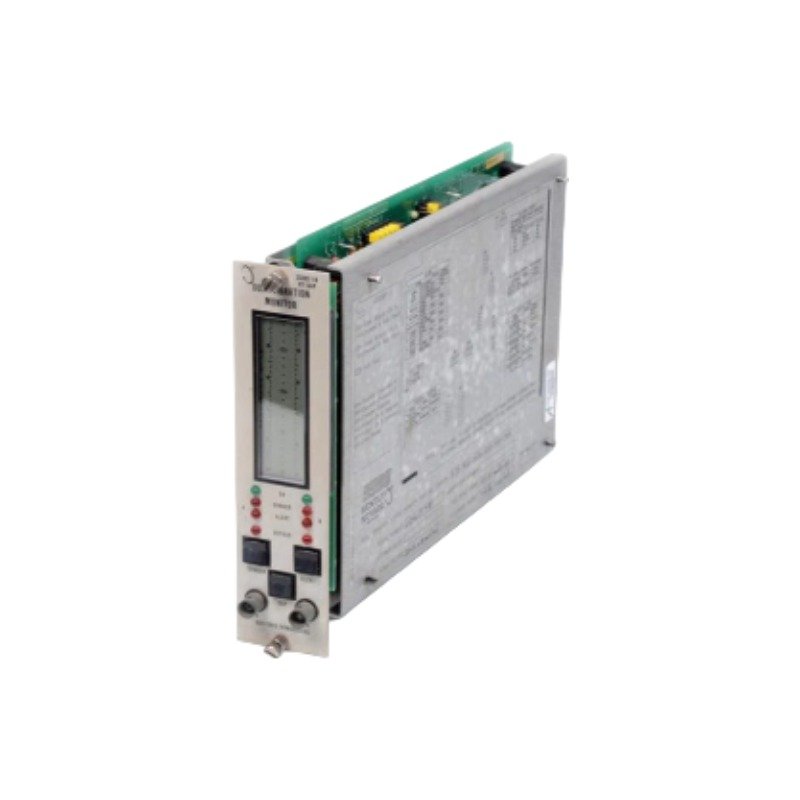

The Bently Nevada 130739-01 serves as the primary 130739-01 Dual Velocity Monitor Module utilized to execute dynamic vibration processing across host machinery monitoring platforms. The hardware accepts independent sensor inputs from moving-coil and piezoelectric velocity transducers, converting mechanical casing or bearing housing velocity variables into conditioned analog signals and discrete alarm states to drive automated machine shutdown logic.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The hardware processes multi-channel acceleration and velocity variables to track complex rotor dynamics and casing vibration profiles. Internal signal conditioning paths apply dedicated eddy-current probe scaling protocols and strict gap voltage validation (-10 VDC targets) where proximity interfaces integrate into the machinery loop. Additionally, the instrumentation circuitry enforces sharp isolation thresholds between terminal lines to maintain high cross-talk suppression benchmarks, preventing high-frequency noise from corrupting the 4-20 mA analog output streams during transient machine operation.

Frequently Asked Questions

Q: Does the 130739-01 module support live replacement or hot-swapping while the monitor base is energized?

A: No. System technicians must de-energize the associated 24 VDC loop before inserting or removing the 130739-01 hardware module to avoid inductive power spikes that can damage the internal backplane logic gates.

Q: How do the buffered outputs on the front terminal blocks behave when the transducer circuit enters a fault condition?

A: When the monitor detects an open loop or a breach in gap voltage validation parameters, the module drives the 4-20 mA analog interface below 3.6 mA and clamps the buffered AC outputs to ground potential.

Field Installation Guidelines

• Mount the unit onto standard symmetrical DIN-rail assemblies inside the industrial enclosure, checking that the rear alignment tabs lock into position to mitigate vibration displacement.
• Route the transducer field wiring inside dedicated, grounded steel conduits separated from high-voltage AC motor lines to ensure proper cross-talk suppression performance.
• Terminate the cable shielding braid at a single instrument earth node within the junction cabinet, keeping the sensor housing terminal isolated to eliminate circulating ground current loops.
