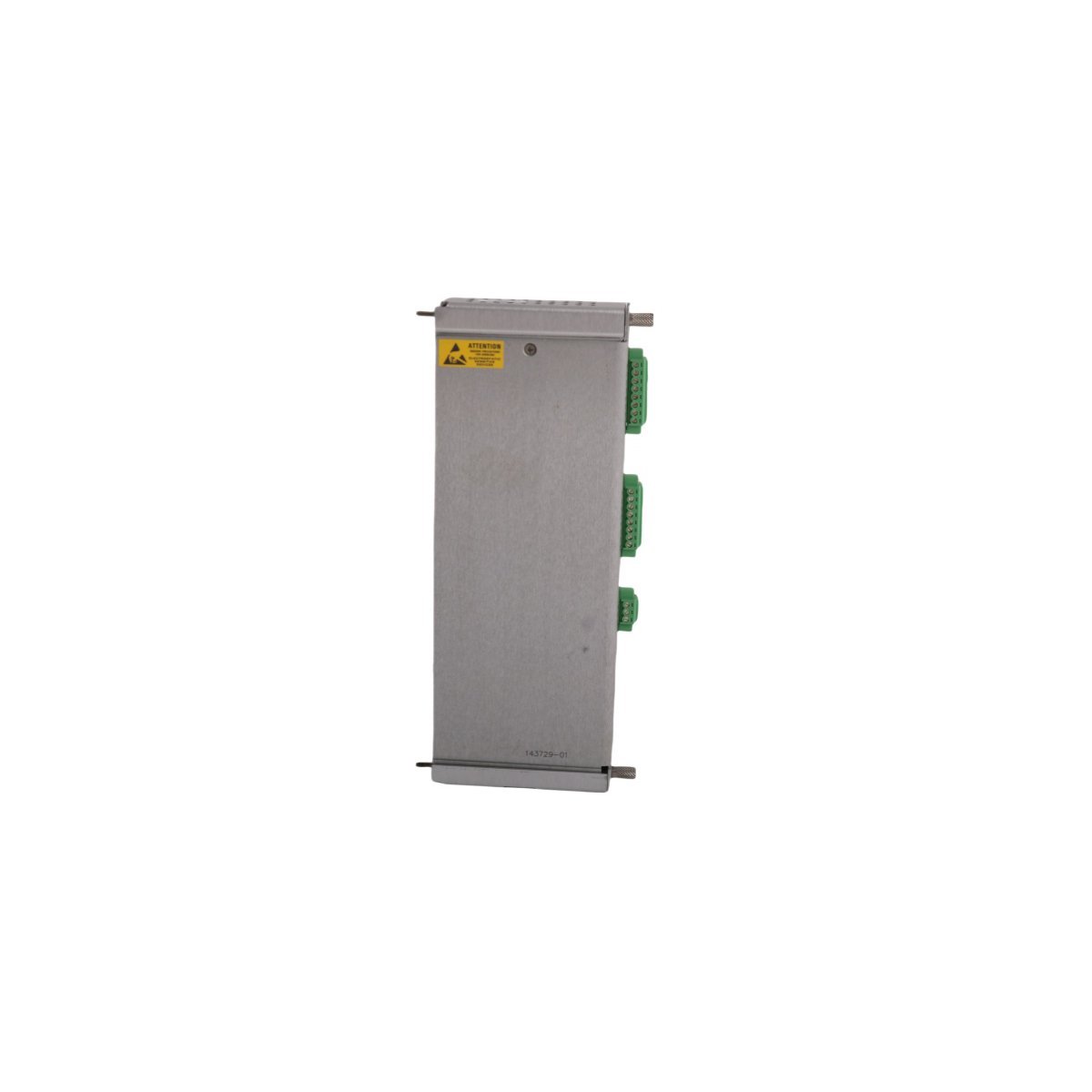

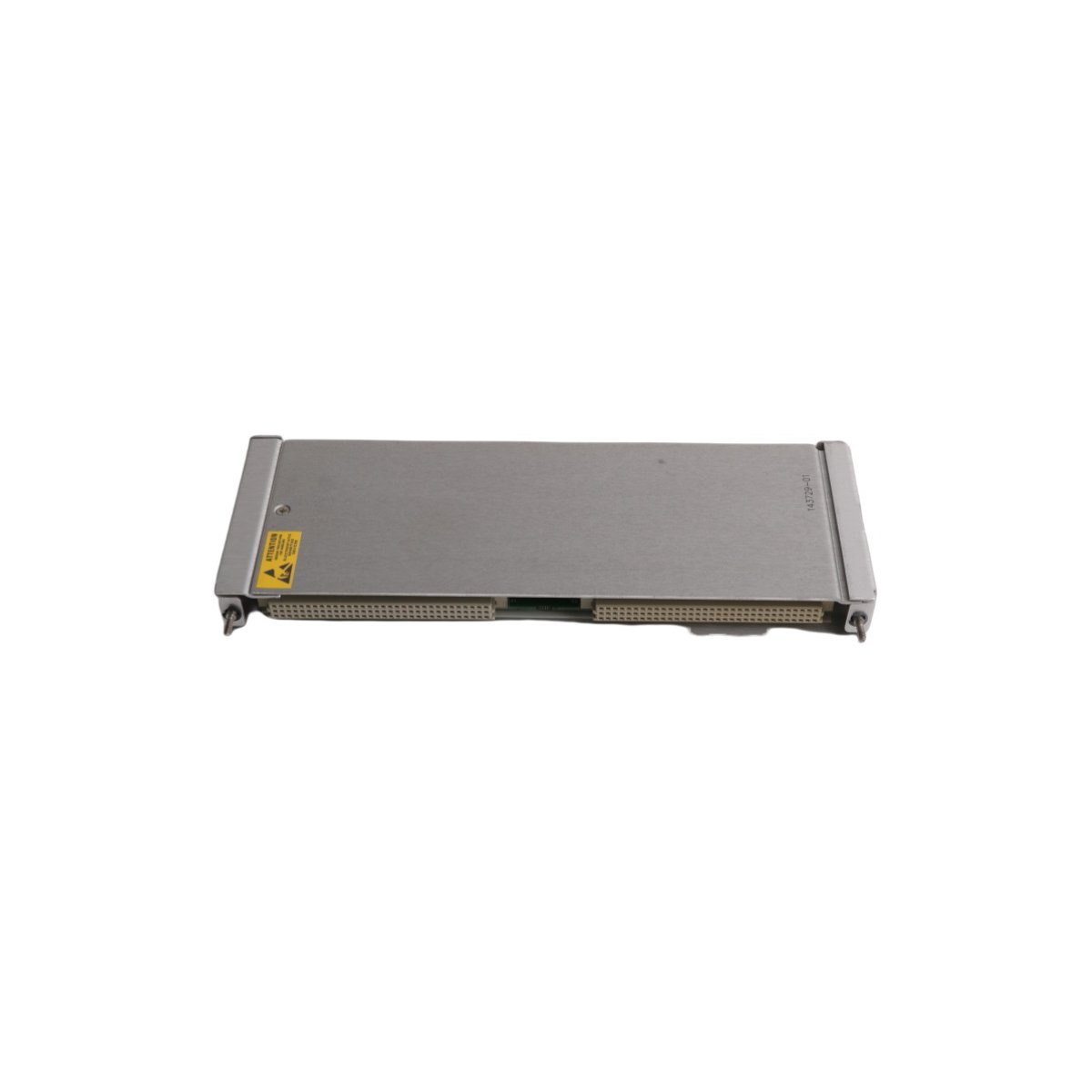

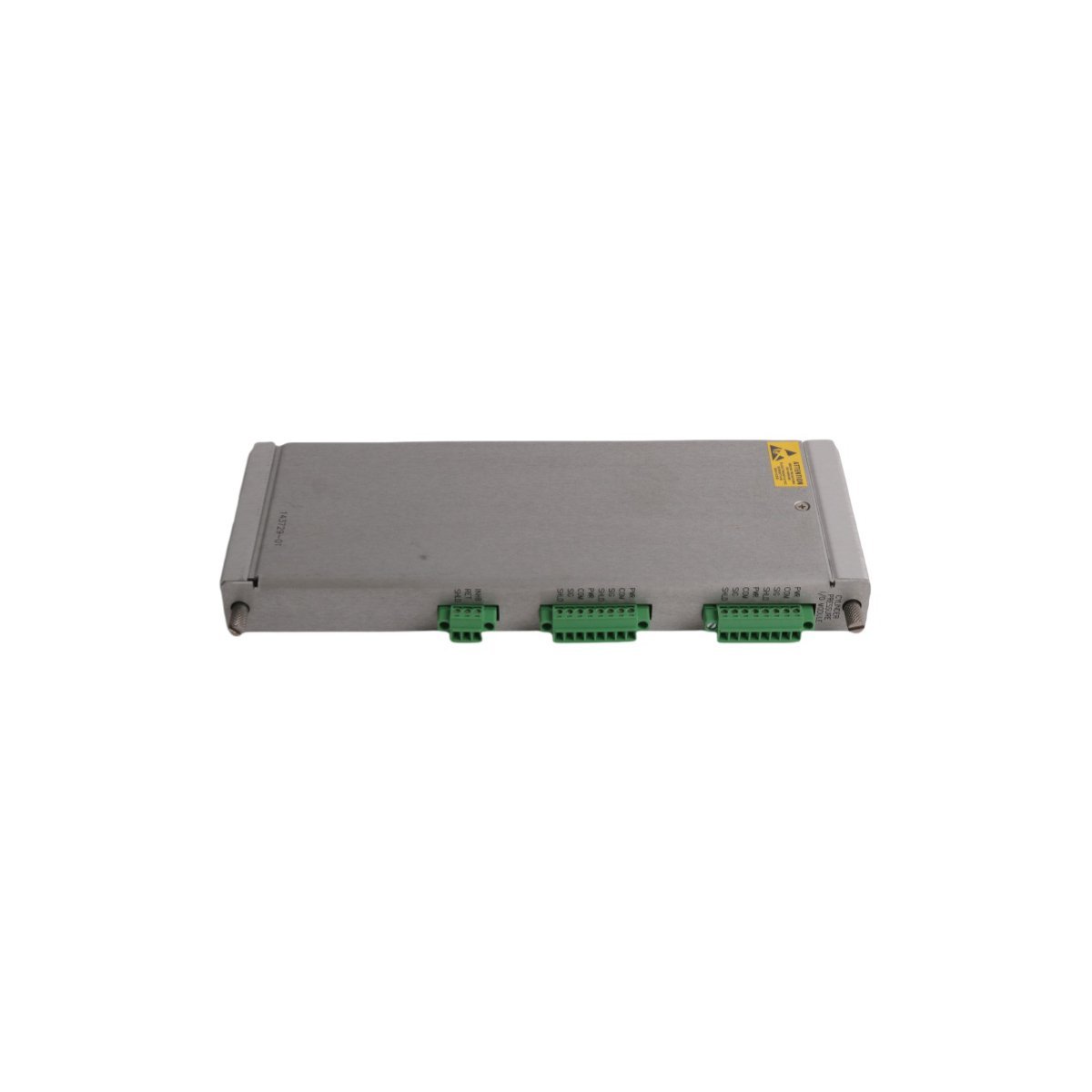

Bently Nevada 3500/77M-03-00 | 143729-01 Cylinder Pressure I/O Module

The Bently Nevada 3500/77M-03-00, paired with the 143729-01 I/O module, provides the essential interface for reciprocating compressor monitoring within a 3500 rack. This specific I/O version features internal terminations, which simplifies installation by allowing field wiring to connect directly to the module. It effectively bridges the gap between cylinder pressure transducers and the monitoring system. Consequently, it enables the precise capture of dynamic pressure data throughout the compressor cycle.

Integrated Termination and Signal Processing

A major benefit of the 143729-01 I/O module is its high-density design and internal termination blocks. This eliminates the need for external terminal strips, saving significant cabinet space. Internally, the module supports the 3500/77M’s ability to perform real-time FFT processing and dynamic signal analysis. By processing these signals locally, the system ensures that critical data regarding rod loading and valve health is updated instantly. This rapid processing is vital for preventing mechanical overloads in heavy-duty gas compressors.

Technical Specifications

This I/O module is built to maintain signal integrity in high-interference industrial environments. Please refer to the following technical parameters:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 3500/77M
• I/O Part Number: 143729-01
• Termination Type: Internal Terminations (Euro-style connectors)
• Measurement Accuracy: ±0.1% Velocity / ±0.25% Position
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity Resistance: 95% non-condensing
• Standard Compliance: Exceeds API 670 requirements
• Weight: 0.38 kg
• Dimensions: 2.3 cm x 11 cm x 24.1 cm

Specialized Monitoring for Reciprocating Assets

Reliability teams frequently deploy the 143729-01 in LNG liquefaction plants and refinery FCC units. Because reciprocating machinery generates complex vibration and pressure patterns, the module’s adaptive algorithms are indispensable. It establishes specific vibration profiles for each cylinder, allowing the system to identify piston ring wear or valve leaks early. Furthermore, the dual-channel architecture provides the redundancy required for mission-critical assets, significantly reducing the risk of false trips in nuclear or offshore applications.

Reliability and System Maintenance

The 143729-01 ensures long-term stability through its rugged construction and military-grade components. It includes integrated diagnostics that continuously monitor the continuity of the connected sensors and the health of the I/O circuitry. If a signal path fails, the system immediately updates the “Module OK” status to alert the maintenance crew. This proactive health monitoring simplifies troubleshooting and ensures that the machinery remains protected under all operating conditions, establishing it as a benchmark for condition monitoring.
