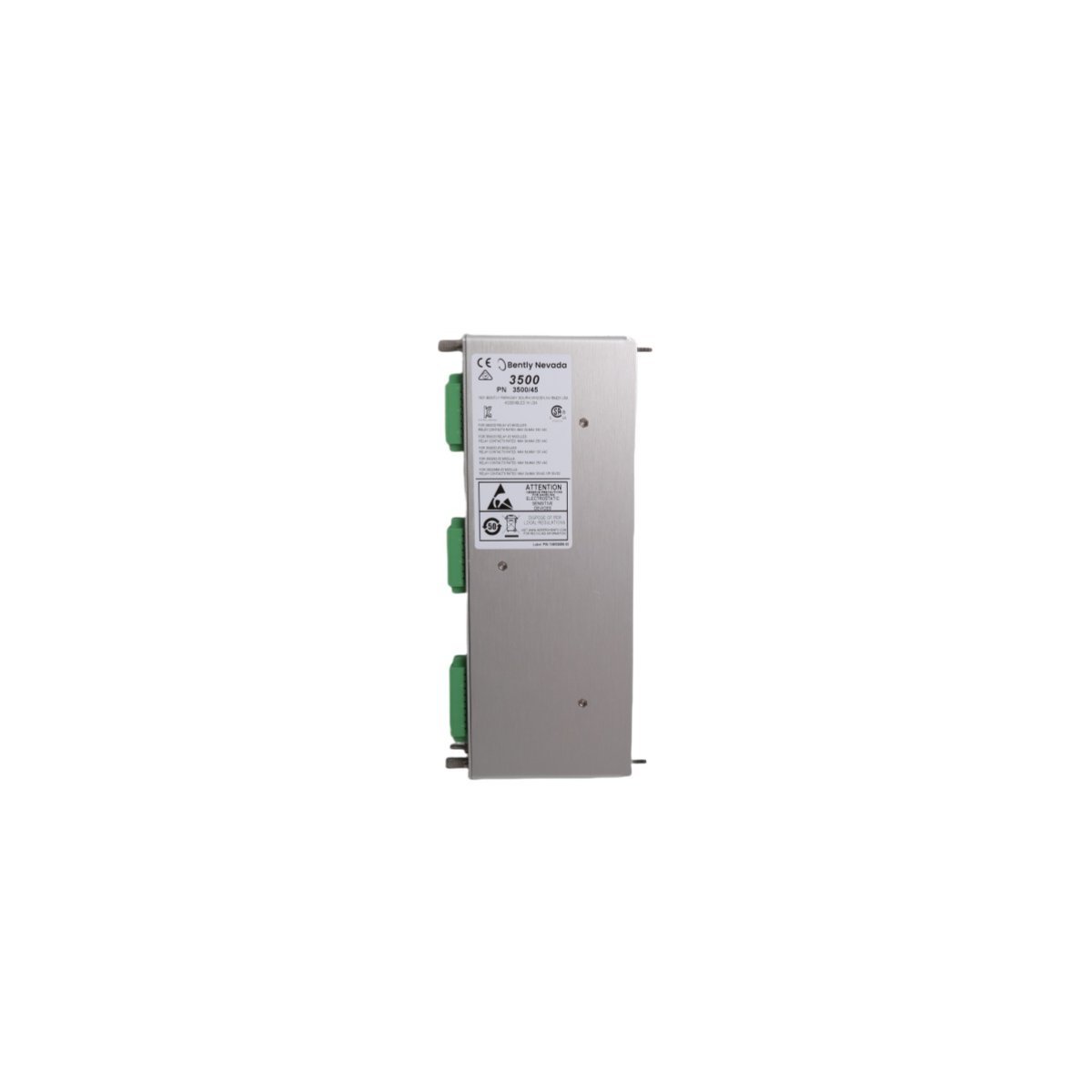

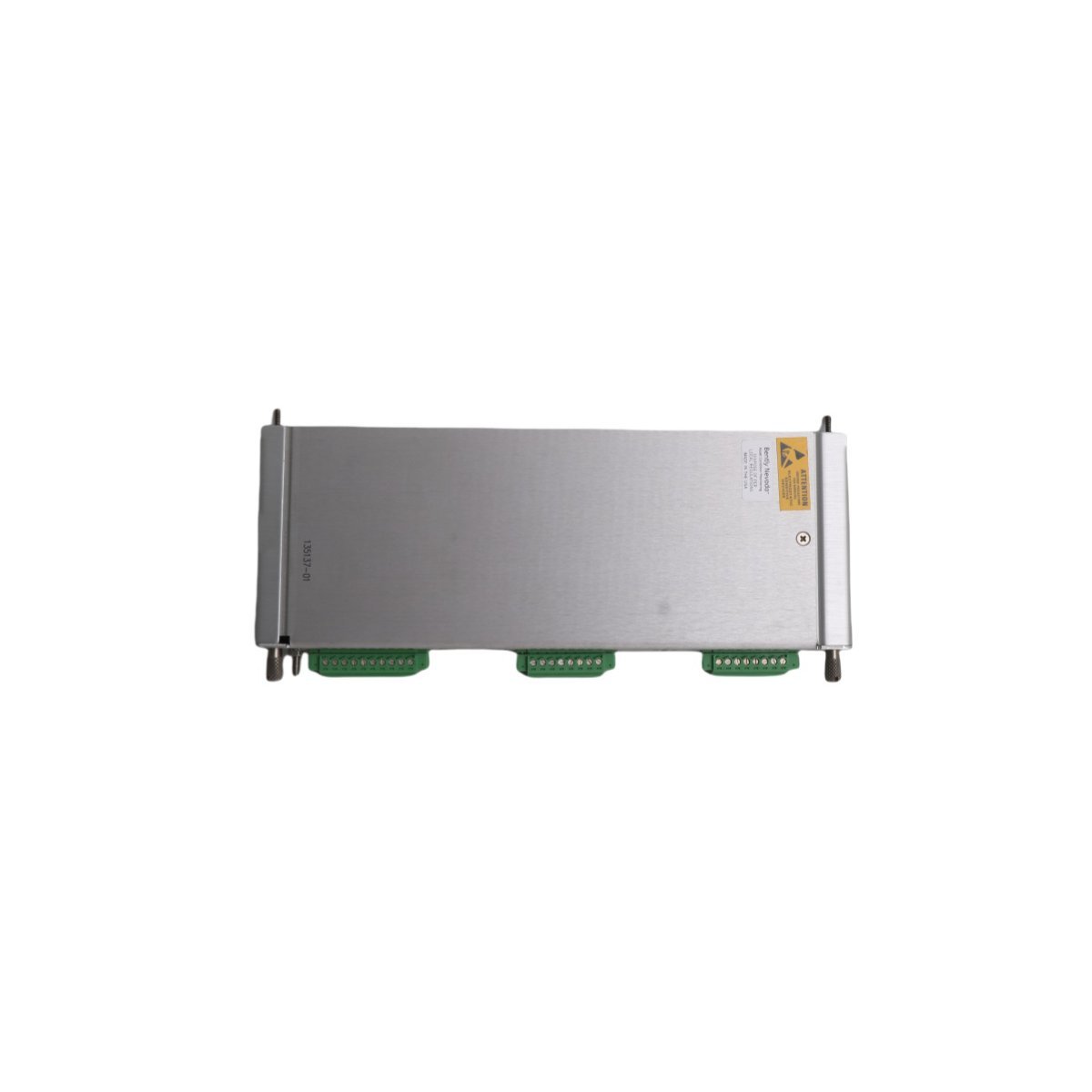

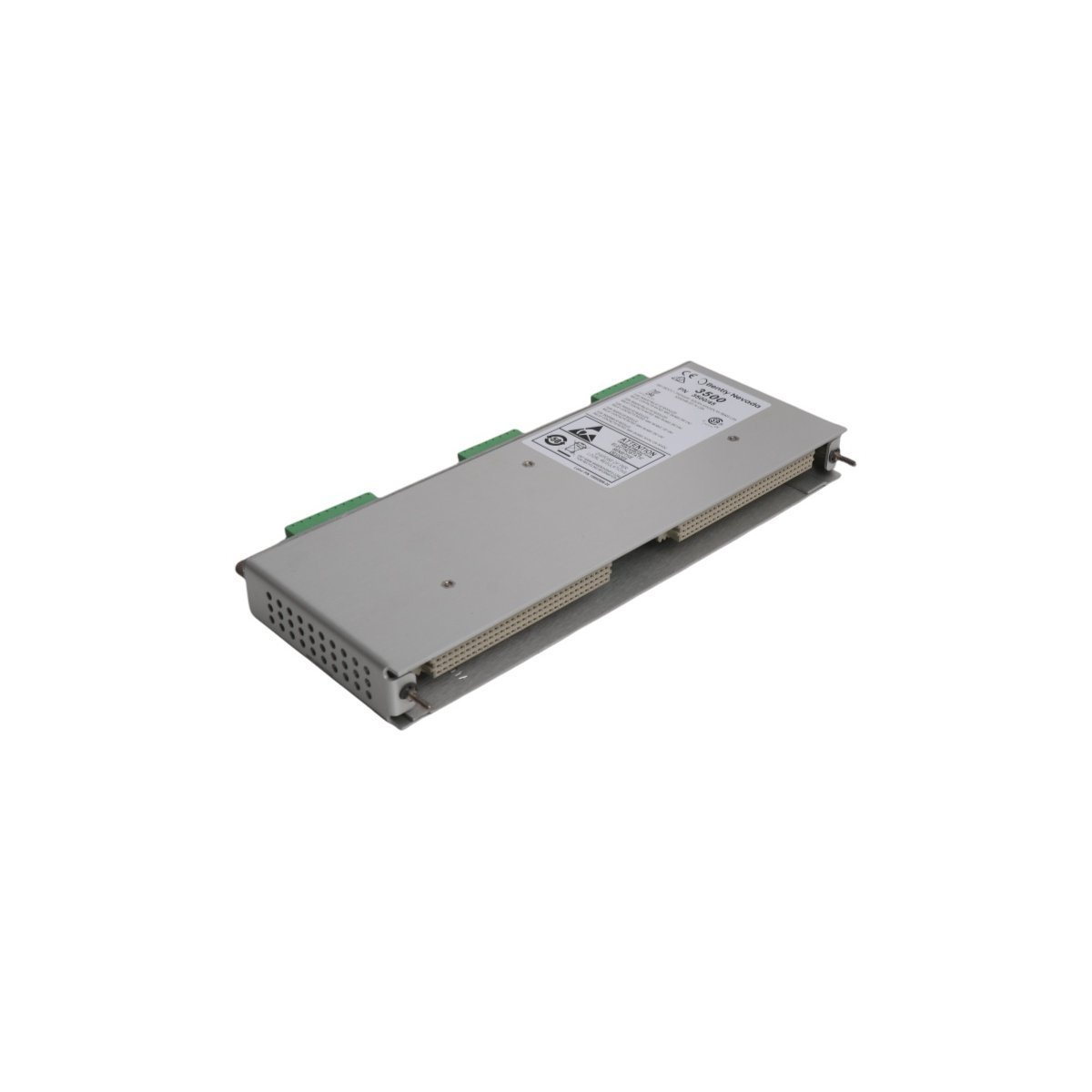

Bently Nevada 135137-01 | 3500/45 Position I/O Module with Internal Terminations

The Bently Nevada 135137-01 is a dedicated Position Input/Output module designed for the 3500/45 Position Monitor within the 3500 Series Machinery Protection System. This specific hardware version features Internal Terminations, which allows field wiring to connect directly to the terminal strips on the I/O module itself. By integrating these connections, the system reduces the need for external termination blocks, thereby saving valuable cabinet space and simplifying the overall wiring architecture for plant operators.

Precision Monitoring for Critical Asset Protection

This module plays a vital role in monitoring the mechanical position of rotating equipment. It accurately processes signals from proximity probes and other transducers to measure parameters such as axial thrust position, differential expansion, and valve position. Because even minor shifts in shaft position can indicate significant mechanical stress or impending failure, the 135137-01 provides the high-resolution data necessary for automated machinery trips and early warning alerts. This proactive monitoring approach effectively extends the lifespan of turbomachinery and prevents catastrophic damage.

Technical Specifications

The 135137-01 is engineered to meet the stringent requirements of heavy industrial environments. Key technical data includes:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 135137-01
• Product Series: 3500 Series Machinery Protection System
• Monitoring Type: Position (Thrust, Expansion, Complementary Input)
• Termination Style: Internal Terminations (Direct terminal strip wiring)
• Mounting Position: Rear slot of the 3500 Rack
• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Frequency Response: Supports high-speed pulse inputs up to 30kHz
• Weight: 0.96 kg (2.12 lbs)
• Dimensions: 2.5 cm x 18.5 cm x 14.0 cm

Reliable Integration and Industrial Design

Bently Nevada utilizes high-quality components to ensure that the 135137-01 maintains signal accuracy despite electromagnetic interference or thermal fluctuations. The module features a rugged PCB design that handles the 220V power environment safely while processing low-voltage sensor signals. Transitioning to this internal termination model streamlines the commissioning process, as technicians can manage all field connections in a single, centralized location at the rear of the monitor rack.

Enhanced Predictive Maintenance Capabilities

By delivering real-time position data to the 3500/45 monitor, this I/O module supports advanced diagnostic functions. It allows maintenance teams to track the wear of thrust bearings and the thermal growth of machine casings over time. This continuous data stream facilitates better maintenance planning and reduces the frequency of manual inspections. Consequently, the 135137-01 acts as a cornerstone for Turbine Supervisory Instrumentation (TSI) in power plants, refineries, and large-scale manufacturing facilities globally.
