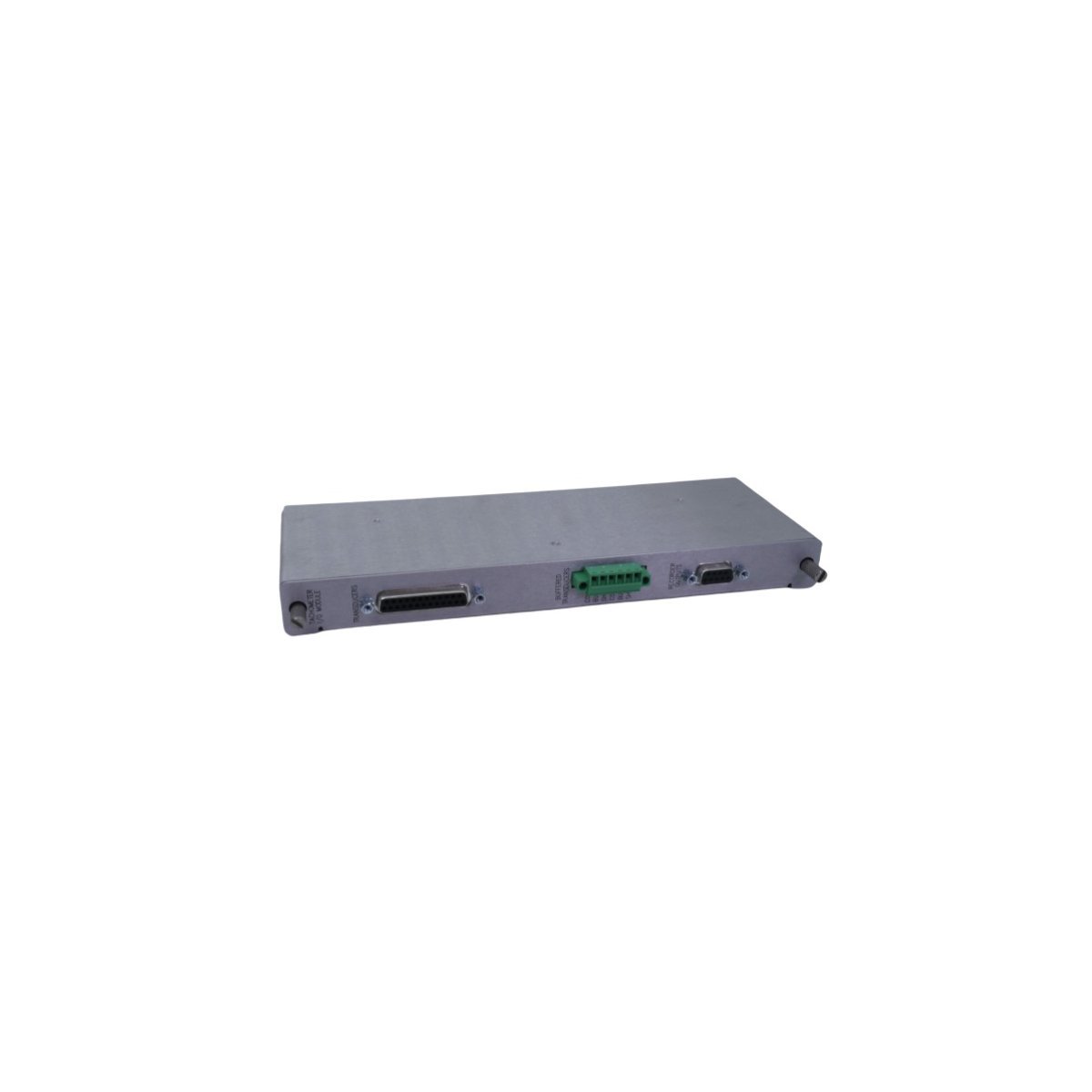

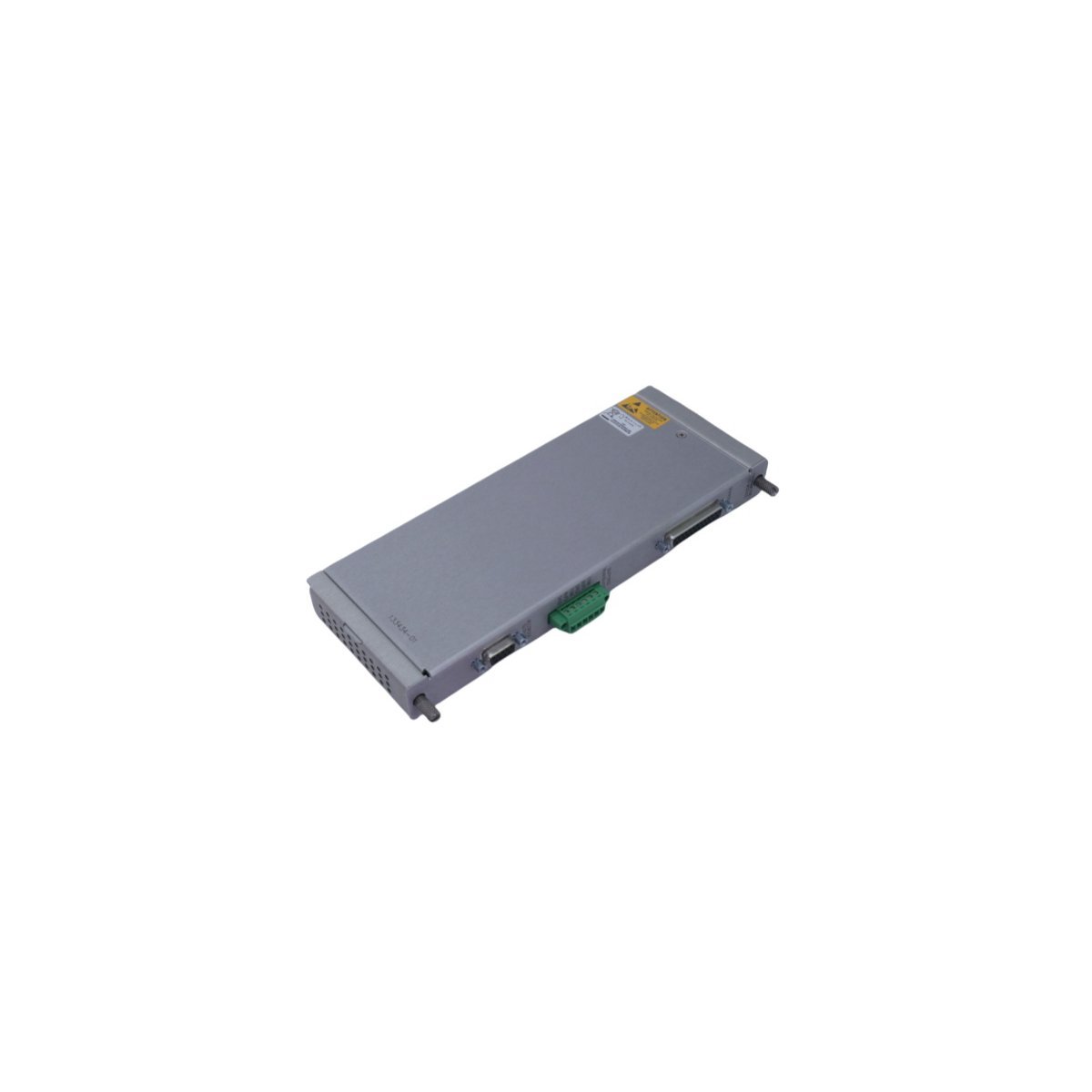

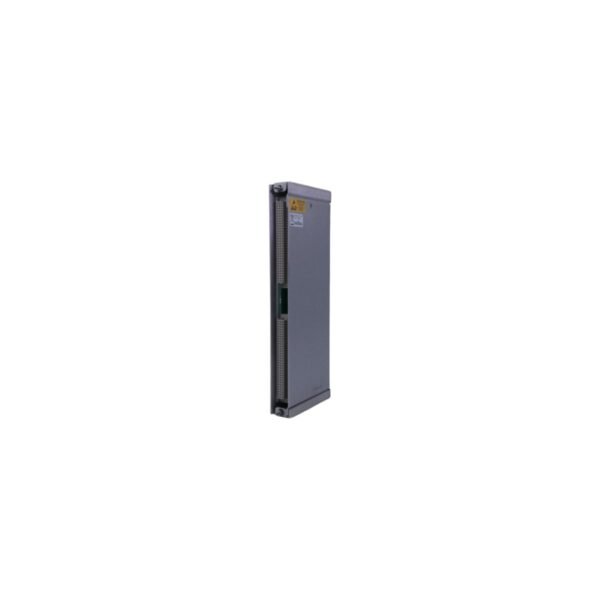

Bently Nevada 133434-01 | 3500/25 Tachometer I/O Module with External Terminations

The Bently Nevada 133434-01 is a high-performance Tachometer Input/Output module specifically engineered for the 3500 Series Machinery Protection System. This module acts as the critical hardware interface between speed sensors and the 3500/25 Enhanced Keyphasor Module. By capturing high-frequency pulses from proximity probes or magnetic pickups, it enables the system to calculate precise rotational speed, phase angles, and shaft centerline data. This data is indispensable for the vibration analysis and protection of high-speed turbomachinery, including gas turbines, steam turbines, and centrifugal compressors.

Core Functionality and System Role

This I/O module facilitates the conditioning of transducer signals before they reach the main processing monitor. It supports External Terminations, which simplifies field wiring and allows for more organized cabinet management in large-scale industrial plants. The module effectively handles pulse-per-revolution signals to provide real-time machinery health insights. Because it integrates directly with the 3500 rack backplane, it ensures high-speed data throughput and synchronization with other vibration monitoring modules, forming a comprehensive Turbine Supervisory Instrumentation (TSI) suite.

Technical Specifications

The 133434-01 is built to sustain continuous operation in demanding environments. Key technical parameters include:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 133434-01
• System Compatibility: 3500/25 Enhanced Keyphasor System
• Termination Type: External Terminations (ET)
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Input Signal Types: Proximitor Sensors, Magnetic Pickups, or Contact Closures
• Dimensions: 2.5 cm x 11.2 cm x 24.2 cm
• Weight: 0.4 kg (0.88 lbs)
• Environmental Rating: Ruggedized for industrial interference (EMI/RFI shielded)

Industrial Durability and Integration

Bently Nevada utilizes high-grade materials to ensure the 133434-01 operates reliably amidst thermal transients and electrical noise. The module’s design focuses on signal integrity, utilizing balanced circuitry to prevent data corruption over long cable runs. Transitioning to this I/O module allows operators to leverage advanced Modbus communication via the 3500 rack for seamless PLC and DCS integration. This connectivity enhances the predictive maintenance capabilities of the facility by streaming speed and phase data directly to centralized control rooms.

Operational Advantages for Rotating Assets

Implementing the 133434-01 Tachometer I/O module minimizes the risk of signal loss during critical speed changes. The robust connection architecture reduces maintenance requirements by providing clear, accessible termination points for technicians. Furthermore, the module supports hot-swapping within the 3500 rack, which allows for hardware updates or replacements without necessitating a complete system shutdown. This reliability makes it a standard choice for power generation, oil and gas, and petrochemical sectors where machinery uptime is the highest priority.
