Description

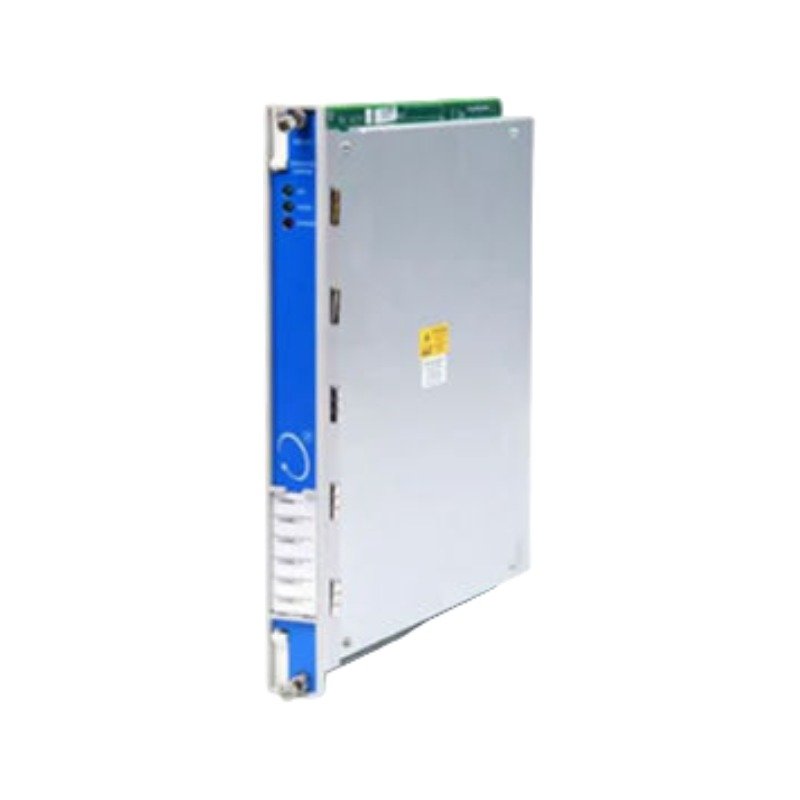

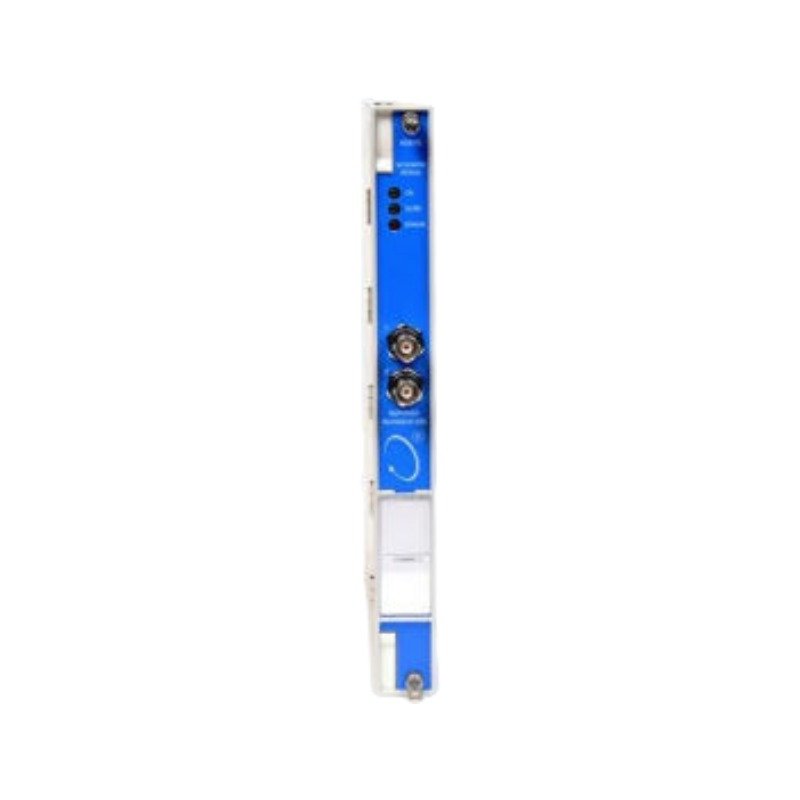

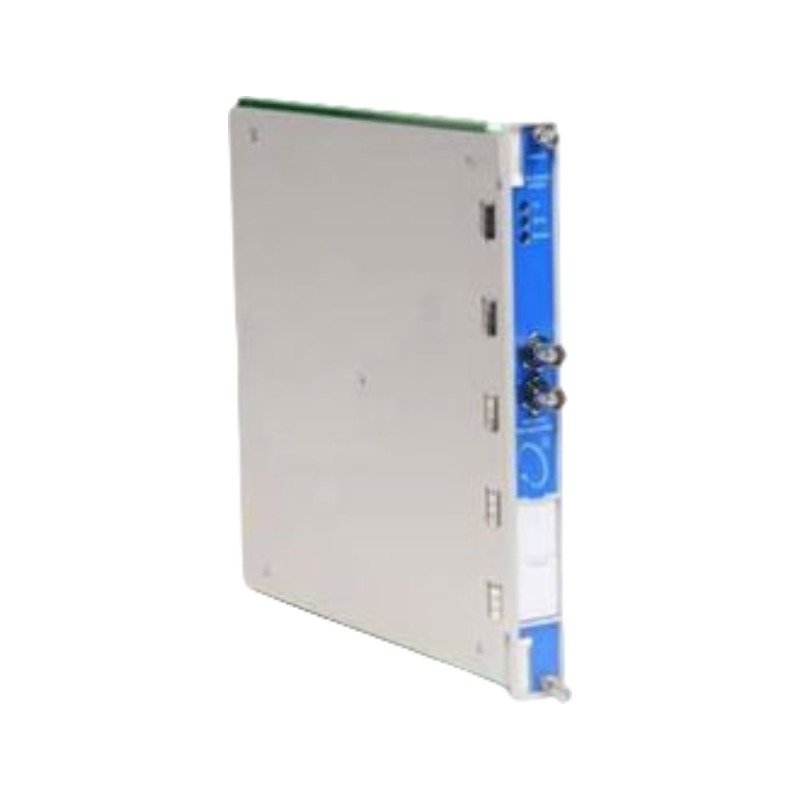

Configured for high-reliability machinery protection in the 3500 system, the Bently Nevada 3500/50 134938-01 (3500/50 Discrete Internal Barrier I/O Module) executes signal interface and intrinsic safety isolation for proximity and magnetic transducer inputs.

Hardware Specifications

TSI Mechanical Monitoring & Signal Processing

The 3500/50 module integrates dedicated internal safety barriers to manage transducer inputs within hazardous environments. It utilizes precise eddy-current probe scaling to convert mechanical rotor oscillations into normalized signals for the processing module. Engineers must validate gap voltages at the nominal -10 VDC setpoint to maintain optimal measurement linearity. Furthermore, the module design employs active cross-talk suppression to isolate high-frequency pulse inputs across the backplane. This architecture ensures that rotor speed, acceleration, and direction data remain accurate and immune to electromagnetic interference during system operation.

Frequently Asked Questions

Q: How does this module manage intrinsic safety requirements?A: The unit incorporates discrete internal barriers that provide galvanic isolation between the field instrumentation and the system backplane, effectively limiting energy levels to meet safety standards.

Q: Can this module operate with existing 3500 configuration software?A: Yes, the module interfaces seamlessly with the 3500 Rack Configuration software, which technicians use to define alarm setpoints and monitor machine state parameters.

Field Installation Guidelines

• Ensure Proper Termination: Connect all field wiring to the designated screw terminals. You must verify that terminal connections are tight to prevent signal fluctuations caused by vibration.
• Maintain Shielding Integrity: Route all transducer signals through shielded, twisted-pair cabling. Maintain shield continuity from the probe to the module input to minimize common-mode noise.
• Verify Backplane Alignment: Slide the I/O module into the rack chassis carefully. Ensure the rear connector engages with the backplane bus before you tighten the captive mounting screws.
• Validate Loop Parameters: Perform a thorough loop check post-installation. Confirm that the proximity probe gap voltage resides within the operational -10 VDC range to guarantee accurate speed measurement.
