Description

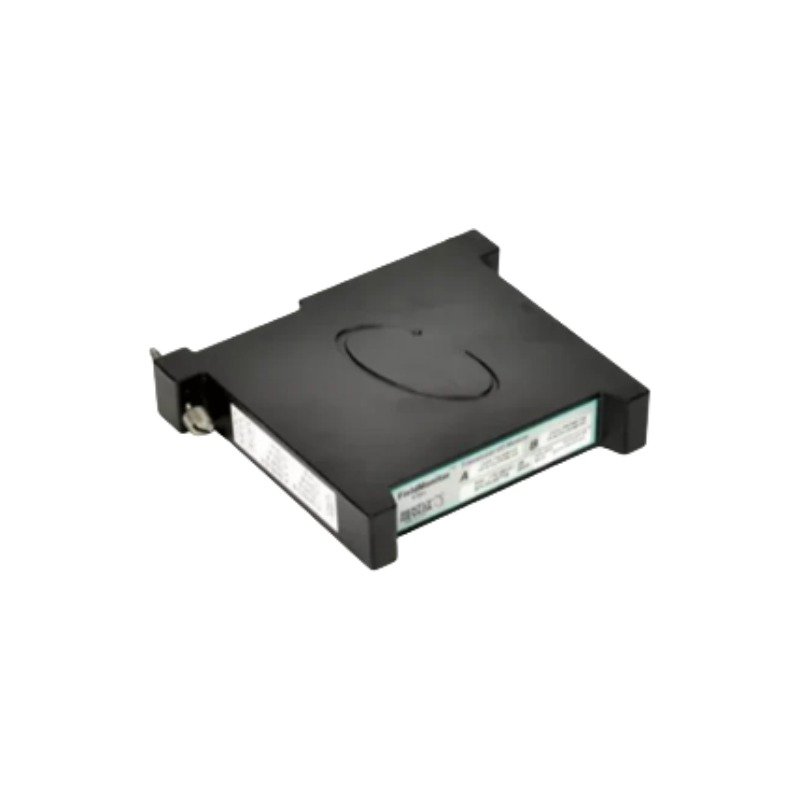

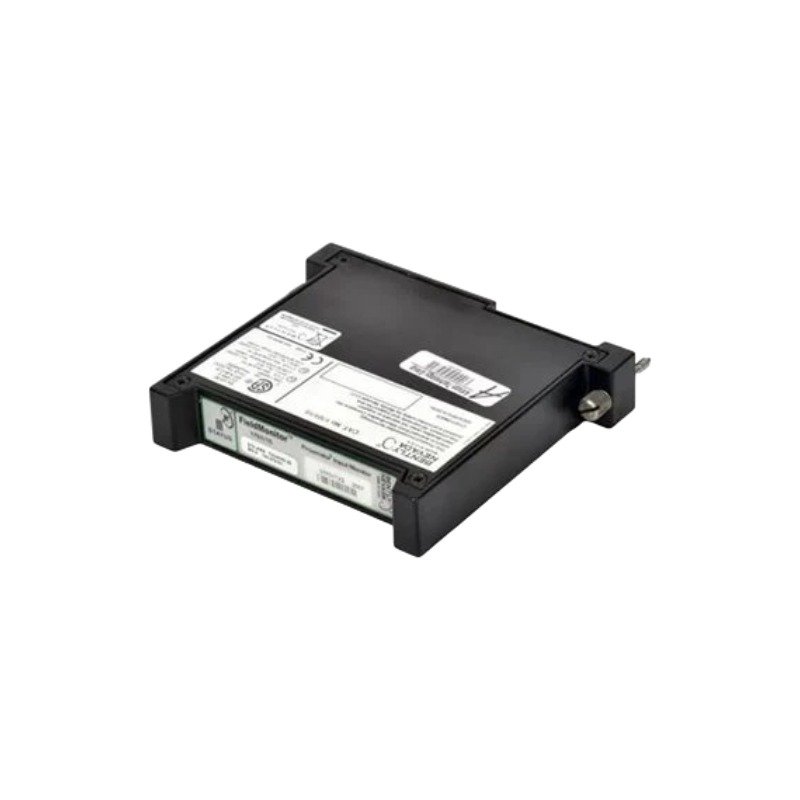

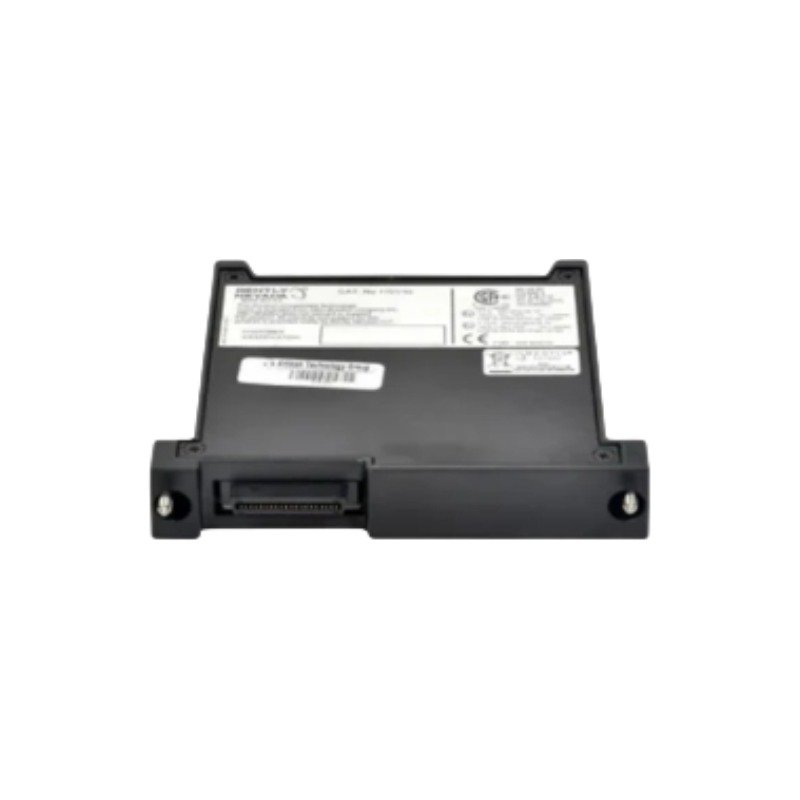

The Bently Nevada 1701/15 141379-01, also cataloged as the 1701/15 Proximitor Input Monitor, operates as a dedicated hardware component for high-speed proximity sensor data acquisition within Bently Nevada platforms. Specifically, the hardware accepts raw voltage signals from proximity transducers, processes gap voltage metrics, and simultaneously streams transient mechanical vibration profiles to execute real-time digital monitoring across the system backplane network.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module processes dynamic inputs to compute localized rotor dynamics and absolute shaft positions. To ensure hardware path verification, the internal circuits continuously execute gap voltage validation (-10 VDC targets) within the wide -1 to -23 V window. Furthermore, the integrated conversion pipeline optimizes eddy-current probe scaling. Consequently, specialized cross-talk suppression paths protect low-amplitude vibration harmonics across the non-isolated buffered output matrix during simultaneous multi-channel processing.

Frequently Asked Questions

Q: How does the choice of field cabling affect the unisolated buffered output ports on this module?

A: The buffered output ports drive a maximum distance of 30 m (100 ft) using standard field cabling rated at 60 pF/ft. Conversely, exceeding this capacitance threshold causes physical signal attenuation at high frequencies.

Q: What external power supply architecture drives the 1701/15 141379-01?

A: The module relies entirely on a shared system backplane connection that draws -24 VDC and +5 VDC directly from the designated 1701 Power Supply module. Therefore, the module does not connect to external mains directly.

Field Installation Guidelines

• Insert the module vertically into the dedicated slot layout of the 1701 chassis, and verify that all rear connector pins sit evenly before applying final locking pressure.
• Route all unisolated buffered output connections through distinct wire bundles away from any high-voltage control lines; thus, you eliminate electromagnetic inductive coupling.
• Terminate all sensor cable shields exclusively at the single-point instrumentation ground schema, thereby stabilizing the 1 mV gap resolution limits.
