Description

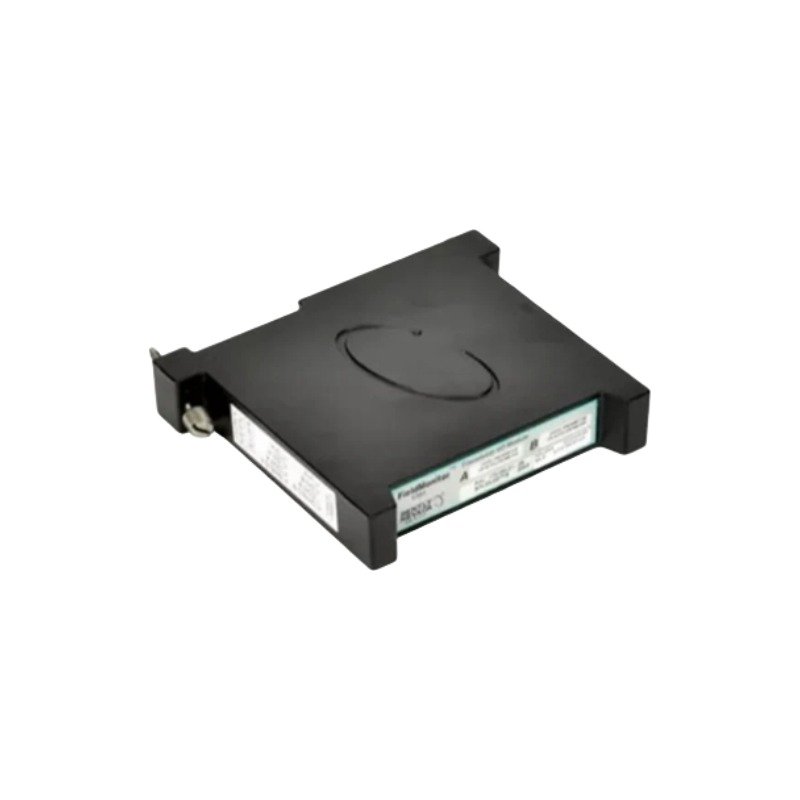

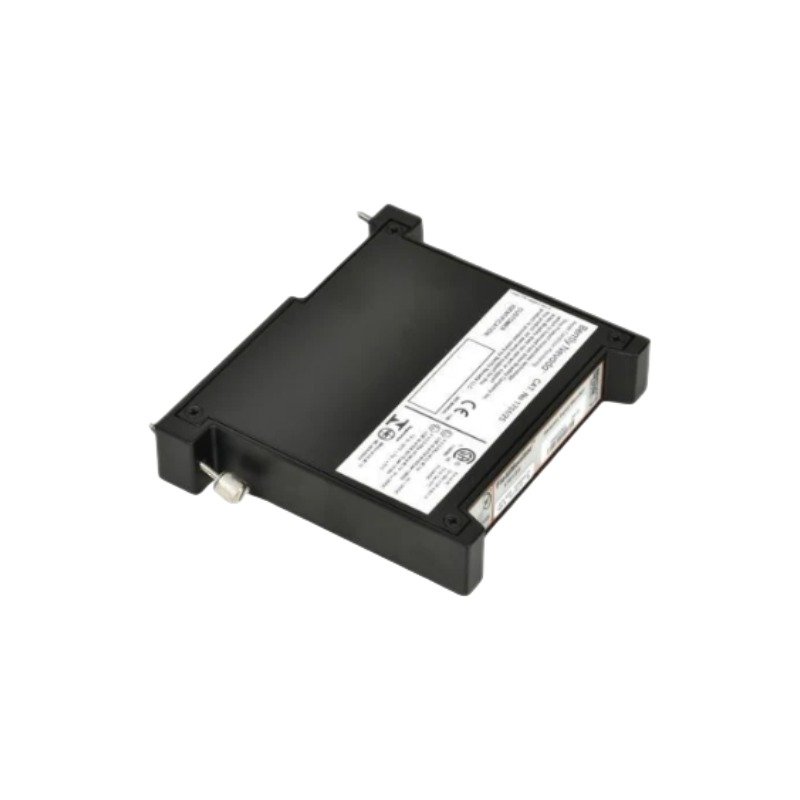

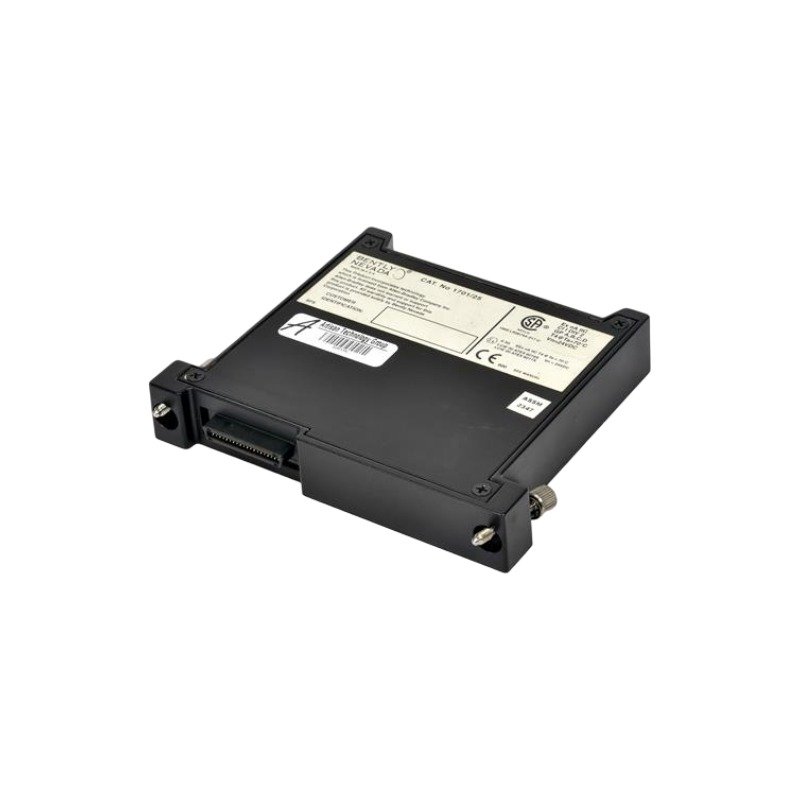

The Bently Nevada 1701/25 161141-01 serves as the primary 1701/25 Seismic Input Monitor utilized to execute industrial machinery health monitoring across FieldMonitor platforms. The hardware processes dynamic raw signals from mechanical acceleration or velocity transducers and routes physical alarm contacts directly to the host control system interface.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module processes dual-channel vibration inputs to extract casing dynamics and absolute machine motion profiles. To verify electrical paths, the internal diagnostic framework continuously executes gap voltage validation (-10 VDC targets) across the active transducer loops. Furthermore, onboard signal conditioning components handle real-time integration and eddy-current probe scaling calculations, while dedicated hardware filters establish cross-talk suppression between channels to preserve accuracy during simultaneous dynamic events.

Frequently Asked Questions

Q: How does the 1701/25 161141-01 isolate internal processing failures from field transducer faults?

A: The monitor integrates hardware self-tests and continuous built-in diagnostics. Consequently, the processing logic immediately distinguishes a sensor loop disconnection from an internal processor fault, generating independent diagnostic flags for the host network.

Q: What mechanisms execute the translation of raw acceleration inputs into velocity units?

A: The internal hardware features hardware integration and selective filtering capabilities. Therefore, the monitor conditions the raw voltage variables and converts them into standard engineering units directly on the card before setting alarm thresholds.

Field Installation Guidelines

• Insert the module into its chassis slot with uniform pressure, and ensure all securing hardware is tightened to maintain continuous chassis frame grounding.
• Separate all low-voltage seismic transducer input wiring from adjacent high-voltage power cables in order to minimize electromagnetic cross-talk.
• Terminate the external braided shields of the transducer cables exclusively at the single-point instrumentation ground bus to maintain clean data trending.
