Description

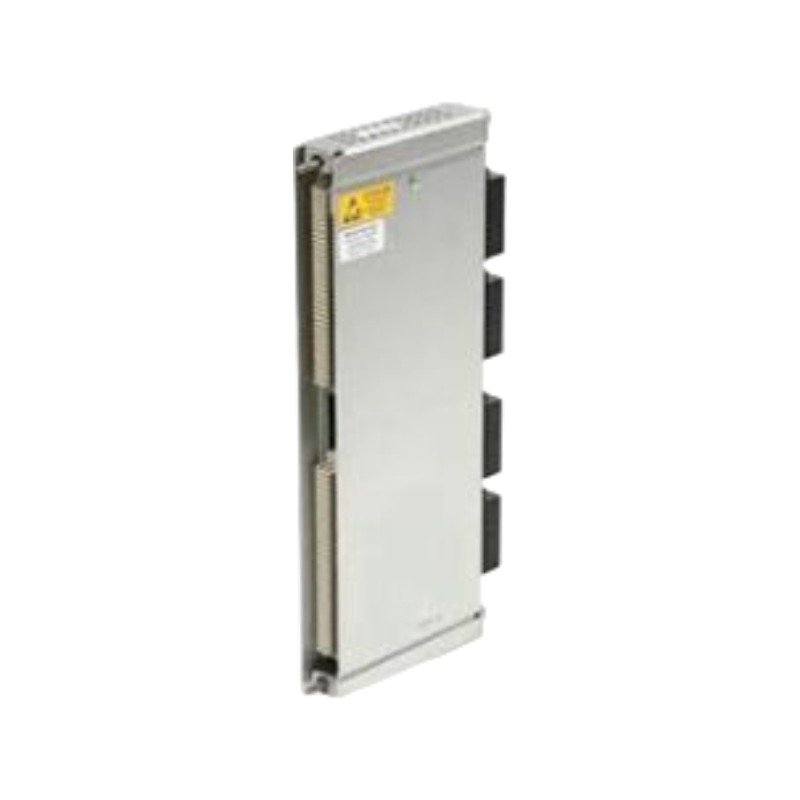

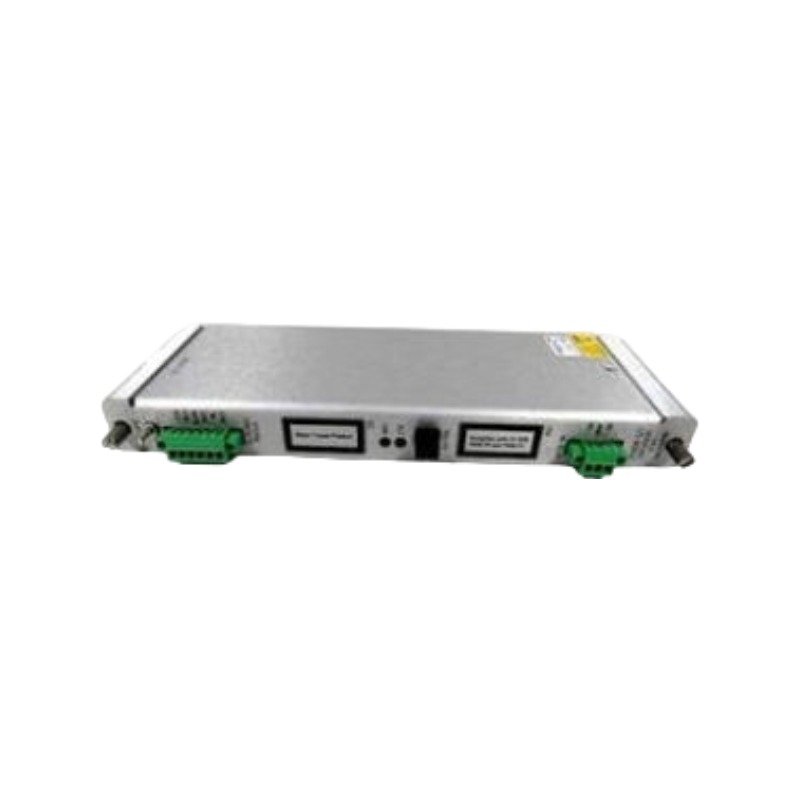

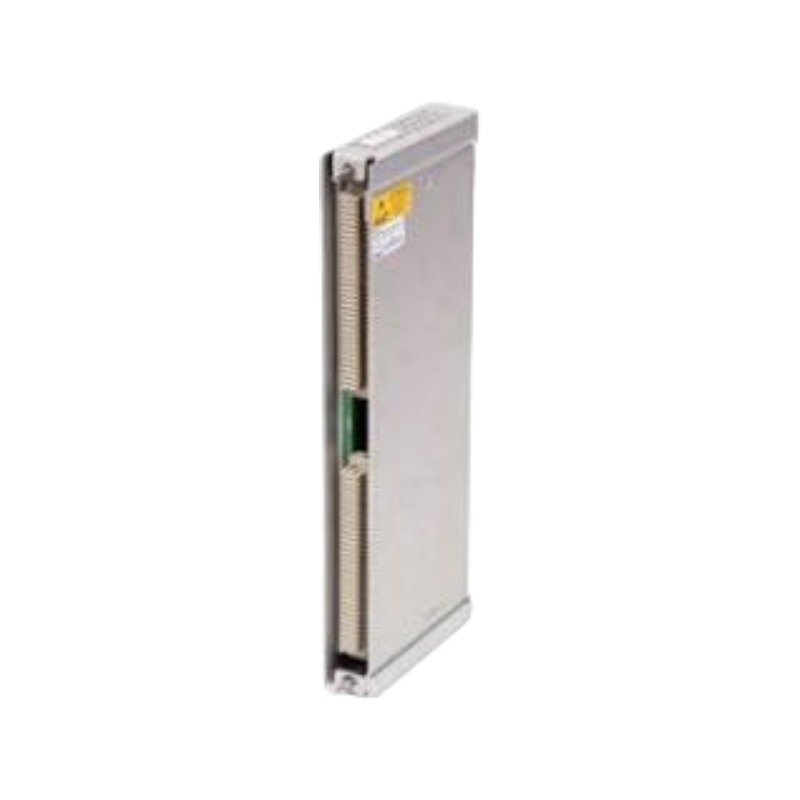

The Bently Nevada 3500/50 133450-01, also cataloged as the 3500/50 Tachometer I/O Module, serves as the primary I/O component utilized to execute signal conditioning and interconnection tasks across 3500 Machinery Protection System platforms.

Hardware Specifications

TSI Mechanical Monitoring & Signal Processing

The 3500/50 I/O module integrates with proximity probe arrays to perform active rotor dynamics monitoring. It utilizes precise eddy-current probe scaling to normalize input signal amplitudes for the processing module. Engineers must maintain gap voltage validation at nominal -10 VDC targets to preserve signal linearity and prevent measurement clipping. Furthermore, the module employs dedicated cross-talk suppression paths, which effectively isolate high-speed pulse inputs from adjacent channels. Consequently, this design ensures that reverse rotation and acceleration data remain free from electromagnetic interference during operation.

Frequently Asked Questions

Q: Does the 133450-01 module support direct connection to magnetic pickups?A: Yes, the module accommodates inputs from either proximity probe systems or magnetic pickups, provided that the incoming signal frequency and amplitude characteristics align with the defined input specifications.

Q: Is there a specific grounding requirement for the I/O terminals?A: Yes, technicians must connect all shield terminations to the dedicated signal common terminals on the I/O module. This practice effectively mitigates common-mode noise and protects the instrumentation loop from surges.

Field Installation Guidelines

• Implement Wiring Standards: Use shielded, multi-conductor cabling for all transducer connections. Maintain shield continuity from the transducer through to the module terminal block to prevent signal degradation.
• Secure Terminal Engagement: Tighten all field wiring securely within the screw terminals. Carefully inspect the terminal block latching mechanism to guarantee a vibration-resistant connection.
• Align Backplane Components: Slide the I/O module into the rack slot that corresponds to the monitor module. Fully engage the rear connector before you tighten the top and bottom captive screws.
• Validate System Performance: Perform a complete loop check following installation. This procedure confirms that probe gap voltages, as measured at the module terminals, reside within the required -10 VDC operational envelope.
