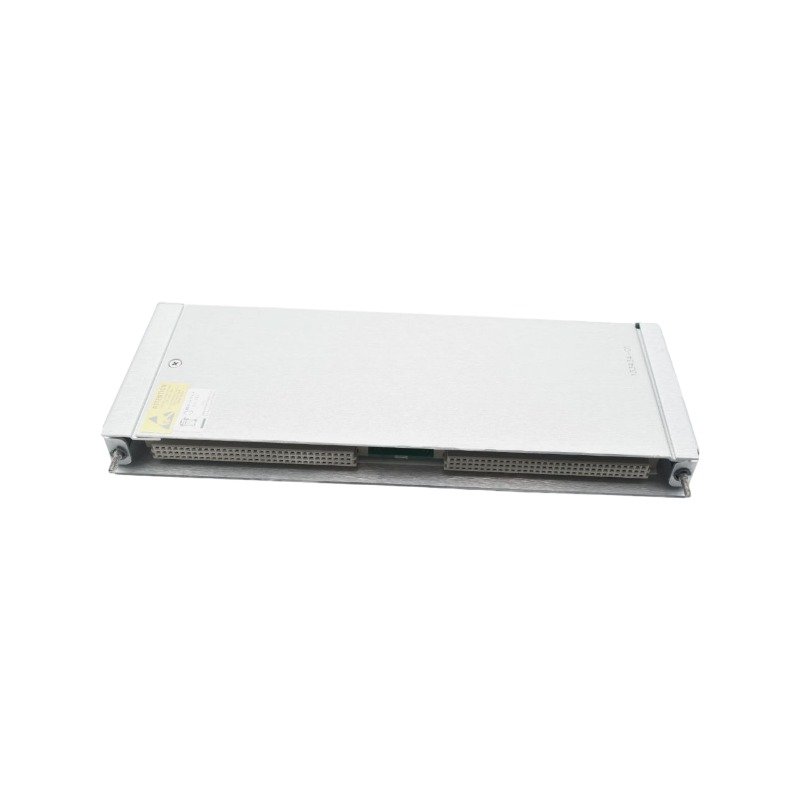

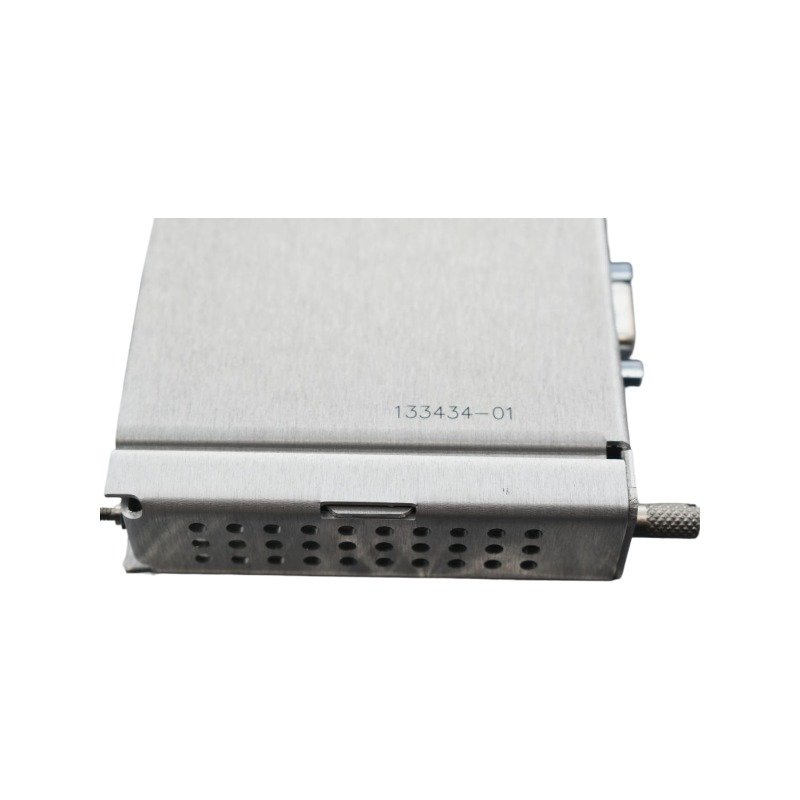

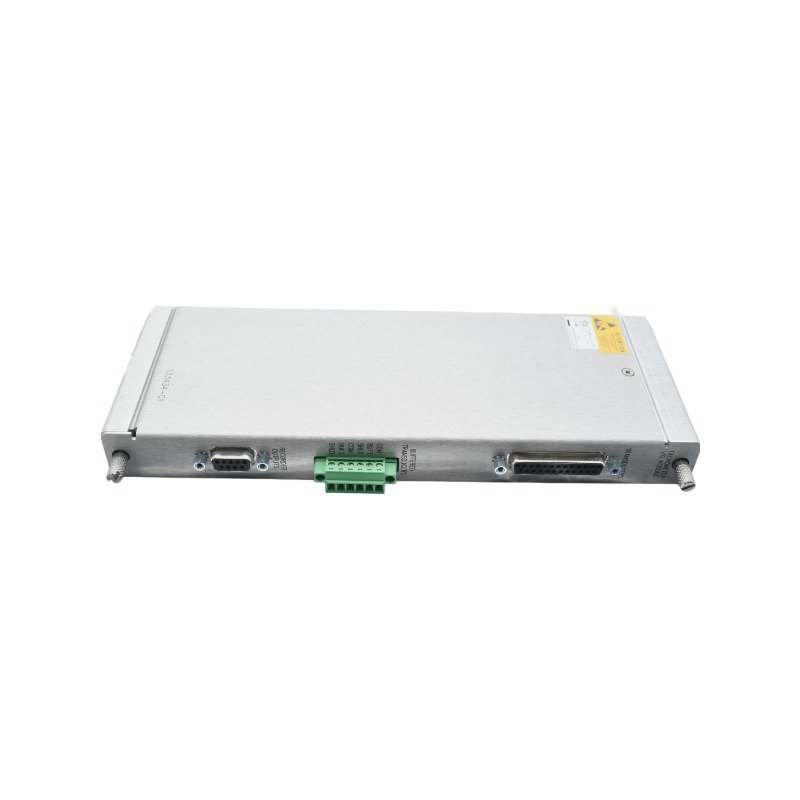

Configured for high-precision rotational monitoring in the 3500 Machinery Protection System, the Bently Nevada 3500/50 133434-01 (3500/50 Tachometer I/O Module) provides direct physical and electrical signal conditioning for proximity probes and magnetic pickups.

Suffix Breakdown & Model Matrix

Hardware Specifications

TSI Mechanical Monitoring & Signal Processing

The 3500/50 I/O module manages the raw signal interface required for rotor dynamics assessment. It facilitates eddy-current probe scaling, converting mechanical oscillations into voltage representations. Maintaining correct gap voltage validation is critical, with -10 VDC targets required to ensure the linear range of the transducer is utilized. The module includes active cross-talk suppression circuitry to isolate high-frequency signals across the backplane, ensuring that rotor speed data remains accurate even in high-density rack configurations.

Frequently Asked Questions

Q: Does this I/O module require a specific rack slot alignment with the processing module?

A: Yes, the 133434-01 I/O module must be installed in the slot immediately adjacent to the corresponding 3500/50M Tachometer processing module to ensure proper backplane signal routing.

Q: How does this module manage signal isolation for proximity probes?

A: The module provides internal galvanic isolation to protect the processing circuitry from ground loops and external electrical surges common in heavy industrial environments.

Field Installation Guidelines

• Wiring Termination: Use 18 to 22 AWG shielded twisted-pair cabling. Terminate shields at the I/O module terminal blocks according to the specific loop diagram provided in the 3500 system manual.
• Gap Adjustment: Verify the probe gap at the machine site during installation. Adjust the probe position until the steady-state output voltage matches the -10 VDC nominal gap voltage requirement.
• Module Insertion: Ensure the 3500 rack power is active or follow local lock-out/tag-out procedures. Align the module with the lower and upper rack guides before applying pressure to the handle to engage the backplane connector.
• Grounding: Inspect the I/O module chassis ground connection to the rack backplane to ensure impedance is below 1 Ohm.
