Description

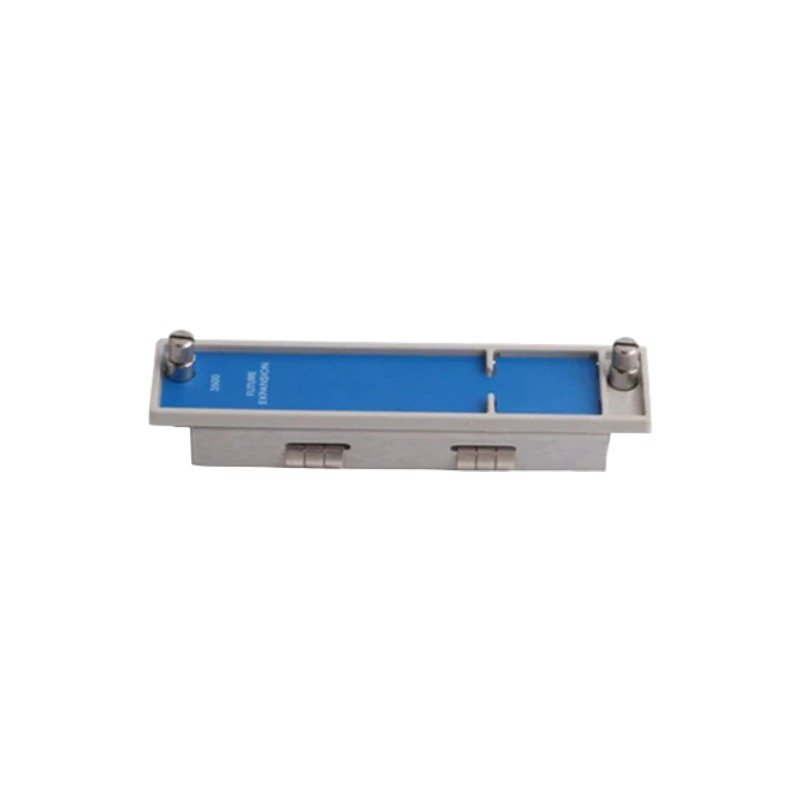

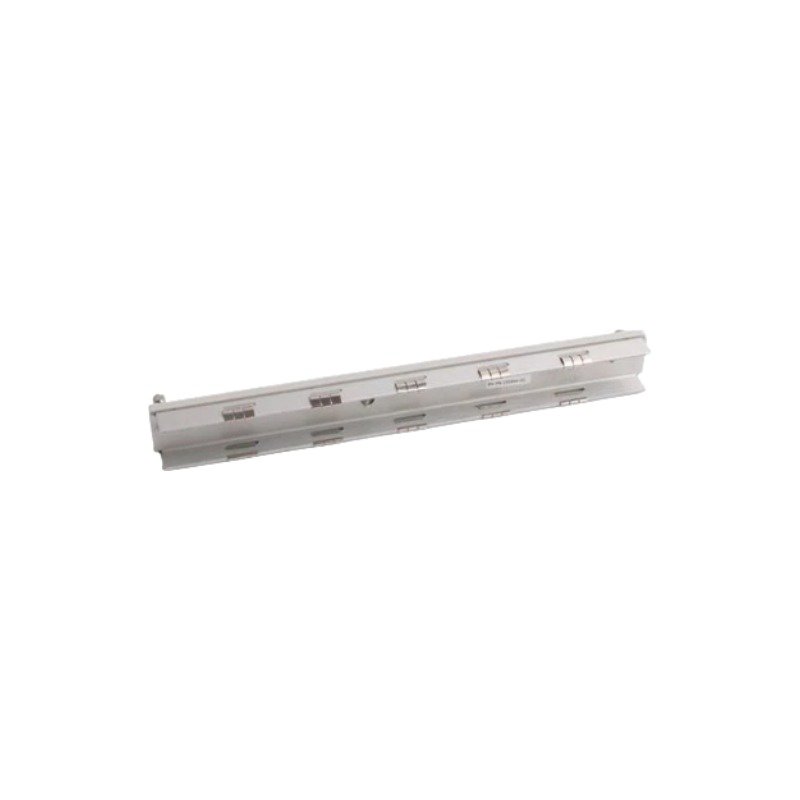

The Bently Nevada 130944-01 operates as a dedicated hardware component for environmental protection and electromagnetic shielding within Bently Nevada 130944 3500 Series System Rack configurations. Specifically, this passive assembly seals unused chassis pathways to regulate internal thermal currents. Consequently, it isolates active internal backplane data lines from external physical contamination and localized electrical noise.

Hardware Specifications

Backplane Isolation and Cross-Talk Suppression

This full-height blanking hardware enforces strict cross-talk suppression metrics across the 3500 backplane infrastructure. Because it bridges unpopulated spaces between dynamic measurement units, the grounded plate actively blocks electrostatic fields. As a result, this shielding prevents external noise from interrupting high-frequency transducer channels governed by eddy-current probe scaling protocols. Furthermore, maintaining this physical seal eliminates localized ambient noise coupling, which directly preserves the stability of critical phase indicators and gap voltage validation (-10 VDC targets) paths across the entire rotor dynamics monitoring grid.

Frequently Asked Questions

Q: Can technicians install the 130944-01 hardware while the 3500 system rack remains fully energized?

A: Yes. Because this blank module features a completely passive mechanical design with zero active electrical circuitry or backplane communication interfaces, technicians can manipulate it during live operations without causing voltage drops or terminal logic faults.

Q: How does leaving a slot open without the 130944-01 alter adjacent monitor channels?

A: An open slot immediately disrupts the forced-air thermal cooling loop inside the 3500 chassis. Additionally, it degrades the electromagnetic containment profile, thereby increasing susceptibility to RF interference that can skew analog signal processing.

Field Installation Guidelines

• Chassis Slot Alignment: Slide the blank assembly smoothly along the upper and lower chassis guide tracks of the unpopulated 7-slot or 14-slot rack position.
• Fastener Retention Sequence: Secure the integrated upper and lower mounting screws onto the rack bezel frame to establish a rigid physical fit and secure a continuous chassis ground bond.
• Contaminant Shield Verification: Confirm that the front panel profile sits completely flush with adjacent power modules or monitoring cards to block out airborne industrial dust and chemical debris.
