Description

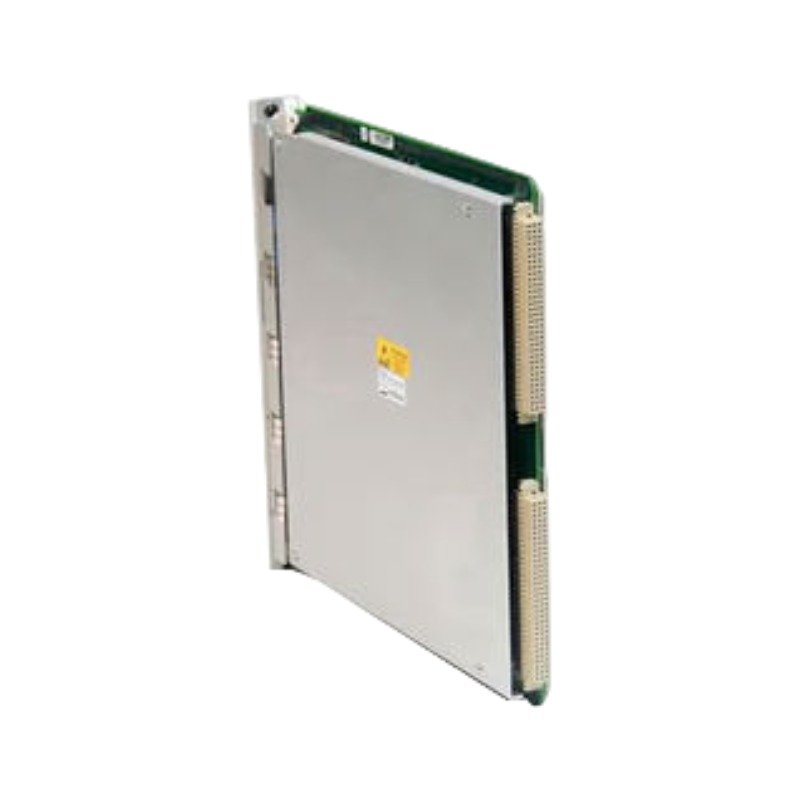

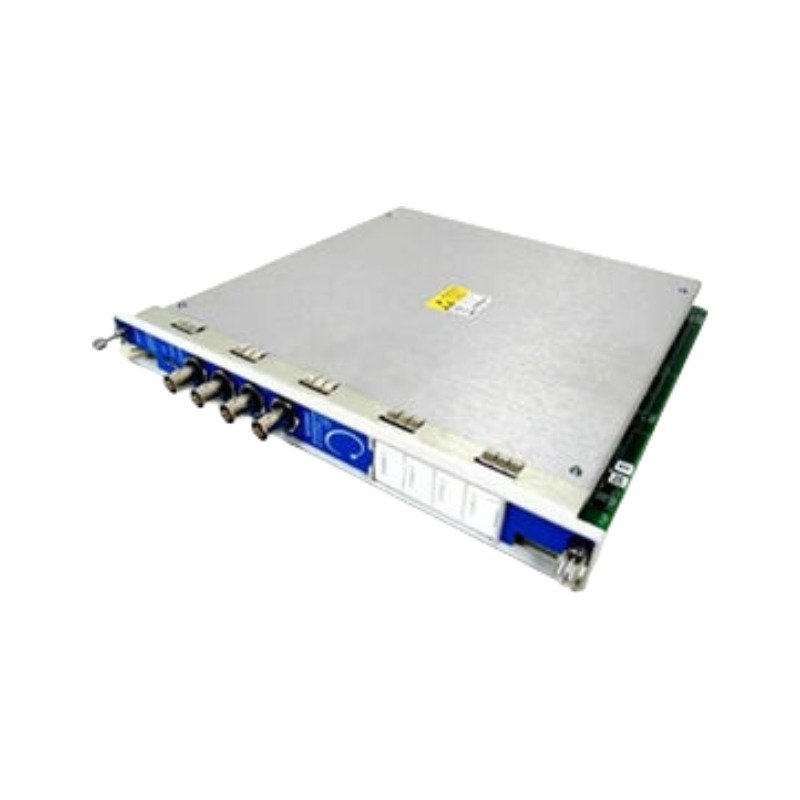

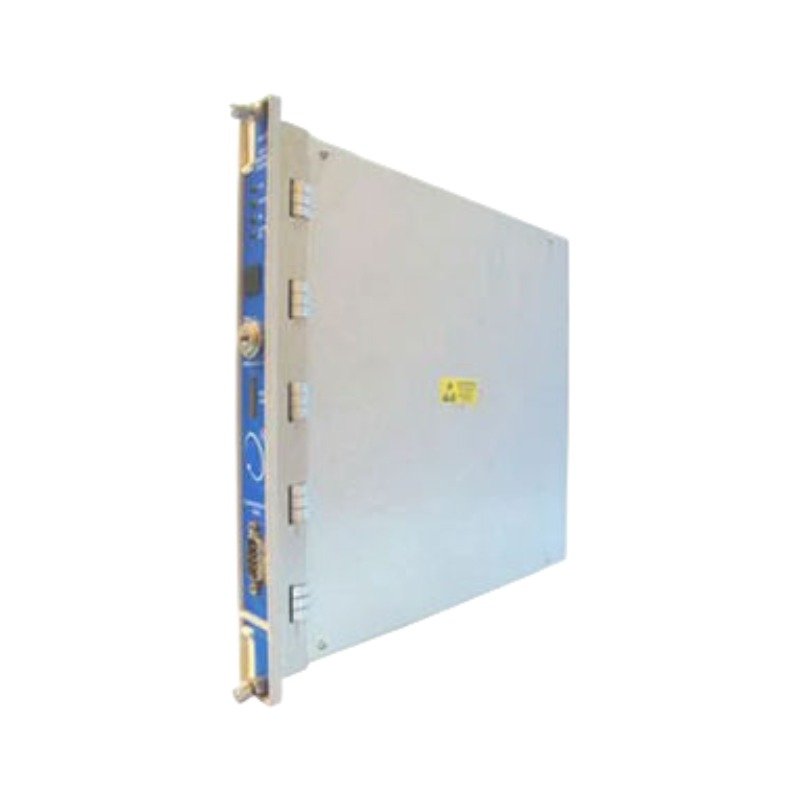

The Bently Nevada 3500/45 140072-04, also cataloged as the 140072-04 Position Monitor Module, operates as a dedicated hardware component for continuous displacement and position measurement within the 3500 Machinery Protection System.

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 3500/45 140072-04 module directly interfaces with eddy-current proximity transducers to facilitate precise rotor dynamics analysis. Technicians utilize the module to execute gap voltage validation, as the device consistently maintains internal target benchmarks near -10 VDC to ensure accurate linear output mapping. Furthermore, engineers must verify that the transducer probe-to-target gap falls within the linear range of the sensing system. The module circuitry actively suppresses cross-talk to preserve signal integrity across multi-channel configurations. Consequently, the 3500 rack interface maintains precise scaling of the eddy-current probe output, which ensures that physical shaft displacement translates accurately into configured engineering units.

Frequently Asked Questions

Q: Does the 3500/45 140072-04 module support hot-swapping during system operation?A: Yes. The module design permits operators to remove or insert it into the 3500 rack while the rack remains powered. However, verify that the system configuration software recognizes the hardware change to ensure continuous protective monitoring.

Q: What is the required gap voltage for proper operation?A: The standard operating range centers on a -10 VDC signal. Ensure the mechanical installation results in a gap voltage that sits within the linear region specified for the 8 mm probe.

Field Installation Guidelines

• Mounting: Seat the module firmly into the designated 3500 rack slot to engage the backplane connectors successfully. Additionally, tighten the front panel mounting screws to prevent potential vibration-induced disconnection.
• Wiring: Always utilize shielded twisted-pair cabling for all transducer inputs to minimize electromagnetic interference. Furthermore, terminate cable shields at the designated ground terminals on the I/O module to prevent ground loops.
• Signal Integrity: Avoid routing sensor signal cables in parallel with high-voltage AC power lines. Moreover, maintain the minimum separation distance defined by site safety standards to reduce inductive coupling.
• Verification: After physical installation, perform a comprehensive loop check. This step confirms that the gap voltage reported by the rack interface software matches the actual voltage measured at the terminal block.
