Description

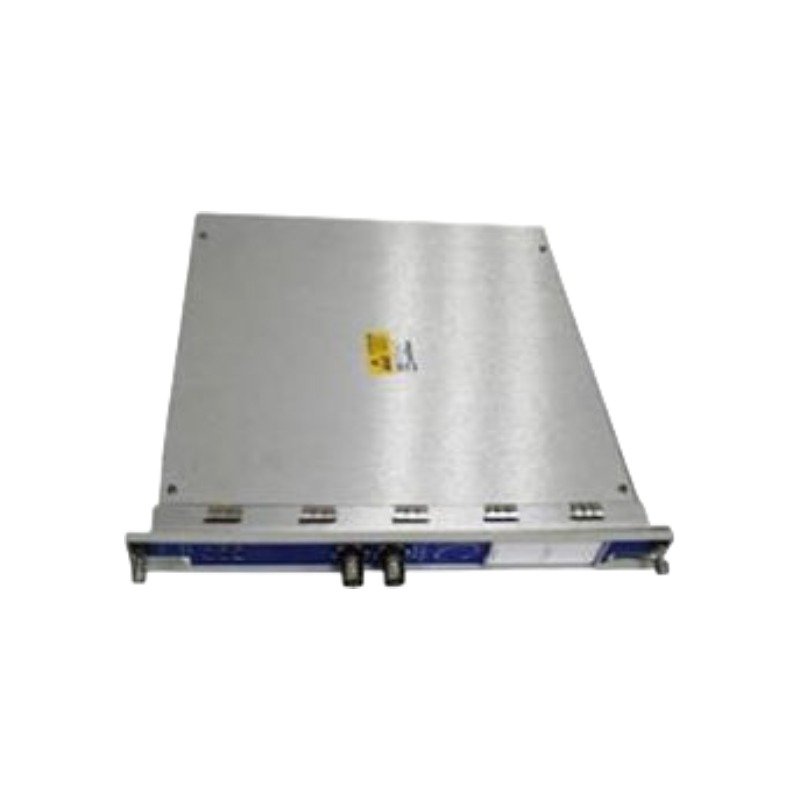

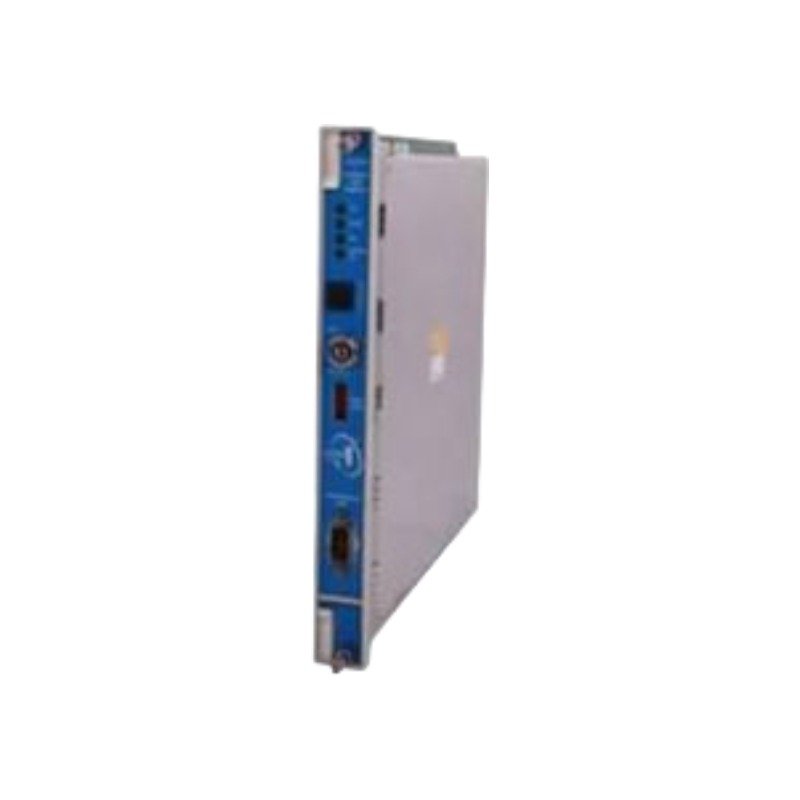

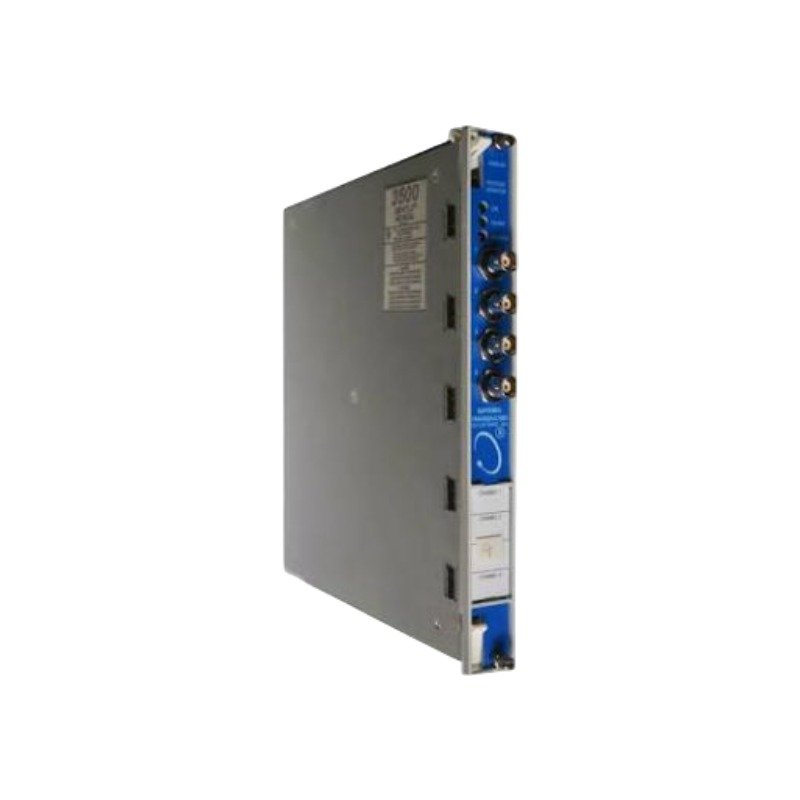

The Bently Nevada 3500/45 176449-04, also cataloged as the 176449-04 Position Monitor Module, operates as a dedicated hardware component for multi-channel displacement and position measurement within the 3500 Machinery Protection System.

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 3500/45 176449-04 module processes inputs from proximity transducers, Rotary Position Transducers (RPTs), and various LVDT configurations. It systematically conditions these signals to ensure accurate data acquisition for rotating machinery. Furthermore, the device executes real-time comparisons between conditioned signals and user-programmable alarm setpoints. To facilitate precise rotor dynamics analysis, the module maintains strict gap voltage validation, targeting -10 VDC benchmarks to preserve signal linearity. Active cross-talk suppression circuitry minimizes noise, thereby ensuring the integrity of position measurements across all four channels.

Frequently Asked Questions

Q: Does the 3500/45 176449-04 module support hot-swapping during system operation?

A: Yes, the module permits removal and insertion into the 3500 rack while the rack maintains power. Always verify that the host configuration software acknowledges the module transition to ensure continuous protection.

Q: Can this module process different transducer types simultaneously?

A: Yes, the module accepts inputs from various sources including RPTs, AC/DC LVDTs, and proximity transducers. Users must configure the specific channel parameters in the 3500 rack software to match the connected sensor type.

Field Installation Guidelines

• Mounting: Seat the module firmly into the designated 3500 rack slot until the backplane connectors engage fully. Tighten the front panel screws to ensure mechanical stability.
• Wiring: Utilize shielded cabling for all sensor inputs to prevent electromagnetic interference. Terminate all cable shields at the designated ground terminals on the I/O module to eliminate potential ground loops.
• Signal Integrity: Keep sensor signal cables separate from high-voltage AC power lines. Adhere to the established minimum separation distances to mitigate inductive coupling issues.
• Verification: Following physical installation, conduct a comprehensive loop check. This process confirms that the input signals read by the monitor align with the actual physical measurements at the sensor interface.
