Description

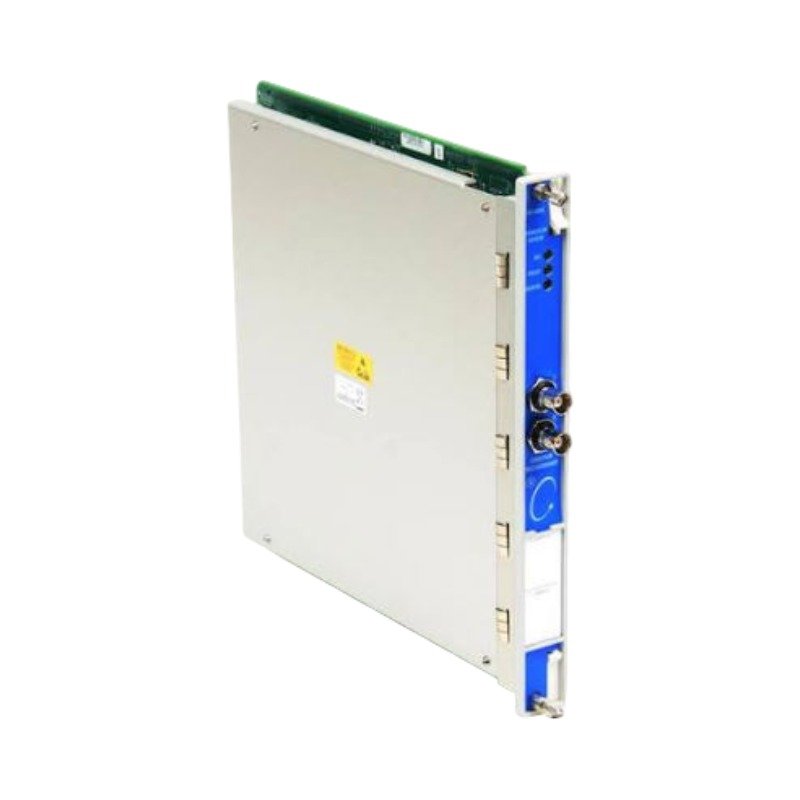

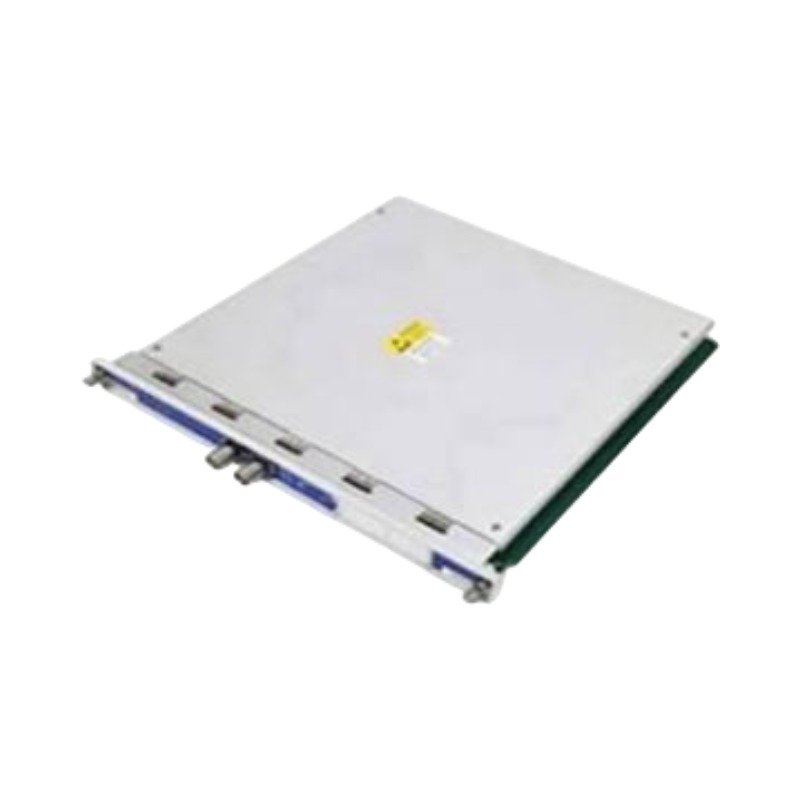

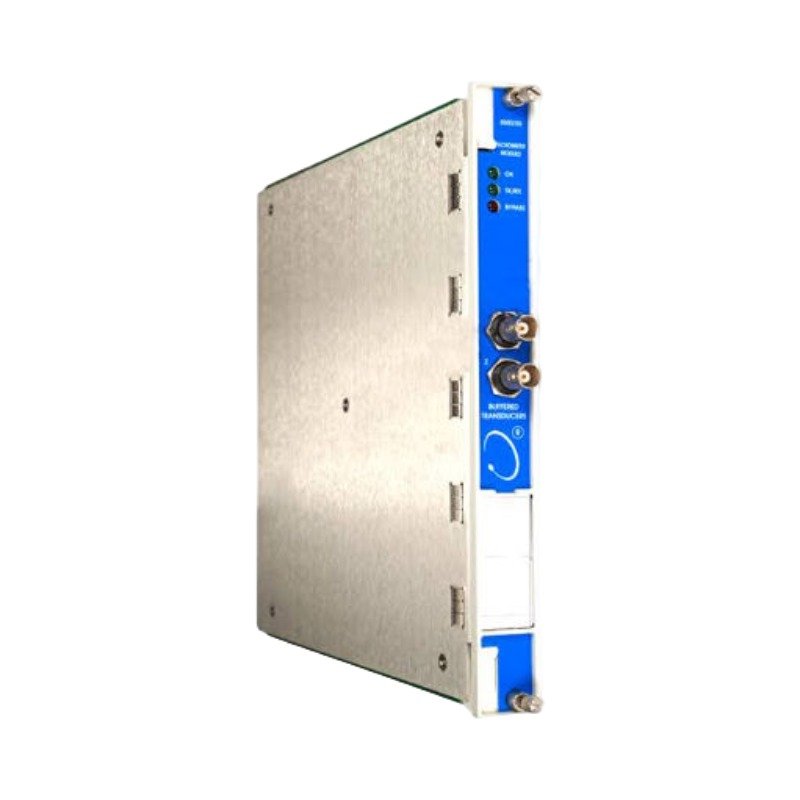

The Bently Nevada 3500/50, also cataloged as the 3500/50M Tachometer Module, operates as a dedicated hardware component for measuring shaft rotative speed, rotor acceleration, and direction within the 3500 Machinery Protection System.

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 3500/50M module processes inputs from proximity probes or magnetic pickups to facilitate precise speed and rotor dynamics monitoring. Technicians configure the module via the 3500 Rack Configuration software to execute specific tasks, including speed band, zero speed, rotor acceleration, and reverse rotation alarming. Furthermore, the device supplies conditioned Keyphasor signals directly to the rack backplane, which eliminates the requirement for a dedicated Keyphasor module. The hardware also executes a peak hold function that captures and stores extreme speed or reverse rotation values, which operators can subsequently reset as required.

Frequently Asked Questions

Q: Does the 3500/50 module support hot-swapping during system operation?

A: Yes. The module design allows for removal or insertion into the 3500 rack while the rack remains under power. Always verify that the configuration software acknowledges the new hardware status to ensure continuous protective monitoring.

Q: Can this module provide Keyphasor signals to other modules?

A: Yes. The 3500/50M conditions input signals and routes them to the rack backplane, allowing other monitors to utilize the Keyphasor data without external wiring.

Field Installation Guidelines

• Mounting: Seat the module firmly into the designated 3500 rack slot until the backplane connectors engage securely. Tighten the front panel mounting screws to prevent potential vibration-induced disconnections.
• Wiring: Utilize shielded twisted-pair cabling for all transducer inputs to minimize electromagnetic interference. Furthermore, terminate all cable shields at the designated ground terminals on the I/O module to prevent ground loops.
• Signal Integrity: Avoid routing sensor signal cables in parallel with high-voltage AC power lines. Maintain the minimum separation distance defined by site safety standards to reduce inductive coupling.
• Verification: After physical installation, conduct a comprehensive loop check. This step confirms that the speed values reported by the rack interface software match the actual signal frequencies measured at the sensor interface.
