Description

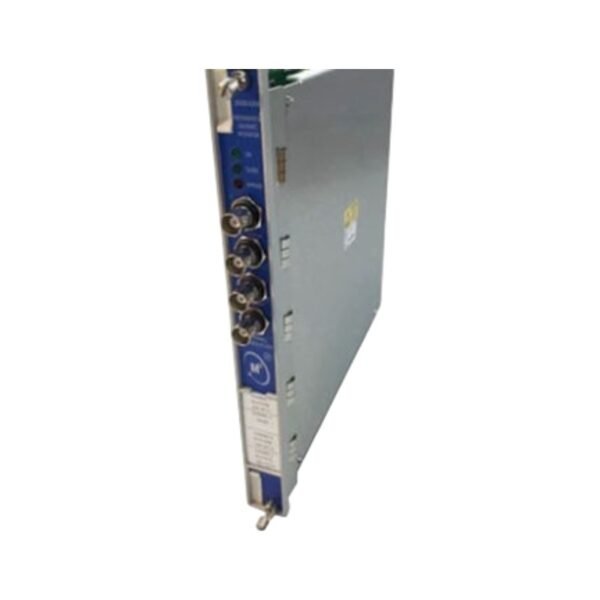

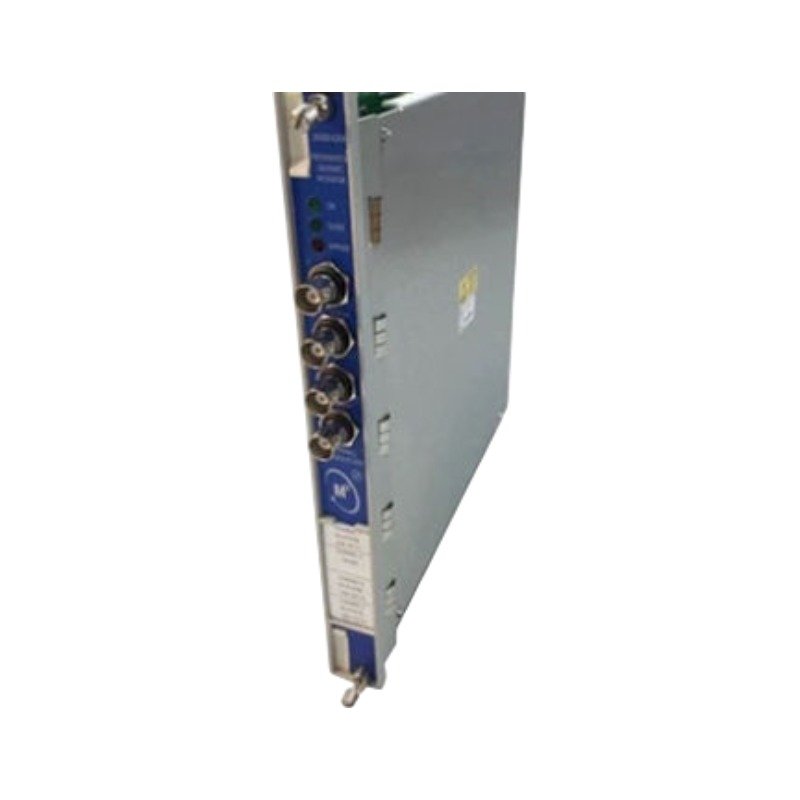

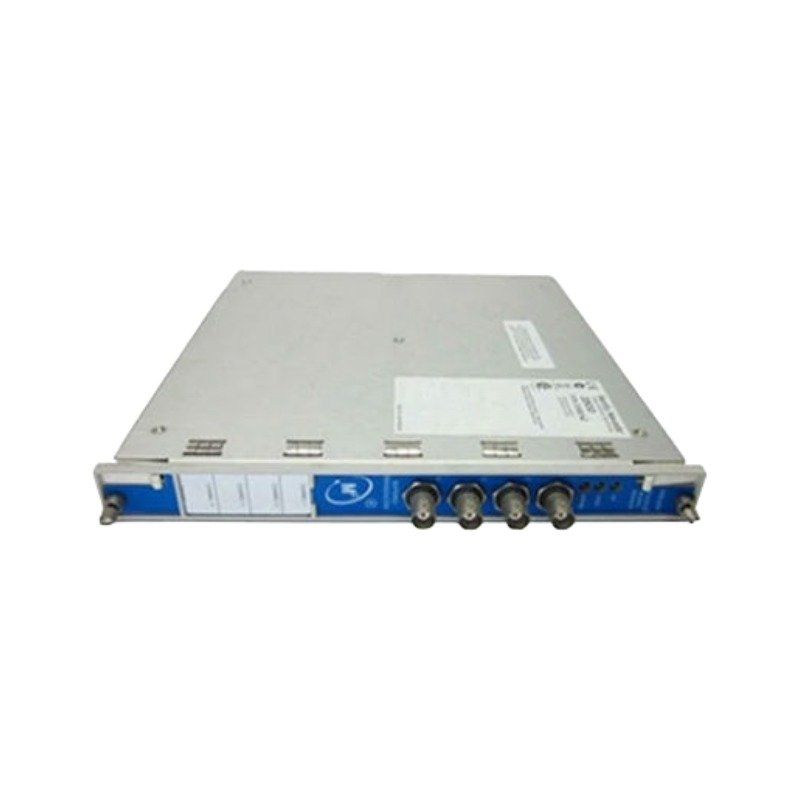

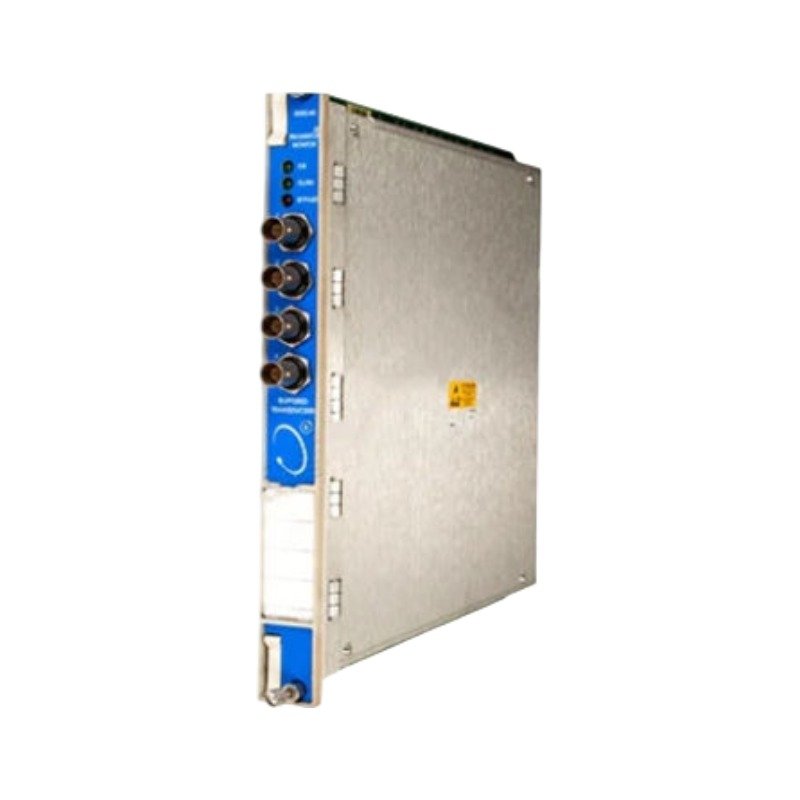

The Bently Nevada 3500/40 143488-01, also cataloged as the 3500/40 Proximitor Monitor Module, operates as a dedicated hardware component for proximity transducer signal acquisition and vibration measurement processing within the Bently Nevada 3500 Monitoring System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Interface

The Bently Nevada 3500/40 143488-01 Proximitor Monitor Module processes proximity transducer signals from eddy-current probe systems and converts field measurements into monitored vibration and position values. The module supports transducer scaling adjustment to match installed probe characteristics, including standard proximity measurement configurations used for shaft displacement monitoring.

The module architecture supports rotor dynamics monitoring by receiving up to four proximity transducer inputs and applying configured signal conditioning functions. The input stage maintains defined electrical characteristics through a 10 kΩ standard I/O impedance, allowing connection with compatible proximity measurement circuits.

The 3500/40 platform provides channel-level processing for direct vibration, gap, thrust, eccentricity, and related machinery measurement functions. Configuration parameters include transducer scale factor settings and gap voltage validation procedures for supported probe types.

Frequently Asked Questions

Q: How many proximity transducer inputs can the 143488-01 monitor?
A: The module accepts from 1 to 4 proximity transducer signals for configured monitoring channels.

Q: What is the typical power consumption of the 3500/40 143488-01 module?
A: The module has a typical power consumption of 7.7 W.

Q: What installation consideration applies when connecting proximity probe wiring?
A: Field signal wiring should be routed separately from high-current conductors, and cable shielding should be terminated according to the site grounding practice to reduce electrical interference.

Field Installation Guidelines

Install the 3500/40 143488-01 Proximitor Monitor Module into the assigned Bently Nevada 3500 rack slot with the rack power removed before insertion or removal.

Connect proximity transducer wiring according to the approved field wiring diagram. Maintain separation between probe signal cables and power switching cables to minimize electromagnetic coupling.

Verify connector engagement between the module and rack backplane before applying power. Confirm that transducer configuration parameters, including probe type and scale factor, match the installed field device characteristics before placing the channel into operation.

For shielded instrumentation cables, connect shields using the approved grounding method and avoid creating multiple grounding paths that may introduce measurement noise.
