Description

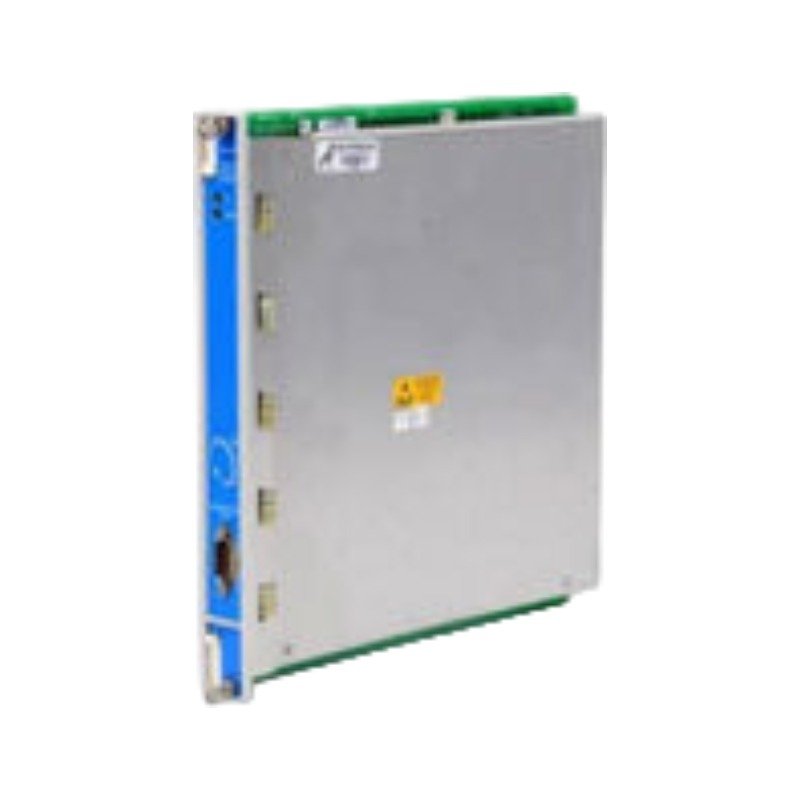

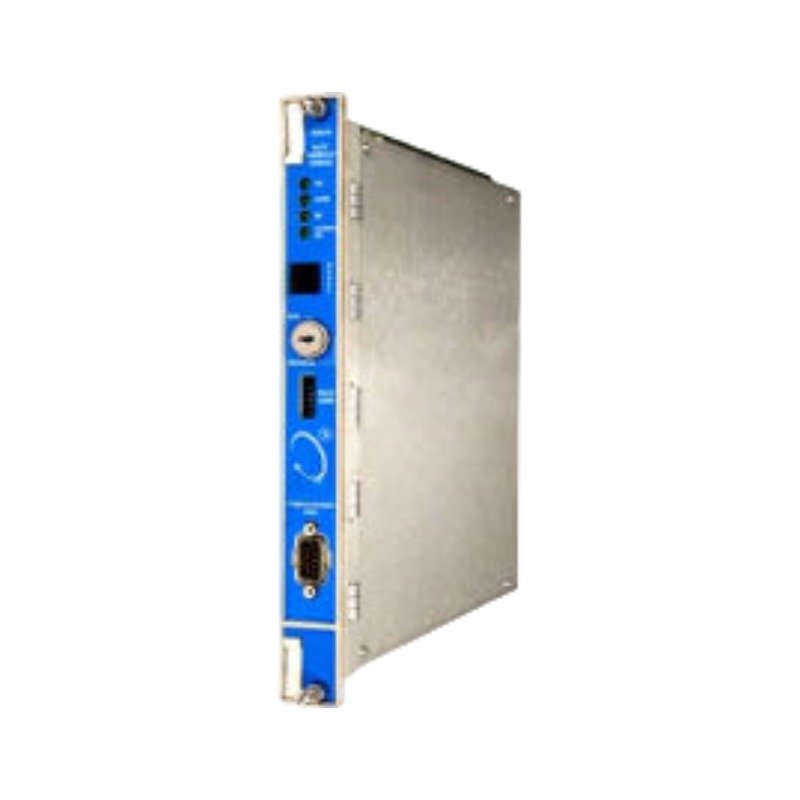

The Bently Nevada 3500/40 149716-01, also cataloged as the 3500/40 Proximitor Monitor Module, serves as the primary 3500/40 Proximitor Monitor Module utilized to execute proximity transducer signal processing and machinery vibration measurement across Bently Nevada 3500 Monitoring System platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Interface

The Bently Nevada 3500/40 149716-01 Proximitor Monitor Module directly receives proximity transducer signals and processes the measurement data inside the 3500 rack environment. The module performs signal conditioning for eddy-current probe applications and converts field input signals into monitored machinery parameters.

Furthermore, the module supports rotor dynamics monitoring by maintaining consistent signal processing for shaft vibration and position measurements. The module configuration defines the relationship between probe output characteristics and engineering measurement values, allowing the monitoring system to evaluate rotating equipment conditions.

The module also applies channel-level processing functions to maintain measurement separation and reduce interference effects between connected circuits. Therefore, correct probe installation, cable routing, and channel configuration directly affect measurement accuracy and system response.

Frequently Asked Questions

Q: What type of signals does the 3500/40 149716-01 process?
A: The module processes proximity transducer signals for vibration and position monitoring functions within the Bently Nevada 3500 Monitoring System.

Q: How does the module connect to the monitoring rack?
A: The module installs directly into a compatible 3500 rack slot and exchanges processed data through the rack backplane interface.

Q: What installation practices apply to proximity probe wiring?
A: Technicians should route proximity probe cables separately from high-current conductors, maintain proper shielding practices, and verify correct signal polarity before system operation.

Field Installation Guidelines

Install the Bently Nevada 3500/40 149716-01 Proximitor Monitor Module into the assigned rack position after removing rack power. Next, verify that the module connector aligns correctly with the backplane interface and confirm complete mechanical engagement.

Connect the proximity transducer wiring according to the approved system wiring diagram. In addition, separate instrumentation cables from power cables to minimize electromagnetic interference during signal transmission.

After installation, configure the channel parameters according to the connected probe characteristics. Finally, verify signal response, channel status, and monitoring values before placing the equipment into normal service.
