Description

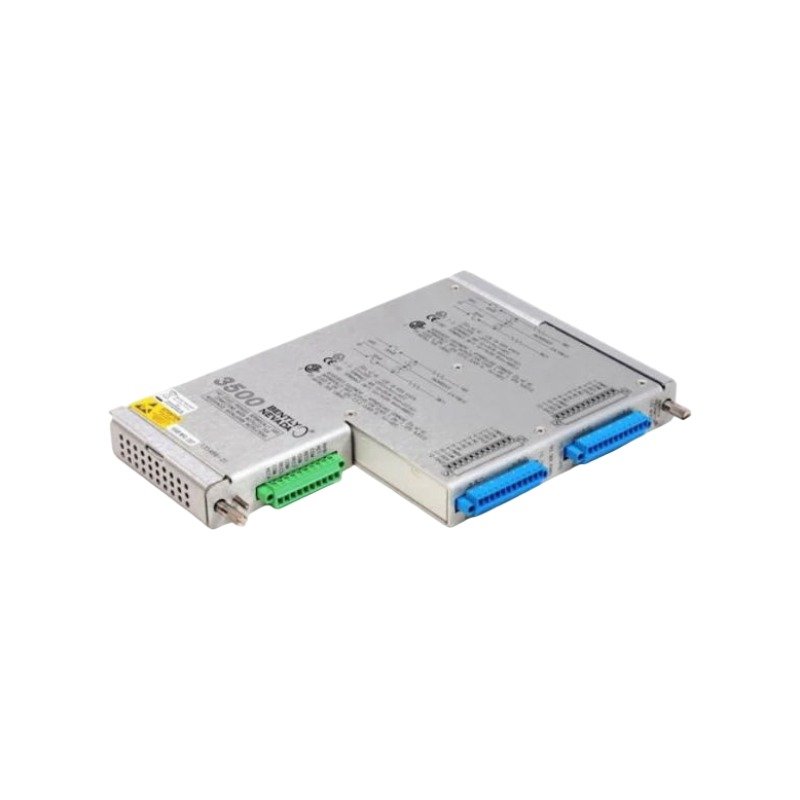

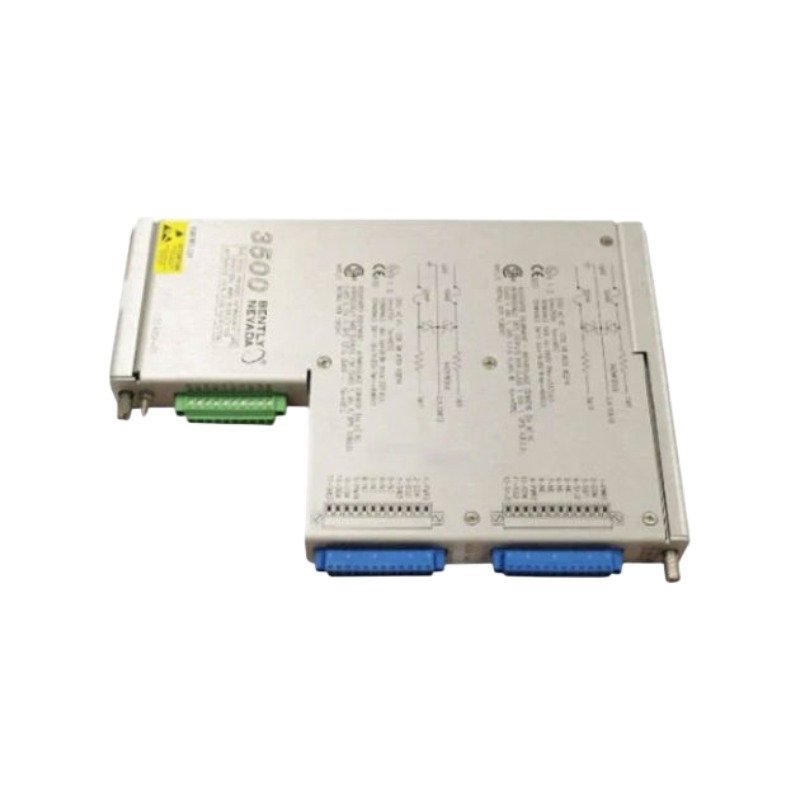

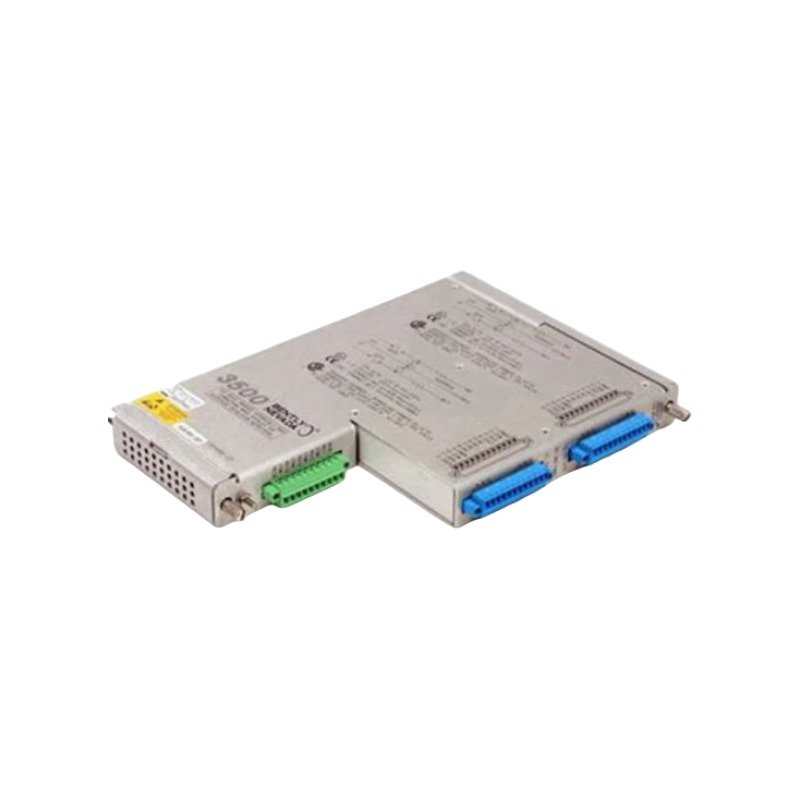

The Bently Nevada 3500/40 135489-04, also cataloged as the 3500/40 I/O Module, operates as a dedicated hardware component for vibration signal acquisition and channel-level electrical interface processing within the Bently Nevada 3500 Monitoring System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Interface

The Bently Nevada 3500/40 135489-04 I/O Module processes analog current input signals through a defined measurement interface for machinery monitoring applications. The module supports signal conditioning functions associated with eddy-current probe scaling, allowing vibration monitoring channels to maintain consistent electrical conversion characteristics.

The module operates within the 3500 rack architecture and transfers conditioned measurement data through the monitoring system backplane. The channel-to-ground isolation rating of 1500 V dc provides electrical separation between field signal circuits and internal rack references.

The module design supports rotor dynamics analysis by maintaining stable input characteristics for proximity-based measurement circuits. The input impedance greater than 100 kΩ reduces loading effects on connected signal sources, while over-voltage protection limits input stress during abnormal electrical conditions.

Frequently Asked Questions

Q: What rack power supply does the 3500/40 135489-04 require?
A: The module operates from a +24 V dc rack supply within the Bently Nevada 3500 monitoring rack.

Q: What type of input signal range is supported by this I/O Module?
A: The module supports a 0 – 20 mA full-scale input range with an input impedance greater than 100 kΩ.

Q: Does the module provide electrical isolation for field channels?
A: The module provides 1500 V dc channel-to-ground isolation for the connected signal interface.

Field Installation Guidelines

Install the 3500/40 135489-04 I/O Module into the designated Bently Nevada 3500 rack slot according to rack configuration requirements. Verify that the rack power supply is disconnected before module insertion or removal.

Route field wiring separately from high-voltage power conductors and high-current switching circuits to reduce electromagnetic interference. Use shielded signal cables where required by the measurement circuit, and terminate cable shields according to the site grounding practice.

Confirm that input wiring polarity matches the configured channel requirements before energizing the rack. Check the mechanical seating of the module connector and verify that the backplane connection is fully engaged after installation.
